Scanner Parts

{
Copy button
|
Scan to E-mail button
Removable
a
Document mat
Document
b
table
Transparency
a
unit window
a
Scanner cover
USB interface
USB interface
b
connector
connector
P
Power/
]
Start button
a
c
e
Status light
b
d
a Scan to PDF
button
Carriage
c
c
DC inlet
Film holder
Scanner Specifications
General
Scanner type
Photoelectric device
Effective pixels
Document size
Scanning resolution
Output resolution
Image data
Interface
Light source
Mechanical
Dimensions
Weight
7/07

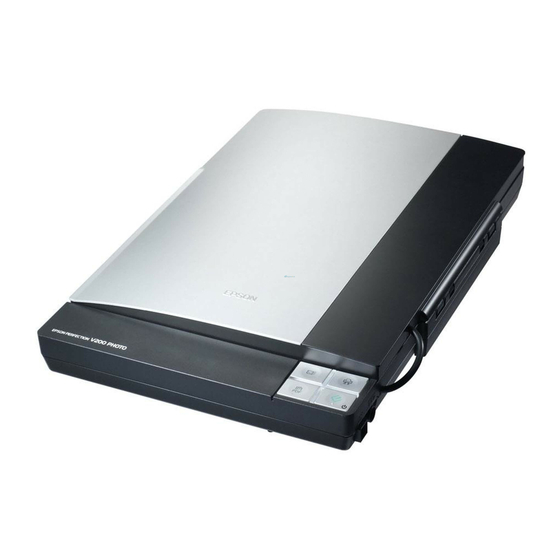

Epson Perfection V200 Photo
Flatbed color
Epson MatrixCCD
®
(12-line sensor)
40,800 × 56,160 pixels at 4800 dpi
Documents or photos:
8.5 × 11.7 inches (216 × 297 mm)
US letter or A4 size
Film or slides:
35mm film strips (6 frames at a time);
35mm slides (4 slides at a time)
4800 dpi (main scan)
9600 dpi with Micro Step Drive
(sub scan)
50 to 6400, 9600, and 12800 dpi
(50 to 6400 dpi in 1 dpi increments)
16 bits per pixel per color internal
16 bits per pixel per color external
One USB 2.0 Hi-Speed port
(USB 1.1 compatible)
White cold cathode fluorescent lamp
Width: 16.9 inches (430 mm)
Depth: 11 inches (280 mm)
Height: 2.2 inches (57 mm)
Approx. 5.7 lb (2.6 kg)
Epson Perfection V200 Photo - 1

Advertisement

Table of Contents
loading

Summary of Contents for Epson Perfection V200 Photo

  • Page 1: Scanner Parts

    16 bits per pixel per color external One USB 2.0 Hi-Speed port (USB 1.1 compatible) White cold cathode fluorescent lamp Width: 16.9 inches (430 mm) Depth: 11 inches (280 mm) Height: 2.2 inches (57 mm) Approx. 5.7 lb (2.6 kg) Epson Perfection V200 Photo - 1...
  • Page 2: Using The Scanner Buttons

    CAN/CSA-CEI/IEC CISPR 22 Class B Using the Scanner Buttons Before using the scanner buttons, make sure you have installed Epson Scan and the other software that came with the scanner. For details on using the buttons, see the on-screen User’s Guide. Button...
  • Page 3: Placing Large Or Thick Documents

    Placing Large or Thick Documents When you scan a large or thick document, you can open the scanner cover all the way, so that it lies flat behind the scanner. 1. Open the scanner cover. 2. Pull the scanner cover straight up.
  • Page 4: Placing Film Or Slides

    To scan film strips or slides, you need to remove the document mat from the scanner cover. This uncovers the transparency unit window so your scanner can use it to scan your film or slides. 1. Open the scanner cover and gently slide up the document mat to remove it.
  • Page 5: Placing Slides In The Holder

    3. Make sure you removed the document mat. See page 4. 4. Close the scanner cover. When you are finished scanning slides, be sure to replace the document mat before scanning documents or photos. See page 6. 7/07 Epson Perfection V200 Photo - 5...
  • Page 6: Storing The Film Holder

    Replacing the Document Mat Replace the document mat by sliding it into the notches in the scanner cover. Make sure the white surface faces outwards. 6 - Epson Perfection V200 Photo Scanning and Restoring Photos Using the feature in Epson Scan, you can...
  • Page 7: Removing Dust From Photos, Film, Or Slides

    If the Status light is still flashing: ❏ The scanner may be malfunctioning. ❏ The scanner lamp may need to be replaced. Contact Epson. See the on-screen User’s Guide for details. 7/07 Epson Perfection V200 Photo - 7 feature in Epson Scan’s Home...
  • Page 8: Transporting The Scanner

    1. If the carriage is not in the center position of the scanner, follow these steps. ❏ If the scanner is turned on and connected to your...
  • Page 9 Epson Perfection V200 Photo 7/07 Epson Perfection V200 Photo - 9...
