CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSC36QMS02
(Stainless Steel)
1
11−05 Litho In U.S.A. (mek)
Part No. 8214657

   Also See for KitchenAid KSSC36QMS02

   Related Manuals for KitchenAid KSSC36QMS02

   Summary of Contents for KitchenAid KSSC36QMS02

  • Page 1

    CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSC36QMS02 (Stainless Steel) 11−05 Litho In U.S.A. (mek) Part No. 8214657...

  • Page 2

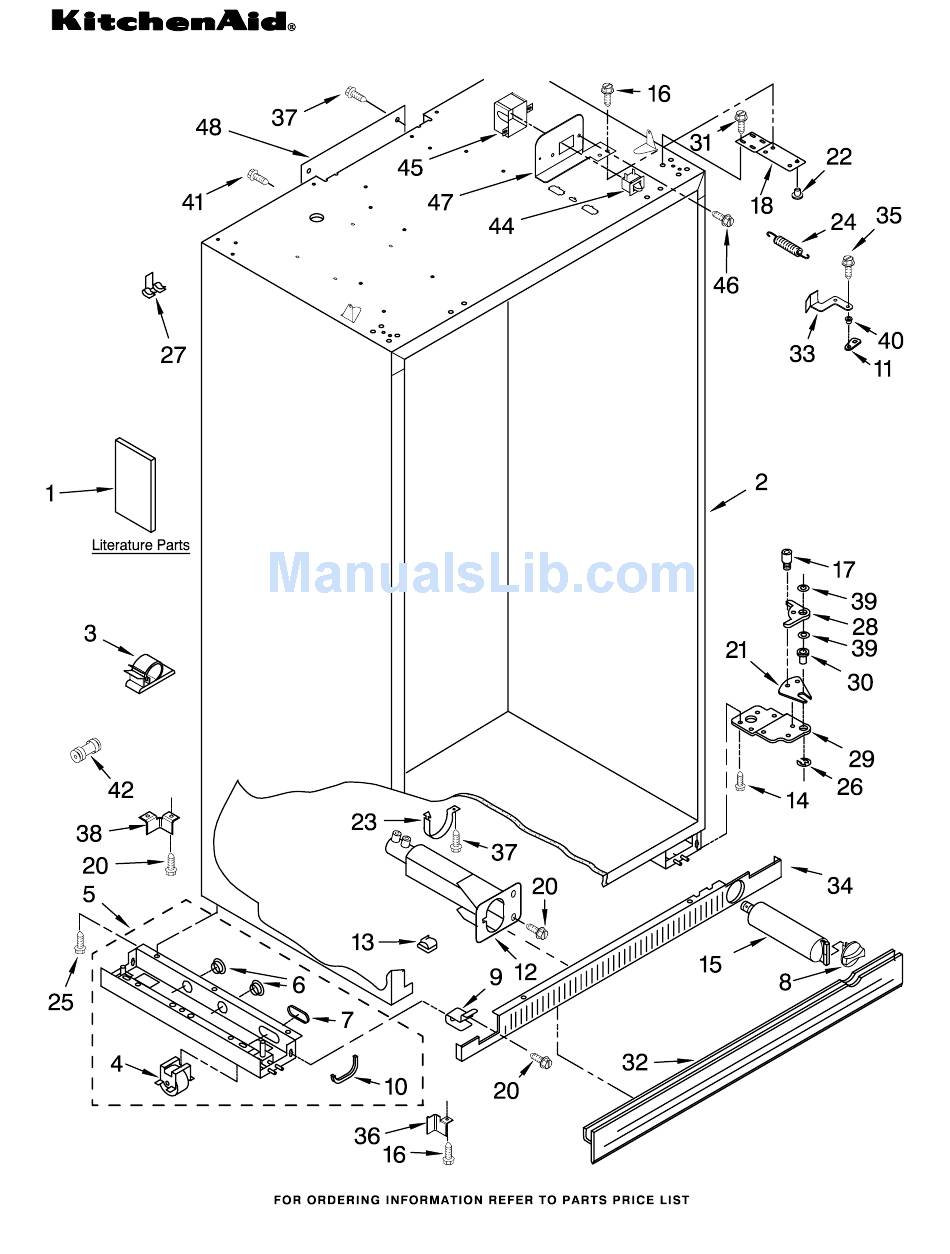

    CABINET PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2005004 Grommet, Crossover 8533913 Screw 1/4−20 x 5/8 2317086 Use & Care Guide Tube Skirt−Grille, 2307357 Energy Label 2005783 Cam, Door Closer Bottom 2306332 Service &...

  • Page 3

    CABINET TRIM PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552S Stainless Steel Screw 1163283 Stainless Steel 2254724 Cabinet, Trim (Bottom) 486194 Screw 2313991 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553S Stainless Steel 2005925 Seal−Trim, Side 489464 Screw 8214657...

  • Page 4

    FREEZER SHELF PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8214657...

  • Page 5

    REFRIGERATOR LINER PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 6

    REFRIGERATOR LINER PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2302987 Baffle, Control Assembly...

  • Page 7

    CONTROL PANEL PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 2302771 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2302727 Shield, Light 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center 2162085 Socket, Light 2255743 Light Bulb...

  • Page 8

    TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly 2257410S Stainless Steel 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly RC/FC Light Switch 2005292 Badge, Kitchen Aid 489348 Clamp 2004333 Nut...

  • Page 9

    REFRIGERATOR SHELF PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 10

    REFRIGERATOR SHELF PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257611 Trim, Glass Rear Side 2169935 Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side...

  • Page 11

    FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 12

    FREEZER LINER AND AIR FLOW PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215650 Cover, Emitter 2259385 Fan Motor 2187673 Harness, Evap Fan Liner (Not A 2198665 Tube, P.C. Board (Includes Item 55) Serviceable Part) 2169142 Fan Blade 2220241 Insulation (4)

  • Page 13

    MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 14

    MOTOR AND ICE CONTAINER PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 2222960 Ice Bin 2222959 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...

  • Page 15

    REFRIGERATOR DOOR PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 16

    REFRIGERATOR DOOR PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Skin, Door 2306155 Stainless Steel...

  • Page 17

    FREEZER DOOR PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 18

    FREEZER DOOR PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2252323B Black 2252354 Spacer 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Handle, Door 2005290 Stainless Steel 2309060 Spacer, Door−Skin (Handle Side) 2257637 Door, Spacer...

  • Page 19

    DISPENSER FRONT PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 20

    DISPENSER AND FRONT PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187755 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2256199 Spring, Torsion 2196195 Pin 2304355 Ice Door Mechanism 2180353 Door, Ice 489000 Screw Lever, Ice Dispenser...

  • Page 21

    UPPER UNIT PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 22

    UPPER UNIT PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2306957 Inverter Box 2155774 Wire Tie Following Parts Not Illustrated 489373 Screw, Compressor 2252363 Drier Mounting (4) and Optional Parts Not Included 2206036 Motor, Fan 2302967 Compressor 2190685 Blade, Fan (Includes Items...

  • Page 23

    LOWER UNIT AND TUBE PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 24

    LOWER UNIT AND TUBE PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part DESCRIPTION 9791833 Clip 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259352 Tube, Discharge 2306092 Evaporator 2306387 Heater, Defrost...

  • Page 25

    ICEMAKER PARTS For Model: KSSC36QMS02 (Stainless Steel) 8214657...

  • Page 26

    ICEMAKER PARTS For Model: KSSC36QMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2300104 Cover−Bottom, 626680 Module Assembly 2257538 Cover Electrical (Includes Items 2212351 Mold & Heater 2187622 Wire Assembly, 21 & 41) (Also Order Icemaker 2306081 Water Valve 542638 Silicone 628379 Clip, Fuse Mounting Bracket...
