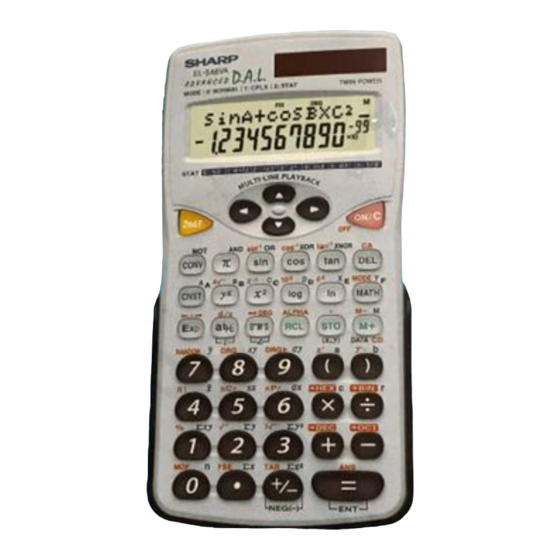

Sharp EL-546VA Operation Manual

Scientific calculator

Advertisement

Quick Links

ENGLISH
PRINTED IN CHINA / GEDRUCKT IN CHINA
01CUP (TINSZ0464EHZZ)
INTRODUCTION
About operation examples, please refer to the attached sheet.
Refer to the number on the right of each title for use.
After reading this manual, store it in a convenient location for future
reference.
Operational Notes
To ensure trouble-free operation, please observe the following
points:
1. Do not carry the calculator in the back pocket of slacks or
trousers.
2. Do not subject the calculator to extreme temperatures.
3. Do not drop it or apply excessive force.
4. Clean only with a soft, dry cloth.
5. Do not use or store the calculator where fluids can splash onto it.
Press the RESET switch only in the following cases:
• When using for the first time
• After replacing the batteries
• To clear all memory contents
• When an abnormal condition occurs and all keys are inopera-
tive.
If service should be required on this calculator, use only a SHARP
servicing dealer, SHARP approved service facility, or SHARP re-
pair service where available.
Hard Case
DISPLAY
Equation
Display
Mantissa
Exponent
(During actual use not all symbols are displayed at the same time.)
: Appears when the entire equation cannot be displayed.
/
Press
/
to see the remaining (hidden) section.
xy/r
: Indicates the mode of expression of results in the com-
plex calculation mode.
2ndF
: Appears when
is pressed, indicating that the func-
tions shown in orange are enabled.
ALPHA : Indicates that
or
(
pressed, and entry (recall) of memory contents and recall
of statistics can be performed.
FIX/SCI/ENG: Indicates the notation used to display a value and
changes each time
are pressed.
DEG/RAD/GRAD: Indicates angular units and changes each time
is pressed.
: Appears when statistics mode is selected.
STAT
M
: Indicates that a numerical value is stored in the inde-
pendent memory.
: Appears when the calculator shows an angle as the
result in the complex calculation mode.
i
: Indicates an imaginary number is being displayed in the
complex calculation mode.
BEFORE USING THE CALCULATOR
Key Notation Used in this Manual
In this manual, key operations are described as follows:
x
To specify
e
:
e
x
x
E
To specify E (HEX) : E
ln
To specify ln
:
To specify X
:
Functions that are printed in orange above the key require
be pressed first before the key. Numbers are not shown as keys,
but as ordinary numbers.
Power On and Off
Press
to turn the calculator on, and
to turn it off.
Clearing Methods
There are three clearing methods as follows:
Clearing
Entry
M
operation
(Display)
STAT, ANS*
RESET
: Clear
: Retain
1
*
Statistical data and last answer memory.
Refer to the Memory Calculations section.
Editing the Equation
• Press
or
to move the cursor. You can also return to
the equation after getting an answer by pressing
See below for Multi-line playback function.
• If you need to delete a number, move the cursor to the number
you wish to delete then press
.
The number under the cursor will be deleted.
• If you need to insert a number, move the cursor to the place
immediately after where you wish to insert the number then enter
the number.
Multi-line Playback function
This calculator is equipped with a function to recall previous equa-
tions. Equations also include calculation ending instructions such
as "=" and a maximum of 142 characters can be stored in memory.
When the memory is full, stored equations are deleted in the order
of the oldest first. Pressing
will display the previous equa-
tion. Further pressing
will display preceding equations (after
returning to the previous equation, press
to view equations
in order). In addition,
can be used to jump to the oldest
equation.
• The multi-line memory is cleared by the following operations:
, mode change, RESET, and N-base conversion.
In addition to the above, pressing
(including the
Automatic Power Off feature) will also clear the multi-line memory.
Priority Levels in Calculation
This calculator performs operations according to the following pri-
1 2
ority:
4
Functions preceded by their argument (x
-1
, x
2
, n!, etc.)
x
x
Y
,
Implied multiplication of a memory value (2Y, etc.)
7
8
Functions followed by their argument (sin, cos, etc.)
F
G
H
multiplication of a function (2sin30, etc.)
C
,
P
n
r
n
r
M, |DEG, |RAD,
AND
OR, XOR, XNOR
=, M+, M–,
|GRAD, DATA, CD,
r ,
xy and other calculation ending in-
struction
• If parentheses are used, parenthesized calculations have prec-
edence over any other calculations.
INITIAL SETUP
Mode Selection
Normal mode (NORMAL):
Used to perform arithmetic operations and function calculations.
Complex number mode (CPLX):
Used to perform arithmetic operations with complex numbers.
Statistic mode (STAT):
Used to perform statistical calculations.
When executing mode selection, temporary memories, statistical
data and last answer memory will be cleared even when reselecting
the same mode.
Selecting the Display Notation and Decimal Places
The calculator has four display notation systems for displaying
calculation results. When FIX, SCI, or ENG symbol is displayed,
the number of decimal places can be set to any value between 0
and 9. Displayed values will be reduced to the corresponding
number of digits.
100000÷3=
[Floating point]
100000
3
33333.33333
[FIXed decimal point]
33333.33333
[TAB set to 2]
2
33333.33
[SCIentific notation]
[ENGineering notation]
[Floating point]
33333.33333
• If the value for floating point system does not fit in the following
range, the calculator will display the result using scientific notation
system:
0.000000001
| x |
9999999999
Determination of the Angular Unit
This calculator has three angular units: DEG (°), RAD (Radians)
and GRAD (g).
Press
to specify the angular unit.
SCIENTIFIC CALCULATIONS
• Press
to select the normal mode.
• In each example, press
to clear the display. And if the FIX,
SCI, or ENG indicator is displayed, clear the indicator by press-
ing
.
Arithmetic Operations
• The closing parenthesis
just before
omitted.
Constant Calculations
• In the constant calculations, the addend becomes a constant.
Subtraction and division are performed in the same manner. For
multiplications, the multiplicand becomes a constant.
• When performing calculations using constants, constants will be
displayed as K.
Functions
• Refer to operation examples of each function.
• Before starting calculations, specify the angular unit.
Random Numbers
A pseudo-random number with three significant digits can be gen-
erated by pressing
dom number, press
. You can perform this function in the
normal and statistics modes. (You cannot perform this function
while you are using the N-Base function.)
• Random numbers use memory Y. Each random number is gen-
erated on the basis of the value stored in memory Y (pseudo-
random number series).
Angular Unit Conversions
Each time
are pressed, the angular unit changes in
sequence.
Memory Calculations
The calculator has six temporary memories (A-D, X and Y), one
independent memory (M) and one last answer memory (ANS).
Mode
ANS
Normal
Complex
Statistic
: Available
: Unavailable
Symbol
[Temporary memories (A-D, X and Y)]
A stored value can be recalled as a value or variable for the use in
equations.
• In case you store an infinite decimal in the memory, recall it as a
variable to obtain accurate answers.
Ex.) 1
3
3
3
[Independent memory (M)]
In addition to all the features of temporary memories, a value can
be added to or subtracted from an existing memory value.
[Last answer memory (ANS)]
The calculation result obtained by pressing
) has been
calculation ending instruction is automatically stored in the last
answer memory.
Note:
Calculation results from the functions indicated below are auto-
matically stored in memories X or Y. For this reason, when using
these functions, be careful with the use of memories X and Y.
Random numbers .................. Y memory
r ,
xy ............................... X memory (r or x),
Y memory ( or y)
Temporary memories and last answer memory are cleared even
when the same mode is reselected.
Chain Calculations
This calculator allows the previous calculation result to be used in
the following calculation.
The previous calculation result will not be recalled after entering
multiple instructions.
Fraction Calculations
This calculator performs arithmetic operations and memory calcu-
lations using a fraction, and conversion between a decimal number
and a fraction.
• In all cases, a total of up to 10 digits including integer, numera-
tor, denominator and the symbol (l) can be entered.
• If the number of digits to be displayed is greater than 10, the
number is converted to and displayed as a decimal number.
• A decimal number, variable, or exponent cannot be used in a
to
fraction.
Binary, Octal, Decimal, and Hexadecimal Operations
(N-Base)
This calculator can perform conversions between numbers ex-
pressed in binary, octal, decimal and hexadecimal systems. It can
also perform the four basic arithmetic operations, calculations with
parentheses and memory calculations using binary, octal, decimal,
and hexadecimal numbers. In addition, the calculator can carry out
A-D, X,Y
the logical operations AND, OR, NOT, NEG, XOR and XNOR on
1
binary, octal and hexadecimal numbers.
Conversion to each system is performed by the following keys:
: Converts to the binary system. " " appears.
: Converts to the octal system. " " appears.
: Converts to the hexadecimal system. " " appears.
: Converts to the decimal system. " ", " ", and " "
disappear from the display.
Conversion is performed on the displayed value when these keys
are pressed.
(
).
Note: In this calculator, the hexadecimal numbers A – F are entered
by pressing
,
,
and displayed as follows:
A
, B
, C
, D
, E
In the binary, octal, and hexadecimal systems, fractional parts
cannot be entered. When a decimal number having a fractional
part is converted into a binary, octal, or hexadecimal number, the
(1)
fractional part will be truncated. Likewise, when the result of a
binary, octal, or hexadecimal calculation includes a fractional part,
the fractional part will be truncated. In the binary, octal, and hexa-
decimal systems, negative numbers are displayed as a comple-
ment.
Time, Decimal and Sexagesimal Calculations
Conversion between decimal and sexagesimal numbers can be
performed. In addition, the four basic arithmetic operations and
memory calculations can be carried out using the sexagesimal
system.
Coordinate Conversions
• Before performing a calculation, select the angular unit.
Y
P (x,y )
y
3
5
X
0
0
x
6
Rectangular coord.
Polar coord.
9
Implied
• Refer to the Note of the Memory Calculations section.
, ÷
+, –
Calculations Using Physical Constants
See the quick reference card and the other side of the "Operation
Examples" sheet.
A constant is recalled by pressing
the physical constant. You have to designate the physical constant
using 2-digit numbers. For example, speed of light in vacuum
should be designated as "01".
The recalled constant appears in the display mode selected with
the designated number of decimal places.
Physical constants can be recalled in the normal mode (when not
set to binary, octal, or hexadecimal) or statistics mode.
Note: Physical constants and metric conversions are based either
on the 1986 values released by the Committee on Data for
Science and Technology (CODATA) of ICSU (International
Council of Scientific Unions) or on ISO specifications.
Metric Conversions
See the quick reference card and the other side of the "Operation
Examples" sheet.
Unit conversions can be performed in the normal (when not set to
binary, octal, or hexadecimal) and statistics modes.
Modify Function
In this calculator, all calculation results are internally obtained in
scientific notation with up to 12 digits for the mantissa. However,
since calculation results are displayed in the form designated by
the display notation and the number of decimal places indicated,
the internal calculation result may differ from that shown in the
display. By using the modify function, the internal value is con-
verted to match that of the display, so that the displayed value can
3.33 10
4
be used without change in subsequent operations.
3
33.33 10
COMPLEX NUMBER CALCULATIONS
To carry out addition, subtraction, multiplication, and division using
complex numbers, press
number mode.
There are two modes of expression of the results of complex
number calculations.
1
Rectangular coordinate mode. (xy appears on the display.)
2
Polar coordinate mode. ( r appears on the display.)
Complex number entry
1
(2)
Rectangular coordinates
or
may be
x-coordinate
2
or x-coordinate
Polar coordinates
(3)
r
r: absolute value
: argument
• Upon changing to another mode, the imaginary portion of any
complex number stored in the independent memory (M) will be
cleared.
(4)
• A complex number expressed in rectangular coordinates with
the y-value equal to zero, or expressed in polar coordinates with
the angle equal to zero, is treated as a real number.
STATISTICAL CALCULATIONS
. To generate the next ran-
Statistical calculations are performed in the statistics mode. Press
to select the statistics mode. This calculator per-
forms the seven statistical calculations indicated below. After se-
lecting the statistics mode, select the desired sub-mode by press-
ing the number key corresponding to your choice.
When changing to the statistical sub-mode, press the correspond-
ing number key after performing the operation to select the statis-
tics mode (press
(5)
(STAT 0) : Single-variable statistics
(STAT 1) : Linear regression calculation
(STAT 2) : Quadratic regression calculation
(6)
(STAT 3) : Exponential regression calculation
(STAT 4) : Logarithmic regression calculation
(STAT 5) : Power regression calculation
M
A-D, X,Y
(STAT 6) : Inverse regression calculation
The following statistics can be obtained for each statistical calcula-
tion (refer to the table below):
Single-variable statistical calculation
1
Statistics of
and value of the normal probability function
Linear regression calculation
1
Statistics of
and
(estimate y´) and estimate of x for a given y (estimate x´)
Exponential regression, Logarithmic regression,
Power regression, and Inverse regression calculation
1
Statistics of
and
(0.3333...is stored to Y)
estimate of x for a given y. (Since the calculator converts each
0.999999999
formula into a linear regression formula before actual calculation
takes place, it obtains all statistics, except coefficients a and b,
1.
from converted data rather than entered data.)
Quadratic regression calculation
1
Statistics of
and
regression formula (y = a + bx + cx
calculations, no correlation coefficient (r) can be obtained.) When
or any other
there are two x´ values, press
When performing calculations using a, b and c, only one numeric
value can be held.
Mean of samples (x data)
x
1
sx
Sample standard deviation (x data)
x
Population standard deviation (x data)
n
Number of samples
x
Sum of samples (x data)
2
x
Sum of squares of samples (x data)
y
Means of samples (y data)
Sample standard deviation (y data)
sy
y
Population standard deviation (y data)
(7)
Sum of samples (y data)
2
y
y
2
Sum of squares of samples (y data)
xy
Sum of products of samples (x, y)
r
Correlation coefficient
a
Coefficient of regression equation
(8)
b
Coefficient of regression equation
c
Coefficient of quadratic regression equation
Entered data are kept in memory until
are pressed. Before entering new data, clear the memory
contents.
[Data Entry]
Single-variable data
Data
Data
frequency
data)
Two-variable data
(9)
Data x
Data y
Data x
Data y
of the same data x and y.)
[Data Correction]
Correction prior to pressing
Delete incorrect data with
Correction after pressing
The inputted statistical data can be traced back by pressing
. Display the data to correct, press
then input the correct value.
Statistical Calculation Formulas
Refer also to the operation examples sheets.
Type
Linear
y = a + bx
Exponential
y = a • e
Logarithmic
y = a + b • ln x
Power
y = a • x
,
,
, and
,
Inverse
y = a + b —
, F
Quadratic
y = a + bx + cx
In the statistical calculation formulas, an error will occur when:
• the absolute value of the intermediate result or calculation result
is equal to or greater than 1
• the denominator is zero.
• an attempt is made to take the square root of a negative number.
• no solution exists in the quadratic regression calculation.
Normal Probability Calculations
Refer also to the operation examples sheet.
(10)
• P(t), Q(t), and R(t) will always take positive values, even when
t<0, because these functions follow the same principle used
when solving for an area.
Values for P(t), Q(t), and R(t) are given to six decimal places.
(11)
ERROR AND CALCULATION RANGES
Errors
Y
P (r, )
r
An error will occur if an operation exceeds the calculation ranges,
or if a mathematically illegal operation is attempted. When an error
X
occurs, pressing
back to the place in the equation where the error occurred. Edit the
equation or press
Error Codes and Error Types
(12)
Syntax error (Error 1):
• An attempt was made to perform an invalid operation.
followed by the number of
Ex. 2
Calculation error (Error 2):
• The absolute value of an intermediate or final calculation result equals
or exceeds 10
100
.
• An attempt was made to divide by 0.
• The calculation ranges were exceeded while performing calculations.
Depth error (Error 3):
• The available number of buffers was exceeded. (There are 8 buffers*
for numeric values and 16 buffers for calculation instructions). *4
buffers in STAT and the complex number mode.
Equation too long (Error 4):
• The equation exceeded its maximum input buffer (142 characters).
An equation must be shorter than 142 characters.
Calculation Ranges
(13)
Refer also to the operation examples sheet.
• Within the ranges specified, this calculator is accurate to ±1 in
the least significant digit of the mantissa. When performing con-
tinuous calculations (including chain calculations), errors accu-
mulate leading to reduced accuracy.
• Calculation ranges
(14)
-99
±10
– ±9.999999999 10
If the absolute value of an entry or a final or intermediate result of a
calculation is less than 10
calculations and in the display.
(15)
BATTERY REPLACEMENT
Notes on Battery Replacement
to select the complex
Improper handling of batteries can cause electrolyte leakage or
explosion. Be sure to observe the following handling rules:
• Replace both batteries at the same time.
• Do not mix new and old batteries.
• Make sure the new batteries are the correct type.
• When installing, orient each battery properly as indicated in the
calculator.
When to Replace the Batteries
If the display has poor contrast or nothing appears on the display
even when
y-coordinate
batteries.
y-coordinate
Caution
• Keep batteries out of the reach of children.
• Exhausted batteries left in the calculator may leak and damage
the calculator.
• Explosion risk may be caused by incorrect handling.
• Batteries must be replaced only with others of the same type.
• Do not throw batteries into a fire as they may explode.
Replacement Procedure
1. Turn the power off by pressing
2. Remove two screws. (Fig. 1)
3. Slide the battery cover slightly and lift it to remove.
4. Remove the used batteries by prying them with a ball-point pen
or other similar pointed device. (Fig. 2)
5. Install two new batteries. Make sure the "+" side facing up.
6. Replace the cover and screws.
7. Press the RESET switch (on the back).
• Make sure that the display appears as shown below. If the
display does not appear as shown, remove the batteries reinstall
them and check the display once again.
).
Automatic Power Off Function
(16)
This calculator will turn itself off to save battery power if no key is
pressed for approximately 10 minutes.
(17)
2
and, in addition, estimate of y for a given x
SPECIFICATIONS
Calculations:
2
Internal calculations:
. In addition, estimate of y for a given x and
Pending operations:
Power source:
(18)
2
and coefficients a, b, c in the quadratic
Operating temperature: 0°C – 40°C (32°F – 104°F)
2
). (For quadratic regression
External dimensions:
.
Weight:
Accessories:
FOR MORE INFORMATION ABOUT THIS
CALCULATOR
Visit our Web site.
http://sharp-world.com/calculator/
or
(To enter multiples of the same
frequency
(To enter multiples
:
.
:
to delete,
(19)
Regression formula
bx
b
1
x
2
10
100
.
(16) (20)
(or
) automatically moves the cursor
to clear the equation.
5
(21)
99
and 0.
–99
, the value is considered to be 0 in
is pressed in dim lighting, it is time to replace the
.
(Fig. 1)
(Fig. 2)
Scientific calculations, complex number
calculations, statistical calculations, etc.
Mantissas of up to 12 digits
16 calculations 8 numeric values
(4 numeric values in STAT and complex
number mode)
Built-in solar cells
3V
(DC):
Backup batteries (Alkaline batteries (LR44)
2)
78.6 mm (W) 152 mm (D) 10.5 mm (H)
3-3/32" (W)
5-31/32" (D)
13/32" (H)
Approx. 78g (0.172 lb)
(Including batteries)
Batteries
2 (installed), operation
manual, operation examples sheet, quick
reference card (Physical Constants and
Metric Conversions) and hard case

Advertisement

loading
