JVC KD-DV4201 Instructions Manual

Dvd/cd receiver

Advertisement

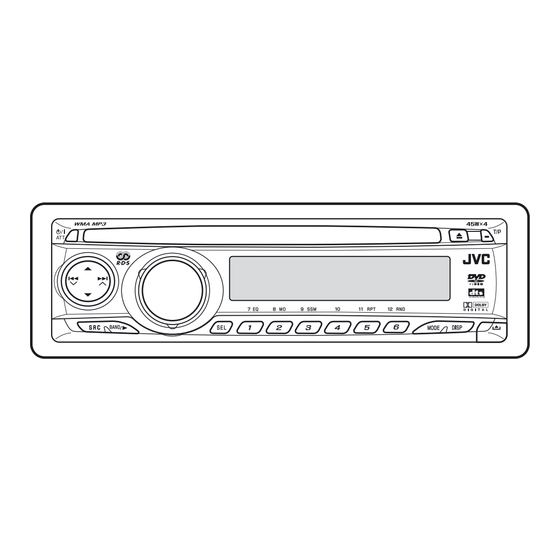

DVD/CD RECEIVER
KD-DV4202/KD-DV4201
For canceling the display demonstration, see page 5.
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0372-003A
[EU]

Advertisement

Table of Contents
loading

Summary of Contents for JVC KD-DV4201

  • Page 1 DVD/CD RECEIVER KD-DV4202/KD-DV4201 For canceling the display demonstration, see page 5. For installation and connections, refer to the separate manual. INSTRUCTIONS GET0372-003A [EU]...
  • Page 2 CAUTION: CAUTION: 5 ∞ • Your preset adjustments will also be erased. Detaching... • If this does not work, reset your unit. Attaching... • Be careful not to drop the disc when it ejects.
  • Page 3 CONTENTS OPERATIONS EXTERNAL DEVICES SETTINGS • Do not raise the volume level too much, as this will block outside sounds, making driving dangerous. • Stop the car before performing any complicated operations. If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
  • Page 4 Introduction Disc type Playable Unplayable • It is possible to play back finalized +R/+RW (Video mode only) discs. However, the use of +R double layer disc on this unit is not recommended. * DVD-R recorded in multi-border format is also playable (except for dual layer discs). Caution for DualDisc playback Note on Region Code: The Non-DVD side of a “DualDisc”...
  • Page 5 Ÿ ⁄...
  • Page 6: Basic Operations

    Basic operations — Control panel Also functions as +10/–10 buttons after pressing MODE to skip 10 chapters/tracks at a time. [Hold] Hold to enter RDS programme search. Hold to enter the PSM settings. Press MODE, then one of the following buttons (within ) = (back to the beginning) * (or 5 seconds)...
  • Page 7 Display window Track information indicators Playback mode/item indicators (Random/Repeat) Playback source indicators Equalizer indicator Disc type indicators Loudness indicator Sound mode indicators Track indicator Main display RDS indicators (Time, menu, playback information) Tuner reception indicators Source display/Preset No./Track No./ Folder No./Disc No./Chapter No./ Channel No.
  • Page 8 For FM/AM tuner operations: 5 ∞ 4 ¢ For DAB tuner operations: 5 ∞ 4 ¢ For iPod/D. player operations: 5 ∞ ∞ 5 ∞ 4 ¢ MONITOR CONTROL 4 ¢ ∞ DVD/RECEIVER CONTROL * Functions as number buttons when pressed q* For advanced disc operations: with SHIFT button.
  • Page 9: Listening To The Radio

    Listening to the radio Ÿ When an FM stereo broadcast is hard to receive Manual presetting FM station automatic presetting —SSM (Strong-station Sequential Memory) OPERATIONS...
  • Page 10 Searching for FM RDS programme — PTY search Storing your favorite programme types Ÿ Select a PTY code (see left column). Select a preset number. Repeat steps 1 and 2 for storing other Preset PTY codes in the number buttons PTY codes.
  • Page 11 Activating/deactivating TA/PTY Standby Reception Tracing the same programme—Network-Tracking Reception To change the Network-Tracking Reception setting, Automatic station selection—Programme Search OPERATIONS...
  • Page 12: Disc Operations

    Disc operations Before performing any operations... Insert disc. Eject disc. Playback starts automatically with most of the discs. Start playback if necessary. Change the display information Prohibiting disc ejection To cancel the prohibition, * If the file does not have Tag information or “TAG DISP”...
  • Page 13 Operations using the control panel Disc type (Number buttons) Press: Select chapter During stop: Locate title Hold: Reverse /fast-forward — During play/pause: Locate chapter chapter Press: Select track Locate particular track directly Hold: Reverse /fast-forward — (PBC not in use) track Select track Select folder...
  • Page 14 Operations using the remote controller—RM-RK230 Press Hold Using menu driven features... To enlarge the view (Zoom in)... ZOOM While holding ...* ZOOM OFF Canceling the PBC playback... Press To enlarge the view (Zoom in)... ZOOM Hold While holding ...* ZOOM OFF...
  • Page 15 : Stop play : Stop play : Pause : Pause : Start play (Playback starts from the beginning of : Start play the track.) : Reverse/forward track search : Select tracks : Press: Select tracks : Select folder Hold: Reverse/fast-forward track search While holding ...* While holding...
  • Page 16 On-screen bar Information Operation 1 Disc type 2 DVD/DTS audio CD: Audio signal format type VCD: PBC Repeat play* 3 Playback information Current title/chapter Current track (PBC not in use) 4 Time indication Repeat play* Elapsed playing time of the disc (For DVD, elapsed playing time of the current title.) Random play* DVD: Remaining title time...
  • Page 17 Operations using the control/list screen (MP3/WMA/CD) These operations are possible on the monitor using the remote controller. • Folder selection/information is only for MP3/WMA discs. Control screen Folder/track list screen The control screen automatically appears when Before playing, you can display the folder you insert a disc.
  • Page 18: Listening To The Cd Changer

    Listening to the CD changer Change the display information (see page 12) Select “CD-CH.” Ÿ Select a disc to start playing. Press: Select track Hold: Reverse/fast-forward track Skip 10 tracks (MP3: within the same folder) MP3: Select folders TRK RPT: Repeat current track FLDR RPT: MP3: Repeat all tracks of current folder DISC RPT: Repeat all tracks of the...
  • Page 19: Listening To The Dab Tuner

    Listening to the DAB tuner Ÿ ⁄ Storing DAB services in memory Tracing the same programme—Alternative Frequency Reception While receiving a DAB service: While receiving an FM RDS station: Activating/deactivating TA/PTY Standby Reception To deactivate the Alternative Frequency Reception, EXTERNAL DEVICES...
  • Page 20 Listening to the iPod®/D. player Change the display information 4 ¢ Preparations: Pause/stop playback • To resume playback, press it again. Select “IPOD” or “D. PLAYER.” Ÿ Press: Select tracks Select a song to start playing. Hold: Reverse/fast-forward track Selecting a track from the menu Enter the main menu.
  • Page 21: Listening To The Other External Components

    Listening to the other external components Preparations: Ÿ ⁄ Concept diagram of the external device connection EXTERNAL DEVICES...
  • Page 22 Selecting a preset sound mode — C-EQ Ÿ Adjusting the sound Adjust the level.
  • Page 23 General settings — PSM You can change PSM (Preferred Setting Mode) Select or adjust the selected PSM item. items listed in the table that follows. Enter the PSM settings. Repeat steps 2 and 3 to adjust other PSM items if necessary. Select a PSM item.
  • Page 25: Dvd Setup Menu

    DVD setup menu These operations are possible on the monitor using the remote controller. Enter the DVD setup menu while stop. Ÿ Select a menu. Select an item you want to set ⁄ Select an option. To return to normal screen Menu Item Setting...
  • Page 26 Menu Item Setting DIGITAL AUDIO OUTPUT PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM DOWN MIX DOLBY SURROUND STEREO D. RANGE COMPRESSION AUTO Output signals through the DIGITAL OUT terminal Output signals are different depending on the “DIGITAL AUDIO OUTPUT” setting on the setup menu (see above).
  • Page 27 Language codes SETTINGS...
  • Page 28 Maintenance How to clean the connectors To keep discs clean To play new discs Moisture condensation Do not use the following discs: How to handle discs When removing a disc from its case, When storing a disc into its case,...
  • Page 29: More About This Unit

    More about this unit General Turning on the power Disc General Turning off the power FM/AM/RDS Storing stations in memory Inserting a disc Ejecting a disc FM RDS operations Playing a Recordable/Rewritable disc Continued on the next page...
  • Page 30 Playing an MP3/WMA disc Notice: For iPod users: For D. player users: General settings—PSM DVD setup menu Changing the source iPod® or D. player...
  • Page 31: Troubleshooting

    On-screen guide icons About sounds reproduced through the rear terminals Through the analog terminals (Speaker out/LINE OUT): Through DIGITAL OUT (optical): Troubleshooting Symptom Remedy/Cause Continued on the next page...
  • Page 32 Symptom Remedy/Cause...
  • Page 33 Symptom Remedy/Cause...
  • Page 34 Specifications...
  • Page 35 Design and specifications are subject to change without notice.
  • Page 36 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit EN, FR 1205DTSMDTJEIN © 2005 Victor Company of Japan, Limited...
