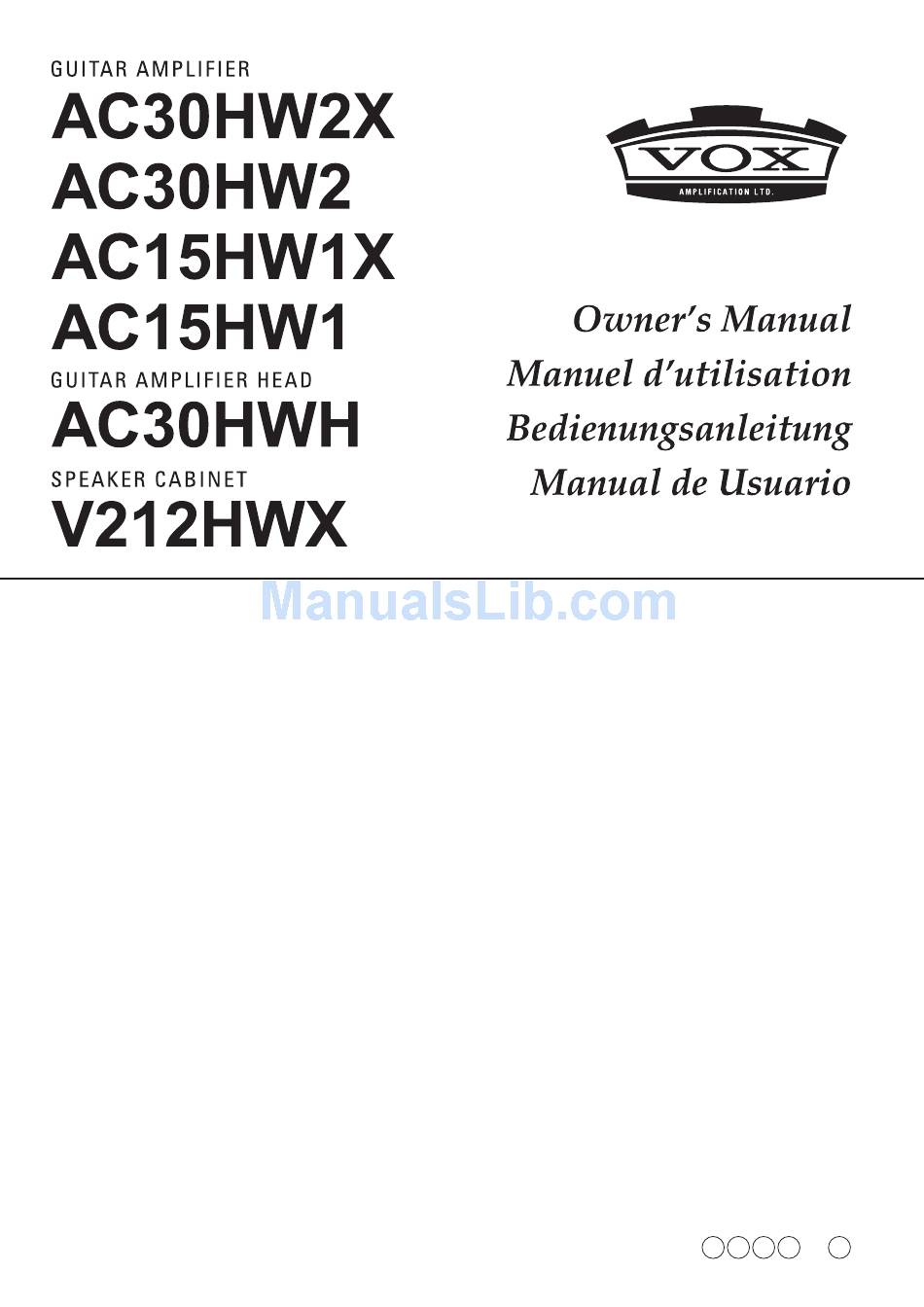

Summary of Contents for Vox AC15HW1X

  • Page 2 English ................3 Français ................10 Deutsch ................16 Español ................22...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Mains powered apparatus shall not be exposed to dripping or • splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 VOX sound you’d expect. In half power, the high end is mellowed slightly giving you a whole load of new tonal characteristics to explore. We believe this to be one of the most sonically versatile Hand Wired VOX amplifiers to date, and is well on the way to joining its Grandfathers in the VOX hall of fame.
  • Page 6: Front Panel

    OPERATION MANUAL Front Panel NORMAL channel INPUT Jack Sockets Guitar input jacks for the NORMAL channel. The ‘HIGH’ input will give you more gain and output volume whereas the ‘LOW’ input will be quieter and have more clean headroom. VOLUME control This controls the NORMAL Channel pre-amp volume.
  • Page 7: Rear Panel

    NOTE! When in HOT mode the tone controls still affect the sound slightly. MASTER TONE CUT Control This circuit is placed in the power amp as opposed to the pre-amp section like the TREBLE and BASS controls. What this does is the opposite of what you may expect. Turning it clockwise will decrease the higher frequencies.
  • Page 8: Foot Switch Jack

    NOTE! It is recommended that all audio cables (with the exception of the speaker lead), used to con- nect to the AC30HW/AC15HW are of a high quality, screened type. These should not exceed 10 metres in length. Always use a non-screened VOX approved speaker lead with the AC30HW/AC15HW Amplifier and extension cabinets.
  • Page 9: Specification

    Specification AC30HW2X: (W x D x H) Dimensions 705 x 260 x 550 mm / 27.76 x 10.24 x 21.65 inches • Weight 32 kg / 70.6lbs. • Output Power 30 Watts RMS into 8/16 Ohms • Tube Complement 3 x ECC83/12AX7, 4 x EL84, 1 x GZ34 (rectifier) •...
  • Page 10 INFORMATIONS IMPORTANTES DE SECURITE Lisez attentivement ces instructions. • Veuillez conserver ces instructions. • Observez tous les avertissements. • Suivez toutes les consignes à la lettre. • N’utilisez jamais cet appareil dans un endroit humide ni à • proximité d’eau. L’appareil alimenté...
  • Page 11 BASS, il a quelque chose de plus… CHAUD… Le mode COOL correspond au VOX classique alors que le mode HOT est un peu différent. En mode HOT, le canal TOP BOOST est reconfiguré pour dégager l’acheminement du signal et délivrer ainsi plus de gain…...
  • Page 12: Panneau Avant

    MODE D’EMPLOI Panneau avant Canal NORMAL Prises INPUT Prises d’entrée de guitare pour le canal NORMAL. L’entrée “HIGH” génère plus de gain et un niveau de sortie plus élevé tandis que l’entrée “LOW” a un niveau plus bas et une réserve de son clair plus impor- tante.
  • Page 13: Panneau Arrière

    nées pour dégager la voie du signal et délivrer un gain plus important. Ce mode peut être activé du pied, ce qui est idéal pour un passage en force du solo! ATTENTION: En mode HOT, les commandes de tonalité gardent une légère influence sur le son. MASTER Commande TONE CUT Ce circuit fait partie de l’ampli de puissance et non de l’étage du préampli dont relèvent les commandes...
  • Page 14 ATTENTION: Tous les câbles audio, à l’exception du câble d’enceinte, utilisés avec l’AC30HW/AC15HW doivent de préférence être de bonne qualité et blindés. Ils ne peuvent excéder 10 mètres de longueur. Servez-vous toujours d’un câble d’enceinte non blindé approuvé par VOX pour relier l’ampli AC30HW/ AC15HW et les enceintes d’extension.
  • Page 15: Fiche Technique

    Fiche technique AC30HW2X: Dimensions (L x P x H) 705 x 260 x 550mm • Poids 32,0kg • Puissance de sortie 30W RMS sous 8/16Ω • Lampes 3 x ECC83/12AX7, 4 x EL84, 1 x GZ34 (redresseur) • Haut-parleurs Celestion Alnico Blue 2x12” 8Ω •...
  • Page 16: Wichtige Sicherheitshinweise

    WICHTIGE SICHERHEITSHINWEISE Bitte lesen Sie sich alle Bedienhinweise durch. • Bewahren Sie diese Bedienhinweise auf. • Beachten Sie alle Warnungen. • Befolgen Sie alle Instruktionen. • Verwenden Sie dieses Gerät niemals in der Nähe von Wasser. • Ein netzgespeistes Gerät darf niemals Regen- oder •...
  • Page 17 Ferner gibt es einen OP MODE-Schalter, mit dem die Ausgangsleistung halbiert werden kann. Bei norma- ler Leistung klingt Ihr Amp, wie Sie es bei einem VOX voraussetzen. Bei halbierter Leistung ist der Sound dagegen runder—und wartet mit neuen Klangalternativen auf.
  • Page 18 BEDIENUNGSANLEITUNG Bedienfeld ‘NORMAL’-Kanal INPUT-Buchsen Gitarreneingänge für den „NORMAL“-Kanal. Die HIGH-Buchse hebt den Eingangspegel stärker an, so dass das Signal lauter wird. Der LOW-Eingang ist leiser und bietet daher eine höhere „Clean“ Reserve. VOLUME-Regler Regelt den Vorverstärkerpegel des „NORMAL“-Kanals. Im Zusammenspiel mit MASTER VOLUME kann man hiermit die perfekte Balance zwischen Vorverstärker- und Endstufenübersteuerung einstellen.
  • Page 19 ACHTUNG! Selbst im HOT-Modus beeinflussen die Klangregler noch den Sound. MASTER TONE CUT-Regler Diese Schaltung befindet sich in der Endstufe (während TREBLE und BASS im Vorverstärker wirken). Der Regler tut genau das Gegenteil von dem, was der Name verspricht: Wenn Sie ihn nach rechts drehen, werden die Höhen abgesenkt.
  • Page 20 Lautsprecherkabel) und von guter Qualität sein. Verwenden Sie niemals Kabel mit einer Länge von mehr als 10 Metern. Für die Verbindung des AC30HW/AC15HW mit seinem Lautsprecher oder einer Erweiterungsbox müssen nicht geschirmte Kabel verwendet werden, die von VOX ausdrücklich empfoh- len werden.
  • Page 21: Technische Daten

    Technische Daten AC30HW2X: Abmessungen(B x T x H) 705 x 260 x 550mm • Gewicht 32,0kg • Ausgangsleistung 30W RMS an 8/16Ω • Röhrenbestückung 3 x ECC83/12AX7, 4 x EL84, 1 x GZ34 (Gleichrichter) • Lautsprecher 2x12” 8Ω Celestion Alnico Blue •...
  • Page 22 INSTRUCCIONES DE SEGURIDAD IMPORTANTES Lea todas las instrucciones antes de utilizar el producto. • GUARDE ESTAS INSTRUCCIONES • Cumpla estas instrucciones • No utilice este producto cerca del agua; por ejemplo, cerca de • una bañera, lavabo, lavadero, en un sótano húmedo, o cerca de una piscina o similar.
  • Page 23 HOT... El modo COOL es el clásico VOX, mientras que el modo HOT es algo diferente. Cuando está en HOT, el canal TOP BOOST se reconfigura para un flujo más puro de señal, lo cual significa que tienes más ga- nancia...
  • Page 24: Manual De Operación

    MANUAL DE OPERACIÓN Panel Frontal Canal NORMAL INPUT, Jacks de entrada Jacks de entrada de guitarra para el Canal NORMAL. La Entrada ‘HIGH’ te da más ganancia y volumen de salida, mientras que la entrada ‘LOW’ es más suave y tiene más headroom (espacio sonoro) limpio. Control VOLUME Controla el volumen de preamplificador del Canal NORMAL.
  • Page 25: Control Volume

    mutar mediante conmutador de pedal, ¡lo que la hace perfecta para añadir mayor pegada a los solos! ¡NOTA! Cuando está en Modo HOT los controles de tono todavía afectan al sonido ligeramente. MASTER Control TONE CUT Este circuito reside en el amplificador de potencia a diferencia de la sección de preamplificador como los controles TREBLE y BASS.
  • Page 26 AC30HW/AC15HW sean de tipo apantallado de alta calidad. No deben exceder de 10 metros. Usa siempre un cable de altavoz no apantallado aprobado por VOX para conectar el amplifi- cador AC30HW/AC15HW a una caja acústica de extensión.
  • Page 27: Especificaciones

    Especificaciones AC30HW2X: Dimensiones 705 x 260 x 550 mm (ancho x profundo x alto) • Peso 32 kg • Potencia de Salida 30 Vatios RMS a 8/16 Ohmios • Válvulas incluidas 3 x ECC83/12AX7, 4 x EL84, 1 x GZ34 (rectificadora) •...
  • Page 28 Por favor guarde su recibo como prueba de compra ya que de otro modo el producto puede verse privado de la garantía del fabricante o distribuidor. © 2010 VOX AMPLIFICATION LTD.
