Installation, Operation and Maintenance Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and/or property damage! Retain instructions for future reference.
Grease Grabber™ Triple Play

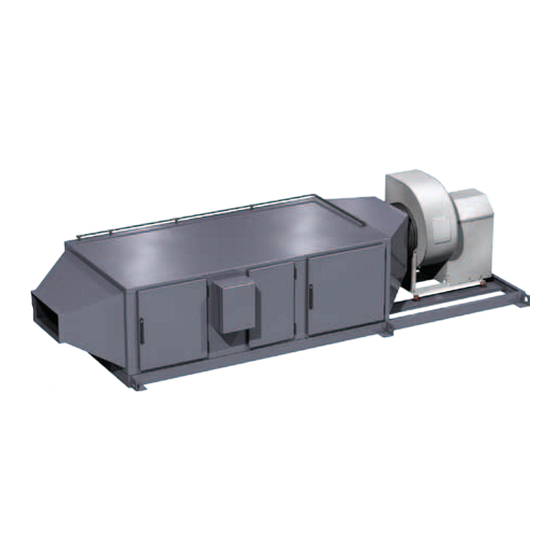

The Greenheck Grease Grabber™ Triple Play is a pre-
engineered mechanical filtration pollution control unit
with integral exhaust fan (available without
exhaust fan as an option). The unit is
designed to remove grease and smoke
particles as well as odor molecules
from the kitchen exhaust airstream.
This installation manual covers
procedures for receiving, installing, and
maintaining the filtered section of the
unit.
For additional instructions and maintenance
information on the integral exhaust fan, when
applicable, refer to the fan nameplate to determine model
type and visit www.greenheck.com to download the
corresponding manual.

General Safety Information

Only qualified personnel should install this system.
Personnel should have a clear understanding of these
instructions and should be aware of general safety
precautions. Improper installation can result in electric
shock, possible injury due to coming in contact with
moving parts, as well as other potential hazards.
Other considerations may be required if high winds
or seismic activity are present. If more information
is needed, contact a licensed professional engineer
before moving forward.
DANGER
Always disconnect power before working on or near
a fan. Lock and tag the disconnect switch or breaker
to prevent accidental power up.
CAUTION
When servicing the fan, motor may be hot enough
to cause pain or injury. Allow motor to cool before
servicing.
CAUTION
Precaution should be taken in explosive
atmospheres.
1
Grease Grabber Triple Play Kitchen Exhaust Pollution Control System
Grease Grabber™ Triple Play
Kitchen Exhaust Pollution Control System
• Follow all local electrical and safety codes, as well
as the National Electrical Code (NEC), the National
Fire Protection Agency (NFPA), where applicable.
Follow the Canadian Electric Code (CEC) in
Canada.
• The rotation of the fan wheel is critical. It must
be free to rotate without striking or rubbing any
stationary objects.
• Fan motor must be securely and adequately
grounded.
• Do not spin fan wheel faster than maximum
cataloged fan rpm. Adjustments to fan speed
significantly effects motor load. If the fan RPM is
changed, the motor current should be checked to
make sure it is not exceeding the motor nameplate
amps.
• Do not allow the power cable to kink or come in
contact with oil, grease, hot surfaces or chemicals.
Replace cord immediately if damaged.
• Verify that the power source is compatible with the
equipment.
• Never open access doors to a duct while the fan is
running.
Part Number 474753

Advertisement

Table of Contents
loading

Summary of Contents for Greenheck Grease Grabber 474753

  • Page 1: General Safety Information

    Part Number 474753 Grease Grabber™ Triple Play ® Kitchen Exhaust Pollution Control System Installation, Operation and Maintenance Manual Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
  • Page 2: Removing From Storage

    Locate parts far enough apart to permit air circulation, responsibility of Greenheck Fan Corporation. sunlight, and space for periodic inspection. To Unpacking minimize water accumulation, place all unit parts on blocking supports so that rain water will run off.
  • Page 3: Table Of Contents

    Table of Contents Filter stages 1, 2 and 3 are mechanical air filters of progressive filtration efficiency that retain the smoke and grease particles. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Rigging/Placing Equipment .
  • Page 4: Installation

    Installation Duct Connections Ductwork must conform to the IMC and SMACNA Rigging/Placing Equipment (See Figure #1) guidelines. 1. The unit is furnished with lifting lugs at the four As specified in NFPA 96, Ch. 7.5 (latest edition), corners and along the length as necessary. exhaust duct systems must be constructed in the 2.
  • Page 5: Fire System

    MERV 14 (Stage 2) shown below. Altering these settings without first Bag filter contacting Greenheck Fan Corp. will void the 24 x 24 x 12 thick manufacturers warranty and void the UL 710 listing. Rigid Filter MERV 16...
  • Page 6: Filter Replacement

    Maintenance Filter Replacement Determine which stage(s) of filter needs replacing as shown Regular Scheduled Maintenance CHANGE by lighted LED(s) located PRE FILTER 1. Replace stage 1, 2 and 3 filter(s) immediately on the face panel of the after the remote Filter Status Indicator LED(s) remote Filter Status Indicator light up.
  • Page 7: Figures #1 And #2

    Figures Figure #1 ACCESS DOOR PRESSURE SWITCH ON/OFF DISCONNECT ENCLOSURE INLET TRANSITION (OPTIONAL) ACCESS DOOR SIDE (Elevation View) Figure #2 STAGE # 2 FILTER STAGE # 3 FILTER COMPRESSION PLATE COMPRESSION PLATE STAGE # 1 FILTER STAGE # 4 FILTER PRESSURE SWITCH ON/OFF DISCONNECT COMPRESSION PLATE...
  • Page 8: Wiring Diagram

    Wiring Diagram 1101 1121 1143 1141 Grease Grabber Triple Play Kitchen Exhaust Pollution Control System...
  • Page 9 Grease Grabber Triple Play Kitchen Exhaust Pollution Control System...
  • Page 10: Maintenance Log

    Maintenance Log Date __________________ Time _____________ AM/PM Date __________________ Time _____________ AM/PM Notes:___________________________________________ Notes:___________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ Date __________________ Time _____________ AM/PM Date __________________ Time _____________ AM/PM Notes:___________________________________________ Notes:___________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ Date __________________ Time _____________ AM/PM...
  • Page 11 Date __________________ Time _____________ AM/PM Date __________________ Time _____________ AM/PM Notes:___________________________________________ Notes:___________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ Date __________________ Time _____________ AM/PM Date __________________ Time _____________ AM/PM Notes:___________________________________________ Notes:___________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ Date __________________ Time _____________ AM/PM Date __________________ Time _____________ AM/PM Notes:___________________________________________...
  • Page 12: Warranty

    Installers of Industrial and Commercial Fans, provides performance, available accessories, and specification data. additional safety information. This publication can be obtained from AMCA International, Inc. at: www.amca.org. ® Phone: (715) 359-6171 • Fax: (715) 355-2399 • E-mail: gfcinfo@greenheck.com • Website: www.greenheck.com 474753 • Grease Grabber Triple Play, Rev. 1, September 2011 Copyright 2011 © Greenheck Fan Corp.
