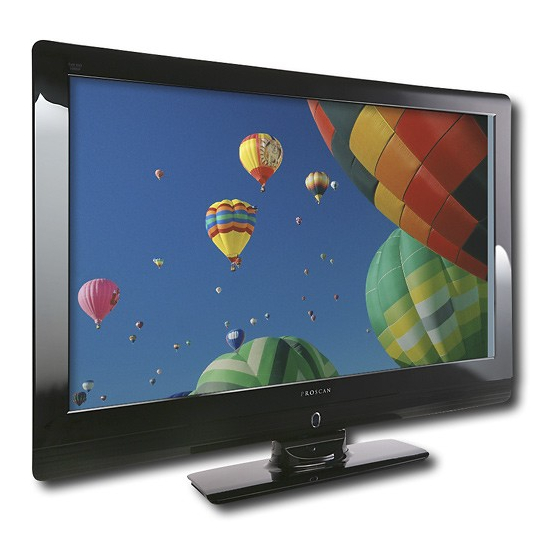

- Page 1 PROSCAN USE 'S MANUAL Before using the TV, please read this manual thoroughly, and retain it for future reference.
-
Page 2: Table Of Contents
Federa| Communications Commission Statement ......... I_portant Safety Instructions ................Preparation using your TV ................ Learning about your TV ..................View the front panel control ................View the back connection panel ................Selecting a location for the TV................Connection to other devices ................ -
Page 3: Federa| Communications Commission Statement
Federal Communications Commission Statement This equipment has been tested and found to comply with the limits of a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: I_Portant Safety Instructions
The lightning flash symbol with an arrowhead inside a CAUTION triangle alerts the user about an uninsulated dangerous voltage that may be of suffident magnitude to constitute a risk of dectric shock. CAUTION: TO REDUCE THE RISK OF AN ELECTRIC SHOCK, The flash with the symbol of an exclamation point DO NOT REMOVE THE COVER (OR BACK),... - Page 5 I portant safety instructions 15. POWER SOURCE: This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.
-
Page 6: Learning About Your Tv
Preparation using your Learning about your You can operate your TV via the buttons in the front cabinet or the remote control_ The terminals in the back cabinet provide all the connections from other equipments to your TV, View front connection panel )ut selection... -
Page 7: Selecting A Location For The Tv
Preparation using your Selecting a location theTV 1. Place the TV on an open bench in a location where light does not directly hit the screen. 2. Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating,... -
Page 8: Preparation For Using Your New Tv
Preparation for using your new TV The back panel connection AUDIO AMPLIFIER The equipment with AV or S-Video output function ( such as VCD, DVD, set-top boxes, etc.). -
Page 9: Connecting Your Tv
Preparation using your new TV Connecting your Caution: Do not plug in the TV until you have finished connecting all of your equipments. Connecting to an antenna To enjoy the televison program transmitted by yourlocaITVstation, you need an indoor or outdoor antenna (not supplied). -
Page 10: Connecting Hdmi
Preparation using your new TV The Y, PB/CB and PR/CR"connectors on your component devices (PVR or DVD) are sometimes labeled Y, B-Y and R-Y or Y, CB and CR (Colors for inputs and cables must correspond to both devices). NOTE: Some devices such as a PVR or DVD players require 'Component/YPBPR' signal to be set via output in the devices settings. -
Page 11: Connecting To A Cable Converter Box
Preparation using your new TV Connecting to a cable cenve_er This television has an extended tuning range and can tune most cable channels without using a cable converter box. Some cable companies offer premium pay channels in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company. -
Page 12: Using The Remote Control
Using the remote control Preparing remote controm for Installing remote control batteries 1. Open the battery cover on the back of the remote control. 2. InstatltwoAAAsize(1.5V) batteries. Matchthe+ and o signs on the batteries to the signs on the battery compartment. 3. -
Page 13: Learning About The Remote Control
Using remote controm Learning about remote controm Power indicator Power ON/OFF Switch among TV, Video, S-Video, Component, HDNI and VGA Select TV Select digital to previous channel SOUND: Select the sound mode PICTURE:Select the picture DISPLAY: Display current Status information Volume u Channel up Nute... -
Page 14: Understanding The Tv Features
Understanding the TV features Multimedia = AH in one TV receiver, Video Honitor and PC display, Wider viewing angle for 16:9 and 4:3 display screens = over a 160 degree viewing angle and a 16:9 ergonomic display panel • Digitan display device = Irrespective of magnetic... - Page 15 Basic operation Normal The original 4:3 aspect ratio (1.33:1 signal) is preserved, so black bars are added to the left and right of the image. Standard broadcasts are displayed with a 4:3 aspect ratio. Wide When watching a standard broadcast or full-frame movie in this mode,...
- Page 16 Basic operation [GUIDE] button Press the [GUIDE] button to display features of the ATSC program and the EPG function. [DISPLAY] button Press the [DISPLAY] button to view current source information. button Use [EXIT] Press the [EXIT] button to exit the OSD menu. Semect channels by numbers To select a channel:...
-
Page 17: Video Mode Adjustment
Basic operation Video mode adjustment 1. Press MENU to open the OSD option Press _ or V to highlight Video, then press _ to enter the Video menu. Press A or Y to highlight an option, then press _ or _ to adjust the option. You can adjust: Picture Mode = Adjusts the Picture Mode. -
Page 18: Setup
Basic operation • Balance o Adjusts the volume of the left and right speakers. Equalizer-You can select the frequency you want to adjust and change its value. Surround SoundoTurns the surround sound effect on or off. • Auto Volume Control - Turns automatic volume control on or off. -
Page 19: Parental Control
Basic operation Parental controm Press MENU to open the OSD option 2_ Press A or V to highlight Parental, then press _ to enter the Parental menu. When you first use this function, the default password is [0000], Once you input this password, you can: Press A or V to Hghlight an option, then press 4 or b, to adjust the option. - Page 20 Basic operation About HPAA Rating: The Motion Picture Assodation of America(MPAA) uses a rating system to qualify motion picture content. Television broadcasters employ a rating system to qualify the content of televison programs as well. The MPAA and TV ratings work with the V-CHIP feature and allow you to block out programming above the rating limits you determine.
-
Page 21: Tv Settings
Basic operation • Input Block - You can block the input source with this function. For example, if you want to block AV input, just highlight IAV] and press [ENTER]. The AV input will not be seen in the screen. °... -
Page 22: Appendix
Appendix Before calling a service technician, please check the following table for a possible cause of the problem and some solutions. Customer important notice: Tf the TV can not be operated, please unplug the power and restart. Possible Solutions Symptoms , Make sure the power cord is plugged in, then press Power (Standby). - Page 23 Appendix Wall-mounting Bracket Installation 1. Drill four holes according to the illustrated dimension and insert expanding bolts(4pcs of MS, bolt hole diameter=8mm, length =70ram) into the holes. 220ram or 320mm 2.Mount two fixture disks onto the wall-mounting bracket using bolts. Fix the wall=mounting bracket...
- Page 24 Appendix 4.Fix round pegs to back cover of TV with bolts. Then attach plain washers to the back cover as shown in the illustration. Insert cover board as the arrow shows, Insert cover board 5.Meet the mounting holes of the back panel with the fixture disks in the brackets and fix the TV to the wall-mounting...
-
Page 25: Specifications
Appendix Model 40LC45S 40 inches Diagonal display size Temevision system American TV standard ATSC iNTSC system Audio multiplex BTSC system VHF: 2N13 UHF: 14N69 CATV:lN125 Digital Terrestrial Broadcast (8VSB): 2N69 Channel coverage Digital cable (64/256 QAM): 1_135 PC mode 640 x 480/60Hz,800 x 600/60Hz, 1024x 768/60Hz...
