Panasonic WV-CS584 Specifications

Specifications.
Hide thumbs

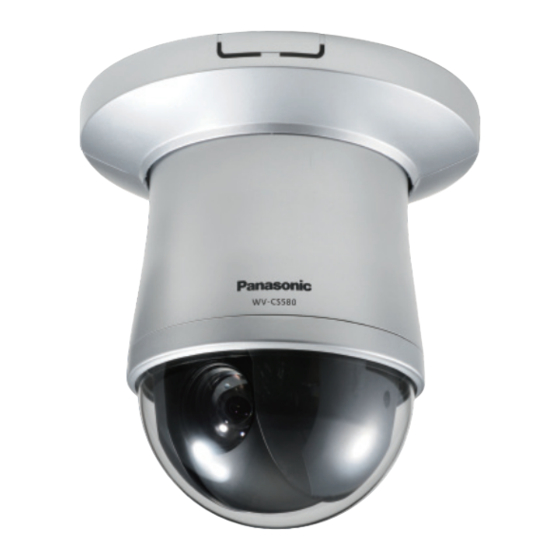

Super Dynamic 6
Day/Night Dome Camera
WV-CS580
Series
WV-CS584
WV-CS580
(24 V AC)
(220 ~ 240 V AC)
WV-CS584
(24 V AC)
All-in-one 24-hour surveillance camera featuring 36x zoom and
Super Dynamic 6 technology
Key Features
• Super Dynamic 6 technology delivers 128x(NTSC) / 160x (PAL) wider dynamic
• Over the coaxial cable or RS485 data (Panasonic, Pelco P/D
range compared to conventional cameras.
Protocol) communication
• High resolution: 650 TV lines
• 16 alphanumerics camera title display
• High sensitivity with Day/Night function: 0.5 lx (Color) at F1.4 (Wide),
• Multi language: English, French, Italian, Spanish, German, Russian,
0.04 lx (B/W) at F1.4 (Wide). IR cut filter switches on/off to enhance
Chinese, Japanese
the sensitivity in B/W mode.
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and
3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
• Electronic shutter from 1/100(NTSC), 1/120 (PAL) to 1/10,000 s
Standard Accessories
• 36x zoom lens: 3.3 ~ 119 mm (approx. 720x with digital zoom)
• Pan/Tilt speed of max. 400°/s at preset mode and 0.065°/s super
• CD-ROM* ..................................... 1 pc.
The following items are for installation.
fine control at manual mode
• Decorative Cover ......................... 1 pc.
• 5 degrees upper view for various applications
• Dust Protection Sheet ................. 1 pc.
• 256 preset positions that can be activated from the system controller
*The CD-ROM contains the operating instructions (PDF).
with a switcher or recorder (specific models).
• Auto tracking: The camera follows the largest movement in the
Optional Accessory
image automatically. The camera will pan and tilt to keep the
subject in the center of the image.
Ceiling
Embedded Ceiling
Pendant
Wall
Smoke
Mount Bracket
Mount Bracket
Mount Bracket
Mount Bracket
Dome Cover
• VMD (Video Motion Detector) with Mask 8 x 6 areas
WV-Q105
WV-Q126
WV-Q117
WV-Q118
WV-CS4S
• Scene Change Detection alarms when lens is covered, spray
PAL model
PAL model
painted, removed or defocused.
only
only
• 4 alarm inputs and 2 outputs terminals
• Alarm actions include Terminal output, Camera positioning, Auto
pan, Patrol, SEQ, Sort, Auto track, B/W and command output.
• Auto Image Stabilizer for applications where vibration or wind is a
concern.
• Internal <NTSC/PAL> / Multiplexed Vertical Drive (VD2) <NTSC> synchronization
