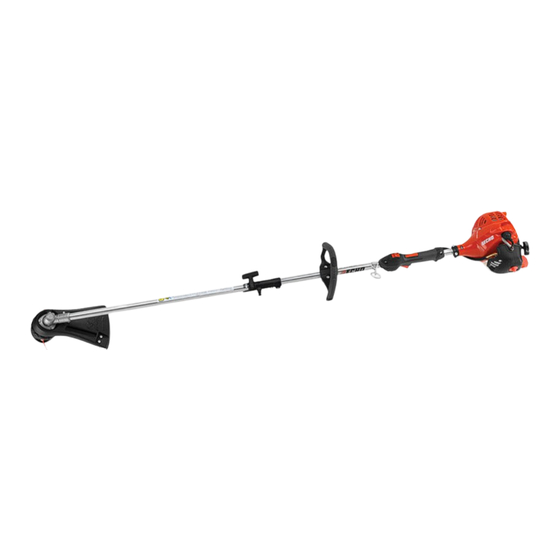

Echo SRM-225SB Parts Catalog

Split shaft trimmer
Hide thumbs Also See for SRM-225SB:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
99944200200
SRM Shoulder Harness Kit
99944200202
Heavy-Duty Brushcutter Harness
99944200435
U-Handle Kit
99944200445
U-Handle/Shield Kit
99944200455
Barrier Bar
SRAC-200
Tiller/Cultivator Attachment
Attachments
99944200470
Edger Attachment
99944200480
Hedge Clipper Attachment
99944200485
Hedge Clipper Attachment
99944200510
Cultivator Attachment
99944200530
Power Pruner Attachment
99944200540
Grass Trimmer Attachment
99944200590
Articulating Hedge Clipper Attachment
99944200595
Articulating Hedge Clipper Attachment
99944200600
80 Tooth Blade Trimmer Attachment
99944200610
Rapid Loader Trimmer Attachment
Cutting Heads
21560031
SRM ECHOmatic Pro Head
21560050
Semi-Auto Head Assembly
21560056
2-Line Rapid Loader Head -- Echo
21560060
SRM Manual Dual Line Head
99944200220
Heavy Duty Fixed Line Head
99944200900
U-Turn Head
2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG
SRM-225SB Split Shaft
Trimmer
MODEL:SERIAL NUMBERS
SRM-225SB:
S/N: S79411001001 - S79411999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
21.2cc
99922200782
REVISED 04/22/09

Advertisement

Table of Contents
loading

Related Manuals for Echo SRM-225SB

Summary of Contents for Echo SRM-225SB

  • Page 1 SRM Manual Dual Line Head 99944200220 Heavy Duty Fixed Line Head 99944200900 U-Turn Head ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922200782 REVISED 04/22/09 2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...

  • Page 2: Table Of Contents

    Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. SRM-225SB S/N: S79411001001 - S79411999999 Engine Cover, Starter -- i-30............................4 Fuel System..................................6 Intake....................................8 Carburetor -- RB-K93..............................10 Exhaust...................................12 Fan Case, Clutch................................14 Ignition....................................16 Engine, Short Block -- SB1096.............................18 U-Turn Head...................................20 Plastic Shield.................................22 Gear Case..................................24...
  • Page 3 This Page Intentionally Left Blank - 3 -...

  • Page 4: Engine Cover, Starter -- I-30

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Engine Cover, Starter -- i-30 99922200782 - 4 - REVISED 04/22/09...
  • Page 5 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Engine Cover, Starter -- i-30 ITEM PART NUMBER DESCRIPTION REMARKS A160001090 COVER, ENGINE V805000150 SCREW 5X16 V805000000 TAPPING SCREW 5X16 V805000160 SCREW 5X20 90060300005 WASHER V805000000 TAPPING SCREW 5X16 V804000060 SCREW 4X16 A051001311 RECOIL STARTER ASY...

  • Page 6: Fuel System

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Fuel System 99922200782 - 6 - REVISED 04/22/09...
  • Page 7 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Fuel System ITEM PART NUMBER DESCRIPTION REMARKS V805000160 SCREW 5X20 90060300005 WASHER 5 A350000780 TANK, FUEL INCLUDES ITEM 4 V353000231 COLLAR V137000030 GROMMET, FUEL 13201309820 CLIP A356000030 VENT ASY V471001210 PIPE, VENT - 3X5X90mm REPOWER BULK OPTION: 90015 13201256030...

  • Page 8: Intake

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Intake 99922200782 - 8 - REVISED 04/22/09...
  • Page 9 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Intake ITEM PART NUMBER DESCRIPTION REMARKS V299000250 THUMB SCREW A232000480 LID, AIR CLEANER 13031054130 FILTER, AIR V805000100 SCREW 5X65 90050000005 12901152730 PLATE, PREVENT P021012870 CASE, AIR CLEANER ------------------ CARBURETOR See Carburetor Diagram For Additional Information V103000480 GASKET, INTAKE V805000160...

  • Page 10: Carburetor -- Rb-K93

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Carburetor -- RB-K93 99922200782 - 10 - REVISED 04/22/09...
  • Page 11 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Carburetor -- RB-K93 ITEM PART NUMBER DESCRIPTION REMARKS A021001690 CARBURETOR -- RB-K93 P005002050 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001240 SWIVEL P005000190 E-RING P005000100 SCREW, THROTTLE ADJUST P005000280 O-RING...

  • Page 12: Exhaust

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Exhaust 99922200782 - 12 - REVISED 04/22/09...
  • Page 13 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Exhaust ITEM PART NUMBER DESCRIPTION REMARKS V804000080 SCREW 4X8 A313000600 GUIDE, EXHAUST V104000360 GASKET, EXHAUST 14586240630 SCREEN, MUFFLER V805000190 SCREW 5X55 V347000000 CONICAL WASHER V150000371 EYE PLATE A300000790 MUFFLER V104000850 SHIELD, EXHAUST V805000150 SCREW 5X16...

  • Page 14: Fan Case, Clutch

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Fan Case, Clutch 99922200782 - 14 - REVISED 04/22/09...
  • Page 15 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Fan Case, Clutch ITEM PART NUMBER DESCRIPTION REMARKS V805000160 SCREW 5X20 61092227432 HOLDER -- UPPER A575000100 HOLDER - LOWER V420001081 CUSHION V804000060 SCREW 4X16 P021015560 FAN COVER ASY INCLUDES ITEMS 7-11 V622000020 DOWEL PIN - 4X7.8mm 90070100012...

  • Page 16: Ignition

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Ignition 99922200782 - 16 - REVISED 04/22/09...
  • Page 17 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Ignition ITEM PART NUMBER DESCRIPTION REMARKS V804000070 SCREW 4X20 A411000130 COIL, IGNITION V475004160 TUBE, INSULATOR A427000013 CAP, SPARK PLUG A426000010 TERMINAL, SPARK PLUG CAP 15901019830 SPARK PLUG -- BPM-8Y A425000000 CANADA MODELS SPARK PLUG -- BPMR-8Y V485001120...

  • Page 18: Engine, Short Block -- Sb1096

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Engine, Short Block -- SB1096 99922200782 - 18 - REVISED 04/22/09...
  • Page 19 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Engine, Short Block -- SB1096 ITEM PART NUMBER DESCRIPTION REMARKS SB1096 SHORT BLOCK INCLUDES ITEM 2-20 90016205022 SCREW 5X22 A130000540 CYLINDER V100000160 GASKET, CYLINDER P021007712 PISTON KIT INCLUDES ITEMS 6-9 A101000090 RING, PISTON 10001311520...

  • Page 20: U-Turn Head

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer U-Turn Head 99922200782 - 20 - REVISED 04/22/09...
  • Page 21 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer U-Turn Head ITEM PART NUMBER DESCRIPTION REMARKS X407000410 U-TURN HEAD USE .095" DIAMETER TRIMMER LINE 215601 BOLT, SHAFT X470000160 HOUSING INCLUDES ITEM 3 X475000040 EYELET INCLUDES 2 PER PACKAGE V450000660 SPRING X471000040 DRIVE, OUTER...

  • Page 22: Plastic Shield

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Plastic Shield 99922200782 - 22 - REVISED 04/22/09...
  • Page 23 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Plastic Shield ITEM PART NUMBER DESCRIPTION REMARKS P021015660 PLASTIC SHIELD KIT INCLUDES ITEMS 2-7 C550000031 SHIELD - PLASTIC V805000150 SCREW 5X16 C552000110 FLANGE, SHIELD 69901644330 CUTTER, LINE V805000140 SCREW 5X12 90050000005 NUT 5 99922200782...

  • Page 24: Gear Case

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Gear Case 99922200782 - 24 - REVISED 04/22/09...
  • Page 25 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Gear Case ITEM PART NUMBER DESCRIPTION REMARKS P021015610 GEAR HOUSING ASY INCLUDES ITEMS 2-19 C531000311 HOUSING, GEAR V805000170 SCREW 5X25 61023904130 SHIM WASHER V805000130 SCREW 5X10 90060500005 LOCKWASHER 90060000005 WASHER 5 90070200022 CIRCLIP 22 90070600010...

  • Page 26: Main Pipe Assembly, Flexible Driveshaft

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Main Pipe Assembly, Flexible Driveshaft -- Lower 99922200782 - 26 - REVISED 04/22/09...
  • Page 27 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Main Pipe Assembly, Flexible Driveshaft -- Lower ITEM PART NUMBER DESCRIPTION REMARKS C050001250 MAIN PIPE ASY INCLUDES ITEMS 2-5 61024644730 STOPPER 61021752630 LINER, FLEXIBLE X505002500 LABEL - CAUTION 89015204930 LABEL - PIPE LOCATION C506000002 DRIVESHAFT - FLEXIBLE 99922200782...

  • Page 28: Main Pipe Assembly, Flexible Driveshaft, Coupler

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Main Pipe Assembly, Flexible Driveshaft, Coupler -- Upper 99922200782 - 28 - REVISED 04/22/09...
  • Page 29 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Main Pipe Assembly, Flexible Driveshaft, Coupler -- Upper ITEM PART NUMBER DESCRIPTION REMARKS C050001240 MAIN PIPE ASY INCLUDES ITEMS 2-5 61024644730 STOPPER 61021756730 LINER, FLEXIBLE X505001930 LABEL - HANDLE LOCATION 89015204930 LABEL - PIPE LOCATION C506000042...

  • Page 30: Front Handle

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Front Handle 99922200782 - 30 - REVISED 04/22/09...
  • Page 31 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Front Handle ITEM PART NUMBER DESCRIPTION REMARKS P021012390 FRONT HANDLE ASY INCLUDES ITEMS 2-8 V805000170 SCREW 5X25 35123266230 BRACKET, HANDLE - UPPER C423000300 BRACKET, HANDLE - LOWER V805000010 TAPPING SCREW 5X20 90060000005 WASHER 5 35120566230...

  • Page 32: Control Handle, Control Cable Asy

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Control Handle, Control Cable Asy 99922200782 - 32 - REVISED 04/22/09...
  • Page 33 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Control Handle, Control Cable Asy ITEM PART NUMBER DESCRIPTION REMARKS P021015640 CONTROL HANDLE ASY INCLUDES ITEMS 2-3 V804000020 TAPPING SCREW 4X12 V805000160 SCREW 5X20 V495000680 CLAMP C453000151 LOCKOUT, THROTTLE C460000050 LEVER, THROTTLE LOCKOUT V452000240 SPRING, THROTTLE LOCKOUT...

  • Page 34: Labels

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Labels 99922200782 - 34 - REVISED 04/22/09...
  • Page 35 REMARKS X532000671 LABEL - SPARK PLUG -- BPM-8Y X532000720 LABEL - SPARK PLUG -- BPMR-8Y X505002310 LABEL - CAUTION -- HOT X502000330 LABEL - ECHO 89012152730 LABEL - CHOKE 89033252730 LABEL - CHOKE X547001300 LABEL - MODEL -- SRM-225 X547001530...

  • Page 36: Gasket Kit -- P021015980

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Gasket Kit -- P021015980 99922200782 - 36 - REVISED 04/22/09...
  • Page 37 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Gasket Kit -- P021015980 ITEM PART NUMBER DESCRIPTION REMARKS P021015980 GASKET KIT 99922200782 - 37 - REVISED 04/22/09...

  • Page 38: Repower Tune-Up Kit

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer RePower Tune-Up Kit 99922200782 - 38 - REVISED 04/22/09...
  • Page 39 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer RePower Tune-Up Kit ITEM PART NUMBER DESCRIPTION REMARKS 90074 TUNE-UP KIT 99922200782 - 39 - REVISED 04/22/09...

  • Page 40: Tools

    Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Tools 99922200782 - 40 - REVISED 04/22/09...
  • Page 41 Table of Contents Part Number Index SRM-225SB Split Shaft Trimmer Tools ITEM PART NUMBER DESCRIPTION REMARKS 89541010630 SOCKET WRENCH/SCREWDRIVER 17X19mm X602000020 SOCKET WRENCH/SCREWDRIVER 17X19mm 89541039131 SOCKET WRENCH/SCREWDRIVER 10X19mm 89541006960 SOCKET WRENCH/SCREWDRIVER 13X19mm X602000031 SOCKET WRENCH 17X14.5mm 89751801131 LOCKING ROD 5X120mm 89511200330 OPEN END WRENCH 8X10mm...

  • Page 42: Part Number Index

    Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 9, 11 90074 ......P022006830 ....10001311520 ....

  • Page 43: Part Description Index

    LABEL - CAUTION -- HOT..35 SCREW 3X10..33 DIAPHRAGM, METERING..11 LABEL - CHOKE..35 SCREW 4X16..5, 15 DIAPHRAGM, PUMP..11 LABEL - ECHO..35 SCREW 4X20..17 DIAPHRAGM/GASKET KIT..11 LABEL - HANDLE LOCATION..29 SCREW 4X8..13 DOWEL PIN - 4X7.8mm..15, 19 LABEL - MODEL -- SRM-225..35 SCREW 5X10..25, 29...
  • Page 44 Table of Contents Part Number Index Part Description Index (continued) SCREW 5X65..9 SCREW 6X25..29 SCREW, DIAPHRAGM COVER..11 SCREW, METERING LEVER PIN..11 SCREW, PURGE BASE ASY..11 SCREW, PURGE BULB RETAINER..11 SCREW, ROTOR COVER..11 SCREW, ROTOR COVER ASY..11 SCREW, THROTTLE ADJUST..11 SCREWDRIVER..41 SHAFT, GEAR..25 SHIELD - PLASTIC..23 SHIELD, EXHAUST..13, 19...
  • Page 45 NOTES 99922200782 - 45 - REVISED 04/22/09...
  • Page 46 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
