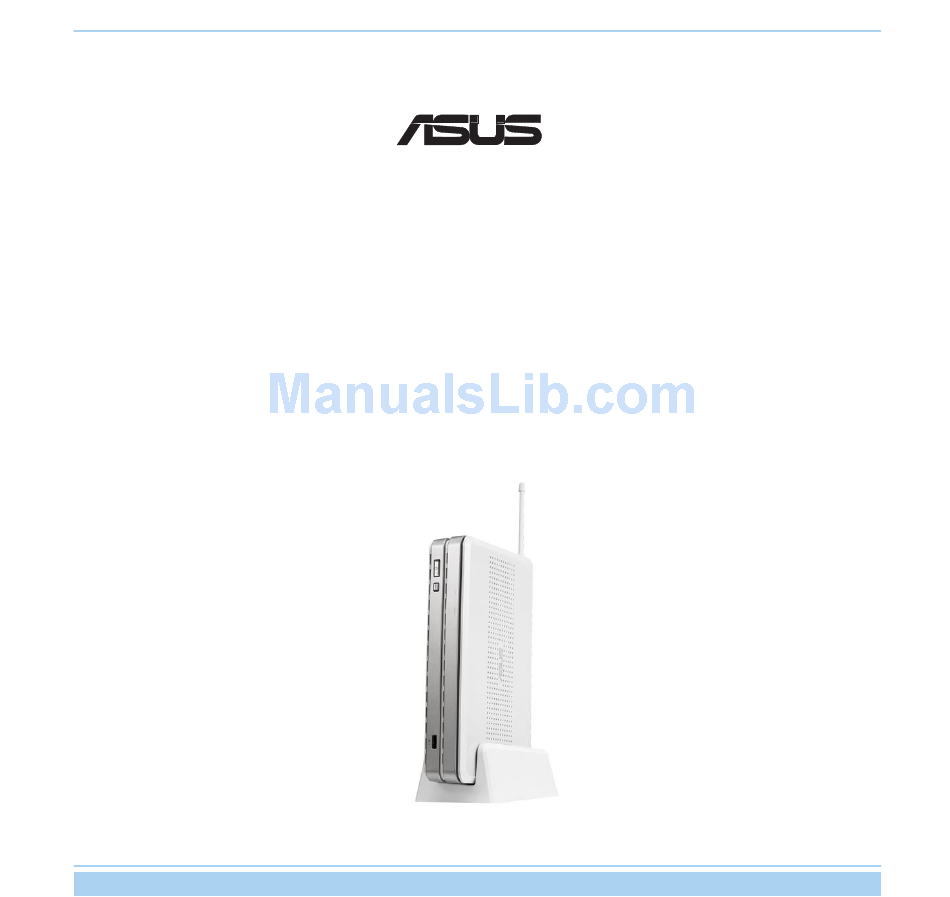

Page 1: Wireless Router
® Wireless Router WL-700gE Quick Start Guide (For 802.11g and 802.11b wireless network) ASUS Wireless Router... -
Page 2: Table Of Contents
Rear panel ..........................1 Front panel ..........................2 2 Software features ......................3 Installing ASUS utility for WL-700gE ..................3 Setting up the wireless router using EZSetup ............... 3 Connecting WL-700gE from a wirless client ................. 6 USB auto copy function ......................7 Wireless data sharing ...................... - Page 3 Where to find more information Refer to the following sources for additional information and for product and software updates. 1. ASUS website The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. 2. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your...
-
Page 4: Introduction
Rear panel AC IN USB 2.0 Antenna Cover lock Cover lock RESET LAN 1-4 EZSetup RESET Push the RESET button for 10 seconds to restore the factory default. EZSetup This button is for using EZSetup setting wizard. ASUS Wireless Router... -
Page 5: Front Panel
Wireless LAN ready Flashing Transmitting data via wireless LAN WAN (Wide Area Network) No power Connected to ADSL or Cable modem Flashing Communicating with WAN USB2.0 For connecting USB storage, such as USB hard disk and USB flash. ASUS Wireless Router... -
Page 6: Software Features
Install ASUS Wireless Router Utilities to install. Follow the instructions to complete the utility installation. WL-700gE Wireless Router ADSL Modem Setting up the wireless router using EZSetup Before start, prepare an Ethernet and wireless enabled computer with ASUS utility pre-installed. ASUS Wireless Router... - Page 7 You can choose to modify the SSID and network key or preserve the previous settings. Click Next and network key for the wireless router or accept the automatically generated values. Click Next to continue. to continue. ASUS Wireless Router...
- Page 8 Next. settings for future reference. Click Finish to quit EZSetup. Save and print network information is highly recommended for future wireless connection setup. When configuration is complete, a 700gE share folder icon appears on desktop. ASUS Wireless Router...
-
Page 9: Connecting Wl-700Ge From A Wirless Client
WL-700gE and click Connect button. connecting the router. Click OK to continue. 3. For authentication setup, select Authentication tab. If you have a RADIUS server in your network for authentication, check Enable IEEE80.211X authentication to this network. ASUS Wireless Router... -
Page 10: Usb Auto Copy Function
2. Login to the WL-700gE Web configuration interface. Login 3. Click Configuration to enter Web configuration page. Name: admin; Password: admin (default). Step 4 and 5 are for first configuration. Skip step 4 and 5 if you have configured the wireless router via EZSetup. ASUS Wireless Router... - Page 11 The default workgroup setting of WL-700gE is Workgroup. If your computer and WL-700gE are not within the same workgroup, you cannot find WL-700gE from your computer. Set WL-700gE within your workgroup by modifying the workgroup settings in Share Management -> Windows Setup page. ASUS Wireless Router...
-
Page 12: Using Download Master
Using Download Master You can use Download Master function in ASUS Utility to organize HTTP, FTP, and BT download tasks. 1. Open Download Master from Start -> All Programs -> ASUS Utility -> WL-700gE Wireless Router -> Download Master. Click File -> Connect to associate with WL-700gE. - Page 13 If you select Download using ASUS Download, you can see If you copy the download address, click Assign button in the the download task is added to the Transfer list. The blue bars utility. Paste the address into Getting File From box, select indicate the progress of download tasks.
-
Page 14: Sharing Your Photos On Your Website
You can upload your photos to WL-700gE to share them with your friends. Click Start -> All Programs -> ASUS Utility -> WL-700gE Wireless Router -> Photo Album Exporter to open the photo upload utility. 2. Name your new album and add descriptions to the album. - Page 15 8. Login your Web configuration interface. Login Name: admin; Password: admin (default). 11. Your friends can view these photos and leave comments 10. You can see the album is already added to you personal to them. website. To view the photos, click the album. ASUS Wireless Router...
-
Page 16: Setting Up The Message Board
1. Click Login at the lower left corner. 2. Login Name: admin; Password: admin. Click Login to enter the webisite home page again. 3. Click the Message Board tab and click New topic. 4. Input the subject for discussion and click Add. ASUS Wireless Router... - Page 17 5. When finished, click Add Message to enter the subject and 6. Input your information to the fields and write your message in leave a message. the Message box. Click Submit to send out the message. 7. Your message board is ready. ASUS Wireless Router...
-
Page 18: Setting Up Ddns
“account”. Enter your E-mail address to receive page of DynDNS. Check the two checkboxes as shown in the confirmation letter from DynDNS. Enter the Password for the picture below. your account. Then press Create Account button. ASUS Wireless Router... - Page 19 7. Click Login. 9. After logging in, you can see this welcome message. 10. Select Services tab. 11. Click Add Dynamic DNS Host. 12. Enter the host name then click Add Host. 13. Your hostname is successfully created. ASUS Wireless Router...
- Page 20 Run... -> type cmd, and enter the command line interface. Apply to activate the settings. 16. Type ping account.dyndns.org and press Enter. If you get reply from a certain IP address, it means your host is accessible from Internet. ASUS Wireless Router...
-
Page 21: Setting Up Shared Printer
4. A warning window prompts out. Click OK to continue. 5. Select the printer driver from the vendor-model list and click 6. The printer is ready for share. Next to install. If your printer is not in the list, click Have Disk to locate the driver. ASUS Wireless Router... -
Page 22: Troubleshooting
Troubleshooting 2. Make sure the ASUS Wireless Router Utility is correctly 1. Power ON the WL-700gE Wireless Router and make sure installed. the LED indicators light up normally. 3. Ping WL-700gE at your computer. Click Start on the desktop 4. Press the RESET button on the rear panel for more than 5 and select Run..., type cmd and press OK. -
Page 23: Appendix
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. -
Page 24: Asus Warranty Policy
Thank you for purchasing ASUS wireless product. This apparatus is tested and approved by ASUS and enjoy two yearsʼ warranty subject to use within the warranty scope. Warranty scope ASUS provides two yearsʼ limited warranty subject to correct use and maintenance. ASUS can charge fee for repairation or maintenance if damage is caused by: 1). Force majeure;...
