- Page 1 Cal. V072 INSTRUCTIONS BEDIENUNGSANLEITUNG (S. 23) INSTRUCTIONS (P. 43) ISTRUZIONI (P. 63) INSTRUCCIONES (P. 83) INSTRUÇÕES (P. 103) (123...

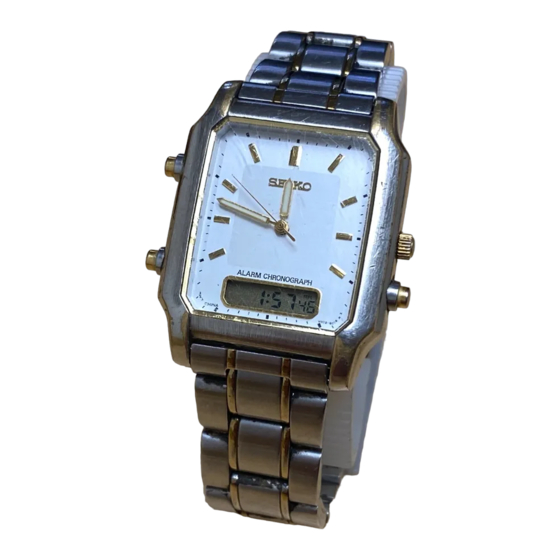

- Page 2 You are now the proud owner of a SEIKO Duo-Display Watch Cal. V072. For best results, please read the instructions in this booklet carefully before using your SEIKO Duo-Display Watch. Please keep this manual handy for ready reference. Sie sind nun stolzer Besitzer einer SEIKO Zwei-Anzeige-Uhr Kal. V072. Bevor Sie nun Ihr SEIKO Zwei-Anzeige-Uhr in Gebrauch nehmen, lesen Sie bitte die Anleitungen in diesem Heftchen sorgfältig...
-
Page 3: Table Of Contents
CONTENTS Page DISPLAY AND MODE CHANGE ................TIME/CALENDAR SETTING ..................ALARM ........................STOPWATCH ......................ILLUMINATING LIGHT ..................... NOTES ON USING THE WATCH ................BATTERY CHANGE ....................TO PRESERVE THE QUALITY OF YOUR WATCH ........... SPECIFICATIONS ..................... - Page 4 CAL. V072 ANALOGUE TIME DISPLAY DIGITAL TIME AND CALENDAR Calendar function: Month, date and day of the week. REGULAR ALARM STOPWATCH Measures up to 60 minutes in 1/100 second increments. Split time measurement is possible. ILLUMINATING LIGHT...
-
Page 5: Display And Mode Change
DISPLAY AND MODE CHANGE CROWN a: Normal position b: Extended position With each press, the mode in the digital display changes in the following order: TIME ALARM CALENDAR STOPWATCH mode mode mode mode... -
Page 6: Time/Calendar Setting
TIME/CALENDAR SETTING CALENDAR SETTING Press to show CALENDAR mode. Press and hold for 2 to 3 seconds to show CALENDAR SETTING display. Press repeatedly to select the digits (flashing) to be adjusted. Month Date Press for 2 to 3 seconds. CALENDAR mode Press to set the flashing digits. - Page 7 DIGITAL TIME SETTING Before setting the analogue time, be sure to set the digital time. Press to show TIME mode. Press and hold for 2 to 3 seconds to show TIME SETTING display. Press repeatedly to select the digits (flashing) to be adjusted. Seconds Minutes Press for 2 to...
- Page 8 ANALOGUE TIME SETTING Before setting the analogue time, be sure to set the digital time. (See the previous section) Hour hand Second hand Minute hand CROWN Pull out when the second hand is at the 12 o’clock position. Turn to set the hour and minute hands. Push back in to normal position when the second digits count “00”...
-
Page 9: Alarm
ALARM The alarm can be set to ring on a 24-hour basis. ALARM TIME SETTING Press to show ALARM mode. Press repeatedly to select the digits (flashing) to be adjusted. Hour Minutes ALARM mode Press to set the flashing digits. Press to return to ALARM mode. - Page 10 ALARM ENGAGEMENT/DISENGAGEMENT With each press in ALARM mode, the alarm is alternately engaged and Alarm disengaged. mark * At the designated time the alarm rings for 20 seconds. To stop it manually, press any of the buttons. TURNING ON/OFF OF THE HOURLY TIME SIGNAL With each simultaneous press in CALENDAR or TIME mode, the hourly time signal is turned on...
-
Page 11: Stopwatch
STOPWATCH The stopwatch measures up to 60 minutes in 1/100 second increments. Press to show STOPWATCH mode. Minutes 1/100 seconds Seconds Standard measurement START STOP RESET... - Page 12 Accumulated elapsed time measurement START STOP RESTART STOP RESET * Restart and stop of the stopwatch can be repeated by pressing button C. Split time measurement START SPLIT SPLIT STOP RESET RELEASE * Measurement and release of split time can be repeated by pressing button B. Measurement of two competitors START FINISH TIME...
-
Page 13: Illuminating Light
ILLUMINATING LIGHT Press and hold in TIME or CALEN- DAR mode. * The light illuminates the digital display for easy viewing in the dark. -
Page 14: Notes On Using The Watch
NOTES ON USING THE WATCH TIME/CALENDAR SETTING [CALENDAR SETTING] The calendar automatically adjusts for odd and even months except February of leap years. The flashing digits move quickly if button C is kept pressed. If the watch is left untouched in the CALENDAR SETTING display with the digits flashing, it will automatically return to the CALENDAR mode in 1 to 2 minutes. - Page 15 ALARM [ALARM TIME SETTING] When the time function is displayed in the 24-hour indication, the alarm is also displayed in the 24-hour indication. The flashing digits move quickly if button C is kept pressed. When setting the hour digits in the 12-hour indication, check that AM/PM is properly set. If the watch is left untouched in the ALARM SETTING display with the digits flashing, it will automatically return to the ALARM mode in 1 to 2 minutes.
-
Page 16: Battery Change
For battery replacement, we recommend that you contact an AUTHORIZED SEIKO DEALER and request SEIKO SR927W battery. * If the alarm is used more than once a day, the stopwatch more than once a day, and/ or the illuminating light for more than one second a day, the battery life may be less than the specified period. - Page 17 WARNING Do not remove the battery from the watch. If it is necessary to take out the battery, keep it out of the reach of children. If a child swallows it, consult a doctor immediately. CAUTION Never short-circuit, heat or otherwise tamper with the battery, and never expose it to fire.
-
Page 18: To Preserve The Quality Of Your Watch
TO PRESERVE THE QUALITY OF YOUR WATCH WATER RESISTANCE Condition Scuba of use Accidental Taking a bath Swimming, and shallow contact with diving** yachting and Indication on diving water such taking a case back saturation as rain and shower Degree diving splashes of water... - Page 19 • Do not operate the crown and ** We recommend that you wear a buttons when the watch is wet or SEIKO Diver’s Watch for scuba in water. bar WR diving. If used in sea water, rinse the watch in fresh water and dry it completely.
- Page 20 3 years. Have your watch Years will not be affected. Keep the checked by an AUTHORIZED watch away from close contact with magnetic SEIKO DEALER or SERVICE CENTER to objects. ensure that the case, crown, buttons, gasket and crystal seal remain intact. CHEMICALS...
-
Page 21: Specifications
TV becoming difficult to read. Please contact screens which emit strong static electricity. your AUTHORIZED SEIKO DEALER or SERVICE CENTER if you wish to have a new panel fitted (guaranteed one year). SPECIFICATIONS Frequency of crystal oscillator .... - Page 22 Driving system .......... Step motor Digital display medium ......Nematic Liquid Crystal, FEM (Field Effect Mode) Battery ............SEIKO SR927W, 1 piece IC (Integrated Circuit) ........ C-MOS-LSI, 1 piece * The specifications are subject to change without prior notice for product improvement.
