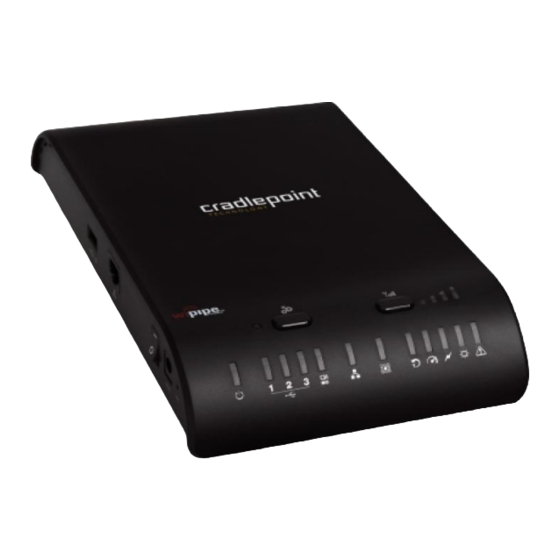

Cradlepoint CBA750 Series User Manual

3g/4g mobile broadband adapter
Hide thumbs Also See for CBA750 Series:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual

Advertisement

Table of Contents
loading

Related Manuals for Cradlepoint CBA750 Series

Summary of Contents for Cradlepoint CBA750 Series

  • Page 2: Manual Revisions

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT Preface CradlePoint reserves the right to revise this publication and to make changes in the content thereof without obligation to notify any person or organization of any revisions or changes. Manual Revisions...

  • Page 3: Table Of Contents

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT Table of Contents INTRODUCTION ..............2 ................44 PDATE ............. 2 TOOLS TAB ..............45 ACKAGE ONTENTS ............2 YSTEM EQUIREMENTS )........46 DMIN DMINISTRATOR ETTINGS CBA750 O ............. 2 VERVIEW DNS ..............

  • Page 4: Introduction

    CBA750E-SP – 3G EVDO for Sprint 1.2 System Requirements  At least one Internet source: a CradlePoint 3G/4G Business Grade Modem or a broadband data modem with active subscription (USB, ExpressCard).  Management interface requires an Internet browser: Internet Explorer v6.0 or higher, Firefox v2.0 or higher, Safari v1.0 or higher.
  • Page 5 For optimum performance, try the CradlePoint ARC 750 Series with an integrated 3G/4G Business Grade Modem. The integrated modems of the ARC Series are simple, powerful, and safe: the ideal business uptime solution.
  • Page 6  As Antenna Remoting which allows you to get the best 3G/4G signal available by placing the CBA750 in the best location for receiving the signal. From Power-over-Ethernet, you can take advantage of existing CAT5 cabling within a building. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 7: Cradle Point Arc: Include A 3G/4G Business Grade Modem

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT 1.1 CradlePoint ARC CBA750 Series: Include a 3G/4G Business Grade Modem Includes an integrated CradlePoint 3G/4G Business Grade Modem with the CBA750 and creates an effortless instant network from high-speed wireless broadband: the CradlePoint ARC CBA750 Series with integrated 3G/4G.
  • Page 8 Industry Standards & Certs: Modem Model MC200LE: Verizon; FCC Part 15, 22, 24 & 27; TIA/EIA/IS-2000, IS-95-B, 3GPP Rel 8 Modem Certification Model Number: MC200LE Modem Certification Part Number: MC200LE-VZ © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 6...
  • Page 9 IOT; FCC Part 15, 22 & 24, CDG Stages 1,2; IS-2000IA-98D/E, IS-134, IS-637B, IS-683A, IS-707A, IS-856, IS-866; JESD22- A114-B, JESD22-C101 Modem Certification Model Number: MC100E Modem Certification Part Number: MC100E-VZ © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 7...
  • Page 10 FCC Part 15, 22 & 24, CDG Stages 1,2; IS-2000IA-98D/E, IS- 134, IS-637B, IS-683A, IS-707A, IS-856, IS-866; JESD22-A114- B, JESD22-C101 Modem Certification Model Number: MC100E Modem Certification Part Number: MC100E-SP © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 8...
  • Page 11 Antennas: Two SMA male (plug), 5 dBi gain Industry Standards & Certs: Modem Model MC100W: Sprint; FCC Part 15 subpart C Modem Certification Model Number: MC100W Modem Certification Part Number: MC100W © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 9...

  • Page 12: Hardware Overview

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT 2 HARDWARE OVERVIEW © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 10...

  • Page 13: Ports

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT 2.1 Ports © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 11...

  • Page 14: Leds

    CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT 2.2 LEDs © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 12...

  • Page 15: Quick Start

    Configuration mode is used to set up user parameters, download new firmware, and enable cellular modem diagnostics by accessing the administration page at http://192.168.0.1 3.2 Firmware Features © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 13...

  • Page 16: Common Problems

    CBA750. Simply insert your USB data modem into your PC and using the software provided by your cellular carrier, access the Internet. Follow the directions provided to complete the update. Once you have updated your USB data modem, reconnect the cellular device to your CradlePoint router and connect to the Internet.
  • Page 17 (found at: www.cradlepoint.com/support/CBA750). Then login to the router admin page and manually upload the firmware (directions can be found in this manual in section 6.2.2). If you are still unable to access the Internet after following the above directions, contact CradlePoint Technical ...
  • Page 18 If the USB Data Modem LEDs are not illuminated, your modem is not connected and online. You may need to update firmware. Refer to “Your USB Modem or Phone Does Not Work With The Router.” If you are still not online after updating, call CradlePoint Technical Support for further assistance. © 2012 CRADLEPOINT, INC.

  • Page 19: Administrative Tabs And Sub-Menus

    Menu DHCP Failover Dynamic DNS Logs Basic Network Settings Firmware Statistics Modem Update Managed Services Tools Schedules Status SNMP Glossary Syslog System System Check Time VLAN © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 17...

  • Page 20: Basic Tab

    4.1 Basic Tab The Basic tab provides access to the 4 sub-menus for administering the following function/tasks:  IP PASSTHRU  DHCP  NETWORK  WAN © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 18...

  • Page 21: Ip Pass-Thru

    Mode or Configuration Mode. Selecting Ignore Switch Position disables this switch so that you control this setting through the administration pages only. If you select Ignore Switch Position, you must then also choose either:  Force Passthru Mode  Force Configuration Mode © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 22  Assign /31 subnet mask (RFC-3201). This setting maximizes address space when only two hosts are connected by a point-to-point link.  Custom subnet mask and gateway. You can manually assign your own values for the Subnet Mask and Gateway Address. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 23: Dhcp (Dhcp Settings)

    Example: The CBA750 uses an IP address of 192.168.0.1. A computer designated as a Web server has a static IP address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 24 NetBIOS Node Type. Indicates how network hosts are to perform NetBIOS name registration and discovery. This setting has no effect if the Learn NetBIOS information from WAN is activated. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 25 Clients configured as DHCP can receive the same IP address all the time using this feature. This is almost the same as if a device has a static IP address except that it must still actually © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 26 00:0D:88:11:22:33. If your network device is a computer and the network card is already located inside the computer, you can connect to the router from the computer and click the Copy Your PC’s MAC Address button to enter the MAC address. (continued) © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 27 Example: A DHCP reservation is used for making sure the router always gives a computer or device the same IP address. Let‟s say you have a Wi-Fi printer that you want to access via the Internet. You can connect to the CradlePoint Router from the Wi-Fi printer designated in this section. 1. Enter a designated IP address somewhere between the...
  • Page 28 PC‟s MAC Address button again because every wireless adapter has a unique MAC address. The same goes for any network device. If you replace a network device such as a print server, you will need to input the MAC address of the new print server into the Static DHCP configuration. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 29 Device or Continue. If you need to make additional settings changes, click Continue. If you are finished with all configuration settings, click the Reboot the Device button. Default: empty list. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 30: Network

    Enable DNS Relay. When DNS Relay is enabled, the router plays the role of a DNS server. DNS requests sent to the router are forwarded to the ISP‟s DNS server. This provides a constant DNS address that LAN computers can use, even © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 31 RIP Password. RIP Version 2 supports the use of a password to limit access to routers through the RIP protocol. If the ISP or other LAN router requires a RIP password, enter the password here. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 32  Auto Duplex (The auto setting is usually preferable.)  Full Duplex. Communication can go both ways simultaneously.  Half Duplex. Communication can only go one direction at a time. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 33: Wan Configuration

    ISP. Otherwise, leave this field blank. Verify Password. Re-enter the password. Authentication Protocol. Select from following dropdown options:  Auto  PAP (Password authentication protocol)  CHAP (Challenge-Handshake Authentication Protocol) © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 31...
  • Page 34 Enable WAN Ping Respond. If you enable this feature, the WAN port of your router will respond to ping requests from the Internet that are sent to the WAN IP Address. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 35: Modem Tab

    The Modem Tab provides access to 4 sub-menus for displaying information and controlling settings for any attached phones or modems.  Info  Failover  Settings  Update © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 33...

  • Page 36: Info

    Signal Strength (SGNL) button. Again, note that the data connection will be lost and any attached devices will be momentarily interrupted if they are accessing the WAN using the phone/modem. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 37: Failover

    Status. This is the link status of a device, which is one of the following:  Ready. This means the device is plugged in an available but not active.  Establishing. This means the router is attempting to bring up the link over the device. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 38 If necessary, it will first bring the active link down. Failover will proceed to the next device down on the list. Priority. Click on the red arrow icons to change the priority of a modem. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 39: Settings

    Enable High Speed. This is selected by default. Click to deselect. When selected, this enables the highest speed communication between the CradlePoint router and all attached modems. Try disabling this feature if your modem resets or disconnects regularly. Note: when enabled this setting uses USB 2.0 High Speed mode, and when disabled uses USB 1.1 Full Speed mode.
  • Page 40 (The first 2 requests will be directed at the Primary DNS server and the second 2 requests will be directed at the Secondary DNS server.) If still no data is received, the modem will be disconnected and failover will occur. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 41 Example: AT+CGDCONT=2,"IP","isp.cingular" ATDT*99***2# Modem Password (for tethered handsets). Enter the modem password. Verify Modem Password. Enter the modem password again to verify it was entered correctly. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 39...
  • Page 42  AAA Shared Secret (Password)  Verify AAA Shared Secret (Password)  HA Shared Secret  Primary HA  Secondary HA  AAA SPI  HA SPI © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 40...
  • Page 43 Authentication Protocol. Choose either TLS or TTLS from the dropdown menu. For TTLS, fill out the following additional fields for WiMAX authentication:  TTLS Inner Authentication Protocol. Choose from the dropdown menu: © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 44 Data Rate Threshold and Duration Threshold below). Several predefined settings for Data Rate Threshold and Duration Threshold are available for ease of configuration. Note: some dual mode modems can leave the 3G connection active while attempting the WiMAX connection. Others must disconnect the 3G connection first. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 45  Auto (all modes). Let the modem decide.  Auto 3G (3G or less).  Force LTE. Only connect LTE.  Force 3G (EVDO, UMTS).  Force 2G (1xRTT, EDGE, GPRS). © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 43...

  • Page 46: Update

    If no methods are displayed for your device you will need to activate and update your device externally. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 44...

  • Page 47: Tools Tab

    EVDO handset behavior regardless of where a remote employee is located.  Admin  Dynamic DNS  Firmware  Managed Services  Schedules  SNMP  SysLog  System  System Check  Time  VLAN © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 45...

  • Page 48: Admin (Administrator Settings)

    Verify Password. Re-type the password to ensure it was entered correctly. 6.1.2 System Name Gateway Name. You can change the name of the router here. (Default: CradlePoint: CBA750). © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 49 When you are done editing the settings, you must click the Save Settings button at the top of the page to make the changes effective and permanent. Some administration changes require a system reboot before they take effect. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 50: Dynamic Dns

    Password or Key. Enter the password (or key) provided by your service provider. Verify Password or Key. Re-type the password (or key) provided by your service provider. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 51 DNS name to the CBA750‟s WAN IP address. Note: If a dynamic DNS update fails for any reason (for example, when incorrect parameters are entered), the router automatically disables the Dynamic DNS feature and records the failure in the log. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 52: Firmware

    2. Once you have found the file to be used, click the Upload button to start the driver update process. 3. Wait for the modem to reboot. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 53 Power to the unit must be maintained during this critical step; do not turn off unit. As the router writes the new code into the permanent location (NVRAM), the user is presented with a screen on the browser which counts down for 60 seconds. After the 60-second countdown, the unit automatically reboots and reinitializes. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 54  Copy the u_modem.bin file to the USB Thumb Drive. This must be in the root not in a folder.  Power on a CBA750 and wait for the WLAN and POWER lights to go solid green. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 55 “Status” tab which will show the current router firmware version. The default password is the last 6 character of the MAC address, which is located on a sticker on the bottom. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 56: Managed Services

    Registration URL. If you have contacted Cradlepoint about registering your router, you may have received an email with a URL link. Paste that link here, and the next time your router fails to start a session it will register via this link.

  • Page 57: Schedules

    Start Time. Fill in hours, minutes and select AM or PM. End Time. Fill in hours, minutes, and select AM or PM. Click “Save” to add your new rule to the rules list. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 58: Snmp

    VLAN interfaces. For security, you can also set the community names for both Get and Set SNMP requests. SNMP is disabled by default on all three interfaces. The Default Port is 161. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 56...

  • Page 59: Syslog

    “Computer Name.” When you are done editing the settings, you must click the Save Settings button at the top of the page to make the changes effective and permanent. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 60: System (System Settings)

    Scheduled Reboot. Select a schedule (you must configure this under Tools → Schedules) from the dropdown menu. The router will automatically reboot at the “End Time” of the selected schedule. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 61: System Check (Ping Test)

     Host Name or IP Address: www.whitehouse.gov  Ping Result Please wait, resolving www.whitehouse.gov..Resolved to 205.161.7.102. Response from 205.161.7.102 received in 7 milliseconds. Response from 205.161.7.102 received in 6 milliseconds. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 59...
  • Page 62 CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT Response from 205.161.7.102 received in 7 milliseconds. User stopped ping. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 60...

  • Page 63: Time

    Enable NTP Server. Select this option if you want the router‟s clock synchronized to a Time Sever over the © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 64 When you are done editing the settings, you must click the Save Settings button at the top of the page to make the changes effective and permanent. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 65: Vlan

    Edit icon or deleted by clicking the Delete icon. When you click the Edit icon, the "Edit VLAN Policy" section is activated for editing the chosen policy. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 66: Status Tab

    7 STATUS TAB The Status tab provides information about the current configuration settings of the CBA750 router via 3 sub-menus:  Device Info  Logs Statistics  © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 64...

  • Page 67: Device Info

    (regardless of the Reconnect Mode from the Global Settings section of the Modem Settings page) unless you re-plug it or click the Connect button. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 68 Subnet Mask. The subnet mask used on the WAN port. Default Gateway. The default gateway of the WAN port. Primary DNS Server. The Primary DNS Server address. Secondary DNS Server. The Secondary DNS Server address. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 69 Host Name then that will also be shown. Any computer or device that has a static IP address that lies within the detection "range" may show, however its host name will not. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 70 Refresh. Updates the log details on the screen so it displays any recent activity. Clear. Clears all of the log contents. Save Log. This option will save the router to a log file on your computer. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 68...

  • Page 71: S Tatistics (T Raffic S Tatistics )

    Sent Packets Dropped. The number of packets that were dropped while being sent due to errors, collisions, or router resource limitations. Received Packets Dropped. The number of packets that were dropped while being received due to errors, collisions, or router resource limitations. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 72: Device Info Logs Statistics

    The loss in strength of digital and analog signals. The Advanced Encryption Standard loss is greater when the signal is being transmitted over AES. Government encryption standard. long distances. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 70...
  • Page 73 Internet access from your A data frame by which one of the stations in a Wi-Fi Cable provider. network periodically broadcasts network control data to other wireless stations. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 71...
  • Page 74 Default A predetermined value or setting that is used by a program when no user input has been entered for this value or setting. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 72...
  • Page 75 Domain Name System: Translates Domain Names to IP Email addresses. Electronic Mail is a computer-stored message that is Domain name transmitted over the Internet. A name that is associated with an IP address. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 73...
  • Page 76 Programming that is inserted into a hardware device that H.323 tells it how to function. A standard that provides consistency of voice and video transmissions and compatibility for video conferencing devices. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 74...
  • Page 77 Internet Explorer A World Wide Web browser created and provided by A networking device that connects multiple devices Microsoft. together. ICMP Internet Control Message Protocol. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 75...
  • Page 78 Internet or on an Intranet. one point to another on a network. Also referred to as IPsec delay. Internet Protocol Security. Light Emitting Diode. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 76...
  • Page 79 Determines what portion of an IP address designates the A device that Modulates digital signals from a computer Network and which part designates the Host. to an analog signal in order to transmit the signal over © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 80 A logical channel endpoint in a network. A computer changes to the routing table are sent to all the other might have only one physical channel (its Ethernet © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 81 To restart a computer and reload it‟s operating software A computer on a network that provides services and or firmware from nonvolatile storage. resources to other computers on the network. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 82 Simple Network Management Protocol. TCP Raw SOHO A TCP/IP protocol for transmitting streams of printer data. Small Office/Home Office. TCP/IP Transmission Control Protocol/Internet Protocol. Stateful Packet Inspection. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 80...
  • Page 83 Sending voice information over the Internet as opposed product. to the PSTN Upgrade VoIP To install a more recent version of a software or firmware Voice over IP. product. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 81...
  • Page 84 Wireless Fidelity. Used to describe any of the 802.11 A generic term for the family of digital subscriber line wireless networking specifications. (DSL) technologies, such as ADSL, HDSL, RADSL, and SDSL. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 82...
  • Page 85 CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT Yagi antenna A directional antenna used to concentrate wireless signals on a specific location. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 83...

  • Page 86: Appendix

    If the purchaser wishes to upgrade or convert to another CradlePoint, Inc. product within the thirty (30) day period, purchaser may return the product and apply the full purchase price toward the purchase of the other product. Any other return will be subject to CradlePoint, Inc.‟s existing return policy.

  • Page 87: Specifications

    ENVIRONMENTAL TEMPERATURE 0°C to 40°C (32°F to 104°F) Operating -20°C to 70°C (- 4°F to 158°F) Storage RELATIVE HUMIDITY 10% - 85% Operating; 5% - 90% Storage © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 85...
  • Page 88 CBA750 at the Best Location HTTPS  10/100 BASE-T Ethernet Port  Compatible with WiPipe Central Managed  IEEE 802.3u Compliant, Static IP, PPPoE, PPTP, Services and L2TP Connection Types © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 86...
  • Page 89 CBA750 | USER MANUAL Firmware ver. 1.9.0 CRADLEPOINT http://www.cradlepoint.com/ Copyright © 2012 by CradlePoint, Inc. All rights reserved. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 87...
