Frigidaire FRT21IL5D Factory Parts Catalog
Frigidaire FRT21IL5D Factory Parts Catalog

Frigidaire FRT21IL5D Factory Parts Catalog

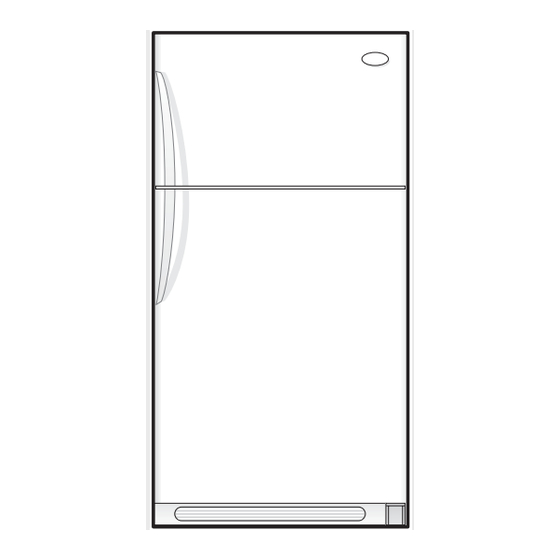

Top-mount refrigerator with ice-maker r134a series
Hide thumbs Also See for FRT21IL5D:

Advertisement

N05L00003.eps N05DCDBCA1.eps N05BBAAAD7.eps N05SACAFH16.eps
N05CAAAAA22.eps 115-1.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
Series
Color
Volts
Wiring Diagram
Owner's Guide
Market
Energy Guide
Service Data Sheet
Installation Instructions 240568301
240398801.eps 240398601.eps
Publication No.
5995491742
07/05/30
(EN/SERVICE/KHB)
390
FRT21IL5DMF
R134a
white
115
240398801
241796800
North America
240598683
240379018
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT21IL5D
©
Copyright
All rights reserved.

Advertisement

loading

Summary of Contents for Frigidaire FRT21IL5D

  • Page 1 Product No. FRT21IL5DMF Series R134a Color white Volts Wiring Diagram 240398801 Owner's Guide 241796800 Market North America Energy Guide 240598683 Service Data Sheet 240379018 Installation Instructions 240568301 TOP-MOUNT N05L00003.eps N05DCDBCA1.eps N05BBAAAD7.eps N05SACAFH16.eps REFRIGERATOR WITH N05CAAAAA22.eps 115-1.eps 240398801.eps 240398601.eps ICE-MAKER North & Latin America Model No.
  • Page 2 Publication No: 5995491742 FRT21IL5DMF DOOR N05DCDBCA1 05/07...
  • Page 3 FRT21IL5DMF Publication No: 5995491742 DOOR POS. NO PART NO. DESCRIPTION 240514611 Gasket, seal, black, frzr door, magnetic 240514612 Gasket, seal, black, refr door, magnetic 240337703 Door-dairy, w/o graphics, clear 240381306 Plug-button, silver mist, hinge brg hole 241798428 Door-frzr, silver mist, complete assy 241808601 Label-nameplate 240312405...
  • Page 4 Publication No: 5995491742 FRT21IL5DMF CABINET N05BBAAAD7 05/07...
  • Page 5 FRT21IL5DMF Publication No: 5995491742 CABINET POS. NO PART NO. DESCRIPTION 240355402 Cover-fan 240367001 Knob-damper control 5303212803 241523701 Damper-fan cover 5308000010 Fan Blade, red, evaporator fan 5300157666 Bushing-motor mtg, (2) 5303292396 Bracket-motor mtg, front 240313612 Cover-evap coil, w/o light 240568606 Seal-coil cover 10*# 240524701 Wiring Harness, freezer section...
  • Page 6 Publication No: 5995491742 FRT21IL5DMF SHELVES N05SACAFH16 05/07...
  • Page 7 FRT21IL5DMF Publication No: 5995491742 SHELVES POS. NO PART NO. DESCRIPTION 240358006 Shelf, freezer, full-width, wire 240545901 Diffuser-air, top 240362601 Diffuser, air, bottom 14 # 241554901 Switch-light/lamp 241555401 Light Bulb 241559801 Socket-light 240368101 Control Box 17*# 240388701 Wiring Harness, control box 240360801 Knob, temp control 5304445058...
  • Page 8 Publication No: 5995491742 FRT21IL5DMF SYSTEM N05CAAAAA22 05/07...
  • Page 9 FRT21IL5DMF Publication No: 5995491742 SYSTEM POS. NO PART NO. DESCRIPTION 241682903 Condenser, dynamic 218944001 Drier-filter, R134a System 241607001 Harness-wiring, machine compt 6* # 240388701 Wiring Harness, control box 6* # 240524701 Wiring Harness, freezer section 14 # 240356217 Heater-defrost 15 # 5303918274 Evaporator Kit 5308000110...
  • Page 10: Ice Maker

    Publication No: 5995491742 FRT21IL5DMF ICE MAKER 05/07...
  • Page 11 FRT21IL5DMF Publication No: 5995491742 ICE MAKER POS. NO PART NO. DESCRIPTION 218976901 Tube, water inlet, valve to IM 240561701 Seal-water inlet, inlet valve, to ice maker 5304456650 Spring-shutoff arm, ICE MAKER 5304456657 Nameplate 5304456658 Gear 5304456659 Plate-mounting 5304456691 Screw, M 3x20 #3, valve plate 5304445222 Motor-ice maker Svo 5304445223...
  • Page 12: Wiring Schematic

    Publication No: 5995491742 FRT21IL5DMF WIRING SCHEMATIC 05/07...
  • Page 13: Wiring Diagram

    FRT21IL5DMF Publication No: 5995491742 WIRING DIAGRAM 05/07 # Functional Parts * Non-Illustrated Parts...
