PLEASE READ ENTIRE MANUAL COMPLETELY BEFORE BEGINNING INSTALLATION
Congratulations on your purchase of the Ready Remote Car Starter. Ready Remote Car Starter allows you to start the car by remote control from the comfort
of your home or office in order to cool it down in the summer or warm it up in the winter.
Ready Remote Car Starter is for automatic transmission, fuel injected gasoline vehicle only. Please see pages 5-6 for important information on vehicles with
factory anti-theft systems. Ready Remote is an extremely sophisticated system with multiple built-in safety and security features.
• Will start your car by remote control, and run the heater,
defroster, or air conditioner to warm up or cool down the car
from up to 1,000 feet away!
• Is designed to start the car if it is in park, and only if the
hood is closed.
• Will attempt to start the car for up to six seconds, but no
longer (to avoid damage to the starter motor). Should the
car not start, or if it stalls after starting, the remote starter
will make two further attempts to start it.
• Will not let the car be driven without the key in the ignition.
• Allows you to use one remote to control up to 4 vehicles with
Ready Remote
®
Remote Car Starters.
Tools required to install the Ready Remote
Wire Cutters/Strippers
Soldering Iron
Pliers
Test meter
We highly recommend that all connections be soldered for reliability.
Parts List included with the Ready Remote
Remote Starter Receiver Module
Transmitters
Antenna
Control Harness (6 position)
6 Power & Ignition Wires
The following parts are included in the plastic bag:
Alchohol
Alcohol Pad
Pad
Green 30 A Fuse
On/Off Control Switch
Warning Label
This car is equipped with a remote control starting device.
Disable before working on car!
AVERTISSEMENT
Co véhicule est équipé d'un systéme de démarrage á distance. Mettez-le hors
fonctuin avant d'eflectuer toule opération d'entretian ou de répanation!
Single Blue Horn Wire
2 Protected by
DesignTech Labels
© 2005 Directed Electronics, Inc.
Ready Remote
Remote Control Car Starter Installation Manual
www.designtech-intl.com • www.directed.com • 800-876-0800
Ready Remote
®
Electrical Tape
Screwdriver
Drill with
1
/
"and
4
drill bits
®
Ring Terminal
Hood Pin Switch Set
2 Cable Ties
WARNING
Yellow Butt Connector
®
Model 23926
®

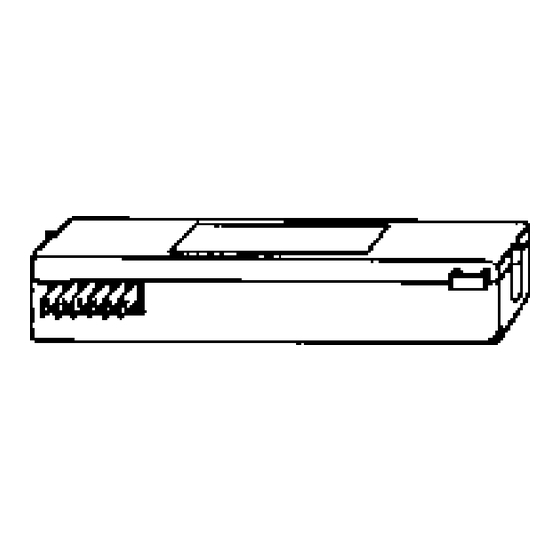

Remote Car Starter:
• Requires the user to "enable" the unit to prevent accidental
starts.
• Shuts itself off automatically after 10 or 15 minutes
(programmable) if you forget to come out to your car.
• Starts the vehicle automatically when ever the temperature
drops below 0
activated
• Will shut off if the brake pedal is pushed, the hood is opened,
or the transmission is shifted out of park - unless the key is
in the ignition and in the "run" position.
• Is quality engineered and microprocessor controlled to
provide many years of reliable use.
• Comes with a Limited Lifetime Warranty.
Unit:
Power Harness
5
/
"
16
Unit:
In-Gear Switch (inside case)
ON/OFF Switch Jack
Control Harness
Color
Function
Brown/White Alarm Disarm
Yellow
Lights
White/Black
Ignition #3
White - Option
Red LED Light
Red - Code Learn
Color
Orange
Purple
Green
* For free vehicle specific wire information consult our
websites at www.designtech-intl.com or www.directed.com
1
°
F (-18
°
C) when the Cold Start™ option is

Wiring Diagram

Color
Function
Pink
Power (+12V)
White
Accessory
Yellow
Starter
Blue
Ignition 1
Green
Ignition 2
Black
Ground
Color
Function
Blue
Horn
Circuit Type
Required
(–)400 mA
Consult Wiring Guide*
(+) Relay Output No
(–) 400 mA
Consult Wiring Guide*
Function
Circuit Type
Required
Brake
(+) Input
Yes
Hood Switch
(-) Input
Yes
Tach
(-) Input
No
Circuit
Type
Required
Input
Yes
Relay output
Yes
Relay output
Yes
Relay output
Yes
Relay output
Consult Wiring Guide*
Input
Yes
Coax
Antenna Jack
Circuit
Type
Required
(-)400mA
No
v5.3 (2126)

Advertisement

Table of Contents
loading

Summary of Contents for Directed Electronics Ready Remote 23926

  • Page 1: Wiring Diagram

    Purple Hood Switch (-) Input Green Tach (-) Input Single Blue Horn Wire * For free vehicle specific wire information consult our 2 Protected by websites at www.designtech-intl.com or www.directed.com DesignTech Labels v5.3 (2126) © 2005 Directed Electronics, Inc.
  • Page 2: Installation Instructions

    To Alarm To Remote Starter How to share a hood pin together by soldering them. Tape with electrical tape to leave no switch with an alarm v5.3 (2126) © 2005 Directed Electronics, Inc.
  • Page 3: Optional Steps

    (tach) information from a wire under the the driver’s kick panel. A relay is needed for vehicles which require a hood. If you choose tachometer sensing, connect the GREEN (18 positive pulse. © 2005 Directed Electronics, Inc. v5.3 (2126)
  • Page 4: Daytime Running Lights

    Normal Crank Extended Crank 1 flash 10/15 minute time out. Unit should be fine. Make sure This option will add 50% more crank time to the NoTach™ starting the transmitter is working properly. feature. v5.3 (2126) © 2005 Directed Electronics, Inc.
  • Page 5: Special Cases

    5. Close the case and plug in all of the wire connectors. and accessories flash 4 times). The remote starter will turn off Ignition 2 while the starter is crank- ing. Note: Teaching the module a new transmitter code will erase all pre- © 2005 Directed Electronics, Inc. v5.3 (2126)
  • Page 6 Universal Alarm Bypass Module or starter, regardless of the shifter’s position. When the shifter is contact Directed Electronics at 1-800-876-0800. in Park or Neutral, the vehicle will just start up normally. If the vehicle is accidentally left in gear and power is applied to the...
  • Page 7 The company behind this system is Directed Electronics, Inc. Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, DIRECTED is ISO 9001 registered.
  • Page 10: Troubleshooting Guide

    If you still get code 12, one of the toggle switch wires may have touched ground, possibly damaging the unit. Or maybe the switch was just turned off while it was running. Or maybe a defective switch? © 2005 Directed Electronics, Inc. Trouble Shooting v4-1...
  • Page 11 5 button remote, use the start button. (Refer to the installation manual for the complete control will lock the steps on how to make the unit enter the code learning process.) doors but will not unlock them. My 5 button remote will not control lock/unlock individually. © 2005 Directed Electronics, Inc. Trouble Shooting v4-1...
  • Page 12 Likewise, if the vehicle requires a ground capable of more than 400ma you would need to use a relay. See Installation Note 111, Basic Uses of the Relay from our web site or our Fax On Demand. © 2005 Directed Electronics, Inc. Trouble Shooting v4-1...
  • Page 13 Use the second marker to make a check when you have completed the step in the vehicle. This will help to make sure you have completed all steps, and that you have not missed any features the unit offers. © 2005 Directed Electronics, Inc. Trouble Shooting v4-1...
