BD-P1600

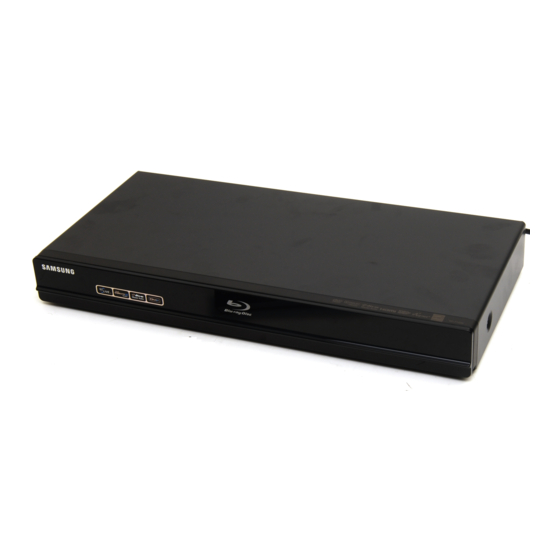

Blu-ray Disc Player
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register

   Related Manuals for Samsung BD-P1600

   Summary of Contents for Samsung BD-P1600

  • Page 1

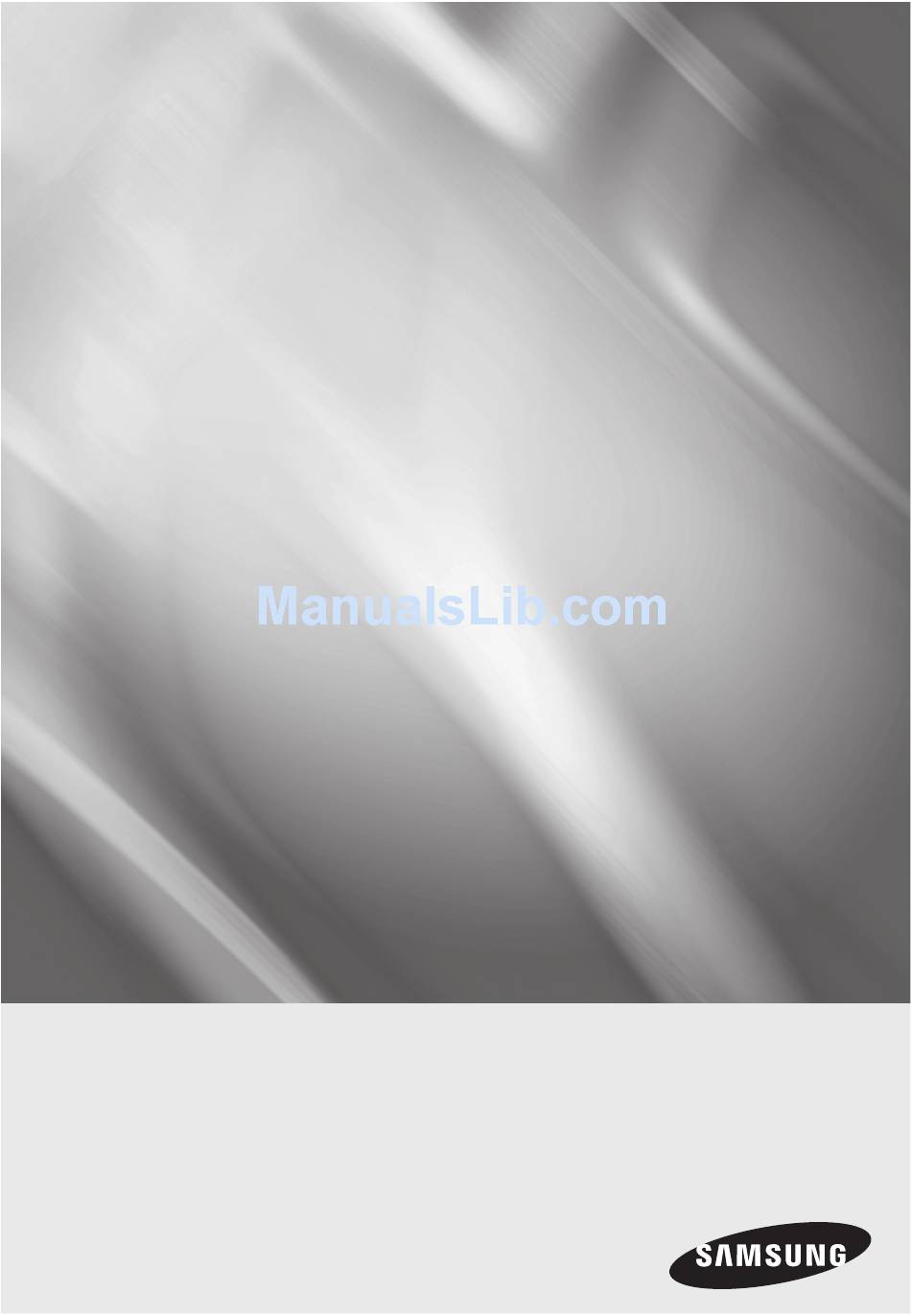

    BD-P1600 Blu-ray Disc Player user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register...

  • Page 2

    key features of your blu-ray disc player Player Features Supports a Variety of Disc Types Blu-ray (BD-ROM, BD-RE, BD-R), DVD Video, DVD-RW/-R (V mode and fi nalized only) discs and Audio CD. • CD-RW/CD-R, DVD-RW/-R and USB memory fl ash stick content such as MP3, JPEG and DivX fi les. •...

  • Page 3

    Menu graphics Support full colour resolution graphics and animation, thereby greatly surpassing the capabilities of DVD-Video. Unlike DVD, Menus can be accessed during video playback. Menu sounds When you highlight or select a menu option on a disc, sounds can be heard such as button clicks or a voice-over explaining the highlighted menu choice.

  • Page 4

    safety information Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION riSK OF ELECTriC SHOCK DO nOT OPEn CAUTION: TO REDUCE THE RISK OF ELECTRIC This symbol indicates “dangerous This symbol indicates important voltage”...

  • Page 5: Precautions

    The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consumers for licenced contents. No rights are granted for commercial use. The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicenced product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.

  • Page 6

    Please note that this is not a defect in the player. Samsung cannot assure that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because • disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs.

  • Page 7: Table Of Contents

    contents key feATUres Of yOUr blU-rAy What’s included dIsC plAyer sAfeTy INfOrmATION Warning Precautions geTTINg sTArTed Before Using the User’s Manual Disc Type and Characteristics Disc Storage & Management desCrIpTION Front Panel Front Panel Display Rear Panel remOTe CONTrOl Tour of the Remote Control Setting the Remote Control Regarding the Battery Controllable TV Codes...

  • Page 8

    contents bAsIC fUNCTIONs Of yOUr Before Playing blU-rAy dIsC plAyer On-Screen Menu Navigation Playing a Disc Setting the Sound Using the Search and Skip Functions Slow Motion Play/Step Motion Play sysTem seTUp Setting the Clock lANgUAge seTUp Setting up the Language Options AUdIO seTUp Setting up the Audio Options dIsplAy seTUp...

  • Page 9

    bd dATA mANAgemeNT System Device Management DivX(R) Registration DivX(R) Deactivation sysTem UpgrAde Firmware Upgrade System Information Firmware upgrade notification wATCHINg A mOvIe Using the Display Function Using the Disc Menu & Popup/Title Menu Repeat Play Selecting the Audio Language Selecting the Subtitle Language Changing the Camera Angle BONUSVIEW Settings BD-LIVE™...

  • Page 10

    If a problem occurs, check the Troubleshooting section. (See pages 71~72) Copyright ©2009 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. 10_ getting started...

  • Page 11: Disc Type And Characteristics

    DiSC TYPE anD CHaraCTEriSTiCS Disc types that can be played Disc Types Disc Logo Recorded content Disc Shape Max. Playing minute BD-ROM Playing time depends AUDIO + VIDEO Single sided BD-RE/BD-R on the Title Single sided (12 cm) Double sided (12 cm) DVD-VIDEO AUDIO + VIDEO Single sided (8 cm)

  • Page 12

    Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care centre. 12_ getting started...

  • Page 13

    Playback may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched.

  • Page 14: Disc Storage & Management

    getting started Disc Format DVD-rW/-r (V) ❖ • This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this Blu-ray Disc Player once it has been finalized. DivX ❖...

  • Page 15

    Blu-ray Discs ❖ If the player is not used for a long period of time, remove the Blu-ray Disc from the player and • store it in its case. Be careful not to leave fingerprints or scratches on the surface of the Blu-ray Disc. •...

  • Page 16

    description FrOnT PanEL DISC TRAY Opens to accept a disc. DISPLAY Displays the playing status, time, etc. REMOTE CONTROL SENSOR Detects signals from the remote control. OPEN/CLOSE BUTTON Opens and closes the disc tray. PLAY/PAUSE BUTTON Plays a disc or pauses playback. POWER BUTTON Turns the Blu-ray Disc Player on and off.

  • Page 17: Front Panel Display

    FrOnT PanEL DiSPLaY IN DISC INDICATOR Lights when a disc is in the tray. DISC TYPE INDICATORS Lights to indicate the disc type in the tray. USB INDICATOR Lights to indicate when USB is connected. HDMI INDICATOR Lights to indicate when HDMI is connected. HD INDICATOR Indicates the display output is HD (High Definition).

  • Page 18: Rear Panel

    description rEar PanEL The fan always revolves when the power is on. Ensure a minimum of 10 cm of clear space on all sides of the fan when installing the product. A USB memory flash stick can be connected here and used as storage when USB HOST connected to BD-LIVE.

  • Page 19

    remote control TOUr OF THE rEMOTE COnTrOL installing batteries in the remote Control Lift the cover at the back of the remote control install two aaa size batteries. replace the cover. upward as shown. Make sure to match the “+” and “–” ends Assuming typical TV usage, the batteries last for of the batteries with the diagram inside the about one year.

  • Page 20: Setting The Remote Control, Regarding The Battery

    remote control SETTing THE rEMOTE COnTrOL You can control certain functions of your TV with this remote control. Control function buttons include : TV POWEr, TV CH ,/., TV VOL +/–, TV MUTE, TV SOUrCE button. To determine whether your television is compatible, follow the instructions below. Switch your television on.

  • Page 21: Controllable Tv Codes

    COnTrOLLaBLE TV CODES Brand Code SAMSUNG TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09 AIWA TV POWER+82 ANAM TV POWER+10, +11, +12, +13, +14, +15, +16, +17, +18 BANG & OLUFSEN TV POWER+57 BLAUPUNKT TV POWER+71 BRANDT TV POWER+73...

  • Page 22

    connections This section involves various methods of connecting the Blu-ray Disc Player to other external components such as a TV. COnnECTing TO a TV WiTH an HDMi CaBLE - BEST QUaLiTY (rECOMMEnED) Using an HDMI cable, connect the HDMi OUT terminal on the rear of the Blu-ray Disc Player to the HDMi in terminal of your TV.

  • Page 23

    TV. If you connect a Samsung TV to the Blu-ray Disc Player using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See pages 45~46)

  • Page 24

    connections COnnECTing TO a TV WiTH DVi CaBLE - BEST QUaLiTY (rECOMMEnED) Using an HDMI-DVI cable (not included), connect the HDMi OUT terminal on the rear of the Blu-ray Disc Player to the DVi in terminal of your TV. Using the audio cables, connect the aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc Player to the aUDiO (red and white) in terminals of your TV.

  • Page 25

    COnnECTing TO a TV (COMPOnEnT) - BETTEr QUaLiTY - Connecting to your TV using Component video cables. - You will enjoy high quality images with accurate colour reproduction. Component video separates the picture element into black and white(Y), blue(P ) and red(P ) signals to present clear and clean images.

  • Page 26

    connections COnnECTing TO a TV (ViDEO) - gOOD QUaLiTY Using video/audio cables, connect the ViDEO (yellow) / aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc Player to the ViDEO (yellow) / aUDiO (red and white) in terminals of your TV. Turn on the Blu-ray Disc Player and TV.

  • Page 27

    COnnECTing TO an aUDiO SYSTEM (HDMi SUPPOrTED aMPLiFiEr) - BEST QUaLiTY (rECOMMEnED) Using an HDMI cable, connect the HDMi OUT terminal on the rear of the Blu-ray Disc Player to the HDMi in terminal of your Amplifier. Using an HDMI cable, connect the HDMi OUT terminal of the Amplifier to the HDMi in terminal of your TV. Turn on the Blu-ray Disc Player, TV and Amplifier.

  • Page 28

    connections COnnECTing TO an aUDiO SYSTEM (DOLBY DigiTaL, DTS aMPLiFiEr) - BETTEr QUaLiTY Using an optical cable (not included), connect the DigiTaL aUDiO OUT (OPTiCaL) terminal on the rear of the Blu-ray Disc Player to the DigiTaL aUDiO in (OPTiCaL) terminal of your Amplifier. Using the video signal cable(s), connect the HDMi, COMPOnEnT or ViDEO OUT terminals on the rear of the Blu-ray Disc Player to the HDMi, COMPOnEnT or ViDEO in terminals of your TV.

  • Page 29: Channel Amplifier) - Good Quality

    COnnECTing TO an aUDiO SYSTEM (2 CHannEL aMPLiFiEr) - gOOD QUaLiTY Using the audio cables, connect the aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc Player to the aUDiO (red and white) in terminals of your Amplifi er. Using the video signal cable(s), connect the HDMi, COMPOnEnT or ViDEO OUT terminals on the rear of the Blu-ray Disc Player to the HDMi, COMPOnEnT or ViDEO in terminal of your TV.

  • Page 30: Connecting To The Network

    To LAN port Set the network options after connecting the LAN cable. (See pages 50~51) Internet access to Samsung’s update server may not be allowed, depending on the router you use or the ISP’s policy. For more information, contact your ISP (Internet Service Provider).

  • Page 31

    Adapter (not included) Modem Cable This unit is compatible with Samsung's Wireless LAN Adapter only. (not included) (Model name: WIS09ABGN). - The Samsung Wireless LAN Adapter is sold separately. - Contact a Samsung Electronics agent or service centre for purchasing.

  • Page 32

    When you connect Blu-ray Disc Player and Samsung TV with Anynet+ feature (HDMI-CEC) using HDMI cable, the MENU LANGUAGE SELECTION window may disappear quickly. If you want to select language, please disable a Anynet+ feature (HDMI-CEC) on your TV.

  • Page 33

    On-SCrEEn MEnU naVigaTiOn System System Information Time Zone Clock Set Power On/Off sound Language Audio Touch Key Sound Subtitle BD Data Management Video DivX Subtitle DivX(R) Registration Disc Menu Music DivX(R) Deactivation Menu System Update Photo Setup Audio Digital Output PCM Down Sampling Display TV Aspect...

  • Page 34

    basic functions of your blu-ray disc player SETTing THE SOUnD Setting the Power On / Off Melody Sound A Melody sound can be set so it is heard each time you turn the player on or off. A Melody sound can be set so it is heard each time you turn the player on or off. With the unit in Stop mode, press the MEnU button.

  • Page 35

    USing THE SEarCH anD SKiP FUnCTiOnS During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. hgfZCVD Searching through a Chapter or Track During playback, press the SEarCH ( ) button.

  • Page 36

    system setup For your convenience, you can set this player’s features for the best use in your home environment. SETTing THE CLOCK Choose your time zone With the unit in Stop mode, press the MEnU button. Music Press the ▲▼ buttons to select Setup, then press the Photo System Information EnTEr or + button.

  • Page 37

    language setup SETTing UP THE LangUagE OPTiOnS Once you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically every time you watch a movie. If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc menu to make the selection.

  • Page 38

    audio setup SETTing UP THE aUDiO OPTiOnS Allows you to set up the Audio device and sound status depending on the audio system being used with the player. With the unit in Stop mode, press the MEnU button. Music System Press the ▲▼...

  • Page 39

    Be sure to select the correct Digital Output or you will hear no sound or a loud noise. If the HDMI device (Receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM. Secondary and Effect audio will not be heard with regular DVDs. Some Blu-ray Discs do not have Secondary and Effect audio.

  • Page 40

    audio setup Downmixing mode This option enable you to compatible with Dolby Pro Logic systems. This option enable you to compatible with Dolby Pro Logic systems. normal stereo : This is for just downmixing into 2ch • Digital Output : PCM Music audio.

  • Page 41

    display setup SETTing UP THE DiSPLaY OPTiOnS This function allows you to setup the TV screen settings. This function System depends on the disc or TV type. It may not work with some discs or TVs. Music Language Photo Audio With the unit in Stop mode, press the MEnU button.

  • Page 42

    display setup Movie Frame (24 Fs) Movies are usually fi lmed at 24 frames per second. Some System Music Blu-ray Discs have the capability of playing back at this Language Photo frame rate. Setting the Movie Frame (24Fs) feature to ON Audio TV Aspect : 16:9 Normal...

  • Page 43

    resolution according to the output mode ❖ Blu-ray Disc playback • Output Component HDMI VIDEO Setup (HDMI&Comp. connected / Comp. connected only) 1080p, Movie Frame(24Fs) off 1080p@60F 576i (480i) / 1080i 576i (480i) 1080p/1080i, Movie Frame (24Fs) on 1080p@24F 576i (480i) / 1080i 576i (480i) 1080i, Movie Frame (24Fs) off 1080i...

  • Page 44

    display setup Frame & Field bar Still Mode Set the Auto, Field or Frame setting for the best possible still System Movie Frame (24 Fs) : Off Music picture (pause mode) from a DVD. Language Resolution : 1080p Photo Audio Progressive Mode : Auto auto : Select this setting to have the player automatically...

  • Page 45

    Set the Anynet+ function on your TV. (See the TV instruction manual for more information.) anynet+ Functions • One touch play You can power on your Samsung TV and Home Theatre, and play the disc in this unit simply by pressing the PLaY button on the TV’s remote. One touch watching •...

  • Page 46

    HDMI setup TV anynet+ Menu When you press the Anynet+ button on your Samsung TV's remote control, the following On-Screen Display (OSD) will BD Player be shown. View TV Blu-ray Disc Player Menu • Select Device Record - When playing a movie : brings up the disc’s menu (same Menu on Device as DiSC MEnU button on the Blu-ray Disc Player’s...

  • Page 47

    BD Wise (Samsung products only) BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically. On : The original resolution of the BD/DVD disc will be •...

  • Page 48

    parental setup SETTing UP THE ParEnTaL LOCK The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc.

  • Page 49

    if you forgot your password Remove the disc. Press and hold the SKiP (]) button on the front panel for 5 seconds or more. All settings will revert to the factory settings. • When the factory default settings are restored, all the user data stored in the BD Data will be deleted. Setting the rating Level Press the ▲▼...

  • Page 50

    network setup SETTing UP THE nETWOrK SETUP OPTiOnS To obtain information on the proper settings, check the network settings on your computer or contact your Internet provider. To set the network of your Blu-ray Disc player, follow the steps below. To set the network of your Blu-ray Disc player, follow the steps below.

  • Page 51

    Press the ▲▼ buttons to select a desired item, then press the EnTEr button. If DHCP is set to Off and, DNS to Manual, • Audio Music enter your IP Address, Subnet Mask, Cable Network Display Photo Network Selection DHCP : Off HDMI Gateway and Primary DNS settings...

  • Page 52

    network setup Press the $% buttons to select a desired item, then press the EnTEr button. buttons to select a desired item, then press the EnTEr button. Select an Access Point, and then press the EnTEr • Audio Music button to display an available list of APs. Wireless Network Display Photo...

  • Page 53

    If DHCP is set to On and, DNS to Auto, • Audio Music you don’t need further or additional Wireless Network Display Photo Network Selection Access Point : Not Selected HDMI settings. Setup DHCP : On Cable Network No disc ►...

  • Page 54

    network setup nTP Server (Used to retrieve Time information from nTP Server) To setup, follow steps 1~3 on page 50. Press the ▲▼ buttons to select nTP Server, then press Audio Cable Network Music the EnTEr or + button. Display Wireless Network Photo HDMI...

  • Page 55

    BD data management BD Data (stored in external USB fl ash memory) is Blu-ray Disc content such as trailers and other special features downloaded from the BD-LIVE service or Blu-ray Discs. * You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to download content from BD-LIVE.

  • Page 56

    BD data management DiVX(r) rEgiSTraTiOn Please use the Registration code to register this Blu-ray Power On/Off sound : On Music Disc Player with the DivX(R) Video On Demand format. Touch Key Sound : On Photo For more information, visit www.divx.com/vod BD Data Management DivX(R) Registration Setup...

  • Page 57

    Samsung may offer upgrades to your Blu-ray Disc Player's fi rmware in the future. To upgrade this fi rmware you must : USB : Visit www.samsung.com/bluraysupport, then download and store the latest fi rmware (RUF fi le) into the USB fl ash drive.

  • Page 58

    system upgrade If there is a disc in the player : • "Please maintain "No Disc" state for network update." This indicates that you must remove all discs from the unit to perform the update. If the server service is not available : •...

  • Page 59

    FirMWarE UPgraDE nOTiFiCaTiOn The popup menu appears when a newer version of the fi rmware is available from SAMSUNG update server than that of the Blu-ray Disc Player, if the Blu-ray Disc Player is connected to the network and powered on.

  • Page 60

    watching a movie USing THE DiSPLaY FUnCTiOn hgfZCV During playback, press the inFO button on the remote control. Info If the Blu-ray Disc has the BONUSVIEW feature, press • Title : 000/034 the inFO button in the BONUSVIEW section to display Chapter : 000/002 Playing Time...

  • Page 61

    USing THE DiSC MEnU & POPUP/TiTLE MEnU Using the Disc Menu During playback, press the DiSC MEnU button on the remote control. PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS Press the ▲▼_ + buttons to make the desired selection, then press the + or EnTEr button. The Disc menu setup items may vary from disc to disc.

  • Page 62

    watching a movie Using the Popup Menu During playback, press the POPUP MEnU button on MAIN MENU AUDIO SET UP SUBTITLES SCENE SELECTIONS the remote control. Press the ▲▼_ + buttons or EnTEr button to select the desired menu. The Popup menu setup options may vary from disc to •...

  • Page 63

    hgfZD SELECTing THE aUDiO LangUagE You can select a desired audio language quickly and easily with the aUDiO button. Using the aUDiO button Press the aUDiO button during playback. The Audio changes when the button is pressed repeatedly. Audio 1/4 ENG Dolby Digital Multi CH The audio languages are represented by abbreviations.

  • Page 64

    watching a movie Using the inFO button During playback, press the inFO button on the remote control. Press the ▲▼ buttons to select Subtitle. Press the _ + buttons on the remote control to select the desired subtitle language. Depending on the Blu-ray Disc / DVD, you may be able to change the desired subtitle in the Disc Menu. Press the DISC MENU button.

  • Page 65

    BOnUSViEW SETTingS The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. Using the BOnUSViEW button If the current Blu-ray Disc features the BONUSVIEW function, you can use the BOnUSViEW button to turn BONUSVIEW On or Off.

  • Page 66

    listening to music BUTTOnS On THE rEMOTE COnTrOL USED FOr aUDiO CD (CD-Da)/MP3 PLaYBaCK PaUSE button : Pauses playback. SKiP ( ) button : During playback, moves to the next page in the Music List or moves to the next track in the Playlist. BONUSVIEW PAUSE PLaY button : Plays the currently selected track.

  • Page 67

    You can select the data source by pressing the $% button in the menu screen. (CD/DVD/USB memory fl ash stick) PLaYing an aUDiO CD(CD-Da)/MP3 Insert an Audio CD(CD-DA) or an MP3 Disc into the disc ► TRACK 001 1/18 tray. 00:02:24 / 00:05:57 For an Audio CD, the fi rst track will be played •...

  • Page 68

    listening to music Playlist You can create a playlist with up to 99 tracks. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray. TRACK 001 00:05:57 Video TRACK 002 00:04:28 For an Audio CD, the fi rst track will be played •...

  • Page 69

    MP3 & JPEg Simultaneous playback You can enjoy listening to MP3 fi les while you simultaneously view JPEG fi les. You can enjoy listening to MP3 fi les while you simultaneously view JPEG fi les. You can enjoy listening to MP3 fi les while you simultaneously view JPEG fi les. When you play MP3 fi le, press the BLUE(D) button.

  • Page 70

    playing back a picture PLaYing a JPEg DiSC Insert a JPEG disc into the disc tray. Video (You can watch the jpeg fi les using a USB memory Music fl ash stick) Photo Setup Press the ▲▼ buttons to select the Photo, and then Video press the EnTEr or + button.

  • Page 71

    appendix TrOUBLESHOOTing Before requesting service, please check the following. PROBLEM SOLUTION No operation can be performed with the • Check the batteries in the remote control. They may need replacing. remote control. • Operate the remote control at a distance of no more than 6.1m. •...

  • Page 72

    • Go to the contents and find the section of the instruction manual that contains the explanations regarding the current problem, and follow the procedure once again. • If the problem still cannot be solved, please contact your nearest Samsung authorized service centre.

  • Page 73

    96 kHz Sampling : 4 Hz to 44 kHz *S/N Ratio 110 dB *Dynamic Range 100 dB *Total Harmonic Distortion 0.003% *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. English _3...

  • Page 74

    - this player operates differently than a standard DVD player or other AV equipment; and/or - for reasons noted throughout this Manual and for other reason(s) discovered and posted by SAMSUNG customer care centre. If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care centre. You may •...

  • Page 75

    Contact SaMSUng WOrLD WiDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. region Country Contact Centre  Web Site CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca North America MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us...

  • Page 76

    aK68-01819Q...
