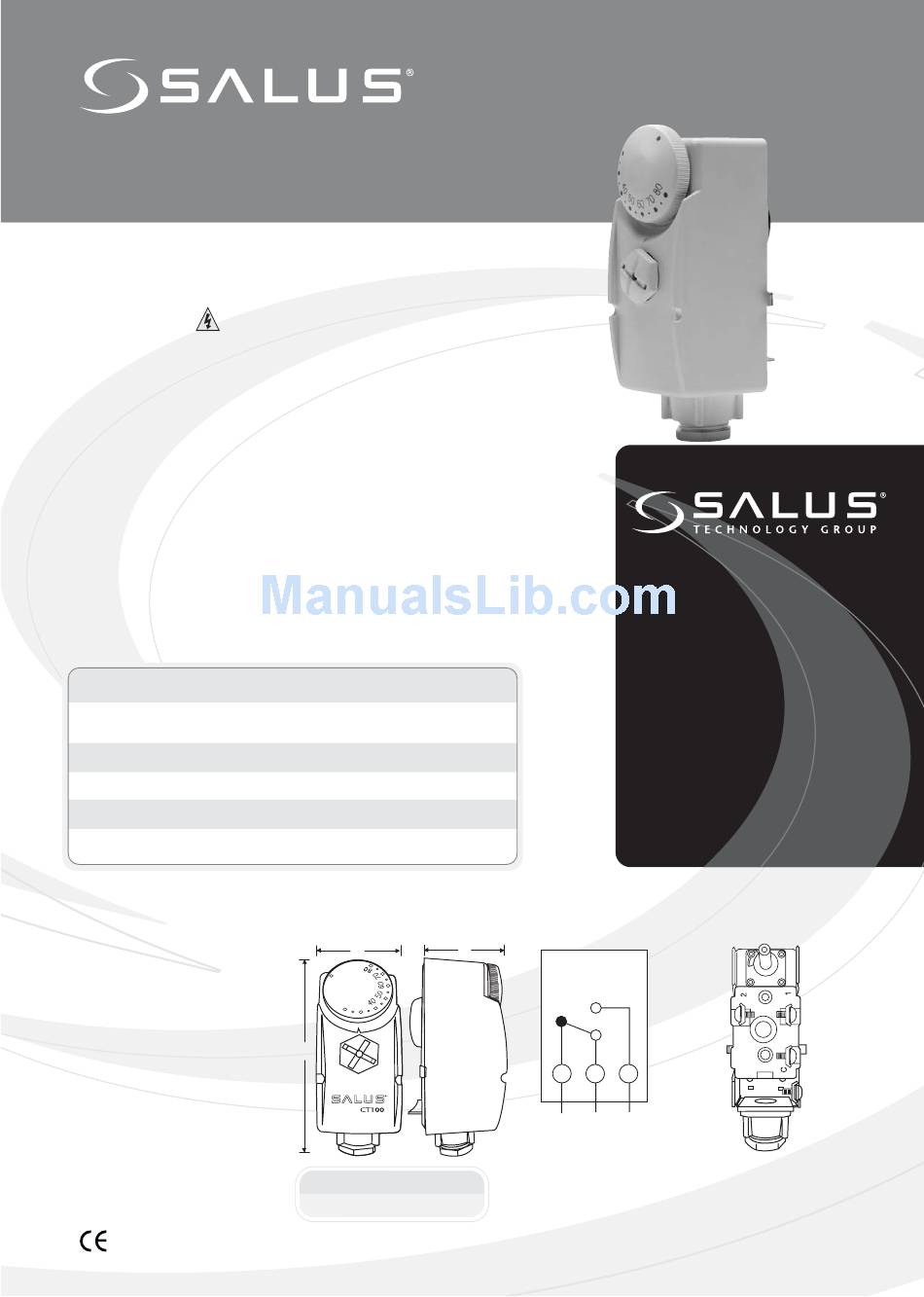

Salus CT100 Instruction Manual

Cylinder/Pipe THERMOSTAT
for Model No. CT100
Thank you for purchasing this Salus product - if installing for someone
else, please ensure that the instructions are handed to the householder.
Warning - Please read this manual prior to installation or use.
Shock Hazard
This unit must be installed by a competent person, in accordance with
BS 7671 (the IEE Wiring Regulations), or other relevant national
regulations and codes of good practise.
Always isolate the AC Mains supply before removing the unit
from the Industry Standard Back Plate.

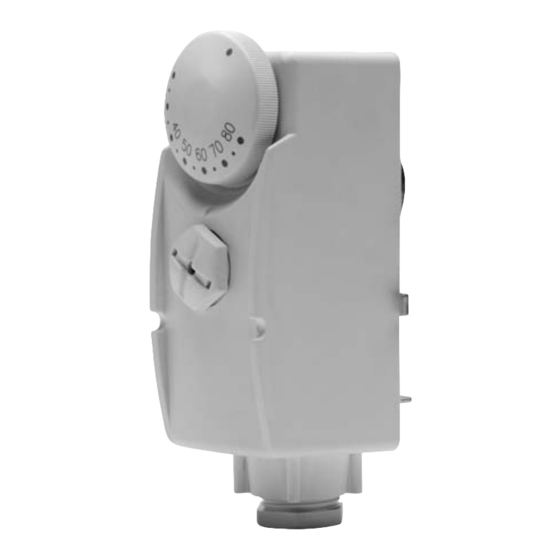

The CT100 is a practical surface mounted mechanical thermostat.
This thermostat will allow the user to control the temperature of
Domestic Hot Water Cylinders (uninsulated and foam lagged).
This unit comes complete with a wire strap which enables the CT100 to
be used also as a pipe thermostat.
This unit can be used to switch a circulating pump, boiler or most
common motorised zone valves.
Specification
Voltage Rating
Switch Rating
Switch Type
Temperature Setting Range
Ambient Temperature
Agency Approval
Setting The
Temperature
Once the CT100 has been
situated in the correct location
and connected, simply turn
the dial to the desired setting
making sure the temperature
required lines up with the
arrow on the main body of the
CT100. Fixings for both
Cylinder/Pipe Thermostat are
included within the box.
FIXINGS FOR BOTH CYLINDER/PIPE THERMOSTAT ARE INCLUDED WITHIN THE BOX.
: 230 AC 50Hz
: 16A resistive
: 4A inductive
: Single pole, double throw (SPDT)
o
: 40 to 80 C
o
: 0 to 55 C
: CE
Dimension (mm)
C
A
A B C
105 50 45
I n s tr uction Ma nua l
Customer Services +44 (0) 8700 766902
Wiring
Diagram
B
CT100
THERMOSTAT
C 1 2
Terminals C and 2 make
on temperature rise.
Terminals C and 1 make
on temperature fail.
Sales +44 (0) 8700 766900
Technical +44 (0) 8700 766902
Salus Controls plc
Enterprise Park, Bala
Gwynedd, LL23 7NL
Regional offices, England & Scotland.
Web: www.salus-tech.com
Email: sales @salus-tech.com
Maintaining a policy of continual product development Salus Controls
plc. reserve the right to change specification, design and materials of
products listed in this brochure without prior notice.
Manual Issue No. IM-CT100-001
