Bryant 361AAN Manual
Oil-fired furnaces sizes 075 thru 210
Hide thumbs
Also See for 361AAN:
- Installation, start-up, and operating instructions manual (16 pages) ,
- User's information manual (8 pages)
Related Manuals for Bryant 361AAN
Summary of Contents for Bryant 361AAN
- Page 1 361AAN, 362AAN & OIL-FIRED FURNACES 363AAP Sizes 075 thru 210 ® 361AAN 362AAN Upflow/Horizontal Low-Boy 363AAP Upflow/Horizontal (Large Capacity) Form No. PDS 361A.75.2...
-
Page 2: Specifications

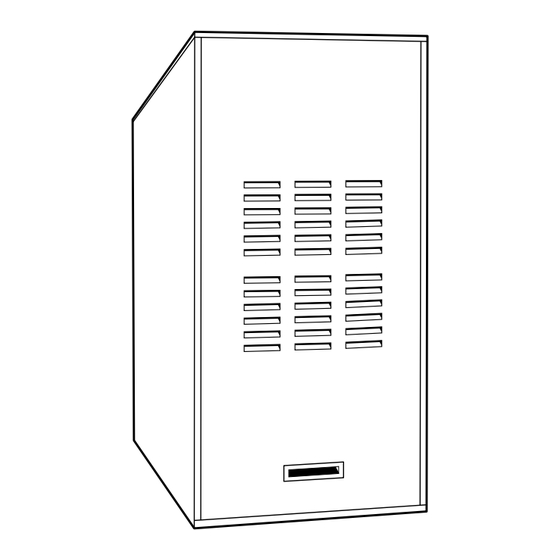

MODEL 361AAN UPFLOW-HORIZONTAL OIL FURNACE The 361AAN Furnace is designed for top performance to provide years of reli- able, comfortable home heating. The 361AAN is an upflow/horizontal oil furnace that can be installed upflow, hor- izontal right, or horizontal left for greater application coverage. The flue exits the front of the furnace. - Page 3 DIMENSIONS—MODEL 361AAN ALTERNATE OIL INLET THROUGH SLOTS KNOCK-OUT BOTH SIDES SIDE FOR SIDE FLUE RETURN AIR DUCT ⁄ CLEANOUT PORTS OIL INLET -IN. DIA (2 PLACES) SIDE BOTH SIDES RETURN ELECTRICAL AIR DUCT CONNECTIONS (TOP) -IN. DIA BOTH SIDES (BOTTOM) -IN.
- Page 4 MODEL 362AAN LOW-BOY OIL FURNACE The 362AAN Furnace is designed for top performance to provide years of reli- able, comfortable home heating. The 362AAN is a Low-Boy style oil furnace that can be installed in limited over- head areas for greater application coverage. The heat exchanger is backed by a Limited Lifetime Warranty.
- Page 5 DIMENSIONS—MODEL 362AAN CLEAN-OUT PORTS SUPPLY RETURN DUCT DUCT ⁄ INSULATION PARTITION PANEL ELECTRICAL CONNECTIONS FILTER INSULATION A96309 INTERMEDIATE PANEL OIL INLET DIMENSIONS (In.) UNIT DIMENSIONS FLUE WIDTH DEPTH HEIGHT DUCT SUPPLY OPENING DIAMETER RETURN DUCT UNIT SHIP. SIZE WT (Lb) 036105 17-1/4 048125...
- Page 6 MODEL 363AAP UPFLOW/HORIZONTAL OIL FURNACE The 363AAP Furnace is designed for top performance to provide years of reli- able, comfortable home heating. This furnace is also designed to meet the need for large residential and light commercial markets. The 363AAP is a large capacity upflow/horizontal oil furnace that can be installed upflow, horizontal right, or horizontal left for greater application coverage.
- Page 7 DIMENSIONS—MODEL 363AAP CLEANOUT PORTS CLEANOUT PORTS ALTERNATE OIL INLET THROUGH SLOTS REAR VIEW FLUE DIAMETER SIDE RETURN CLEANOUT AIR DUCT PORTS OIL INLET IN. DIA (2 PLCS) BOTH SIDES ELECTRICAL CONNECTIONS (TOP) IN. DIA BOTH SIDES (BOTTOM) IN. DIA BOTH SIDES CONTROL RETURN AIR DUCT...
-
Page 8: Service Training
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE UNIT MUST BE INSTALLED IN ACCORDANCE WITH INSTALLATION INSTRUCTIONS Cancels: PDS 361A.75.1B —8— © 1997 Bryant Heating & Cooling Systems, 7310 W. Morris St., Indpls., IN 46231 PRINTED IN U.S.A. Catalog No. 5236-100 8-97...
