Electrolux Refrigerator Installation Manual

I n s t a l l a t i o n
WARNING WARNING
WARNING WARNING WARNING
!
To avoid electric shock, which can cause death or severe personal injury, do not connect your
refrigerator to an electrical power source until you have completed Step 3 of these instructions.
Tools Necessary:
AND OR OR
Socket Adjustable 3/8" Fixed
™
Phillips Head Wrench Set Wrench Wrench
1
Prepare The Installation Site
Your counter-depth refrigerator is designed to be part of a built-in kitchen cabinet
system. Be sure to coordinate site preparation and installation with your kitchen
contractor.
Include these minimum guidelines in your site preparation:
• Choose a place near a grounded electrical outlet.
• Do not use an extension cord or an adapter plug.
• Avoid direct sunlight and close proximity to a range, dishwasher or other
heat source.
• Floor should be level and able to support a fully loaded refrigerator.
• The refrigerator's Ice & Water Dispenser requires water supply access.
• Plan for easy access to counter tops when removing food.
• For complete access to drawers and freezer baskets, doors must be able to
fully open.
Allow the following clearances for ease of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top: 3/8 inch Rear: 1 inch
2
Transport Unpackaged Refrigerator To Site
By now, you have already removed your refrigerator's shipping carton. You may
still need to use a hand truck to move it through close spaces or entrances. If the
refrigerator is larger than an entrance, consider two options:
• Remove the entrance door if one exists.
• Remove the refrigerator doors (see how in your Use & Care Guide).
When using a hand truck:
• Load refrigerator from side of cabinet only.
• Do not run retaining straps over handles.
• Do not over-tighten retaining straps.
CA CA
CAUTION CA CA
!
• Never use refrigerator handles to move the refrigerator.
• Remove tape from doors only after unit is in place.
Shifting the refrigerator from side to side
may damage flooring.
3
Connect Water Supply
What you will need: CAUTION CA CA CA CA
!
eçìëÉ
• Access to a cold water line
éäìãÄáåÖ
To avoid property damage:
with pressure of
äáåÉ
• Use copper tubing for the water
20-100 psi.
supply line (plastic tubing is more
• Copper tubing with ¼-inch
likely to leak).
_
(6.4mm) OD. Length for this t~íÉêäáåÉ=Üççâìé
• Ensure water supply complies with
íÜÉ ï
tubing is the distance from
local plumbing codes.
the rear of the refrigerator to your household
water supply line plus 7 feet (2.1 meters).
NOTE NO NO NO NO TE TE TE TE
• A shut-off valve for the connection between your household
water line and the refrigerator supply line.
Electrolux Kit #53039117950, available from
Do not use a self-piercing shut-off valve.
your dealer, provides all materials for a water
• A compression nut and ferrule (sleeve) for the water supply
supply installation, including 25 feet of
connection at the rear of your refrigerator.
copper tubing and full instructions.
Not satisfied with the installation of your refrigerator?

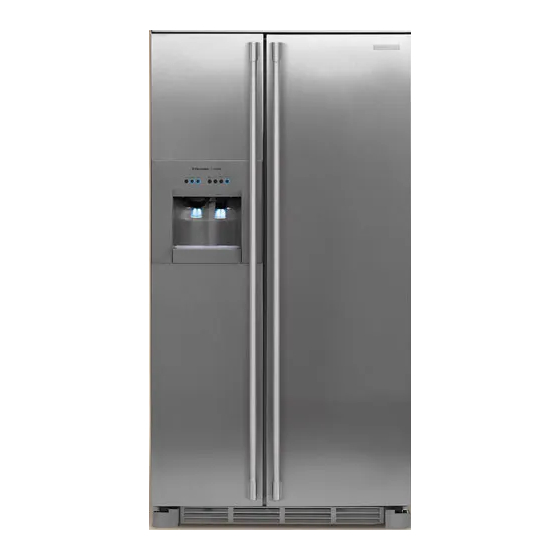

S i d e - B y - S i d e R e f r i g e r a t o r
To connect the water supply to the rear of your refrigerator:
1 Ensure that the refrigerator is not plugged in.
2 Flush the supply line until water is clear by placing the end of the
copper tube in a sink or bucket and opening the shut-off valve.
3 Unscrew the plastic cap from the water valve inlet at the rear of
NO NOTE NO NO NO TE TE TE TE your refrigerator. Discard the cap.
4 Slide the brass compression nut, then the ferrule (sleeve) onto
These installation
copper tube.
Instructions
instructions are provided
5 Push the copper tube into water valve inlet as far as it will go
only as a possible customer
(1/4 inch).
option. Electrolux
f o r
6 Slide the ferrule (sleeve) into valve and finger-tighten the
recommends that you use a
compression nut onto valve. Tighten another half turn with a
service or kitchen
wrench. Do not over-tighten.
contracting professional to
7 Secure the copper tube to your refrigerator's rear panel with a
install your refrigerator.
steel clamp and screw (see illustration).
8 Coil the excess copper tubing (about 2½ turns) behind your
refrigerator as shown. Arrange coiled tubing to avoid vibration or
wear against other surfaces.
9 Open water supply shut-off valve and tighten any connections
NO NO TE TE that leak.
NO NOTE NO TE TE
Information about
NO NO NO NO NOTES TES TES TES TES
cabinetry construction for
Electrolux products is
available for contractors. • The ice maker's fill valve may operate noisily if the household water supply is shut off.
Call 1-877-435-3287. • After ensuring no water leaks exist at any connection, be sure to check for leaks again in 24 hours.
• See your Use & Care Guide for detailed information about setting up and operating the Ice & Water
Dispensing system.
CA CA UTION UTION
CAUTION CA CA UTION UTION
!
4
Room temperatures below Place In Permanent Position
55°F (13°C) or above
110°F (43°C) will impair
cooling ability of your If possible, use a hand truck to position the refrigerator directly in front of
refrigerator's compressor.
its cabinet enclosure.
Be careful not to move the refrigerator beyond its water supply (copper
tubing) connections.
Plug in the power cord, and push the refrigerator straight back into
place.
IMPOR IMPOR IMPORT T T T T ANT IMPOR IMPOR ANT ANT ANT ANT
If you are installing your refrigerator without connecting it to a water
supply, make sure the ice maker's power switch is turned Off (see the
Use & Care Guide for more details).
5
Level Refrigerator & Adjust Doors (if necessary)
Guidelines for final positioning of your refrigerator:
UTION UTION
UTION UTION
• All four corners of the cabinet must rest firmly
on the floor.
• The cabinet should be level at the front and rear.
• The sides should tilt ¼-inch (6 mm) from front to back
(to ensure that doors close and seal properly).
• Doors should align with each other and be level.
All of these conditions can be met by raising or lowering the
UTION UTION UTION UTION
adjustable front rollers.
To adjust the front rollers:
1 Open both doors and remove the toe grille by
unscrewing its two mounting screws and gently pulling
forward (see illustration).
2 Close the doors and use a flat-blade screwdriver or 3/
8-inch socket wrench to raise or lower the front rollers.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides.
4 Replace the toe grille by fitting it into place and
refastening its mounting screws.
This document should only be removed by customer after installation.
CA CA UTION UTION
CA CA CAUTION UTION UTION
!
• Shifting the refrigerator from
side to side may damage
flooring.
• Do not block the toe grille on
the lower front of your
refrigerator. Sufficient air
circulation is essential for
proper operation.
NOTE NO NO NO NO TE TE TE TE
The doors are designed to close automatically at
an opening of 20 degrees or less.
Please contact the store you purchased it from.
Tu r n
6
Remove Internal Shipping Materials
Electrolux uses packing foam and tape to secure the internal parts of your refrigerator for shipping. Once the
refrigerator is in position, you can remove this material.
7
Check Initial System Settings
Your refrigerator includes an ice &
water dispensing system, a digital
temperature control system,
controls to monitor the status of a
water filter, and controls for storage
drawer humidity and temperature.
See the Use & Care Guide to
learn more about the start-up
settings for these controls.
NO NO NOTE NO NO TE TE TE TE
After changing control settings,
wait 24 hours before making
further adjustments.
8
Problems? Try These Suggestions
Operation problems are possible if any of the installation tasks are not completed. Here is a list of things to check
for:
• Is the refrigerator's power cord plugged in?
• Is the refrigerator connected to the household water supply?
• If you had to remove the refrigerator and freezer doors, did you reattach water and power connectors at the
door hinges? (See the Use & Care Guide for detailed instructions on removing and replacing doors.)
• Is the ice maker power switch turned On?
Other possibilities to check:
• Is the power to the receptacle turned on?
• Is the water filter above the fresh food compartment fully seated (see Use & Care Guide for details)?
If you still have operation problems after checking these suggestions, please see the "Solutions To Common
Problems" section in your Use & Care Guide.
9
What's Next?
Congratulations. You are ready to begin enjoying your new Electrolux refrigerator.
• To become aware of important safety instructions and learn how to operate your refrigerator, please read the
entire Use & Care Guide.
• You may want to start with the "Normal Operating Sights & Sounds" section of the Guide to learn more about
what to expect during typical operation.
• Please register your product. You can use the CD that came with your refrigerator to register online, or you
can simply send in the Registration Card.
And thank you for choosing Electrolux.
t o o t h e r s i d e s f o r
S p a n ish & F re n c h .
NOTE NO NO TE TE TE
NO NO TE
Location of these
materials may vary
depending on your
model.
Digital
Control
Panel
P/N: 241540201
