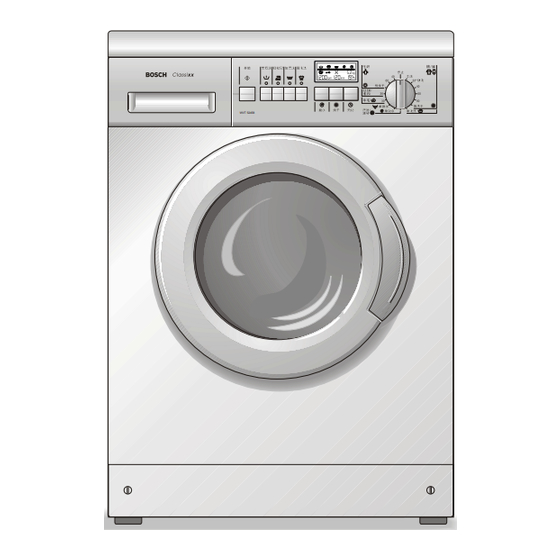

- Page 1 Ï ´ Ò Â ¸ É Ò Â » ú Ê ¹ Ó Ã ¼ ° ° ² × ° Ë µ Ã ÷ Ê é Operating and Installation Instructions WVT 52458...
- Page 2 ÔÚʹÓñ¾²úÆ·Ç°£¬ÇëÄú×ÐϸÔĶÁ±¾Ê¹ÓÃ˵Ã÷Êé¡£ ÓÉÓÚ²»×ñÊظÃʹÓü°°²×°ËµÃ÷ÊéÖй涨µÄ×¢ÒâÊÂÏËùÒýÆðµÄÈκΠ³§¼ÒµÄ±£ÐÞ·¶Î§ÄÚ£¬³§¼ÒÒ಻³Ðµ£ÈκÎÏà¹ØÔðÈΡ£ÇëÍ×ÉƱ£¹ÜºÃËù ÇëÓëµ±µØµÄ¿Í»§·þÎñÖÐÐÄ»ò¾-ÏúÉÌÁªÏµ¡£ Èç¹ûÄúÐèÒªÓ¢ÎÄ˵Ã÷Ê飬Çë·¢Ë͵ç×ÓÓʼþ£¬»ò²¦´ò·þÎñÈÈÏßÏò¿Í»§ лл£¡ Please read this specification carefully before you use the product. Any failure and losses caused by ignoring the above mentioned items and cautions mentioned in the operation and installation instruction are not covered by our warranty and any liability.
-
Page 3: Table Of Contents
Table of Contents Disposal Information......Operating Instructions Environmental Protection/Conservation Issues..Safety Precautions and Warnings....Product Standard. -
Page 4: Disposal Information
Operating Instructions The new machine s packaging Disposal Information Dispose of packing materials in a responsible manner. Keep packing materials out of the reach of children. Packing mater -ials are not toys. Reprocessing and re-using materials saves raw materials and reduces waste. All packing materials used are environment friendly and re-usable. -
Page 5: Operating Instructions
Operating Instructions Precautions and Before using for the first time: Warnings Please read the enclosed documents carefully before using the Washer-dryer for the first time. They contain important information on the installation, use and safety of the machine. The manufacturer does not accept liability if these instruc- tions are not followed. -
Page 6: Operating Instructions 4
Operating Instructions Exercise caution when pumping out hot detergent solution. Never open the door when drying. When the programme has ended: When the program has ended: The End is indicated(If you select no final spin function,see page 28).The buzzer of machine sounds(the duration is 10 minutes) to remind the user that the program has ended. - Page 7 Operating Instructions Your new washer-dryer Filling laundry detergent and/or additive dispensers. Chamber I: Detergent for pre-wash,starch, or pre-soaking agent. Chamber II: Detergent for main washing period, water softener, blench and stain- removing salt. Chamber Additives, e.g. fabric softener or former(Do not exceed Max ) and close it Open the loading door Drain washing solution...
-
Page 8: Control Panel
Operating Instructions Control Panel Program selector Start button For switching the washer-dryer on and off and for For starting the wash/dry cycle selecting the programme. Can be rotated in either (programme must have been direction. If rotate it during the washing/drying, selectd). - Page 9 Operating Instructions Display panel Display Notes Prewash On if selected Not on if rinse,spin or Washing drain additional programme was selected Rinse Not on if spin or drain additional programme was selected Not on if a programme with Final spin/Empty the --- setting(without final spin) Not on if dry programme or...
- Page 10 Operating Instructions Programme status display The first row of symbols and the progress bar below form the programme status display. The progress bar consists of a frame and several segments. When the programme has been selected, the symbols forthe in -dividual programme sections are displayed.
- Page 11 Operating Instructions Programme duration When the programme has been selected, the expected programme duration(time after which the programme is expected to end) is displayed. The programme duration is displayed in hours and minutes, e.g. 01:17 1 hour and 17 minutes 00:35 35 minutes.
- Page 12 Operating Instructions Basic programme Select the desired programme(refer also to Programme table ). ¡æ Cold, 40 Cottons/coloureds For hard-wearing fabrics. quick washing Cottons/coloureds ¡æ For less soiling fabrics made from cottons or linen. This duration is shorter. ¡æ Cottons/coloureds For very dirty ,hard-wearing fabrics. Select this programme can remove stain as protein and so on.
- Page 13 Operating Instructions Additional function Washing Separate washing cycle. Rinsing Separate rinsing cycle with subsequent spin cycle for easy care fabrics. Spin Separate spin cycle. Washing solution or rinsing water is drained prior to the spin cycle. Drain Draining of the rinsing water after a wash programme with the without drain setting for the gentle treatment of delicate laundry.
-
Page 14: First Wash Cycle
Operating Instructions First Wash Cycle The installation of the washer-dryer is finished. (See page 36-42) Each washer-dryer has been tested in the factory. A little bit of water can be left in the drum during the test. Please carry out the first wash cycle without laundry to remove any water left over from the factory tests. - Page 15 Operating Instructions Make sure that the wire-cup bras are machine washable. Make sure that wire-cup bras in a pillow case which can be securely closed with a zip or buttons. If the wire works itself out of the cup it may fall through the holes of the drum and cause extensive damage.
- Page 16 Operating Instructions Normal dirt Visible dirt and/or some light staining recognizable. - T-shirts, shirts and blouses that are very sweaty or have been worn several times. - Underwear that has been worn for one day. - Tea towels, hand towels and bed linen that have been used for up to one week.
- Page 17 Operating Instructions Sorting laundry according to their care label specifications Only wash laundry that is labelled with the following care symbols: ¡æ Cottons + lines 60 , 40 , 30 ¡æ ¡æ ¡æ Cottons + lines 60 , 40 , 30 ¡æ...
- Page 18 Operating Instructions Loading the laundry £¡ Risk of explosion Items of clothing that have been pretreated with solvent-bas- ed cleaning agents, e.g. Stain remover and dry cleaning spirit, represent an explosion hazard once loaded into the washer- dryer. Therefore, these items must be rinsed thoroughly by hand. Risk of explosion Loose debris in the washer-dryer drum can damage the laundry.
-
Page 19: Laundry Detergents And Additives
Operating Instructions £¡ Laundry Detergents Risk of explosion and Additives Do not use solvent-based cleaning agents in fully automatic washer-dryer. Explosion hazard. Keep detergents and additives out of the reach of children. You can use any standard powder or liquid detergent which is suitable for automatic washer-dryer. -
Page 20: Washing/Drying With Standard Settings
Operating Instructions Filling laundry detergent and/or additive dispensers - Do not fill beyond the Max mark, otherwise will be flushed into the machine together with the detergent at the start of the program. - If the liquid addtive is thick, mix with a little water before dis -pensing (prevents clogging of the overflow). - Page 21 Operating Instructions 2. Turn the programme selector to the desired programme (see programme sheet, page 26). 3. If required, press the button(s) for additional option(s). The indicator light of the selected button is on. 4. The frame of the progress bar flashes in the display field and the following is displayed for the selected programme: - the symbols for the programme sections, - recommended load,...
- Page 22 Operating Instructions The frame of the progress bar flashes in the display field and the following is displayed for the selected programme: - the symbols for the programme sections, drying - recommended load, - maximum spin speed, - drying duration, - programme duration.
-
Page 23: Washing/Drying With Individual Settings
Operating Instructions 3. Press the button to set drying time. The frame of the progress bar flashes in the display field and the following is displayed for the selected programme: the symbols for the programme sections, drying recommended drying load, drying duration, programme duration. - Page 24 Operating Instructions Spin speed The maximum displayed spin speed depends on the selected programme. Press button until the required spin speed. If setting --- (without final spin) has been selected, the washing remains in the final rinsing water. Before the laundry can be unloaded, the Empty or Spin program must be performed.
- Page 25 Operating Instructions Childproof lock You can secure your washer dryer to prevent selected functions from being inadvertently changed. If the childproof lock has been selected: No changes can be made while the programme is running. The symbol flashes if a programme setting is inadvertently changed, Should the appliance be switched off and on while a prog -ramme is running the program will continue at the point at...
- Page 26 Operating Instructions Change a programme If you have accidentally selected the wrong programme: If the childproof lock is active, temporarily deactivate; see page 20 Turn the programme selector to a newly selected programme. If Prewash is selected subsequently, set the programme selectors to off and reselect the programme.
- Page 27 Operating Instructions Signal The acoustic signal indicates: that the additional functions (buttons )have been switched on or off, Individual programme statuses(e.g. Start of programme, end of programme), operating errors and faults. Signal for switching buttons on and off Press the button and set the programme selector to co- ttons/coloureds cold.
-
Page 28: Programme Table
Operating Instructions Programme table Detergent and Additional Always follow the fabric softener functions manufacture s care label instructions Programmme Cold 70(110)* 39(59)* ¡æ quick Cottons/ 80(120)* coloured 40 C 80(138)* 60 C 95(135)* 90 C Intensive dry 120min 60(80)* 40 C Easy- care 70(90)*... - Page 29 Operating Instructions Programme table: drying cottons/coloureds (cotton, linen) Dry weight in Kg Drying time selector Cupboard dry 50-60 60-70 70-80 Intensive 60-70 70-80 50-60 40-50 Iron Easy-care / synthetics Dry weight in Kg Programme Drying time selector selector Easy-care Gentle dry 25 - 30 Acrylics Times are approximate and refer to standard loads.
- Page 30 Operating Instructions Display panel: When the Program has ended All symbols on the programme status display have gone out, the full bar is displayed. The programme duration is on If the childproof lock is selected, the symbol illuminates. If the detergent was overdosed, the symbol illuminates.
-
Page 31: Cleaning And Care
Operating Instructions Unloading the laundry Turn off the water tap. Open the loading door. If the loading door can not be opened: Wait for 2 minutes ( the safety function is active ) there is still water in the washer-dryer if the without final spin option was selected. - Page 32 Operating Instructions Cleaning the drum In the event that rust spots have formed due to leftover debris (e.g. Coins, paper clips, needles, nails): Use a chorine-free cleaning agent. Follow the manufactur -er s instructions. Never use steel wool. Clean the detergent dispenser In the event that residual detergents or additives have accumulated.
- Page 33 Operating Instructions £¡ Draining the R isk of Scalding washing solution Allow the hot washing solution to cool. Turn the programme selector to Off . Fold down the cover panel. Fold down the cover panel. Carefully remove the pump cap. But do not fully remove it and allow a little more residual water flow into the suitable container.
- Page 34 Operating Instructions Cleaning the strainer at the water tap Disconnect the hose from the water tap. Rinse the strainer under flowing water. Reconnect the hose. Cleaning the strainer on the washing machine Disconnect the hose from the back of the washer-dryer. Pull out the stainer and rinse under running water.
-
Page 35: Troubleshooting Minor Faults
Operating Instructions £¡ Trouble Shooting Risk of electric shock Minor Faults Repairs must only be carried out by our Customer Service or an authorized technician. If repairs are needed, and assuming that you cannot elim- inate the fault youself with the aid the following table: Turn the programme selector to Off . - Page 36 Operating Instructions Fault Possible cause Action Control lights do not A fuse has triggered. Switch on/replace the fuse. come on. Call Customer Service if this fault is repeated. An interrupted program will be re- Power failure. sumed when power retures. If you wish to unload the laundry, proce- ed as in Cleaning the drain pump , Page 30.
- Page 37 Operating Instructions Fault Possible cause Action Repeated spinning at short This is not a fault. intervals. The imbalance compensation system is attempting to balance the load through repeated spins. The program takes longer This is not a fault. Wash large and small items than usual.
-
Page 38: Installation, Connection And Transport
Operating Instructions Safety information Installation, Connection and Transport £¡ Risk of injury The washing machine is heavy. Take care when lifting it. Caution Frozen hoses can tear/burst. Do not install the washerdryer outdoors or in an area prone to frost. Take care not to damage the washer-dryer . -
Page 39: Removing The Transport Bolts
Operating Instructions Installation location To ensure the proper operation of the washer-dryer, please pay attention to the following when you install the machine. The floor should be solid and flat, never put the machine on the soft carpet or on the wood floor. Keep the environment dry and vented. - Page 40 Operating Instructions Insert the covers. Hose and cable lengths 100cm 110cm Left-hand connection 150cm Right-hand connection 140cm Caution: In order to avoid siphon, do not put the outlet hose into a container with water.
-
Page 41: Water Connection
Operating Instructions Water connection Water supply For the water connection a standard cold-water line with a minimum water pressure of 0.1MPa is required (with tap full ON, at least 8 litres of water must flow out in one minute). If the water pressure exceeds 1MPa, a pressure reducing valve must be added. - Page 42 Operating Instructions Water Drainage Water Drainage Caution Do not bend or pull the water drainage hose. Height between the placement area and drainage point: maximum 100cm Drainage into a wash basin (The hose elbow is in the drum). Caution The plug must not block the drain of the wash basin. Secure the water drainage hose so that it does not slide out.
- Page 43 Operating Instructions Transport e.g. when moving Before transporting the washer-dryer: Turn off the water tap, Drain any residual washing solution (refer to Page 30), Release the water pressure in the supply hose(refre to Page 30), Disconnect the washer-dryer from the mains, Dismantle the supply and drainage hose, Install the transport bolts.
-
Page 44: Electrical Connection
Operating Instructions Electrical connection When heating, the maximum current of the washer-dryer is 10A, so please make suer that the power supply system (voltage, current and cable) is applicable to the load of theapplied appliance. The machine must only be connect to an alternating curr- ent supply via a correctly installed earthed socket. -
Page 45: Technical Data
Technical Data & Package Sheet Technical Data Models WVT52458 Items Rated voltage: 220V~ Rated frequency: 50Hz Washing capacity: 5.2kg Spinning capacity: 5.2kg Drying capacity: 2.6kg Water pressure: 0.1~1MPa Water proof: IPX4 Washing power: 200W Spinning power: 450W Heating power: 1800W drying power: 1500W Maximum power:... -
Page 46: Warranty
Customer Service Repair Indicator According to the Regulations of Responsibility concerning Repair, Exchange and Return of some commodities, war- ranty period of appliance purchased for home use purpose is one year for the complete unit and three years for the functional parts. -
Page 47: Service Assurance
Customer Service Service Assurance 24 hours hotline service Door to door service within 24 hours within city boundary Free of charge installation except additional material cost Free of charge once transfer within one year. Free of charge consulting Be responsible for service a lifetime long... -
Page 48: Warranty Card
Customer Service Warranty card Customer Name Contact telepone Address Purchase date Product code Invoice no. Station telephone Maintenance station Record sheet 5 Address Customer Name Invoice no. Purchase date Product code Production date Maintenance date Serial number Record sheet 4 Address Customer Name Invoice no. - Page 49 5120 004791(PD 84 09 25) 800Ãâ·Ñ×Éѯµç»°£º 8008280088 È«¹úͳһ¿Í»§·þÎñרÏߣº 4008855888 δ¿ªÍ¨ 800µØÇø²¦´ò£º 0550-3062800 ´«Õ棺 0550-3072600 ¿Í»§·þÎñµç×ÓÐÅÏä E-mail: Careline.China@BSHG.com...
