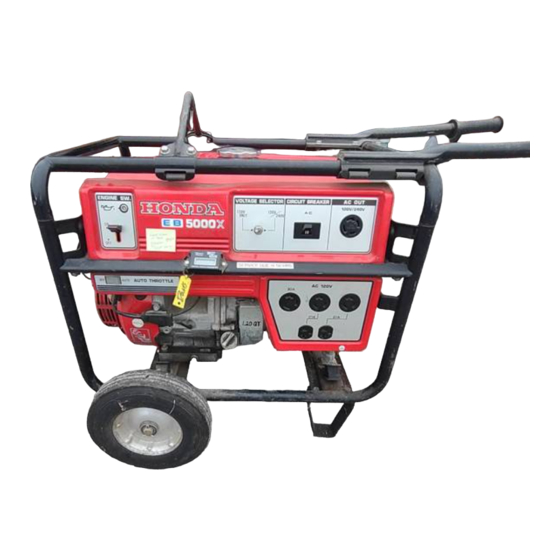

Honda EB5000X Owner's Manual

Hide thumbs Also See for EB5000X:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Honda EB5000X

Summary of Contents for Honda EB5000X

  • Page 2 The generator is a potential source of electrical shock if misused. Do not expose the generator to moisture, rain or snow. not let the generator get wet, and do not operate it with wet hands.
  • Page 3 If a problem should arise, or if you have any questions about the generator, consult an authorized Honda dealer. The Honda generator is designed to give safe and dependable service if operated according to instructions. Read and understand the Owner's Manual before operating the generator.
  • Page 5 I . GENERATOR SAFETY Place the generator on a firm. level surface: avoid loose sand or snow. If the generator is tilted or overturned, ,fuel spillage may result. Also, if the generator is overturned or sinks into a soft surjace, sand, dirt, or water may enter the generator.
  • Page 6 RNlNG DO NOT USE INDOORS. EXHAUST GAS CONTAINS POISONOUS CARBON MONOXIDE. NE PAS UTlLlSER DANS UN ENDROIT FERME A CAUSE DU RISQUE D'EMPOISONNEMENT DU GAZ. NO LO USE EN LUGARES CERRADOS PORQUE EL MONOXIDE DE CARBON0 ES VENENOSO. B C H E C K FOR S P I L L E D FUEL O R FUEL LEAKS STOP ENGINE BEFORE REFUELING ~ C O H T R O L E R au'lt...
  • Page 7 EB5000X LTD. HONDA MOTOR CO., MADE IN JAPAN 120f240V FREQUENCY WITH RECOMMENDED OIL RATED OUTPUT 4.5kVA BEFORE USING. SEE THE OWNER'S MANUAL. PHASE...
  • Page 8 2. COMPONENT IDENTIFICATIOIU VOLTAGE SELECTOR ""' i " " OIL ALERT AC CIRCUIT BREAKER FUEL VALVE RECOIL STARTER GRIP ENGINE OIL DRAIN PLUG...
  • Page 9 FUEL FILLER CAP MUFFLER SPARK PLUG CAP...
  • Page 10 CAUTION: Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils are not recommended. Check the generator on a level surface with the engine stopped. Honda 4-stroke oil, equivalent high detergent, premium quality motor oil certified to meet or exceed U.S.
  • Page 11 CAUTION: If "spark knock" or "pinging" occurs at a steady engine speed under normal load, change brands of gasoline. spark knock or pinging persists, consult your authorized Honda dealer. Failure to do so is considered misuse, and damage caused by misuse is not covered by Honda's Limited Warranty.
  • Page 12 (gasohol), be sure it's octane rating is at least as high as that recommended by Honda. There are t w o types of "gasohol": one containing ethanol, and the other containing methanol.
  • Page 13 Air Cleaner clean and in good condition. Check the air cleaner element to be sure it 25). Clean or replace the element if necessary (page CAUTION: Never run the engine without the air cleaner, Rapid engine wear will result. AIR CLEANER ELEMENT...
  • Page 14 STARTING THE ENGINE 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. AC CIRCUIT BREAKER Turn the fuel valve to the position. FUEL VALVE...
  • Page 15 3. Pull the choke rod to the CLOSE position. NOTE: Do not use the choke if the engine is warm or the air temperature is high. CHOKE AU~O-THROTTLE SWITCH...
  • Page 16 5. Move the engine switch t o the ON position. ENGINE 6. Pull the starter grip until compression is felt, then pull briskly. NOTE: Do not allow the starter grip t o snap back. Return it slowly by hand. STARTER GRIP...
  • Page 17 Push the choke rod to the OPEN position as the Engine warms up. CHOKE 8. If you wish to use the auto-throttle system, turn the auto-throttle switch to the AUTO position after the engine has warmed up for 2 or minutes.
  • Page 18 GENERATOR USE To prevent electrical shock from faulty appliances, the generator should be grounded. Connect a length of heavy wire between the ground ter- minal and the ground source. Connections for standby power t o a building’s electrical system must be made b y a qualified electrician and must comply with all applicable laws and electrical codes.
  • Page 20 Alert System The Oil Alert system is designed to prevent engine damage caused by an in- sufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert system will automatically shut down the engine (the engine switch will remain in the ON position).
  • Page 21 AC operation 1. Start the engine. 2. Turn the voltage selector switch to either position as required. NOTE: With the voltage selector switch in the "1 20V/240V" position, you can use the 120V and 240V receptacles simultaneously. If you are not us- 240V receptacle, but you require more power from the 120V twist- ing the lock receptacle, then turn the switch to the "1 20V"...
  • Page 22 6. STOPPING THE ENGINE NOTE: To stop the engine in an emergency, turn the engine switch to OFF position. In normal use: 1 . Move the AC circuit breaker to the OFF position. AC CIRCUIT BREAKER Move the engine switch to the OFF position. ENGINE SWITCH...
  • Page 23 High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor and readjusting the pilot screw. If you always operate the generator at altitudes higher than 6,000 feet above sea level, have your authorized Honda Generator dealer perform these carburetor modifications.
  • Page 24 Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. Exhaust gas'con- tains poisonous carbon monoxide. CAUTION: Use only genuine HONDA parts their equivalent maintenance or repair. Replacement parts which are not of equivalent quality may damage the generator.
  • Page 25 NOTE: ( I ) : Service more frequently when used in dusty areas. (2): These items should be serviced by an authorized Honda dealer, unless the owner has the proper tools and is mechanically proficient. See the Honda Shop Manual.
  • Page 26 Changing Oil Drain the oil while the engine is still warm to assure rapid and complete draining. 1. Remove the oil filler cap and drain plug to drain the oil. 2. Install the drain plug, and tighten it securely. 3. Refill with the recommended oil (see page 81, and check the oil level. OIL CAPACITY: 1 .
  • Page 28 Wash the element in a solution of household detergent and warm water, then rinse thoroughly, or wash in nonflammable or high flash point sol- vent. Allow the element to dry thoroughly. Soak the element in clean engine oil and squeeze out the excess oil. The engine will smoke during inital start-up if too much oil is left in the element.
  • Page 29 Sediment Cup Cleaning The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned. position. Remove the sediment cup. Turn the fuel valve to the 2.
  • Page 30 Spark Plug Service BPR5ES (NGK) Recommended spark plug: WIGEPR-U (ND) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler. 1.
  • Page 31 6. Check that the spark plug washer is in good condition, and thread the spark plug in by hand to prevent cross-threading. with After the spark plug is seated, tighten w m - a spark plug wrench t o press the washer. NOTE: If installing a n e w spark plug, tighten 1/2 turn after the spark plug seats t o compress the washer.
  • Page 32 Spark Arrester Maintenance If the generator has been running, the muffler will be very hot. cool Allow it to before proceeding. CAUTION: The spark arrester must be serviced every 100 hours to main- tain its efficiency. Clean the spark arrester as following: 1.
  • Page 34 d. Drain the carburetor by loosening the drain screw. Drain the gasoline into a suitable container. Gasoline is extremely flammable and is explosive under certain conditions. Ro not smoke or allow flames or sparks in the area. DRAIN SCREW 3. Change the engine oil. 4.
  • Page 36 DRAIN SCREW 7. If the engine still does not start, take the generator to an authorized Honda dealer. B. When the engine starts but stops immediately; 1. Check the oil alert lamp. If the oil alert...
  • Page 38 SPECIFICATIONS Dimensions Power product E A7 description code x 490 Length Width Height (25.8 20.1 19.3 in) 78 kg (172.0 Dry weight Engine Engine Type GX340 337 cc (20.6 cu Displacement 64 mm (3.2 2.5 in)] [Bore Stroke1 Compression Ratio 8.0:l 3600 r.p.m.
  • Page 39 12. HANGER KIT INSTALLATION 1. Remove the upper frame. Install the hanger on it and install the upper frame on the body. BRACKET NOTE: Install a t near center avoiding the fuel filler cap. to install over FUEL FILLER CAP...
  • Page 40 13. $-WHEEL KIT INSTALLATION (optional parts) 1. Install the four wheels on the axle shaft. Install the axle assembly on the generator using four bolts and nuts. Inside WHEEL STOPPER NOTE: Install the shaft with wheel stopper facing engine side.
  • Page 41 Your purchase of a Honda product is greatly appreciated by both your dealer and American Honda Motor Co., Inc. We want to assist you in every way possible to assure your complete satisfaction with your purchase.
  • Page 42 When you write or call, please provide the following information: • Model and serial numbers • Name of the dealer who sold the Honda power equipment to you • Name and address of the dealer who services your equipment •...
  • Page 43 MEMO...
