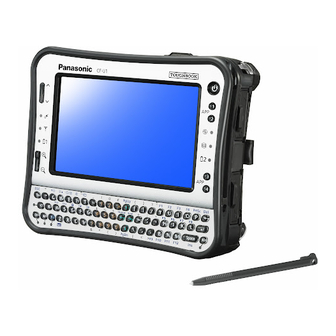

Panasonic Toughbook U1 Ultra Supplementary Instructions Manual
1d barcode reader
Hide thumbs
Also See for Toughbook U1 Ultra:
- Specification (2 pages) ,
- Accessories manual (2 pages) ,
- Helpful operation tips (2 pages)
Table of Contents
Advertisement
Quick Links
First-time Operation
This Supplementary Instructions explains how to get started with a barcode reader and point
out cases where the operation of the computer will differ from that in the Operating Instruc-
tions.
Contents
Precautions .................................................................. 2
Names and Functions of Parts .................................. 2
Setting for Barcode Reader ....................................... 3
Reading Barcodes ...................................................... 4
Troubleshooting .......................................................... 5
Cleaning the Reading Window .................................. 5
Laser Devices .............................................................. 5
Labeling/Marking ......................................................... 6
Symbols ........................................................................ 7
Various Barcode Settings .......................................... 7
Specifications ............................................................ 10
Supplementary Instructions
for 1D Barcode Reader
Personal Computer
Model No.
CF-U1
Series
Advertisement
Table of Contents
Related Manuals for Panasonic Toughbook U1 Ultra
Summary of Contents for Panasonic Toughbook U1 Ultra
-
Page 1: Table Of Contents
First-time Operation Supplementary Instructions for 1D Barcode Reader Personal Computer CF-U1 Series Model No. This Supplementary Instructions explains how to get started with a barcode reader and point out cases where the operation of the computer will differ from that in the Operating Instruc- tions. -
Page 2: Precautions
Precautions Do not look directly into the reading window. DO NOT LOOK DIRECTLY AT THE LASER LIGHT. Be sure to read “Precautions” in the Personal Computer Operating Instructions. Names and Functions of Parts Reading Window Trigger Buttons NOTE When the computer is moved from hot and humid environment to low temperature environment, dew condensation may mist up inside the lens. -
Page 3: Setting For Barcode Reader
Setting for Barcode Reader The following menu opens by clicking icon on the notification area. Connection to Barcode To reduce the power consumption, stop barcode reader (Power Saving Mode) operation within 1 minute after reading a barcode. Connection to Barcode Keep barcode reader active even after reading a barcode. -
Page 4: Reading Barcodes
Reading Barcodes Aim the reader at the barcode. Press one of the trigger buttons on the rear side of the computer. The red read beam for reading is emitted from the read- ing window. Make sure the red read beam covers the entire barcode. -
Page 5: Troubleshooting
Troubleshooting Reading is not possible. Confirm the reading angle. Confirm that the barcode is readable (without damage, etc.). Confirm the range for reading. Be sure the reader is programmed to read the type of barcode you are reading. The distance from the reader to the barcode is impor- tant. -
Page 6: Labeling/Marking
Labeling/Marking <Top Side> <Rear Side> Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. EN60825-1:1994+ A1:2002 +A2:2001 IEC60825-1:1993+A1:1997+A2:2001 CAUTION - CLASS 2 LASER LIGHT WHEN OPEN, DO NOT STARE INTO THE BEAM. ATTENTION - LUMIÈRE LASER EN CAS D’OUVERTURE. -
Page 7: Symbols
Symbols Try reading the following barcodes to check your reader is working properly. < UPC-A > Various Barcode Settings Scan the following barcodes to change the Barcode Reader settings. Set factory preset Code Type Enable Disable UPC-A UPC-E UPC-E1... - Page 8 Various Barcode Settings Code Type Enable Disable EAN-8 Code 128 UCC/EAN-128 EAN-13 Code 39 Code 93 Code 11 Interleaved 2 of 5...
- Page 9 Code Type Enable Disable Discrete 2 of 5 Chinese 2 of 5 Codabar RSS-14 RSS-Limited RSS-Expanded...
-
Page 10: Specifications
Specifications Single Line Reading Read Pattern 655 nm Visible light semiconductor laser Light Source This computer can be programmed to decode the follow- Decode Capabilities ing code types : (The readable code depends on the setting.) UPC/EAN/JAN, Code39, Code93, Code128, I2 of 5, D2 of 5, Codabar, MSI/Plessey, Code 11, RSS, Chinese 2 of 5 0.102 mm {4 mil} Minimum Optical Resolu-... - Page 11 Memo...
- Page 12 Panasonic Computer Solutions Company Panasonic Canada Inc. 3 Panasonic Way, Panazip 2F-5, 5770 Ambler Drive, Mississauga, Secaucus, NJ 07094 Ontario L4W 2T3 HS0708-0 DFQW5199ZA Printed in Japan...
