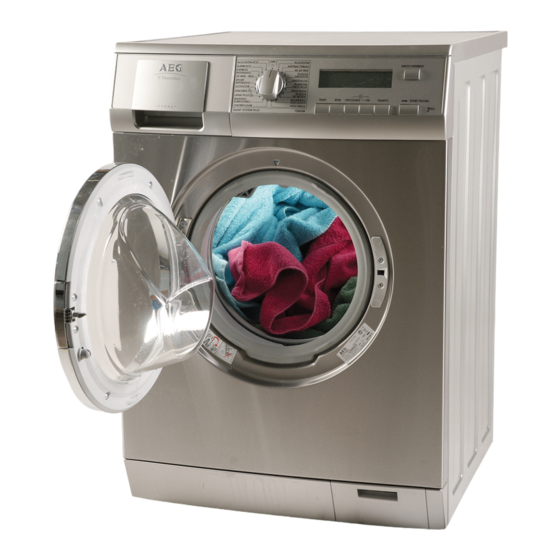

- Page 1 EN WASHING MACHINE LAVAMAT 72850 M USER MANUAL...
- Page 2 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
-
Page 3: Table Of Contents
Contents CONTENTS 4 Safety information 6 Product description 7 Control panel 9 First use 9 Personalization 10 Daily use 16 Washing Programmes 20 Helpful hints and tips 22 Care and cleaning 28 What to do if… 31 Technical data 31 Consumption values 32 Installation 37 Electrical connection 37 Environment concerns... -
Page 4: Safety Information
Safety information SAFETY INFORMATION Read carefully & keep for future reference. • The safety of Your appliance complies with the industry standards and with legal re- quirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes. -
Page 5: Child Safety
Safety information • After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable against the wall. • If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance. -
Page 6: Product Description
Product description • Make sure that children or pets do not climb inside the drum. To prevent children or pets becoming trapped inside the drum the ma- chine incorporates a special feature. To acti- vate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. -
Page 7: Control Panel
Control panel Detergent dispenser drawer Compartment for detergent used for prewash. The prewash detergent is added at the beginning of the wash programme. Compartment for powder or liquid detergent used for main wash. Compartment for liquid additives (fabric softener, starch). Compartment for stain remover used for main wash with STAIN-option. - Page 8 SPIN REDUCTION button (RPM) OPTION button (OPCIONES) OK button (OK) TIME SAVING button (TIEMPO) START/PAUSE button (START/PAUSA) DELAY START button (INICIO DIFERIDO) Display Symbols on the control panel = Handwash = Child Lock Display 9.5 9.6 9.7 9.8 9.1 - Temperature indicator and COLD symbol 9.2 - Spin Speed indicator, RINSE HOLD , NIGHT CYCLE...
-
Page 9: First Use
First use – After selecting a programme, the duration is displayed in hours and minutes (for ex- ample . The duration is calculated automatically on the basis of the maximum recommended load for each type of fabric. – After the programme has started, the time remaining is updated every minute. •... -
Page 10: Daily Use
Daily use Child safety lock This device permits you to leave the appliance unattended and not to worry that children might be injured by or cause damage to the appliance. This function remains able also when the washing machine is not working. To enable (or disable) this option press simultaneously for about 6 seconds buttons 4 and 5 until the Child Lock symbol appears on (or disappears from) the display. - Page 11 Daily use If required, pour fabric softener into the compartment marked (the amount used must not exceed the MAX mark in the drawer). Close the drawer gently. Turn the programme dial (1) to set the required programme You can choose the right programme for any type of laundry following the descriptions on the washing programme tables (see «Washing Programmes»...
-
Page 12: Programme Option Buttons
Daily use Select the spin speed, NIGHT CYCLE or RINSE HOLD option (button 3) When the required programme has been selected, your appliance automatically proposes the maximum spin speed provided for that programme. Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine. -
Page 13: Stain Option
Daily use This option is recommended for heavily soiled laundry. STAIN option Select this option to treat heavily soiled or stained laundry with stain remover (extended main wash with time optimized stain action phase). The relevant symbol will appear on the display. -
Page 14: Altering An Option Or A Running Programme
Daily use Select the DELAY START (button 8) Before you start the programme, if you wish to delay the start, press the button repeated- ly, to select the desired delay. The corresponding symbol will appear on the display. The wash programme can be delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum of 20 hours by means of this button. -
Page 15: Opening The Door After The Programme Has Started
Opening the door after the programme has started When the machine is working and throughout the delay time the door is locked. If, for any reason, you wish to open the door, set firstly the machine to pause by pressing the button •... -
Page 16: Washing Programmes
Washing Programmes WASHING PROGRAMMES Programme - Maximum and Minimum Tempera- Detergent Com- ture - Cycle Description - Maximum Fabrics Load - Options partment Type of Laundry ALGODÓN SPIN REDUCTION 95° - Cold NIGHT CYCLE Main wash - Rinses - Long spin at the maximum spin RINSE HOLD speed PREWASH... - Page 17 Washing Programmes Programme - Maximum and Minimum Tempera- Detergent Com- ture - Cycle Description - Maximum Fabrics Load - Options partment Type of Laundry SINTÉTICOS SPIN REDUCTION 60° - Cold NIGHT CYCLE Main wash - Rinses - Short spin at 1200 rpm RINSE HOLD Max.
- Page 18 Washing Programmes Programme - Maximum and Minimum Tempera- Detergent Com- ture - Cycle Description - Maximum Fabrics Load - Options partment Type of Laundry CENTRIFUGAR SPIN REDUCTION Drain and long spin at the maximum spin speed Max. load 7 kg Separate spin for hand washed cotton garments and after programmes which ends with water left in the tub.
- Page 19 Washing Programmes Programme - Maximum and Minimum Tempera- Detergent Com- ture - Cycle Description - Maximum Fabrics Load - Options partment Type of Laundry SPORT INTENSIVO SPIN REDUCTION 40° - Cold NIGHT CYCLE Prewash - Main wash - Rinses - Short spin at 1200 RINSE HOLD EXTRA RINSE Max.
-
Page 20: Helpful Hints And Tips
Helpful hints and tips Programme - Maximum and Minimum Tempera- Detergent Com- ture - Cycle Description - Maximum Fabrics Load - Options partment Type of Laundry ALGODÓN ECO SPIN REDUCTION 60° RINSE HOLD Main wash - Rinses - Long spin at the maximum spin NIGHT CYCLE speed PREWASH... -
Page 21: Maximum Loads
Helpful hints and tips Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Maximum loads Recommended loads are indicated in the washing programme charts. General rules: •... -
Page 22: Care And Cleaning
Care and cleaning Ink: depending on the type of ink, moisten the fabric first with acetone , then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with deter- gent paste. -
Page 23: After Each Wash
Care and cleaning Descaling The water we use normally contains lime. It is a good idea to periodically use a water soft- ening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the forma- tion of lime deposits. -
Page 24: Washing Drum
Care and cleaning Clean all parts of the washing machine, especially the nozzles in the top of the washing-in chamber, with a brush. Insert the detergent dispenser drawer in the guide rails and push it in. Washing drum Rust deposits in the drum may occur due to rusting foreign bodies in the washing or tap water containing iron. - Page 25 Care and cleaning If necessary wait until the water has cooled down. Open the pump door. Pull flap forward to remove. Place a container close to the pump to collect any spillage. Pull out the emergency emptying hose, place it in the container and remove its cap.
-
Page 26: Cleaning The Water Inlet Filters
Care and cleaning 11. Replace the filter into the pump by in- serting it correctly into the special guides. Screw the pump cover firmly by turning it clockwise. 12. Refit the flap and close the pump door. WARNING! When the appliance is in use and depending on the programme selected there can be hot water in the pump. -
Page 27: Frost Precautions
Care and cleaning Screw the hose back to the machine and make sure the connection is tight. Turn on the water tap. Frost precautions If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows: close the water tap and unscrew the water inlet hose from the tap;... -
Page 28: What To Do If
What to do if… WHAT TO DO IF… Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the yellow pilot light of button 7 blinks, one of the following alarm codes appears on the display and at the same time some acoustic sig- nals sound every 20 seconds to indicate that the machine is not working:... - Page 29 What to do if… Problem Possible cause/Solution The end of the drain hose is too low. The machine fills then empties immediately: • Refer to relevant paragraph in «Water drain- age» section. The drain hose is squashed or kinked. • Check the drain hose connection. The drain filter is clogged.
- Page 30 What to do if… Problem Possible cause/Solution The programme is still running. • Wait the end of washing cycle. The door lock has not been released. The door will not open: • Wait until the symbol 9.5 has gone off. There is water in the drum.
-
Page 31: Technical Data
Technical data If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and pur- chase date of your machine: the Service Centre will require this information. TECHNICAL DATA Dimensions Width... -
Page 32: Installation
Installation they are the most efficient programmes in terms of combined energy and water consump- tion for washing that type of cotton laundry. They agree with EN60456. The actual water temperature may differ from the declared cycle temperature. INSTALLATION Unpacking All transit bolts and packing must be removed before using the appliance. - Page 33 Installation Unscrew the three bolts using the key supplied with the machine. Slide out the relevant plastic spacers. Open the porthole, take out the inlet hose from the drum and remove the polystyrene block fitted on the door seal.
-
Page 34: Positioning And Levelling
Installation Fill the smaller upper hole and the two large ones with the corresponding plas- tic plug caps supplied in the bag con- taining the instruction booklet. Connect the water inlet hose as descri- bed under the paragraph «Water inlet». Positioning and levelling Install the machine on a flat hard floor. - Page 35 Installation Open the porthole and extract the inlet hose. Connect the hose with the angled con- nection to the machine. Do not place the inlet hose downwards. Angle the hose to the left or right depend- ing on the position of your water tap. Set the hose correctly by loosening the ring nut.
-
Page 36: Water Drainage
Installation Water-stop device The inlet hose is provided with a water stop de- vice, which protects against damage caused by water leaks in the hose which could develop due to natural ageing of the hose. This fault is shown by a red sector in the window «A». Should this oc- cur, turn the water tap off and refer to your Serv- ice Centre to replace the hose. -
Page 37: Electrical Connection
Electrical connection The drain hose may be extended to a maximum of 4 metres. An additional drain hose and joining piece is available from your local Service Centre. ELECTRICAL CONNECTION Information on the electrical connection is given on the rating plate on the inner edge of the appliance door. -
Page 38: Packaging Materials
Packaging materials The materials marked with the symbol are recyclable. >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collec- tion containers. Ecological hints To save water, energy and to help protect the environment, we recommend that you follow these tips: •... - Page 40 132928040-B-452011...
