Uniden BC906W Manual

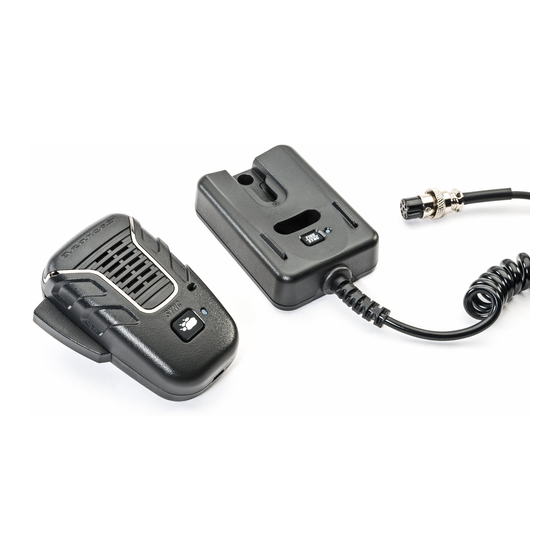

MICROPHONE
x Speaker and Microphone in a
single unit
x Secure Sync
x Push-To-Talk Control Button
x Volume UP/Down Controls
x Auto power-off
x Three-color LED control
x Find button
x Up to 100 meter range
x Belt clip
x Car charger plug with mini-USB
connection
Thank you for purchasing Uniden's BC906W wireless microphone. Now you can be up
to 100 meters away from your CB and still remain connected. Enjoy mobility while still
being connected to your Uniden Bearcat CB.
At Uniden, we'll take care of you! If you need any assistance with this product, please
call our Customer Care Line at: 800-297-1023 or 817-858-2929
IMPORTANT SAFETY INSTRUCTIONS!
The BC906W is NOT waterproof or water-resistant. Keep it away from water and do not
let it get submerged in water. If the mic gets wet, power it off and dry off the casing.
Keep out of prolonged exposure to direct sunlight. Prolonged exposure could heat the
internal workings of the mic past safe levels.
WhAT'S IN ThE BOx
x BC906W Microphone
x BC906W Cradle with mounting screws
x DC Charger (Car charger plug with mini-USB connection)
x Ni-MH battery (BT-1008)
x Belt Clip
CONTROlS ANd FUNCTIONS
PUSH-T0-TALK
Speaker
button
VOL UP
button
VOL DOWN
SYNC/
button
SYNC
Power On/O
Microphone
button
LED
Mini-USB Charging Port
lEd dEFINITIONS
Color Status Meaning
Green Solid On Linked, battery charged
Red Solid On Linked, low battery
All Off Powered down
Green Long Flash Transmitting, battery charged
Color Status
BC906W
Red Long Flash
WIRELESS
Green Short Stutter
Red Short Stutter
Orange/Green Short Flash
Orange/Red Short Flash
Green/Red Long Flash
All Long Flash
BC906W OPERATION
SETTINg UP YOUR MICROPhONE
To... Do this...
Install 1. Remove the back battery cover.
batteries in
2. Insert the Ni-MH battery, connecting it to the mic at the plug.
mic
3. Replace the back cover.
4. Use the DC charger to charge battery completely before using.
Mount the 1. Mount the cradle using the supplied screws.
microphone
2. Disconnect the current wired mic
cradle
3. Connect the microphone cradle.
4. Turn on CB. The cradle LED flashes red while it powers up, then
Sync the mic On the mic, press PTT or SYNC/Power On/Off. The mic turns on and the
LED turns green when it has synced with the CB.
If you press PTT to turn on the mic, an error tone sounds. It will stop when
you release PTT after the mic is powered up.
If you are out of range and move back in range, the mic will
automatically re-sync.
Install the belt If you are using the belt clip, slide it onto the belt clip knob on the
clip (if using) back of the mic.
USINg YOUR MICROPhONE
To...
Transmit and Receive
Increase/Decrease
Volume
Find a lost mic
LED
FIND/SYNC
Button
AUTOMATIC POWER OFF
When you turn off the car, the CB is also turned off. If the wireless mic has not been
turned off, press SYNC/Power On/Off to turn it off; otherwise, it will automatically power off
after 2 minutes.
The wireless mic will also power off if the mic is out of range for 2 minutes.
TURN OFF All FEATURES ExCEPT ChARgINg
1. While the battery pack charges in the mic, press and hold SYNC/Power On/Off for
about 5 seconds.
2. The mic beeps.
Meaning
Transmitting, low battery
Registration mode, battery charged
Registration mode, low battery
Not linked, battery charged
Not linked, low battery
Charging, battery not full
Unregistered
becomes solid red.
Do this...
Press PTT to transmit. Release PTT to listen for a response.
The PTT button is located on the side of the mic.
If the wireless connection is lost, the mic sounds an error
tone if PTT is pressed.
The mic only operates when it is in range. If it is out of
range for 2 minutes, it automatically powers down.
Press + to increase or − to decrease the volume in 16
step increments. When you reach the 16th step in either
direction, an error tone sounds.
1. Press FIND on the cradle.
2. When you locate the mic, press FIND on the cradle
again or any key on the mic.
3. The tone times out after 1 minute.
3. After the battery is charged, the LED alternately flashes orange and green.
There are three methods to turn the features back on. You can press SYNC/Power On/Off or
you can press PTT. You can also disconnect the mini-USB cable, and then reconnect it.
SPECIFICATIONS
Speaker Output: 8 ohm
Operating Temp.: 14*F ~ 122*F (-10*C ~ 50*C)
Storage Temp.: -4*F ~ 140*F (-20*C ~ 60*C)
Ni-MH battery - BT-1008
Typical Battery Life: 8 hours
DC Charger Power Input: 10 - 16V DC
Digital Format: DECT 6.0
Frequency Band: 1920 - 1930MHz
FCC PART 15 INFORMATION
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Privacy of communications may not be ensured
when using this device.
TWO-YEAR lIMITEd WARRANTY
Important: Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden")
ElEMENTS OF WARRANTY: Uniden warrants, for two years, to the original retail owner, this Uniden Product
to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.
WARRANTY dURATION: This warranty to the original user shall terminate and be of no further effect
two years after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or
not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits,
subassemblies, or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired
by someone other than an authorized Uniden service center for a defect or malfunction covered by this
warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured
by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner's manual for this
product.
STATEMENT OF REMEdY: In the event that the product does not conform to this warranty at any time
while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit and
return it to you without charge for parts, service, or any other cost (except shipping and handling) incurred
by warrantor or its representatives in connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE LIMITED WARRANTY SET FORTH ABOVE
IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES
ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY
OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE
REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow this exclusion or limitation of incidental or consequential damages so the above
limitation or exclusion may not apply to you.
lEgAl REMEdIES: This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state. This warranty is void outside the United States of America.
PROCEdURE FOR OBTAININg PERFORMANCE OF WARRANTY: If, after following the instructions in the
owner's manual you are certain that the Product is defective, pack the Product carefully (preferably in its
original packaging). The Product should include all parts and accessories originally packaged with the
Product. Include evidence of original purchase and a note describing the defect that has caused you to
return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd
Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m., Central, Monday through Friday
