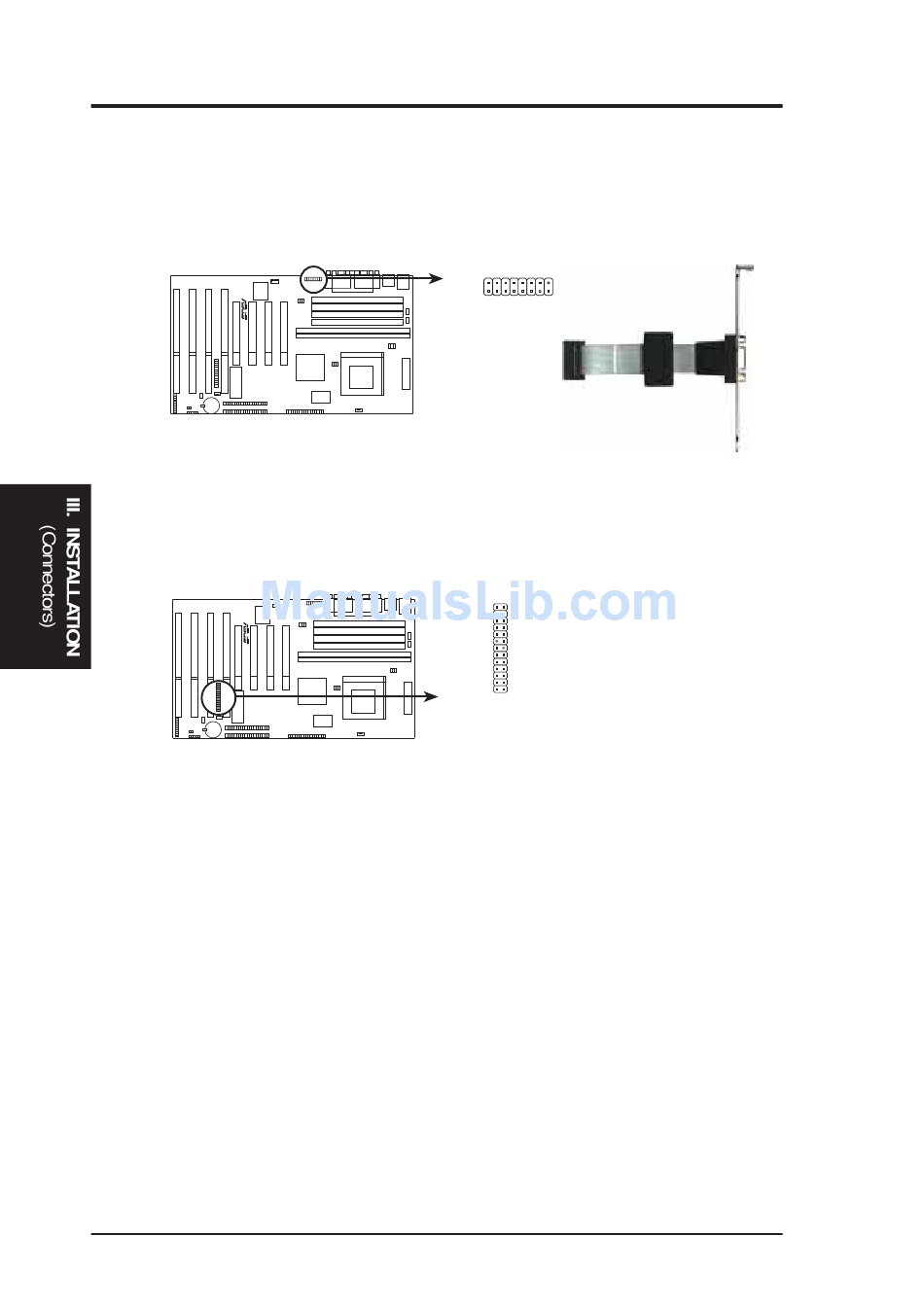

19. VGA Connector (VGACON, 16 pins) (with onboard VGA version only)
This connector, available only on motherboards with the SiS5598 chipset, sup-
ports the provided video or monitor cable with mounting bracket. Connect the
cable to this connector and mount the bracket to the case on a free expansion
slot. Set VGA_SEL jumper to Enable before using this connector.
VGA (Monitor) Connector
20. Video Feature Connector (26 pins) (with onboard VGA version only)
This connector is used for third-party video accessories such as video capture
cards or television tuners.
Video Feature Connector
30
III. INSTALLATION
ASUS SP97-XV User's Manual
16
2
Orient the red stripe on the
monitor cable with pin 1
1 15
Bracket to end approximately 6inch
TIP: You may also remove the bracket
connectors and mount them directly to
the case to save expansion slot space.
14 1
26 13
