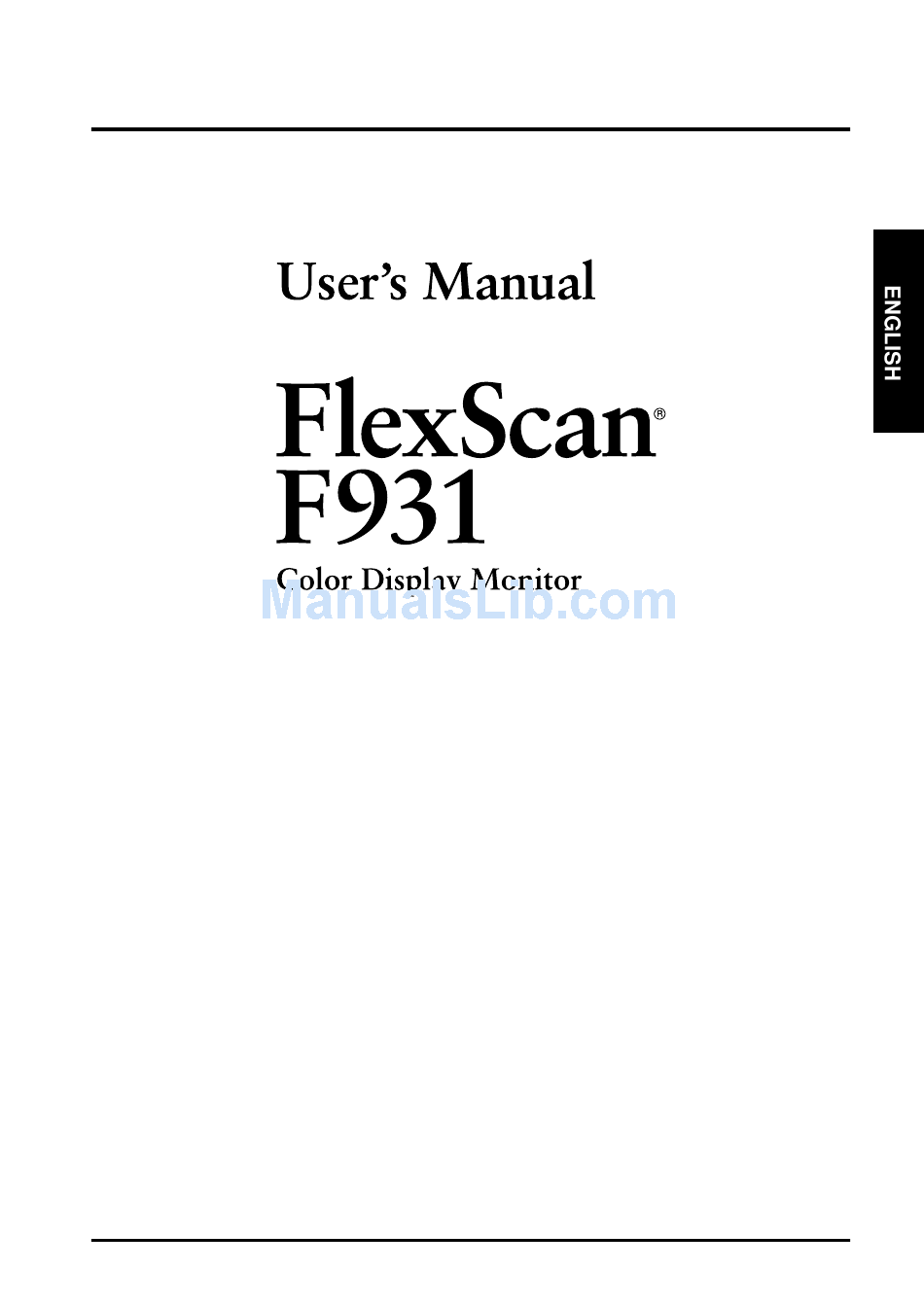

Eizo nanao user's manual color display monitor flexscan f931
Hide thumbs Also See for FlexScan F931:
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading

Related Manuals for Eizo FlexScan F931

Summary of Contents for Eizo FlexScan F931

  • Page 2: Safety Symbols

    Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to Eizo Nanao Corporation's receipt of said information.

  • Page 3: Table Of Contents

    CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 8 1-1. Features ... 8 1-2. Package Contents ... 8 1-3. Controls & Connectors ... 9 2. INSTALLATION ... 10 2-1. Connecting the monitor to the PC ... 10 2-2. Getting Ready for Operation ... 12 3.

  • Page 4: Precautions

    PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 • Place the unit on a strong, stable surface. A unit placed on an inadequate surface may fall, resulting in injury or equipment damage. If the unit falls, disconnect the power immediately and have the unit checked by a qualified service engineer before using it again. Using a unit after it has been dropped may result in fire or electric shock.
  • Page 6 • Use the correct voltage. * The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or other damage. * Do not overload your power circuit, as this may result in fire or electric shock.
  • Page 7 • Handle with care when carrying the unit. Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the cord or the option attached is dangerous. It may result in injury or equipment damage. •...

  • Page 8: Introduction

    1. INTRODUCTION Thank you very much for choosing an EIZO Color Display Monitor. 1-1. Features • Horizontal scanning frequency of 30-130 kHz Vertical scanning frequency of 50-160 Hz • Fine contrast function with a wider margin provides for a more brightly contrasted picture (See page 15) •...

  • Page 9: Controls & Connectors

    1-3. Controls & Connectors Front Bottom side Rear (1) ScreenManager™ (2) BNC/D-SUB Selection Button (3) AUTO-SIZING Button (4) QuickSet™ Control Pad (Hereinafter “Control Pad”) (5) Power Indicator Indicated color Power-on status Green Flashing Green Power save mode 1 Yellow Flashing Yellow Power save mode with (6) Power Switch (7) Power Terminal* (8) Power Connector...

  • Page 10: Installation

    • Standard graphics board Signal Cable (Enclosed) • Macintosh 2. INSTALLATION Signal Cable (Enclosed) Macintosh Adapter (Optional) Please consult EIZO dealer. Video Output Connector D-Sub mini 15 pin Standard graphics board Video Output Connector D-Sub mini 15 pin Macintosh (Blue & White)
  • Page 11 Plug the power cord into the power connector at the rear of the monitor. Then, plug the other end of the cord into a power outlet. • Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord.

  • Page 12: Getting Ready For Operation

    2-2. Getting Ready for Operation Try each setting procedure if necessary in the following cases. The display image size and/or position is incorrect Press the AUTO-SIZING button on the front panel. The AUTO-SIZING function centers the displayed image, aligning the image’s borders with respect to the monitor frame.

  • Page 13: Screen Adjustment

    3. SCREEN ADJUSTMENT • Allow the monitor to stabilize for at least 30 minutes before making image adjustments. 3-1. How to use the ScreenManager Use the control pad on the front panel. The control pad can be pressed in 5 directions, “Enter”, “Up”, “Down”, “Left” and “Right”.

  • Page 14: Adjustments And Settings

    Adjustments and Settings Main menu Contrast Size Position Screen Side Pin Trapezoidal Tilt Uniformity Convergence Moiré Reduction Moiré Fine Contrast Signal Filter 1 Signal Filter 2 Color Color Mode “Standard” Temperature “Custom” Others PowerManager Off Timer Degauss Button Setting Menu Position Input Signal Reset * When a black background (e.g.

  • Page 15: Color

    3-2. Color Adjust the color using by <Color> menu. To set the color temperature Set the <Temperature>. Temperature can be set from 4,000 K to 10,000 K, in 500 K increments. (Including the 9,300 K default setting.) To adjust each color tone, (Red, Green and Blue) Adjust the Change the <Color Mode>...

  • Page 16: Power Save

    3-4. Power Save There are two power save settings choose the setting which matches your environment. Set the power saving setting by using <Others> menu. • Do your part to conserve energy, turn off the monitor when you are finished using it.

  • Page 17: Adjustment Lock

    3-5. Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function [To lock] Press on the AUTO-SIZING button while switching on the monitor’s power. [To unlock] Switch off the monitor’s power, then hold down the AUTO-SIZING button once again and turn the power back on.

  • Page 18: Troubleshooting

    4. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems 1. No picture • Indicator status: Off • Indicator status: Green • Indicator status: Flashing Green / Yellow • Indicator status: Flashing Yellow 2.
  • Page 19 To eliminate the vibration, set the adjustment level to lower percentage or 0%. If the volume level of the EIZO optional i·Sound speaker is too high, it may, in some cases, cause a slight vibration. To eliminate, turn down the volume of the speaker.
  • Page 20 Problems 8. The entire screen appears too dark or bright. 9. Color is abnormal. • The entire screen appears bluish or reddish. • Color purity is not uniform. • Misconvergence of colors(red, green, blue) 10. AUTO-SIZING button does not work properly. 11.

  • Page 21: Cleaning

    5. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operational lifetime. • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or CRT. Cabinet To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent.

  • Page 22: Specifications

    (Viewable image size: 498 mm (19.6”)) 100-120/200-240 VAC±10%, 50/60 Hz, 1.9 A/0.9 A Normal/Max.: 135 W/160 W** (**With EIZO optional speaker attached) PowerManager Mode 1: Less than 10 W PowerManager Mode 2: Less than 3 W D-Sub mini 15-pin and BNC × 5 (Switchable)

  • Page 23: Preset Timing

    Preset Timing Dimensions (19.4) (15.7) (11.7) (19.1) 72.5 (5.0) (2.9) 44.9 ( 12.0) (1.8) FRONT Pin Assignment * D-Sub mini 15 pin connector 1 Red Video 2 Green Video / 3 Blue video 4 Ground 5 No pin 6 Red gound 7 Green ground * BNC Connector Input signal...

  • Page 24: Glossary

    5,000K: Often used in printing industry. 6,500K: Good for video-image display. 9,300K: Default setting for your EIZO monitor. Convergence Convergence is the monitor’s ability to precisely illuminate specific phosphors and line them up properly in order to produce pure color.
  • Page 25 Resolution Resolution is expressed as the number of dots (pixels) displayed on the screen. A larger number of dots produces a more sharply defined (a higher-resolution) image. Note that for a given screen size the dot size decreases as the number of dots increases: a 640 x 480 (dot x line) resolution uses larger pixels than a 1024 x 768 resolution.

  • Page 26: Index

    8. INDEX Adjustment lock ------------------------- 17 AUTO-SIZING button ------------------- 12 BNC/D-SUB selection button -------- 17 Brightness --------------------------------- 14 Button setting ------------------------ 14, 15 Cleaning ----------------------------------- 21 Color ----------------------------------- 14, 15 Color temperature ------------- 14, 15, 24 Contrast------------------------------------ 14 Control pad ---------------------------- 9, 13 Controls &...
  • Page 27 Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 28 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 29: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 30 Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.) Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH. Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden.
