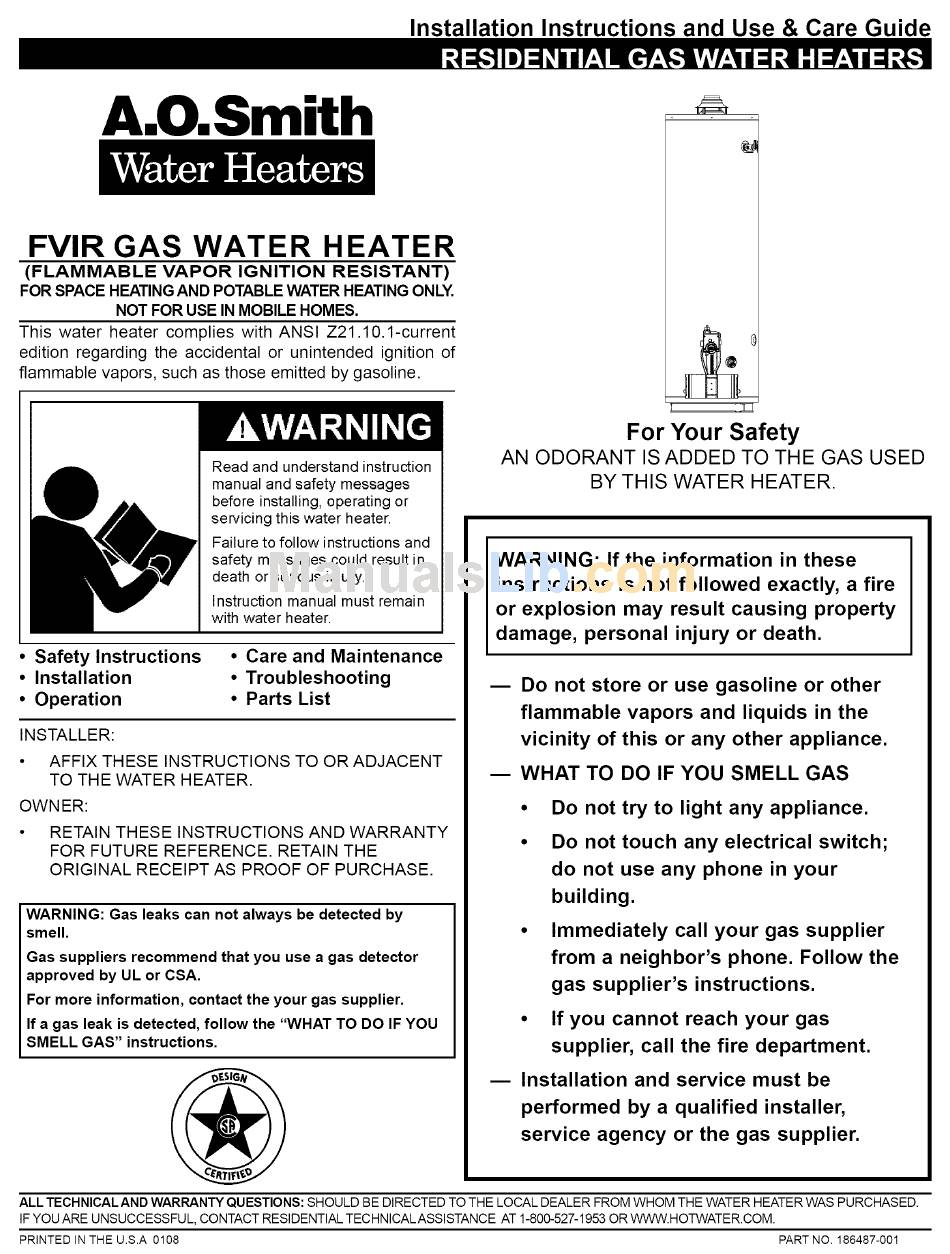

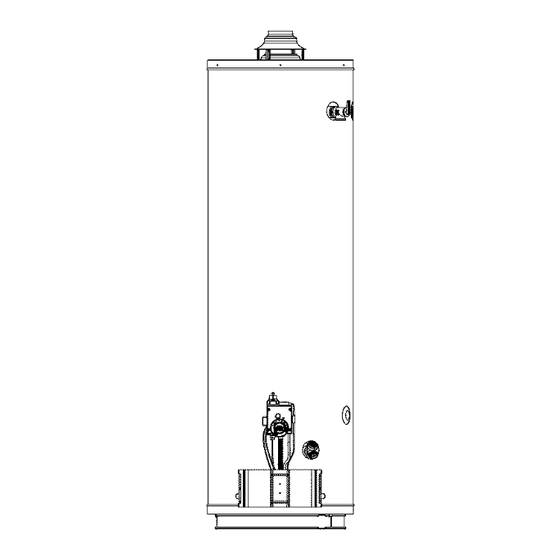

A.O.Smith
FVIR GAS WATER
HEATER
(FLAMMABLE
VAPOR
IGNITION
RESISTANT)
FOR SPACE HEATINGAND POTABLEWATER HEATINGONLY.
NOT FOR USE IN MOBILE HOMES.
This water heater complies with ANSI Z21.10.1-current
edition regarding the accidental or unintended ignition of
flammable vapors, such as those emitted by gasoline.
Read and understand instruction
manual and safety messages
before installing, operating or
servicing this water heater.
Failure to follow instructions and
safety messages could result in
death or serious injury.
Instruction manual must remain
with water heater.
Safety Instructions
• Care and Maintenance
• Installation
• Troubleshooting
• Operation
• Parts List
INSTALLER:
AFFIX THESE INSTRUCTIONS
TO OR ADJACENT
TO THE WATER HEATER.
OWNER:
RETAIN THESE INSTRUCTIONS
AND WARRANTY
FOR FUTURE REFERENCE. RETAIN THE
ORIGINAL RECEIPT AS PROOF OF PURCHASE.
WARNING: Gas leaks can not always be detected by
smell.
Gas suppliers recommend
that you use a gas detector
approved by UL or CSA.
For more information, contact the your gas supplier.
If a gas leak is detected, follow
the "WHAT TO DO IF YOU
SMELL GAS" instructions.
For Your Safety
AN ODORANT
IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
WARNING:
If the information
in these
instructions
is not followed
exactly, a fire
or explosion
may result causing
property
damage,
personal
injury or death.
m
Do not store or use gasoline
or other
flammable
vapors and liquids
in the
vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical
switch;
do not use any phone in your
building.
Immediately
call your gas supplier
from a neighbor's
phone. Follow the
gas supplier's
instructions.
If you cannot reach your gas
supplier,
call the fire department.
Installation
and service
must be
performed
by a qualified
installer,
service
agency
or the gas supplier.
ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS PURCHASED.
IF YOU ARE UNSUCCESSFU L, CONTACT RESIDENTIAL TECHNICALASSISTANCE
AT 1-800-527-1953 OR WWW.HOTWATER.COM.
PRINTED IN THE U.S.A 0108
PARTNO. 186487-001
