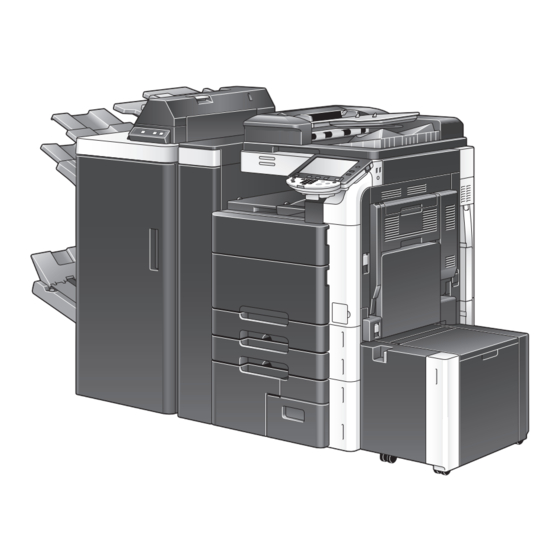

Konica Minolta bizhub 552 Replacement Instructions Manual

Bizhub 652/552 cms replacement instructions guide
Hide thumbs Also See for bizhub 552:
Table of Contents

Advertisement

Quick Links

See also: System Administrator Manual , User Manual
CMS REPLACEMENT INSTRUCTIONS
(Customer Maintenance Support)
CMS REPLACEMENT INSTRUCTIONS
1. Drum unit, Ozone filter, Toner filter

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta bizhub 552

Summary of Contents for Konica Minolta bizhub 552

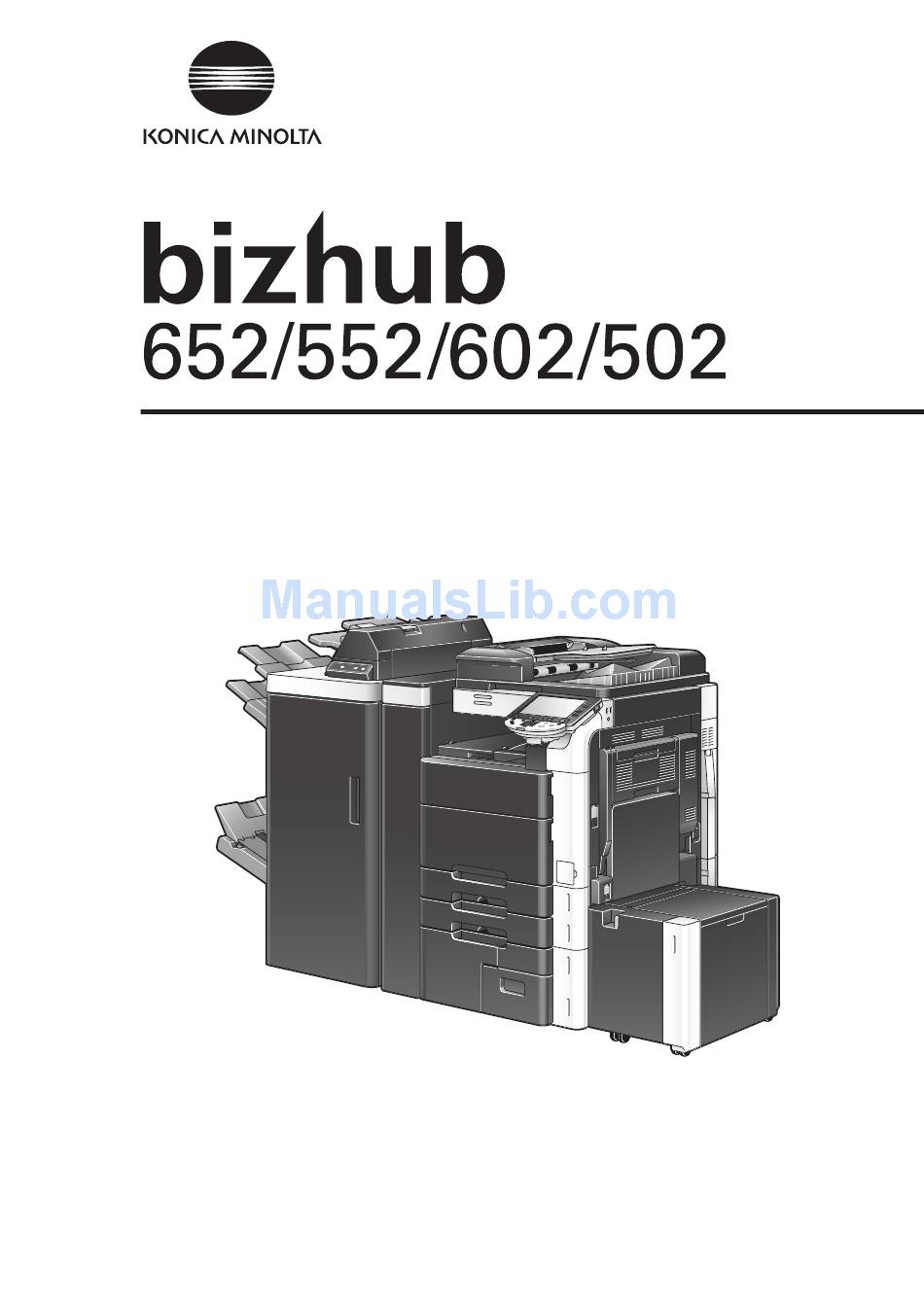

  • Page 1 CMS REPLACEMENT INSTRUCTIONS (Customer Maintenance Support) CMS REPLACEMENT INSTRUCTIONS 1. Drum unit, Ozone filter, Toner filter...
  • Page 2 CMS Instructions for Replacement safely, and also be careful not to get it lost. Should it get lost, contact our service representative. Registered trademark • bizhub is a registered trademark of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. Copyright © 2010 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
  • Page 3 CONTENTS For your safe operation ....................S-1 Meaning of the graphic expression ................S-1 Examples of graphic symbols ..................S-1 Caution notice/Caution label ..................S-6 REPLACEMENT INSTRUCTIONS ..................1...

  • Page 4: Safety And Important Warning Items

    IMPORTANT NOTICE Because of possible hazards to an inexperienced person servicing this product as well as the risk of damage to the product, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. (hereafter called the KMBT) strongly recommends that all servicing be performed only by KMBT-trained service technicians.

  • Page 5: Prohibited Actions

    [1] MODIFICATIONS NOT AUTHORIZED BY KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. KONICA MINOLTA brand products are renowned for their high reliability. This reliability is achieved through high-quality design and a solid service network. Product design is a highly complicated and delicate process where numerous mechanical, physical, and electrical aspects have to be taken into consideration, with the aim of arriving at proper tolerances and safety factors.

  • Page 6: Power Plug Selection

    SAFETY AND IMPORTANT WARNING ITEMS [2] POWER PLUG SELECTION In some countries or areas, the power plug provided with the product may not fit wall outlet used in the area. In that case, it is obligation of customer engineer (hereafter called the CE) to attach appropriate power plug or power cord set in order to connect the product to the supply.

  • Page 7: Checkpoints When Performing On-Site Service

    SAFETY AND IMPORTANT WARNING ITEMS [3] CHECKPOINTS WHEN PERFORMING ON-SITE SERVICE KONICA MINOLTA brand products are extensively tested before shipping, to ensure that all applicable safety standards are met, in order to protect the customer and customer engi- neer (hereafter called the CE) from the risk of injury. However, in daily use, any electrical equipment may be subject to parts wear and eventual failure.
  • Page 8 SAFETY AND IMPORTANT WARNING ITEMS Power Plug and Cord WARNING • When using the power cord set (inlet type) that came with this product, make sure the connector is securely inserted in the inlet of the product. When securing measure is provided, secure the cord with the fixture properly.
  • Page 9 SAFETY AND IMPORTANT WARNING ITEMS Wiring WARNING • Never use multi-plug adapters to plug multiple power cords in the same outlet. If used, the risk of fire exists. • When an extension cord is required, use a specified one. Current that can flow in the extension cord is limited, so using a too long extension cord may result in fire.

  • Page 10: Inspection Before Servicing

    SAFETY AND IMPORTANT WARNING ITEMS Ventilation CAUTION • The product generates ozone gas during operation, but it will not be harmful to the human body. If a bad smell of ozone is present in the following cases, ventilate the room. a.
  • Page 11 SAFETY AND IMPORTANT WARNING ITEMS Inspection before Servicing CAUTION • Do not leave the machine unattended during transporta- tion, installation, and inspection of the machine. If it is to be unavoidably left unattended, face protrusions toward the wall or take other necessary risk reducing action. The user may stumble over a protrusion of the machine or be caught by a cable, falling to the floor or being injured.
  • Page 12 SAFETY AND IMPORTANT WARNING ITEMS Safety Checkpoints WARNING • When mounting an option on the machine, be careful about the clearance between the machine and the option. You may be injured with your finger or hand pinched between the machine and the option. •...
  • Page 13 SAFETY AND IMPORTANT WARNING ITEMS Safety Checkpoints WARNING • Before disassembling or adjusting the write unit (P/H unit) incorporating a laser, make sure that the power cord has been disconnected. The laser light can enter your eye, leading to a risk of loss of eyesight.

  • Page 14: Handling Of Consumables

    SAFETY AND IMPORTANT WARNING ITEMS Handling of Consumables WARNING • Toner and developer are not harmful substances, but care must be taken not to breathe excessive amounts or let the substances come into contact with eyes, etc. It may be stimulative.
  • Page 15 SAFETY AND IMPORTANT WARNING ITEMS [4] Used Batteries Precautions ALL Areas CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Germany VORSICHT! Explosionsgefahr bei unsachgemäßem Austausch der Batterie.

  • Page 16: Internal Laser Radiation

    Maximum power of the laser diode 30 mW bizhub 652/602 13.8 µW Maximum average radiation power (*) bizhub 552/502 11.8 µW Wavelength 775-800 nm *at laser aperture of the Print Head Unit • This product employs a Class 3B laser diode that emits an invisible laser beam. The laser diode and the scanning polygon mirror are incorporated in the print head unit.
  • Page 17 SAFETY AND IMPORTANT WARNING ITEMS U.S.A., Canada (CDRH Regulation) • This machine is certified as a Class 1 Laser product under Radiation Performance Stan- dard according to the Food, Drug and Cosmetic Act of 1990. Compliance is mandatory for Laser products marketed in the United States and is reported to the Center for Devices and Radiological Health (CDRH) of the U.S.
  • Page 18 SAFETY AND IMPORTANT WARNING ITEMS Finland, Sweden LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT VAROITUS! • Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saat- taa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle laser- säteilylle. puolijohdelaser Laserdiodin suurin teho 30 mW aallonpituus 775-800 nm VARNING!

  • Page 19: Laser Safety Label

    SAFETY AND IMPORTANT WARNING ITEMS Laser Safety Label • A laser safety label is attached to the inside of the machine as shown below. * Only for the U.S.A. A2WUP0E007DA Laser Caution Label • A laser caution label is attached to the outside of the machine as shown below. A2WUP0C002DA S-16...

  • Page 20: Precautions For Handling The Laser Equipment

    SAFETY AND IMPORTANT WARNING ITEMS PRECAUTIONS FOR HANDLING THE LASER EQUIPMENT • When laser protective goggles are to be used, select ones with a lens conforming to the above specifications. • When a disassembly job needs to be performed in the laser beam path, such as when working around the printerhead and PC drum, be sure first to turn the printer OFF.

  • Page 21: Warning Indications On The Machine

    SAFETY AND IMPORTANT WARNING ITEMS WARNING INDICATIONS ON THE MACHINE Caution labels shown are attached in some areas on/in the machine. When accessing these areas for maintenance, repair, or adjustment, special care should be taken to avoid burns and electric shock. WARNING CAUTION Do not burn used toner cartridges.

  • Page 22: High Voltage

    SAFETY AND IMPORTANT WARNING ITEMS High voltage This area generates high voltage. Be careful not to touch here when the power is turned ON to avoid getting an electric shock. High voltage This area generates high voltage. Be careful not to touch here when the power is turned ON to avoid getting an electric shock.
  • Page 23 SAFETY AND IMPORTANT WARNING ITEMS High voltage This area generates high voltage. Be careful not to touch here when the power is turned ON to avoid getting an electric shock. High voltage This area generates high voltage. Be careful not to touch here when the power is turned ON to avoid getting an electric shock.

  • Page 24: Measures To Take In Case Of An Accident

    MEASURES TO TAKE IN CASE OF AN ACCIDENT MEASURES TO TAKE IN CASE OF AN ACCIDENT 1. If an accident has occurred, the distributor who has been notified first must immediately take emergency measures to provide relief to affected persons and to prevent further damage.
  • Page 25 MEASURES TO TAKE IN CASE OF AN ACCIDENT Blank Page S-22...
  • Page 26 Drum unit/ K, Ozone filter, Toner filter REPLACEMENT INSTRUCTIONS 2010.12 Ver. 1.0...

  • Page 27: Replacement Instructions

    Drum unit, Ozone filter, Toner filter replacement instructions REPLACEMENT INSTRUCTIONS Drum unit Removal procedure 1. Open the lower front door [1]. A2WUF2C001DA 2. Release the securing levers [1] for the waste toner box, and then remove the waste toner box [2]. A2WUF2C002DA...
  • Page 28 Drum unit, Ozone filter, Toner filter replacement instructions 3. Loosen the shoulder screw [1], and pull out the drum unit [2]. A2WUF2C058DA 4. Hold the fixed lever [1] for the drum unit at two positions, and remove the drum unit [2] while loosening the fixed lever.
  • Page 29 Drum unit, Ozone filter, Toner filter replacement instructions 3. Put the drum unit on the developing unit. NOTE • Do not tilt the drum unit when put- ting it on the developing unit. (Keep the drum unit level.) • Position the drum unit so that part A of the drum unit is inserted into part B of the developing unit.
  • Page 30 Drum unit, Ozone filter, Toner filter replacement instructions 5. Secure the drum unit [1] to the devel- oping unit with the two levers [2]. NOTE • Push the front and back levers in the direction of the arrow at a time to secure the drum unit.
  • Page 31 Drum unit, Ozone filter, Toner filter replacement instructions 7. Reinstall the waste toner box [1]. A2WUF2C003DA 8. Close the lower front door [1]. A2WUF2C004DA 9. Proceed to replace the ozone filter. See P.6...

  • Page 32: Ozone Filter

    Drum unit, Ozone filter, Toner filter replacement instructions Ozone filter 1. Remove the ozone filter [1], and replace it. A00JF2C527DA 2. Proceed to replace the toner filter. See P.6 Toner filter 1. Remove the toner filter [1], and replace it. A0P0F2C520DA...
  • Page 33 MANUFACTURER TOKYO JAPAN Copyright 2010...
