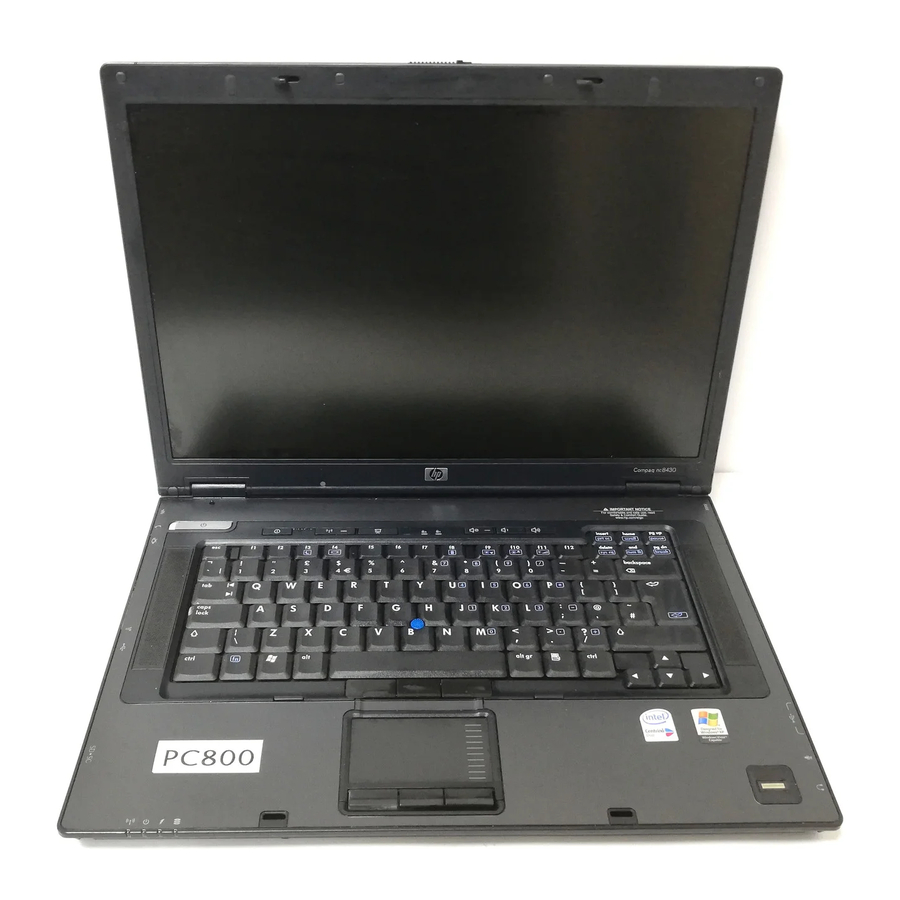

HP Compaq NC8430 User Manual

Notebook tour
Hide thumbs Also See for Compaq NC8430:

Advertisement

Notebook Tour

Document Part Number: 406849-001
April 2006
This guide explains the computer hardware features.

Advertisement

Table of Contents
loading

Summary of Contents for HP Compaq NC8430

  • Page 1: Notebook Tour

    Notebook Tour Document Part Number: 406849-001 April 2006 This guide explains the computer hardware features.
  • Page 2: Table Of Contents

    Contents 1 Components Top components ....... . 1–2 Lights ........1–2 Pointing devices.
  • Page 3: Components

    Components This chapter explains the hardware features of the computer. To see a list of hardware installed on the computer: 1. Select Start > My Computer. 2. In the left pane of the System Tasks window, select View system information. 3.
  • Page 4: Top Components

    Component Description Power lights* (2) On: The computer is on. Blinking: The computer is in standby. Blinking rapidly: An HP Smart AC Adapter with a higher power rating should be connected. Off: The computer is off or in hibernation. (Continued) 1–2...
  • Page 5 Components Component Description † Wireless lights On: An integrated wireless device, such as a wireless local area network (LAN) device and/or a Bluetooth® device, is turned on. Caps lock light On: Caps lock is on. Num lock light On: Num lock is on. Volume mute light On: Computer sound is turned off.
  • Page 6: Pointing Devices

    Components Pointing devices Touchpad Component Description TouchPad* Moves the pointer and selects or activates items on the screen. Can be set to perform other mouse functions, such as scrolling, selecting, and double-clicking. Left TouchPad button* Functions like the left button on an external mouse.
  • Page 7 Components Pointing stick (select models only) Component Description Left pointing stick button Functions like the left button on an external mouse. Center pointing stick button Functions like the center button on an external mouse. Pointing stick Moves the pointer and selects or activates items on the screen.
  • Page 8: Buttons, Switches And Readers

    Components Buttons, switches and readers Component Description Power button* When the computer is ■ Off, press to turn on the computer. ■ In standby, briefly press to exit standby. ■ In hibernation, briefly press to exit hibernation. If the computer has stopped responding and Windows shutdown procedures cannot be used, press and hold the power button for at least...
  • Page 9 Components Component Description Info Center button Launches Info Center, which enables you to open various software solutions. Wireless button* Turns the wireless feature on or off, but does not create a wireless connection. ✎ A wireless network must be set up in order to establish a wireless connection.
  • Page 10: Keys

    Components Keys Component Description esc key Displays system information when pressed in combination with the fn key. fn key Executes frequently used system functions when pressed in combination with a function key or the esc key. Windows logo key Displays the Windows Start menu. Windows applications key Displays a shortcut menu for items beneath the pointer.
  • Page 11: Front Components

    Components Front components Component Description Display release latch Opens the computer. Rear components Component Description Power connector Connects an AC adapter or an optional power adapter. External monitor port Connects an external monitor. Notebook Tour 1–9...
  • Page 12: Right-Side Components

    Components Right-side components Component Description Audio-out (headphone) jack Produces computer sound when connected to optional powered stereo speakers, headphones, ear buds, a headset, or television audio. Internal microphone Records sound. Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array microphone, or a monaural microphone.
  • Page 13: Left-Side Components

    Components Left-side components Component Description Security cable slot Attaches an optional security cable to the computer. Ä The security cable is designed to act as a deterrent, but may not prevent the computer from being mishandled or stolen. RJ-45 (network) jack Connects a network cable.
  • Page 14 Components Component Description Vent Enables airflow to cool internal components. Ä To prevent overheating, do not obstruct vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.
  • Page 15: Bottom Components

    Components Bottom components Component Description Primary battery bay Holds the primary battery pack. Primary battery pack Release the primary battery pack from release latches (2) the battery bay. Business card holder Holds a standard size business card. Hard drive bay Holds the hard drive.
  • Page 16 Components Component Description Vent Enables airflow to cool internal components. Ä To prevent overheating, do not obstruct vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.
  • Page 17: Wireless Antennae

    Components Wireless antennae Two wireless antennae send and receive wireless device signals. These antennae are not visible from the outside of the computer. For wireless regulatory notices pertaining to your region, refer to the Regulatory, Safety and Environmental Notices located in the Help and Support Center.
  • Page 18: Additional Hardware Components

    Additional hardware components Component Description Power cord* Connects an AC adapter to an AC outlet. HP Smart AC Adapter Converts AC power to DC power. Primary battery pack* Powers the computer when the computer is not plugged into external power.
  • Page 19: Labels

    Components Labels The labels affixed to the computer provide information you may need when you troubleshoot system problems or travel internationally with the computer. ✎ The appearance and position of labels varies by model. ■ Service tag—Provides the product brand and series name, product number (p/n), and serial number (s/n) of your computer.
  • Page 20 Components ■ Modem approval label—Provides regulatory information about the modem and lists the agency approval markings required by some of the countries in which the modem has been approved for use. You may need this information when traveling internationally. The modem approval label is affixed to the bottom of the computer.
  • Page 21: Specifications

    Specifications Operating environment The operating environment information in the following table may be helpful if you plan to use or transport the computer in extreme environments. Factor Metric U.S. Temperature Operating (not writing to optical disc) 0°C to 35°C 32°F to 95°F Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F...
  • Page 22: Rated Input Power

    DC power source, it is strongly recommended that the computer be powered only with an AC adapter or a DC power cord supplied by or approved for an HP computer. The computer is capable of accepting DC power within the following specifications.
  • Page 23: Index

    Index 1394 port 1–12 pointing stick 1–5 power 1–6 presentation 1–7 AC adapter, identifying 1–16 TouchPad 1–4 accessory battery connector volume 1–7 1–14 wireless 1–7 altitude specifications 2–1 antennae 1–15 applications key, Windows cables, RJ-11 (modem) 1–16 1–8 caps lock light 1–3 audio-in (microphone) jack Certificate of Authenticity 1–10...
  • Page 24 Index display switch, identifying 1–6 keys docking connector 1–13 1–8 drive light 1–3 1–8 drives, optical 1–10 function 1–8 keypad 1–8 Windows applications 1–8 environmental specifications Windows logo 1–8 2–1 external monitor port 1–9 labels Microsoft Certificate of fingerprint reader 1–7 Authenticity 1–17 key 1–8 modem approval 1–18...
  • Page 25 Index Microsoft Certificate of Authenticity label 1–17 rated input power modem approval label 1–18 specifications 2–2 monitor port, external 1–9 regulatory information mute button 1–7 modem approval label mute light 1–3 1–18 regulatory label 1–17 wireless certification labels num lock light 1–3 1–18 release latch operating environment...
  • Page 26 Index temperature specifications 2–1 TouchPad 1–4 TouchPad buttons 1–4 traveling with computer environmental specifications 2–2 modem approval label 1–18 wireless certification labels 1–18 USB ports, identifying 1–10 1–12 vent 1–12 1–14 volume buttons 1–7 Windows applications key 1–8 Windows logo key 1–8 wireless antennae 1–15 wireless button 1–7 wireless certification label...
  • Page 27 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
