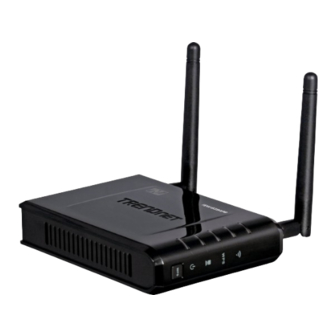

TRENDnet TEW-638APB Quick Installation Manual

TRENDnet TEW-638APB Quick Installation Manual

300mbps wireless n access point
Hide thumbs Also See for TEW-638APB:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual
Quick Installation Guide
TEW-638APB
H/W: V1

Advertisement

loading

Related Manuals for TRENDnet TEW-638APB

Summary of Contents for TRENDnet TEW-638APB

  • Page 1 Quick Installation Guide TEW-638APB H/W: V1...
  • Page 2 Table of Contents Table of Contents English ...................... 1 1. Before You Start ................2. Hardware Installation ................Troubleshooting ..................8 Version 01.31.2009...

  • Page 3: English

    1. Before You Start Package Contents TEW-638APB User's Guide CD-ROM Multi-Language Quick Installation Guide AC Power Adapter (12V DC, 1A) 1 RJ-45 cable Installation Requirements Web Browser: Internet Explorer (6 or higher) A computer with a network adapter or wireless adapter properly installed.

  • Page 4: Hardware Installation

    2. Hardware Installation Note: 1: Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network. 2: Disable any anti-virus and firewall programs before starting hardware installation. For Windows Users 1.
  • Page 5 5. Connect the provided RJ-45 cable from a LAN port on your Router to the LAN port on the TEW-638APB. Then click Next. 6. Connect a RJ-45 cable from a LAN port on your Router to the Ethernet port on your computer.
  • Page 6 9. Enter a password and then click Login. The default password is admin. 10. Select Access Point and then click Next. Note: For AP Client setup, please refer to the User's Guide for step by step instructions. The User's Guide can be found on this product's CD-ROM.
  • Page 7 13. Enter a SSID and then click Next. By default, the SSID is TRENDnet638. 14. Select the desired Wireless Mode and then click Next. 15. Select a Security Mode and then click Next (example shows WPA-PSK). 16. Select the desired WPA mode, enter characters for your Pre- Shared key, keep Cipher Type as TKIP and AES and then click...
  • Page 8 17. Click Save (optional). 18. Give the file a name, then click Save (optional). 19. Click Confirm to apply the settings. 20. Click Exit. English...
  • Page 9 21. Click Yes to exit. Note: To connect a wireless computer to the TEW-638APB, refer to Question 1 in the Troubleshooting section. Your configuration is now complete. For detailed information regarding the TEW-638APB's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com.

  • Page 10: Troubleshooting

    : I have a wireless adapter that supports WiFi Protected Setup (WPS) push button setup. How do I setup WPS between the TEW-638APB and my wireless adapter? First, press on the WPS button on the front of the TEW-638APB for 10 seconds. Second, refer to your wireless adapters for instructions on setting up WPS.
  • Page 11 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
  • Page 12 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
  • Page 13 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
