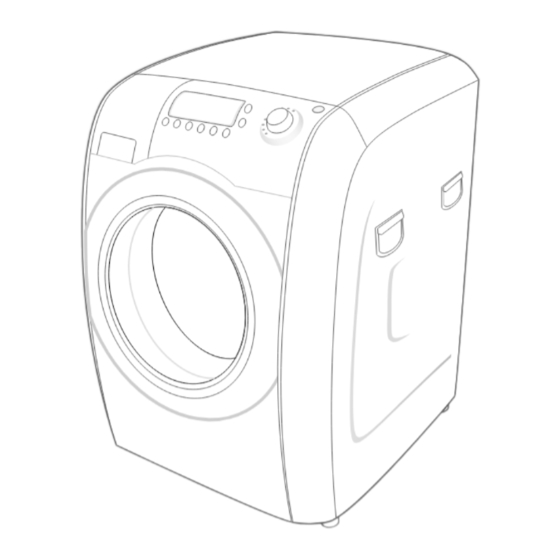

- Page 1 Washing Machine Owner’s Instructions WM1245A...
-
Page 2: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner's Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine's features and enjoy this appliance for many years to come. -
Page 3: Table Of Contents
Problems and solutions ------------------------------------------------------------ 18 Understanding error messages --------------------------------------------------- 18 Programme chart ------------------------------------------------------------- Appendix ------------------------------------------------------------------------------ Fabric care chart --------------------------------------------------------------------- 20 Electrical warnings ------------------------------------------------------------------ 20 Protecting the environment -------------------------------------------------------- 21 Declaration of conformity ---------------------------------------------------------- 21 Specification --------------------------------------------------------------------------- 21 SAMSUNG Washing Machine Owner’s Instructions... -
Page 4: Unpacking The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. -
Page 5: Selecting A Location
2. Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt. 3. Fill the holes with the supplied plastic covers. 4. Keep the shipping bolts for future use. SAMSUNG Washing Machine Owner’s Instructions... -
Page 6: Connecting The Water Supply Hose
Tighten by hand. 2. Connect the other end of the hot water supply hose to your sink's hot water faucet and tighten it by hand. SAMSUNG Washing Machine Owner’s Instructions... -
Page 7: Connecting The Water Supply Hose
In case the faucet is square or too big, remove the spacing ring before inserting the faucet into the adaptor. The appliance is to be connected to the water mains using new hose-sets and that old Note: hose-sets should not be used. SAMSUNG Washing Machine Owner’s Instructions... -
Page 8: Drain Hose Connection Procedures
60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. SAMSUNG Washing Machine Owner’s Instructions... -
Page 9: Washing A Load Of Laundry
4. Add prewash detergent into compartment (if you desire). Caution : Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.) SAMSUNG Washing Machine Owner’s Instructions... -
Page 10: Overview Of The Control Panel
Press the button repeatedly to cycle through the available spin speed options. (600, 800, 1000, 1200rpm) Drying Time button Every press of this button will select drying time repeatedly in the following order: 10min 30min 70min 100min SAMSUNG Washing Machine Owner’s Instructions... -
Page 11: For The Silver Wash Washing
For Prewash, put a supplementary detergent in the detergent tray. Silver Wash: If it is used together with fiber softener, its effect may be decreased. Press Start/Pause button. :It automatically performs an optimal washing with sensing the weight of clothes. SAMSUNG Washing Machine Owner’s Instructions... -
Page 12: Childlock(Button Lock Function)
Power , check "CHILDLOCK LAMP", please. Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. -
Page 13: Washing Clothes Manually
10. Press the Delay Start button repeatedly to cycle through the available delayed start options (up to 24 hours mximum in one hour increments.). Displayed hours means the time of ifinished washing-cycle. 11. Press the Start/Pause button and the machine will begin the cycle. SAMSUNG Washing Machine Owner’s Instructions... -
Page 14: Using Dry Course
In order to take out the clothes: press firstly PAUSE or POWER button and take them out. In case you wish to dry after hand washing, select both SPIN and Drying at the same time. SAMSUNG Washing Machine Owner’s Instructions... -
Page 15: Using Delay Start
If you want to wash it lightly : You may wash it just by selecting the 40˚C-Water without bleaching agent. 4. Press Start/Pause button. Remark: About one time a month is enough for the tub-washing. SAMSUNG Washing Machine Owner’s Instructions... -
Page 16: Washing Tips And Hints
If you do not know how hard your water is, ask your water authority. Note: Keep detergents and additives in a safe, dry place out of the reach of children. SAMSUNG Washing Machine Owner’s Instructions... -
Page 17: Maintaining The Washing Machine
Cleaning the exterior Wipe the washing machine surfaces, including the control panel, with a soft cloth and non-abrasive household detergents. Use a soft cloth to dry the surfaces. Do not pour water on the washing machine. SAMSUNG Washing Machine Owner’s Instructions... -
Page 18: Cleaning The Detergent Drawer And Recess
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. SAMSUNG Washing Machine Owner’s Instructions... -
Page 19: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. SAMSUNG Washing Machine Owner’s Instructions... -
Page 20: Troubleshooting
Before contacting After-Sales service: 1. Try to remedy the problem (See "Troubleshooting" on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. SAMSUNG Washing Machine Owner’s Instructions... -
Page 21: Programme Chart
Standard IEC 69456. 3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. SAMSUNG Washing Machine Owner’s Instructions... -
Page 22: Appendix
Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. SAMSUNG Washing Machine Owner’s Instructions... -
Page 23: Protecting The Environment
WASH and SPIN CAPACITY 10.0kg (DRY LAUNDRY) DRY CAPACITY 6.0kg WASHING 220V 170W POWER 230V 170W CONSUMPTION WASHING AND HEATING 220V 2000W 230V 2200W 240V 2400W DRYING 220V 2100W WATER VOLUME 125l SPIN REVOLUTION MODEL WM1245A 1200rpm SAMSUNG Washing Machine Owner’s Instructions... - Page 24 -Don't hesitate to call any AS center nearby with your name, address, telephone number, model number and serial number of your machine when anything wrong with your product occurs. Samsung Electronics Hong Kong Co., Ltd. Tel:28626008 Tax:28626317 Code No.: DC68-01965D...
