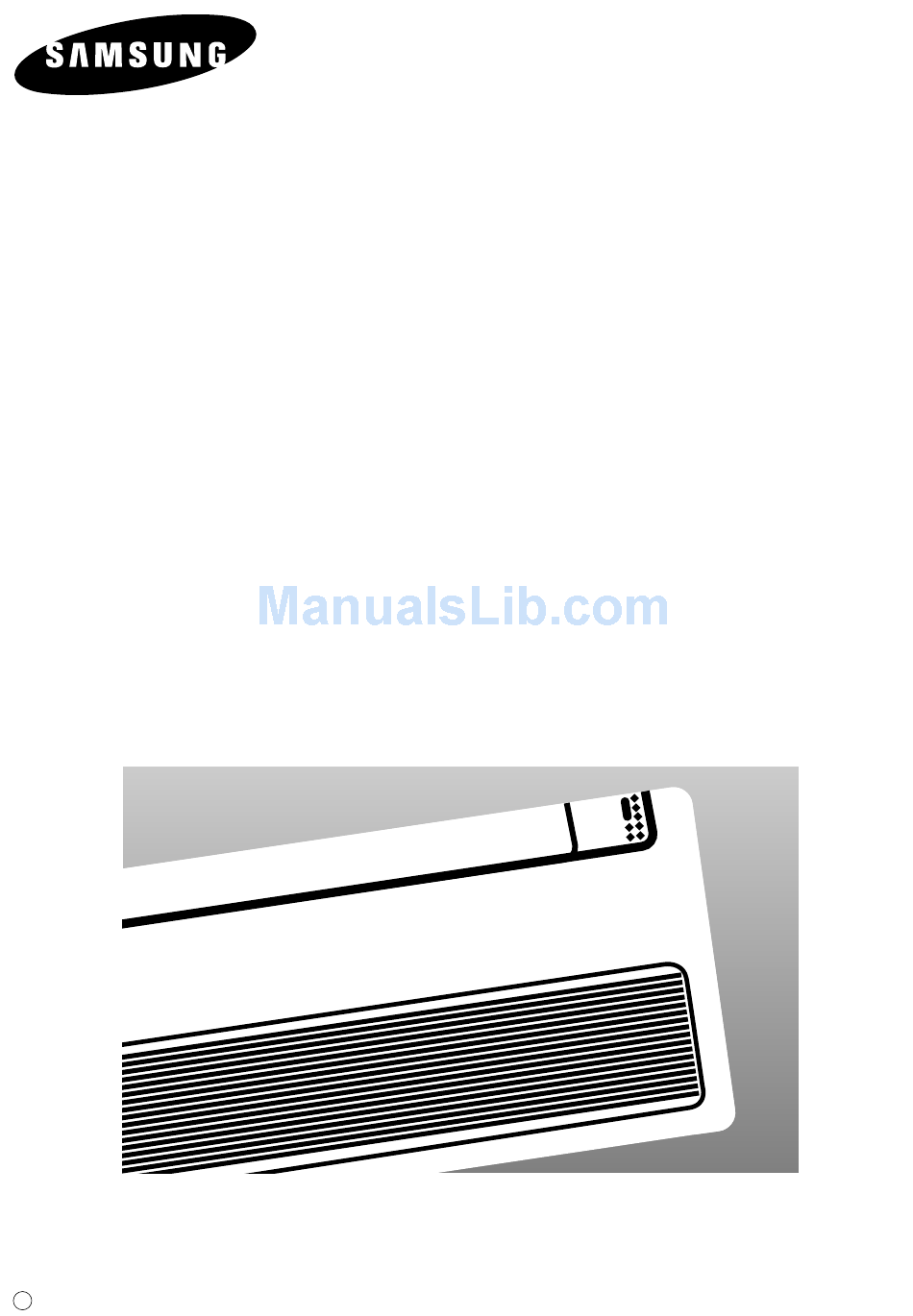

- Page 1 OWNER’S INSTRUCTIONS Indoor unit Outdoor unit FC052EZA FC052EZX FC070EZA FC070EZX CEILING/FLOOR TYPE AIR CONDITIONER (Cool) E DB98-08722A(1)
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when using your air conditioner. Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials over it. NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist. -
Page 3: Table Of Contents
Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........View of the Unit . -
Page 4: View Of The Unit
View of the Unit Indoor Unit Air Flow Blade(up/down) Air Flow Blade(right/left) Air Filter Front grille Remote control sensor SILENCE indicator SAVING indicator POWER indicator NATURE indicator STANDARD indicator On/Off & 5 Way selection button Timer indicator For details on the 5 Way, refer to page 9. -
Page 5: Outdoor Unit
Outdoor Unit Air Inlet(Rear) Air Outlet Connection Valve... -
Page 6: Remote Control-Buttons And Display
Remote Control - Buttons and Display Remote control transmission indicator Mode selection button Operating mode (AUTO, COOL, DRY, FAN) AUTO, COOL, DRY, FAN) Temperature adjustment Temperature setting buttons Turbo mode Turbo/Sleep mode Sleep mode selection button Fan speed Fan speed adjustment button Air flow direction Swing button... -
Page 7: Getting Started
etting Started You have just purchased a Ceiling type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit’s features. -
Page 8: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together. Batteries may be completely discharged after 12 months, even if they have not actually been used. -
Page 9: Way Function
5 Way Function You can select the 5 Way function with operating mode of the air conditioner for more comfortable circumstances. You can use the 5 Way function with the control panel as well as the remote control. Thus, you can use this function even though you have lost your remote control. -
Page 10: Selecting The Automatic Operating Mode
Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed. If necessary, press the (On/Off) button. -
Page 11: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. -
Page 12: Changing The Room Temperature Quickly
Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected. -
Page 13: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. -
Page 14: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. -
Page 15: Adjusting The Air Flow Direction Vertically
Adjusting the Air Flow Direction Vertically You can adjust the position of air flow blade for increasing the efficiency of the air conditioner. Press the button one or more times as required. Result: The outer blade is adjusted vertically. RECOMMENDATION When... -
Page 16: Setting The On Timer
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed. -
Page 17: Setting The Off Timer
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed. -
Page 18: Setting The Sleep Timer
Setting the Sleep Timer The Sleep Timer can be used when you need to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 17. -
Page 19: Operating Recommendations
Operating Recommendations Here are a few recommendation that you should follow when using your air conditioner. Topic Recommendation Power failure If a power failure occurs when the air conditioner is operating, the unit is switched off. When the power returns, the air conditioner starts up automatically again. -
Page 20: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. Then... If the air conditioner is used at... The automatic protection feature may be triggered and the air conditioner stopped. High temperatures A water leakage or some other malfunction may happen if the heat exchanger freezes. -
Page 21: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must to clean it to remove the dust that accumulates on the air filters. Before cleaning your air conditioner, ensure that you IMPORTANT have switched off the breaker used for the unit. Open the front grille by pushing on both sides and center. -
Page 22: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The air conditioner does not Check that the breaker used for the air conditioner is switched on. operate at all Check that the 5 Way indicator on the indoor unit is on;... -
Page 23: Technical Specifications
Technical Specifications Model Indoor unit Power Supply FC052EZA 220-240V~, 50Hz FC070EZA... - Page 24 MEMO...
