Whirlpool ADG 7800/2 Quick Reference Manual

Quick reference guide
PROGRAM SELECTION START/RESUME BUTTON
BUTTON Push this button to start the selected program: the
Push "P" button (repeatedly) indicator lights up and goes off at the end of the program.
until selected program number When the door is opened during a washing cycle, the
is shown on the display cycle is temporarily paused: the Start indicator blinks.
(P1...Px) - see "Table of To resume the cycle push Start button and close
programs" below. the door within 3 seconds.
Table of programs
Available
Programs
P1
Sensor 40-70°C
Power Clean
P2
Pre-Wash cold
P3
Fragile 40°C
P4
Rapid 45°C
P5
2)
50°C
Eco
Power Clean
P6
Fast Daily 60°C
P7
Half Load 50°C
P8
Intensive 65°C
Power Clean
1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may
vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance's automatic
calibration system.
2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard
loading comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
Whirpool is a registered trademark of Whirpool USA
(see at right for options description)
CANCEL/OFF BUTTON
Push this button to switch off the control panel.
If pressed when a program is running it cancels the
program ongoing draining water for 1 minute
(0:01 is shown into the display).
If pressed when the dishwasher is switched off,
it drains any possible liquids from dishwasher
(1 minute process).
Loading instructions
options
Recommended program for routine
Delay
washes, with dried-on food
(e.g. EN 50242).
Delay Crockery to be washed later.
Light soiling, for example glasses and
Delay
cups.
Lightly soiled crockery, with no
Delay
dried-on food.
Delay Normally soiled crockery.
Energy-saving program.
Delay Normally soiled crockery.
Ideal for washing a half load of lightly
Delay
or normally soiled crockery.
Recommended program for heavily
Delay
soiled crockery, especially suitable
for pans and saucepans.
Consumption
Deter- Drying
gent Phase
Litres kWh 1)
Minutes
X 7-14 1.00-1.60 70-155 Full
— 4.0 0.03 14 NO
X 10.0 0.85 100 Light
X 11.0 0.80 30 NO
X 11.5 1.03 170 Full
X 10.0 1.30 80 Full
X 10.0 1.07 132 Full
X 14.0 1.60 145 Full
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS
QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY
BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES
AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.
Options and display description
SALT INDICATOR
When lit (at the end of the cycle),
the salt reservoir needs to be
refilled.

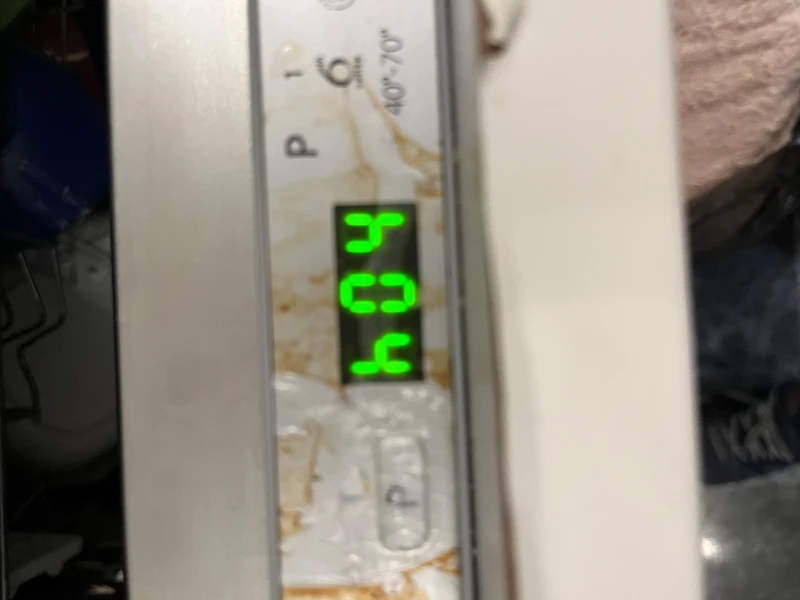

WASH TIME DISPLAY
Indicated the cycle duration and the remaining time (h:min). With "Delayed start" selected it indicates
the time remaining until program start (h.00) - below 1h (0:min).
If "Fx Ey" messages appears on the display, see page 6 - chapter "What to do if...".
DELAYED START BUTTON
Push the button (repeatedly)
to delay the start of the
program. - delay indicator
turns on.
Adjustable from 1 to 24 hours.
With each press of the button,
the delayed increases by one
POWER CLEAN
hour and after "h 24" returns
Thanks to the additional power jets this option provides a more
to "h 00".
intensive and powerful wash in the lower rack, in the specific
When this option is selected area. This option is recommended for washing pots and
casseroles (see page 4). Press this button to activate Power Clean
the delay indicator turns on.
(the indicator lights up).
Then press the START button.
The dishwasher will start after
the set time.
Chart
RINSE AID INDICATOR
When lit (at the end of the cycle),
the rinse aid dispenser needs to
be refilled.
TABLET SETTING
This setting allows to
optimize the cycle
performances according the
type of detergent used.
Push the Tablet button for
3 seconds (until the indicator
lights up) if you are using the
combined detergents in
tablet (rinse aid, salt and
detergent in 1 dose).
If you are using powder
detergent or liquid
detergent, the Tablet
indicator on the control
panel has to be off.
5019 396 03637
GB -1-
