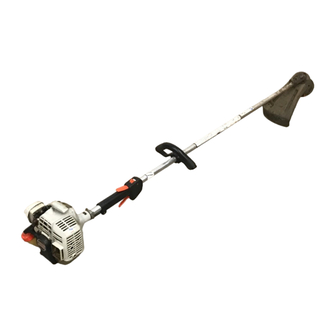

Echo SRM-210 Operator's Manual

Echo grass trimmer/brush cutter operator's manual
Hide thumbs Also See for SRM-210:
Table of Contents

Advertisement

Quick Links

Grass Trimmer/Brush Cutter
Operator's Manual
MODEL
Read rules for safe operation and instructions carefully. ECHO provides an Operator's
Manual and a Safety Manual. Both must be read and understood for proper and safe
operation.
X7702275401
SRM-210
Serial Number 05001001 - 05999999
WARNING
DANGER
X770000671
08/03

Advertisement

Table of Contents
loading

Related Manuals for Echo SRM-210

Summary of Contents for Echo SRM-210

  • Page 1 Grass Trimmer/Brush Cutter Operator's Manual MODEL Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual. Both must be read and understood for proper and safe operation. X7702275401 SRM-210 Serial Number 05001001 - 05999999...

  • Page 2: Table Of Contents

    NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job dependability. Read and understand this manual and the SAFETY MANUAL before operation. You will find both easy to use and full of helpful operating tips and SAFETY messages.

  • Page 3: Manual Safety Symbols And Important Information

    Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.

  • Page 4: International Symbols

    • Beware of KICKOUT (blade thrust) when using blades. Special precautions are necessary for blade operation, see your Operator's and Safety Manuals. ONLY install ECHO approved blades on Brush Cutters (SRM) models equipped with proper blade shield, U-handles, harness, blade collar, nut and cotter pin.

  • Page 5: Safety Instructions

    PERSONAL CONDITION AND SAFETY EQUIPMENT WARNING Trimmer/Brush Cutter users risk injury to themselves and others if the trimmer/brush cutter is used improperly or safety precautions are not followed. Proper clothing and safety gear must be worn when operating a trimmer/brush cutter.

  • Page 6: Equipment

    Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

  • Page 7: Safe Operation

    SAFE OPERATION WARNING Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Read the Manuals • Provide all users of this equipment with the Operator's Manual and Safety Manual for instructions on Safe Operation.

  • Page 8: Description

    After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.
  • Page 9 RASS RIMMER RUSH UTTER PERATOR ANUAL Safety Video...
  • Page 10 20. SAFETY VIDEO - (Not included with unit) P/N 99922202540 English version and P/N 99922203508 Spanish version are available at a cost of $5.00 from ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating techniques and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information on safe operation.

  • Page 11: Specifications

    PECIFICATIONS MODEL ----------------------------------------------------- SRM-210 Length ------------------------------------------------------- 1770 mm (69.7 in.) Width -------------------------------------------------------- 250 mm (9.84 in.) Height ------------------------------------------------------- 325 mm (12.8 in.) Weight (dry) w/cutter head ------------------------------- 4.8 kg (10.7 lb.) Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine Bore ---------------------------------------------------------- 32.2 mm (1.27 in.)

  • Page 12: Assembly

    Read and comply with all safety instructions listed in this manual and attachment manual. ECHO, INC. will not be responsible for the failure of cutting devices, attachments, or accessories which have not been tested and approved by ECHO for use with these units.

  • Page 13: Front Handle Installation

    Position front handle for comfortable operation and secure screws. PERATION OPERATION WITH BLADES Preparing the Trimmer/Brush Cutter for Blade Use WARNING Blade use DEMANDS specific Brush Cutter configuration. Operation without specified shield, harness, and handle can result in serious personal injury.
  • Page 14 NOTE The Barrier Bar is used to restrict rearward movement of the unit. The Barrier Bar is NOT A HANDLE and should not be gripped when using or carrying the unit. Brush/Clearing Blades Require: Install U-Handle / Blade Conversion Kit, P/N 99944200521 - Includes metal shield (A), shoulder harness with hip pad (C), and U-Handles (D).
  • Page 15 64 mm (2-1/2 in.) diameter. Use Shoulder/Waist Harness (P/N 99944200200) Use of the Shoulder/ Waist Harness is recommended for ALL Trimmer/Brush Cutter use. The Shoulder/Waist Harness suspends the trimmer from the operator's shoulder and reduces operator fatigue.

  • Page 16: Fuel

    IMPORTANT Echo premium Power Blend Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals. Mixing Instructions 1. Fill an approved fuel container with half of the required amount of gasoline.

  • Page 17: Operation

    PERATION STARTING COLD ENGINE WARNING The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from objects that could become entangled or thrown. 1.

  • Page 18: Starting Warm Engine

    The attachment should not move at idle, otherwise serious personal injury may result. NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. 1. Stop Switch Move stop switch button (A) away from the STOP position. 2. Primer Pump primer bulb (C) until fuel is visible and flows freely in the clear fuel tank return line.

  • Page 19: Stopping Engine

    ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see you Echo Dealer for repairs.

  • Page 20: Maintenance Intervals

    MAINTENANCE INTERVALS n i l t l i t l i n i l l f f ) s l l i o s t l t n i ® ® t I - l a i . . n...

  • Page 21: Air Filter

    AIR FILTER Level 1. Tools required: 25 - 50 mm (1 - 2 in.) Cleaning Brush Parts required: 90008 REPOWER 1. Close choke (Cold Start Position [ entering the carburetor throat when the air filter is removed. Brush accumulated dirt from the air cleaner area. 2.

  • Page 22: Spark Plug

    SPARK PLUG Level 2. Tools required: T-Wrench, feeler gauge, soft metal brush Parts Required: REPOWER Tune-Up Kit P/N 90074 1. Remove spark plug and check for fouling, worn and rounded center electrode. 2. Clean the plug or replace with a new one. DO NOT sand blast to clean.

  • Page 23: Exhaust System

    1. Disconnect spark plug lead from spark plug. 2. Remove (1) screw from top guard (A), and remove guard. 3. Remove (3) screws from engine cover (B), and remove cover. 4. Use the brush to remove dirt form cylinder fins. 5.
  • Page 24 The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service.

  • Page 25: Carburetor Adjustment

    See page 11, "Specifications," for correct idle speed. Level 2. Tools required: Screwdriver, Tachometer (ECHO P/N 99051130017). NOTE Every unit is run at the factory and the carburetor is set in compli- ance with emission regulations. This carburetor does not have acceleration and high speed adjustment needles.

  • Page 26: Lubrication

    LUBRICATION Level 1. Tools required: 8 mm Open End Wrench, Cross Head Screwdriver, Clean rag Parts Required: ECHO LUBE ® Grease. Gear Housing 1. Clean all loose debris from gear box. 2. Remove plug (A) and check level of grease.

  • Page 27: Nylon Line Replacement

    NYLON LINE REPLACEMENT Level 1. Parts Required: ECHO 0.095" Nylon Trimmer Line 6 m (20 ft.) long. 1. Shut engine off. Lay unit on the ground with head assembly up. 2. Hold drum (A) and turn spool (B) CW (clockwise) until it stops.

  • Page 28: Sharpening Metal Blades

    9. Pull both lines out and trim to cut-off knife length. SHARPENING METAL BLADES Three styles of metal blades are approved for use on the ECHO Brush Cutter. The 8-tooth blade can be sharpened during normal maintenance. The clearing blade and 80 tooth blade require professional service.

  • Page 29: Troubleshooting

    ROUBLESHOOTING i l y s t r t ' n t l i f t l i f y l r i l o Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark near an open spark plug opening, otherwise serious personal injury may result.

  • Page 30: Storage

    TORAGE During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (over 30 days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte- nance which includes the following: 1.
  • Page 31 RASS RIMMER RUSH UTTER PERATOR ANUAL NOTES...

  • Page 32: Servicing Information

    • Purchasing from your Echo Dealer. • Manuals are available by sending a written request stating the model number and serial number of your Echo unit, part number of the manual, your name and address, and mail to the address below.
