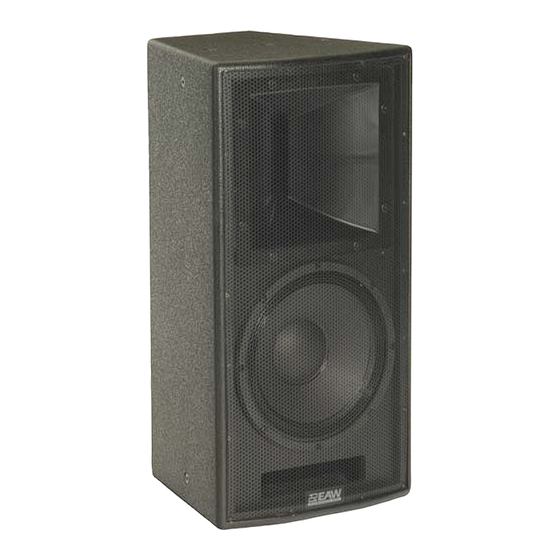

EAW MK2364 Specification Sheet

2-way full-range 60 x 45

Advertisement

Quick Links

M K 2 3 6 4
S p e c i f i c a t i o n s

DESCRIPTION

Permanent installation system, selectable single-amp or bi-amp
Rotatable HF horn provides mounting options
The MK2300 Series of 2-way, high output, trapezoidal loudspeakers are
designed as main PA for smaller venues, including houses of worship,
auditoriums/theaters, A/V systems, hotel ballrooms, and meeting rooms.
The Series is also ideal for distributed or fill purposes in larger venues,
including houses of worship, auditorium/theaters, arenas, stadiums,
nightclubs, and themed-entertainment complexes.
To meet the design goals for the intended applications, EAW engineers
developed a new, high performance, 3-inch voice coil, compression
driver mating it to a selection of six different HF horns with patterns from
60° x 45° to 120° x 60°. The horns are as large as the enclosure size
allows to maintain consistent directivity throughout the HF passband. A3-
inch voice coil, 12 inch LF driver, was designed to complement the sonic
character and output of the HF driver. All MK2300 models are carefully
voiced to sound similar, permitting diverse horn patterns to be mixed
throughout an installation while maintaining the same sonic quality. The
results are cleaner, usable, high-fidelity output to significantly higher
levels than is normally expected from loudspeakers of this size and price.
Single-amp and bi-amp operating modes are user-selectable. In single-
amp mode, the beamwidth-matching passive crossover is designed for
even power response through crossover, low power losses, and high
power handling. In bi-amp mode a digital signal processor (DSP) is
required, providing sophisticated processing to maximize performance.
Foam-backed grilles hide the drivers from view for pleasing aesthetics.
Thirteen mounting points allow enclosures to be mounted in virtually any
configuration. Additional mounting points mate with OmniMount® 120.0
Series or similar brackets. Standard colors are black and white. Other
colors can be specified as a special order items.
The MK2300 are the smaller companions to the MK5300 Series
loudspeakers. Enclosures for both series are the same height facilitating
installation where more than one horn pattern and/or type of loudspeaker
capability is needed. Six Year Warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
P r e l i m i n a r y
2-WAY FULL-RANGE 60° x 45°
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer
LF 1x 12 in cone
HF 1x 1.4 in exit, 3 in voice
coil compression driver
Operating Mode
Amplifier Channels
Single-amp LF/ HF
Bi-amp LF, HF
1
PERFORMANCE
Operating Range
70 Hz to 20 kHz
Nominal Beamwidth (rotatable)
Horz 60°
Vert 45°
Axial Sensitivity (whole space SPL)
LF/HF 97 dB
LF 97 dB
HF 111 dB
Input Impedance (ohms)
Nominal
LF/HF 8
LF 8
HF 8
High Pass Filter
High Pass =>60 Hz, 12 dB/octave Butterworth
2
Accelerated Life Test
LF/HF 69 V
LF 69 V
HF 35 V
Calculated Axial Output Limit (whole space SPL)
Average
LF/HF 125 dB
LF 125 dB
HF 133 dB
ORDERING DATA
Description
MK2364 2-Way Full-Range Loudspeaker Black
MK2364 2-Way Full-Range Loudspeaker White
MK2364 2-Way Full-Range Loudspeaker Black-WP 0013779
Optional Accessories
Eyebolt/Forged Shoulder (3/8-16 x 1.25 in)
MK2/5000 U-Bracket Black
MK2/5000 U-Bracket White
group · I
Loading
Vented
Horn-loaded
External Signal Processing
High pass filter
DSP w/2-way filters
70 Hz to 20 kHz
70 Hz to 1820 Hz
1290 Hz to 17 kHz
Minimum
7.2 @ 178 Hz
7.1 @ 290 Hz
8.5 @ 6050 Hz
600 W @ 8 ohm
600 W @ 8 ohm
150 W @ 8 ohm
Peak
131 dB
131 dB
139 dB
Part Number
0013142
0013752
104001
0007869
0015076
Part Number: RD0240 (1) MK2364 June 2005
