Dell Latitude E6420 ATG
Setup and Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front and Back View

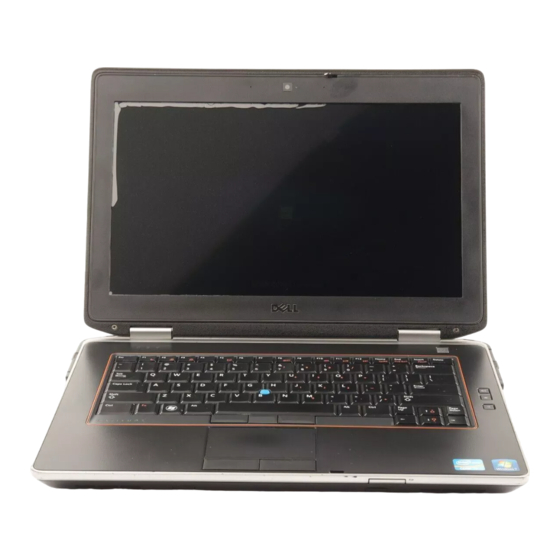

Figure 1. Front view
1. microphone
2. display release latch
3. camera
4. camera status light
5. display latch
6. display
7. power button
8. eSata/USB connector
9. USB 2.0 connectors (2)
10. volume control buttons
11. wireless switch
12. optical drive
Regulatory Model: P15G
Regulatory Type: P15G002
February 2011

Advertisement

Table of Contents
loading

Related Manuals for Dell Latitude E6420 ATG

Summary of Contents for Dell Latitude E6420 ATG

  • Page 1 Dell Latitude E6420 ATG Setup and Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Front and Back View Figure 1. Front view 1. microphone 7. power button 2. display release latch 8.

  • Page 2: Installing The Handle Assembly

    WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

  • Page 3: Quick Setup

    WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance. WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.

  • Page 4: Connect The Network Cable (Optional)

    1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet. Figure 3. AC Adapter 2. Connect the network cable (optional). Figure 4. Network Connector 3. Connect USB devices, such as a mouse or keyboard (optional). Figure 5.

  • Page 5: Specifications

    Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information regarding the configuration of your computer, click Start → Help and Support and select the option to view information about your computer. System Information Chipset Intel Mobile Express Series 6 chipset...
  • Page 6 Battery 6-cell Depth 48.08 mm (1.89 inches) Height 20.00 mm (0.79 inch) Width 208.00 mm (8.19 inches) 9-cell Depth 71.79 mm (2.83 inches) Height 20.00 mm (0.79 inch) Width 214.00 mm (8.43 inches) Weight: 6-cell 344.73 g (0.76 lb) 9-cell 508.02 g (1.12 lb) Voltage 11.10 VDC...
  • Page 7 AC Adapter Temperature range: Operating 0 °C to 40 °C (32 °F to 104 °F) Non-Operating –40 °C to 70 °C (–40 °F to 158 °F) Physical Height 29.00 mm to 37.70 mm (1.14 inches to 1.48 inches) Width 357.30 mm (14.07 inches) Depth 246.50 mm (9.70 inches) Weight (with 6-cell battery and air...

  • Page 8: Finding More Information And Resources

    Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
