For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
W10208026 Energy Guide
Guide, Use & Care
W10157791 English/French
W10157792 Spanish
2
Bracket, Hinge
W10202226 Left
W10202227 Right
3
99001075 Screw
4
Y99002587 Pad, Foam
12−09 Litho In U.S.A. (cre)(psw)
DOOR AND PANEL PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
5
Panel, Front
99003299 Black
99003300 White
99003302 Stainless
6
912366 Black
99001194 White
7
Panel, Toe
99002765 Black
99002766 White
8
99002591 Black
99002593 White
(Bisque)
Illus.
No.
10 W10185633 Liner, Door
11
Screw
12
13
14
15
Support, Front
1
UNDERCOUNTER
DISHWASHER
(Stainless)
Part
No.
DESCRIPTION
9 W10117748 Insulation, Door
Secondary
99003481 Foam Strip (Long)
99003482 Foam Strip (Short)
99003541 Bracket, Secondary
Door Liner
99002414 Insulation, Toe
Damper, Toe Panel
99002694 Black
99002698 White
Part No. W10274315 Rev. A
Advertisement
Related Manuals for Maytag MDB4651AWB - Tall Tub Dishwasher
Summary of Contents for Maytag MDB4651AWB - Tall Tub Dishwasher
- Page 1 DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Panel, Front 9 W10117748 Insulation, Door W10158012 Instructions, 99003299 Black 10 W10185633 Liner, Door Installation 99003300 White Secondary...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002575 Housing, Board (Top) 2 W10169343 Board, Control 3 W10218834 Housing, Board Panel, Control 6−919806 Black 6−919818 White 6−919808 Bisque 99002751 Switch, Door 99003347 Latch, Assembly 99003222 Vent Seal, Control Panel W10274315... - Page 3 DOOR AND LATCH PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 99003537 Harness, Wiring 99003317 Dispenser, Rinse 99002970 Inner Door 99002590 Bezel, Door Vent W/ Damper 99002186 Seal, Door Vent 6 W10190890 Housing, Vent Assy 99003316 Bracket, Dispenser 99002614 Cap, Rinse Aid...

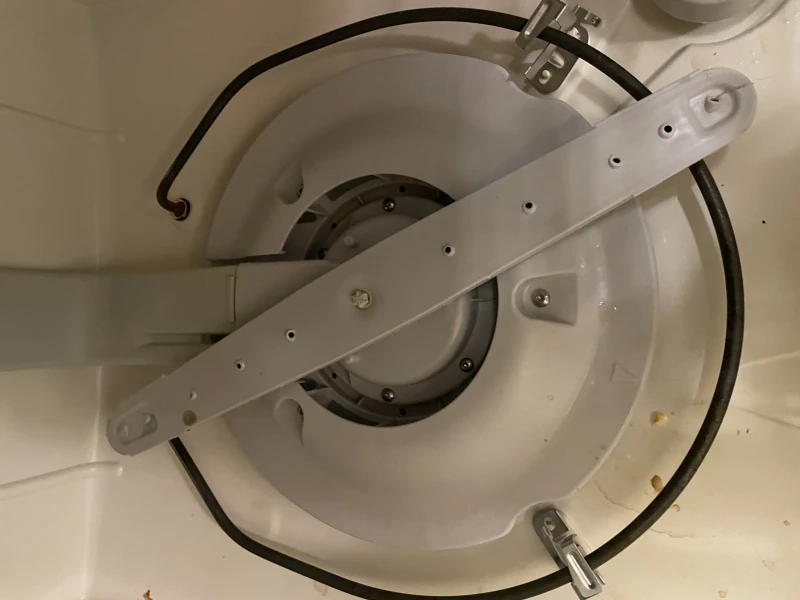

- Page 4 LOWER WASHARM PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002654 Cap, Wash Arm 99002678 Wash Arm, Lower (Includes Item 3) 3 W10218606 Shield, Radiant W10274315...
-
Page 5: Heater Parts
HEATER PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002971 Heater Element Assembly W/ Gasket 99002972 Nut, Heater 99002626 Bracket, Htr Sprt NOTE: If heater element is removed, it must be replaced. W10274315... - Page 6 FILL AND OVERFILL PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002852 Hose, Inlet 911856 Clamp, Spring 99002975 Valve, Water 4 W10205539 Plate, Switch Housing 99002652 Hose, Drain 6 W10130095 Float 99002645 Inlet, Air/Water W10274315...
- Page 7 TUB AND FRAME PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) W10274315...
- Page 8 TUB AND FRAME PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 1 W10119337 Strike, Door 99002648 Bracket, Cabinet Mounting 99002610 Bracket, Spring Adjustment Bracket, Support 99002636 Left 99003688 Nut 7 W10173920 Bracket, Cable 99002608 Roller, Cable Bracket 99003687 Bolt, Shoulder 99002598 Spring, Door...
- Page 9 PUMP AND MOTOR PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) W10274315...
- Page 10 PUMP AND MOTOR PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002666 Screw 2 W10166788 Guard, Filter 99002668 Screw 99002677 Discharge, Housing Assembly 99002659 Wash Impeller Assembly 6 W10192799 Filter/Flowplate, Assembly 99002663 Gasket, Motor Mount 99002651 O−Ring, Turbidity Sensor...
- Page 11 UPPER AND LOWER RACK PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) W10274315...
- Page 12 UPPER AND LOWER RACK PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 1 W10203876 Dishrack, Upper 99002621 Rail, Inner Slide 99002669 Clip, Upper Wash Manifold (Front) 99002945 Clip, Upper Wash Manifold (Back) 99002679 Wash Manifold Assy, (Upper) 99002624 Arm, Wash (Upper) 7 W10203873 Dishrack, Lower...
- Page 13 UPPER WASH AND RINSE PARTS For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION 99002642 Feed Tube Assembly 99002643 Bracket 99002753 Retainer, Top Wash Arm 99002674 Station, Docking (with Flapper) 99002911 Wash Arm, Top (with Retainer) W10274315...
- Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: MDB4651AWB0, MDB4651AWW0, MDB4651AWQ0, MDB4651AWS0 (Black) (White) (Bisque) (Stainless) Illus. Part DESCRIPTION INSTALLATION KIT 8212488RC Kit, Installation (Includes Power Cord, 6 Ft. Fill Hose and Necessary Hardware for Installation) 4396897RP Kit, Installation (Includes 6 Ft. Fill Hose and Necessary Hardware for Installation)
