Summary of Contents for Dymo ExecuLabel LM450
- Page 1 Professional Labelmaker User Guide...

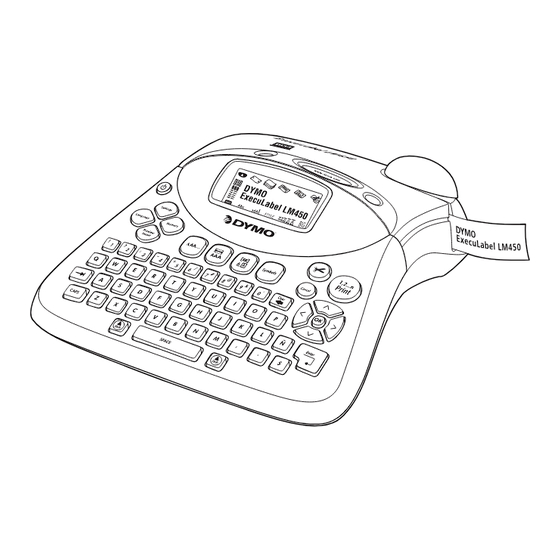

- Page 2 USB Connector AC Power Connector Label cassette door release Power Settings Memory Language Language Preview/Insert CAPS CAPS Figure 1 ExecuLabel LM450 Professional Labelmaker Settings Memory Preview Symbols Insert – & SPAC E Shift Space Bar Shift Auto-cutter LCD Display Label Exit...
-
Page 3: About Your New Labelmaker
You can choose to print your labels in many different sizes and styles. The labelmaker uses DYMO D1 label cassettes in widths of 1/4” (6 mm), 3/8” (9 mm), 1/2” (12 mm), 3/4” (19 mm), or 1” (24 mm). Label cassettes are also available in a wide range of materials. - Page 4 To insert the label cassette 1. Press and release the label cassette cover to open the label compartment. See Figure 3. Figure 3 The first time you use the labelmaker, remove the protective cardboard insert from between the print head and pinch roller. See Figure 4.
-
Page 5: Printing Your First Label
Setting the Current Date The default date format depends upon the language selection for the labelmaker. You can change the default date format by following the instructions in Changing the Date Format on page 10. To set the date 1. Press Settings 2. -
Page 6: Navigation Keys
Connecting to Your Computer Your labelmaker can be used as a standalone label printer or you can print labels from your computer using DYMO LabelMANAGER software. Your labelmaker connects to your computer using the USB connection located on the top of the labelmaker. -
Page 7: Formatting Your Label
Figure 8 Refer to the ExecuLabel LM450 Quick Start Guide for installation instructions and the DYMO LabelMANAGER Software User Guide for information about designing and printing labels. Formatting Your Label You can choose from a number of formatting options to enhance the appearance of your labels. -
Page 8: Adding Box And Background Styles
DYMO DYMO DYMO DYMO DYMO DYMO DYMO ExecuLabel LM450 Figure 9 Background patterns are not available for 6 mm label. To set the box style 1. Press the 2. Select a frame style and then press On multi-line labels, all lines are underlined. In box style mode, all lines are enclosed in one box style. -
Page 9: Using Mixed Formats
Using Mixed Formats You can apply different fonts and format styles to the text on a label by inserting format breaks to divide the label into blocks or sections of text. Each section is separated by a format break. You can add two format breaks, allowing you to apply three separate formats to a label. -
Page 10: Changing The Date Format
To add a symbol 1. Press . The first row of symbols shown in Symbols the table appears in the display. 2. Use the arrow keys to move to the desired symbol. The left and right arrows move horizontally along a row of symbols. The up and down arrow keys scroll vertically through the rows of symbols. -
Page 11: Printing Multiple Copies
Changing the Time Format You can choose to show the time in 12-hour format or 24-hour format. To set the time format 1. Press , select Set Time, and press Settings 2. Use the arrow keys to select the time format (24 Hour Clock or 12 Hour Clock) and press The display shows the default time. -
Page 12: Printing A Fixed-Length Label
Printing a Fixed-Length Label Normally, the length of the label is determined by the length of the text entered. However, you may wish to make a label for a specific purpose that is a fixed length regardless of the length of the text. You can specify a fixed length for a label in 0.1”... -
Page 13: Adjusting The Print Contrast
Aligning the Text When you print a fixed length label you can choose to align the text at the left, center, or right side of the label. For multi-line labels, all lines of text are aligned left, center, and right relative to each other. To align the text 1. -
Page 14: Recalling Stored Labels And Formats
formats in any of the fields, however, if you select a location that is filled, the previous label format will be overwritten. 4. Select a field and press appears in the field. 5. Enter a name for the format and press label format is saved and you are returned to the label. -
Page 15: Troubleshooting
Fixed-length label selected and the length necessary to print the label exceeds the selected length. If you still need assistance, contact DYMO Customer Support for your country. Refer to Contacting Customer Support on the inside back cover to locate the contact number for your country. -
Page 16: Documentation Feedback
Safety – UL, CUL, TUV, CE, T-Mark, SAA, BABT, C-Tick EMC - EMI Compatibility EN 55022; EN 61000 (+ addendums) Esselte is an ISO 14001 registered company. Plastic components of this printer have been marked to enable final disposal in a manner that is sensitive to the environment. -
Page 17: Contacting Customer Support
Contacting Customer Support The following table provides a list of telephone numbers to reach DYMO Sales and Support departments. You can also reach DYMO at www.dymo.com. Country Australia Canada Mexico New Zealand United States Telephone 1800/ 633 868 (800) 263-6105... - Page 18 No part of this document may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of DYMO Corporation. ExecuLabel is a trademark of DYMO Corporation. DYMO is a registered trademark of Esselte Corporation. All other trademarks are the property of their respective holders.
