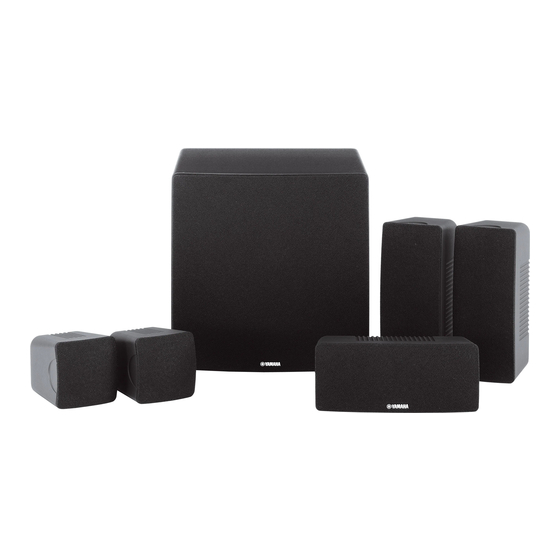

5.1inch speaker package
Hide thumbs Also See for NS-P380:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
UCB
NS-P380
(NS-P380: NS-B380 + NS-C380 + NS-B280 + NS-SW380)
5.1CH SPEAKER PACKAGE
5.1 PACKAGE ENCEINTES
OWNER'S MANUAL
MODE D'EMPLOI

Advertisement

Table of Contents
loading

Related Manuals for Yamaha NS-P380

Summary of Contents for Yamaha NS-P380

  • Page 1 NS-P380 (NS-P380: NS-B380 + NS-C380 + NS-B280 + NS-SW380) 5.1CH SPEAKER PACKAGE 5.1 PACKAGE ENCEINTES OWNER'S MANUAL MODE D'EMPLOI...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Explanation of Graphical Symbols Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including...
  • Page 3 Yamaha Electronics Corp., U.S.A. 6660 disposal. Orangethorpe Ave, Buena Park, CA 90620. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.
  • Page 4 Precautions Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or injury caused by not following the cautions below. 1. To assure the finest performance, please read this 1. Do not operate this unit upside down. It may overheat, manual carefully.
  • Page 5 Yamaha’s discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair.

  • Page 6: Table Of Contents

    Frequency characteristics........6 speakers ............3 Troubleshooting..........7 Specifications............7 Package contents Thank you for choosing the Yamaha NS-P380 5.1CH Speaker Package. Make sure the package contains the following items. ■ Subwoofer (NS-SW380 x1) The Subwoofer features a built-in power amplifier and utilizes Advanced Yamaha ■...

  • Page 7: Installing The Speakers

    Installing the speakers Installing the subwoofer Before you connect the speakers, place each speaker in its respective location. Speaker positioning is very important as it affects the overall sound quality of the Place the subwoofer on the outside of either the right system.

  • Page 8: Wall-Mounting The Front And Surround Speakers

    Installing the speakers Wall-mounting the front and Warnings • Each front speaker weighs 1.0 kg (2.2 lbs.) and surround speakers each surround speaker weighs 0.45 kg (1 lbs.). Do not mount the speakers on thin plywood or on a You can mount the front or surround speakers on a wall with a soft surface material.

  • Page 9: Connecting The Speakers

    Connecting the speakers Caution: Make sure the power cables for the subwoofer and your other AV components are disconnected from the AC wall outlets before making any connections. Connection diagram Surround speakers Center speaker Right Left SPEAKERS SURROUND CENTER FRONT B OUTPUT Amplifier (REC)

  • Page 10: Connecting The Power Cables

    Remove about 10 mm (3/8") of insulation from In your AV receiver’s speaker size settings, specify the end of each speaker wire. small (or “S”) for all of the NS-P380 speakers. Twist the bare wires tightly. If you’re connecting the subwoofer to a Yamaha DSP amplifier or AV receiver, connect to its SUBWOOFER or LOW PASS output.

  • Page 11: Using The Subwoofer

    Using the Subwoofer Setting the subwoofer volume The very first time you use the subwoofer, you need to set the volume balance between the subwoofer and the front speakers as follows. Turn on your other AV components. Set the subwoofer’s VOLUME control to minimum (0).

  • Page 12: Troubleshooting

    Specifications ■ Front speakers (NS-B380), ■ Subwoofer (NS-SW380) Center speaker (NS-C380) Type ..... Advanced Yamaha Active Servo Technology Driver..........20 cm (8'') cone woofer Type ....2-way acoustic-suspension speaker system non-magnetic shielding type non-magnetic shielding type Output power .......
  • Page 13 Si ce produit ne fonctionne pas selon vos attentes, recherchez-en une cause possible ci-dessous. Si vous ne trouvez pas la description de votre problème ou si les solutions préconisées ne permettent pas de le résoudre, débranchez le câble d’alimentation et contactez un revendeur ou un centre de service après-vente agréé par Yamaha. Problème Cause possible Remède...
