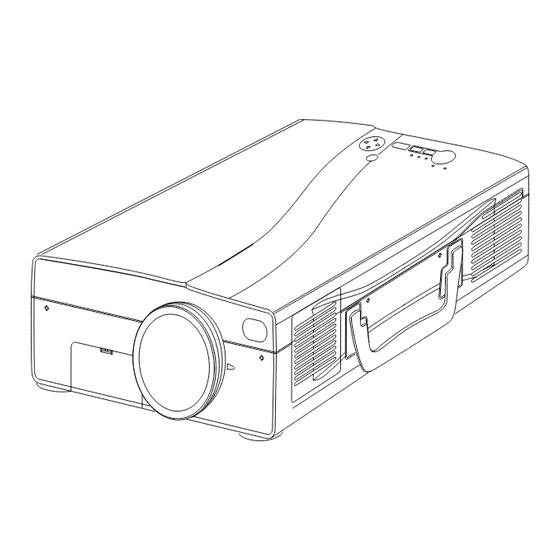

Dukane 28A9115A User Manual

Liquid crystal projector lcos technology
Hide thumbs Also See for 28A9115A:

Advertisement

Quick Links

Liquid Crystal Projector
LCOS Technology
Model
28A9115A
User's Manual

Advertisement

Table of Contents
loading

Summary of Contents for Dukane 28A9115A

  • Page 1 Liquid Crystal Projector LCOS Technology Model 28A9115A User's Manual...
  • Page 11: Table Of Contents

    FEATURES ...2 BEFORE USE ...2 Contents of Package ...2 Part Names...3 Loading the Batteries...5 INSTALLATION ...6 Installation of the Projector and Screen...6 Angle Adjustment ...6 Cabling ...7 Power Connection ...8 Example of System Setup ...8 Plug & Play ...8 OPERATIONS ...9 Power On ...9...
  • Page 12: Features

    BEFORE USE Contents of package • NOTE Projector (with Lens Cap) Liquid Crystal Projector CP-SX5500W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam.
  • Page 13: Part Names

    Part Names TEMP Indicator LAMP Indicator STANDBY/ON Button ( ( STANDBY/ON Indicator) VIDEO Button RGB Button Remote Control Sensor Lens AC Inlet (to Power Cord) Power Switch Lens Cap Remote Control Sensor Speaker COMPONENT VIDEO Y Terminal Terminal Terminal VIDEO Terminal VIDEO AUDIO IN R Terminal L/MONO Terminal...
  • Page 14: Remote Control Transmitter

    Part Names (continued) STANDBY/ON Button VIDEO Button Disk Pad Used to operate the mouse shift function and left click function. AUTO Button MENU Button MENU SELECT Button Used to click the left mouse button. Button Used to operate the mouse shift function. POSITION Button MAGNIFY Button WARNING •...
  • Page 15: Loading The Batteries

    Loading the Batteries CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause battery cracking or leakage, which could result in fire or personal injury. • When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter.
  • Page 16: Installation

    • Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and cause damage. Be especially careful not to install it with ventilation holes blocked.
  • Page 17: Cabling

    • Before connecting, turn off to all devices to be connected, except for the USB cable. • The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified.
  • Page 18: Power Connection

    Power Connection CAUTION • Be carful in handling the power cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual. • Connect the power cord firmly. Avoid using a loose, unsound outlet or failed contact. Example of System Setup DVD Player S-Video Tape Recorder...
  • Page 19: Operations

    OPERATIONS OPERATIONS Power Switch Lens cap Power ON Power OFF WARNING • Please read this manual, and the separate “SAFETY INSTRUCTIONS” thoroughly before using the equipment. Always ensure that the equipment is used safely. NOTE STANDBY/ON Button (STANDBY/ON Indicator) Focus Ring STANDBY/ STANDBY/ON LASER...
  • Page 20: Basic Operation

    Basic Operation Table 3 . Basic Operation Item Select RGB Input : Press the RGB button. VIDEO/S-VIDEO/COMPONENT VIDEO → RGB IN 1/RGB IN 2/DVI RGB IN 1 → RGB IN 2 → DVI (→ RGB IN 1) INPUT Select Video Input : Press the VIDEO button. RGB IN 1/RGB IN 2/DVI →...
  • Page 21 Table 3. Basic Operation (continued) Item VOLUME Volume Adjustment : Press the VOLUME Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE MUTE mode. Automatic Adjustment at RGB Input : Press the AUTO button. Horizontal position(H.POSIT), vertical position (V.POSIT),clock phase (H.PHASE), and horizontal size(H.SIZE) are automatically adjusted.
  • Page 22: Setup Menu

    Setup Menu Table 4. Setup Menu Item Adjustment: Dark BRIGHT Adjustment: Weak CONTRAST Adjustment: Down V POSIT Adjustment: Left H POSIT Adjustment: Left H PHASE • Adjust to eliminate flicker. Adjustment: Small • The image may not be displayed correctly if the horizontal H SIZE size is excessive.
  • Page 23: Input Menu

    Input Menu Table 5. Input Menu Item Automatic Adjustment at RGB Input: Select the EXECUTE with the button. Horizontal position (H.POSIT), vertical position (V.POSIT), clock phase (H.PHASE), and horizontal size (H.SIZE) are automatically adjusted. Use with the window at maximum size in the application display. Automatic Adjustment at Video Input: Select the EXECUTE with the AUTO button.
  • Page 24: Image Menu

    Image Menu Table 6. Image Menu Item Select Blank Screen Color: Select color with the BLANK • The image is cleared and the entire screen is displayed in the selected color, when BLANK mode is set with BLANK ON, or when there is no signal for 5 minutes. MIRROR Select Mirror Status: Select mirror status with Setup Initial Screen Display: Select TURN ON with the...
  • Page 25: Options Menu

    Options Menu Table 7. Options Menu Item VOLUME Volume Adjustment: Reduce VOLUME MENU COLOR Select Menu Background Color: Select with the LANGUAGE Select Menu Display Language: Select with the Set AUTO OFF: Set 1~99 minutes with the system automatically enters the standby mode when a signal is not received for the set time.
  • Page 26: No Signal Menu

    No Signal Menu Table 8. No Signal Menu Item Volume Adjustment: Reduce VOLUME • When this function is used, audio input is automatically switched to video. The VOLUME audio input can be switched by moving the DISK PAD left and right during the display of the volume adjustment bar.
  • Page 27: Maintenance

    • Should the lamp burst (accompanied by a big bursting noise), perform ventilation sufficiently, and exercise maximum caution not to inhale any gas out of the projector’s air vent or not to let it enter your eyes or mouth.
  • Page 28 Replacing the Lamp CAUTION • Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents. • Do not use the projector with the lamp cover removed. Resetting the Lamp Timer • NOTE • ENGLISH-18 ENGLISH-18 →...
  • Page 29: Air Filter

    • Do not use the equipment with the air filter removed. • When the air filter is clogged with dust etc. the power supply is switched OFF automatically to prevent the temperature rising inside the projector. Other Maintenance Maintenance Inside the Equipment...
  • Page 30: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING OSD Message Table 9. OSD Message Message CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. THE POWER WILL TURN OFF AFTER CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME.
  • Page 31: Indicators Message

    Indicators Message Table 10. Indicators Message STANDBY/ON LAMP TEMP indicator indicator indicator Lights Turns off Turns off The Standby mode has been set. orange Blinks Turns off Turns off Warming up. Please wait. green Lights Turns off Turns off ON. Normal operation possible. green Blinks Turns off Turns off Cooling.
  • Page 32: Symptom

    Turn on the main power switch. Plug the power cord into an AC power outlet. Turn off the projector with the main power switch (set the power switch to [O]), and wait for about 20 minutes. When the equipment has cooled enough, turn power on.
  • Page 33: Specifications

    Control functions Optional Parts • NOTE Specification Liquid crystal projector 2.3 cm (0.9 type) TFT active matrix 1,397,760 pixels (1365 horizontal x 1024 vertical) Zoom lens F=2.7 ~ 3.1 f=38.0 ~ 49.0 mm 220 W UHB AC100 ~ 120V, 4.0A / AC220 ~ 240V, 1.8A 360W 0 ~ 35°C (Operating)
  • Page 34: Warranty And After-Service

    WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE ENGLISH-24 ENGLISH-24...
  • Page 35: Dimension Diagram

    TECHNICAL TECHNICAL Dimension Diagram Signal Connector Pin Assignment 1. D-sub 15-pin Shrink Connector (RGB IN 1/RGB IN 2/RGB OUT) Pin No Signal Video input Red Video input Green Video input Blue Ground Ground Red Ground Green Ground Blue 2. Digital Receptacle Connector (DVI) Pin No Signal T.M.D.S.
  • Page 36: Example Of Computer Signal

    Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a computer.
  • Page 37 Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to adjust the V.POSIT and H.POSIT of the menu. Back porch b Display interval c Sync a Computer / Horizontal signal timing (µs)
  • Page 38 Connection to the Mouse Control 1. PS/2, ADB or Serial Mouse (1) Turn off the projector and computer, and connect the two units with the appropriate cable. For PS/2 mouse control (for IBM and compatible), use the enclosed mouse cable. For others, consult your dealer.
  • Page 39: Serial Mouse

    ADB Mouse CONTROL Terminal D-sub 15-pin shrink jack Serial Mouse CONTROL Terminal D-sub 15-pin shrink jack USB Mouse USB jack (B type) Projector — DATA DATA Projector Computer DATA Projector SEL0 Computer USB cable ( POWER ON ) Mouse jack...
  • Page 40: Communications Setting

    RS-232C communication (1) Turn off the projector and computer power supplies and connect with the RS-232C cable. (2) Turn on the computer power supply and, after the computer has started up, turn on the projector power supply. Control jack D-sub 15-pin shrink jack...
  • Page 41 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. • Commands are not accepted during warm-up.
  • Page 42: Command Data Chart

    Names Operation type Orange Green Blue Blank Color Purple White Black Normal H Inverse Mirror V lnverse H&V Inverse Normal Freeze Freeze Orange Green Blub Menu Color Purple Transparent Gray Turn ON Startup Turn OFF English Français Deutsch Español Italiano Language Norsk Nederlands...
  • Page 43 Names Operation type Magnify Increment Decrement Auto off Increment Decrement Brightness Reset Execute Contrast Reset Execute V.Position Reset Execute H.Position Reset Execute H.Size Reset Execute Color Balance R Reset Execute Color Balance B Reset Execute Sharpness Reset Execute Color Reset Execute Tint Reset Execute...
  • Page 44 Names Operation type Normal Mute Mute Brightness Increment Decrement Contrast Increment Decrement Color Increment Balance R Decrement Color Increment Balance B Decrement Keystone_V Increment Decrement Keystone_H Increment Decrement 4:3, Full 16:9 Aspect Small Real Default Display Bottom Position at 16 : 9 or Small V.Position Increment Decrement...
  • Page 45 Names Operation type Sharpness Increment Decrement Increment Color Decrement Increment Tint Decrement Auto NTSC SECAM Video Format NTSC 4.43 M-PAL N-PAL Progressive FILM Black 1080i HDTV 1035i Large PinP Size Small Command data chart Header BE EF 06 00 BE EF 06 00 BE EF 06 00...
  • Page 46 Names Operation type Upper left Upper right bottom left PinP Position bottom right Video PinP Audio ch Video S-Video PinP Input Component Sync on G NORMAL WHISPER WHISPER NORMAL CINEMA GAMMA DYNAMIC TECHNICAL - 12 Command data chart Header BE EF 06 00 BE EF 06 00...
  • Page 47: Regulatory Notices

    FCC (Federal Communication Commission) equipment provided that the following conditions are met. The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the...
  • Page 49 LEGAL INFORMATION FIVE-YEAR LIMITED WARRANTY This Dukane LCD projector is warranted to the original purchaser for a period of five (5) years from the original purchase date - in normal use and service - against defects in material and workmanship. DUKANE CORPORATION EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
  • Page 50 Dukane Corporation Audio Visual Products Division 2900 Dukane Drive St. Charles, IL 60174-3395 E-mail: avsales@dukane.com Phone: (630) 584-2300 Orders: (800) 676-2485 Information: (800) 676-2486 Fax: (630) 584-5156 Parts & Service: (800) 676-2487 Fax: (630) 584-0984 Audio Visual Products Part # 401-601-00...
