Ducane Fits-All 92 Specification Sheet

Downflow/horizontal-right

Advertisement

Quick Links

FEATURES
92.1% AFUE
Heating input range 50,000-125,000 BTUH
Cooling capacity supported 1 1/2 - 5 ton
Downflow/horizontal right application flexibility
Electronic air cleaner connection (115V)
Humidifier connection (115V)
5 amp fused low voltage circuit protection
Time delay off for air conditioner SEER enhancement
Twinning Compatible
WARRANTY
Limited Lifetime warranty on heat exchanger, 5-years limited
warranty on covered components (see warranty certificate for
details)
HEAT EXCHANGER ASSEMBLY
Crimp-Tite™ crimped aluminized steel primary heat exchanger
for longer life and safe operation
Stainless steel secondary hat exchanger maximizes durability.
VENTING
Category IV appliance
Can be vented horizontally or vertically using 2” or 3”
Schedule 40 PVC, ABS, or CPVC (see installation manual
for details)
Approved for 2-pipe (direct vent) or single-pipe applications
Approved for installations with listed concentric vent kit
CONTROLS
Direct 115V Hot Surface Ignition system with LED diagnostic
for fast, accurate troubleshooting
Slow opening valve for quiet, smooth ignition
Electronic fan timer control
SAFETY
CSA certified for US and Canada
Safety limits prevent overheating
CABINET
Heavy-gauge, insulated cabinet provides strength and quiet comfort
Ducane diagnostic sleeve for fast, safe troubleshooting.
INDOOR AIR BLOWER
Three-speed PSC blower motor

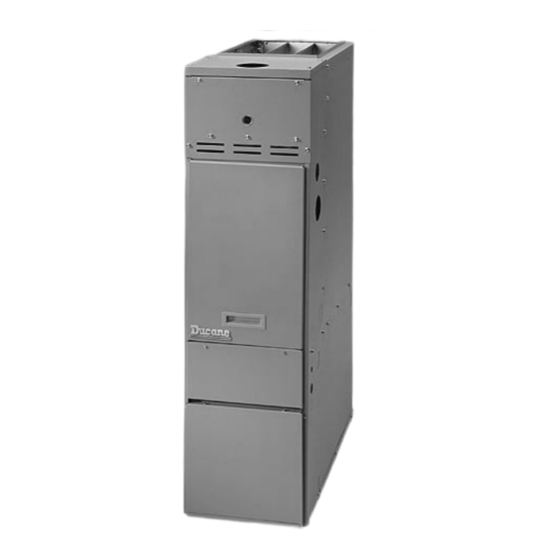

D u c a n e G a s F u r n a c e
FITS-ALL 92
DOWNFLOW/HORIZONTAL-RIGHT
T H E D I F F E R E N C E I S Q U A L I T Y.
W W W. D U C A N E H VA C . C O M

Advertisement

loading

Summary of Contents for Ducane Fits-All 92

  • Page 1 CSA certified for US and Canada Safety limits prevent overheating CABINET Heavy-gauge, insulated cabinet provides strength and quiet comfort Ducane diagnostic sleeve for fast, safe troubleshooting. INDOOR AIR BLOWER Three-speed PSC blower motor ™ T H E D I F F E R E N C E I S Q U A L I T Y.
  • Page 2: Air Flow Data

    D u c a n e G a s F u r n a c e FITS-ALL 92 UNIT SPECIFICATIONS INPUT RATE (BTU per Hour) AFUE (ISOLATED COMB. SYSTEM) TEMPERATURE RISE VOLTS/PHASE/HERTZ STATIC PRESSURE (certified max) HEATING, AIR FLOW @ .20" STATIC (w/o FILTER) COOLING, AIR FLOW @ .50"...
  • Page 3: General Layout

    MAX VENT LENGTHS FOR COUNTERFLOW APPLICATION Number of elbows Non-direct Vent (1Pipe) System 50,000 & 75,000 BTUH Direct Vent (2 Pipe) System 50,000 & 75,000 BTUH APPLICATION Number of elbows Non-direct Vent (1Pipe) System 50,000 & 75,000 BTUH Direct Vent (2 Pipe) System 50,000 &...
  • Page 4 NOTES ™ T H E D I F F E R E N C E I S Q U A L I T Y. www.ducanehvac.com For more information, contact your local Ducane distributor. © 2002 EXCEL COMFORT SYSTEMS CMPA100C4B CMPA125C5B...
