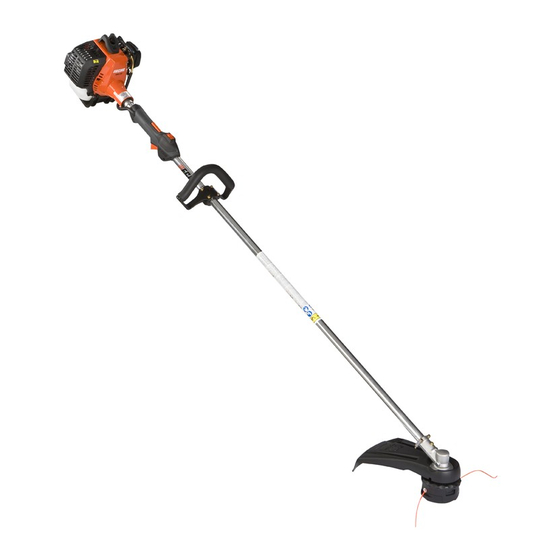

Echo SRM-230 - PARTS CATALOG SERIAL NUMBERS 05001001-05999999 Parts Catalog

22.8cc s/n: 05001001-05999999
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
35130454230
U-Handle Kit
99944200200
SRM Shoulder Harness Kit
99944200411
20mm Blade Conversion Kit
99944200415
Universal Blade Conversion Kit
99944200455
Barrier Bar
99944200521
U-Handle_Blade Conversion Combo Kit
SRAC-200
Tiller/Cultivator Attachment
Cutting Heads
215511
Pro Maxi-Cut Head
21560030
ECHOmatic Pro Head
21560031
SRM ECHOmatic Pro Head
21560050
Semi-Auto Head Assembly
21560055
Semi-Auto Head Assembly
21560056
2-Line Rapid Loader Head -- Echo
21560060
SRM Manual Dual Line Head
99944200230
Semi-Auto Dual Line Head
99944200900
U-Turn Head
2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG
SRM-230 Trimmer
MODEL:SERIAL NUMBERS
SRM-230:
S/N: 05001001 - 05999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
22.8cc
99922203528_230/05
REVISED 05/19/09

Advertisement

Table of Contents
loading

Related Manuals for Echo SRM-230 - PARTS CATALOG SERIAL NUMBERS 05001001-05999999

Summary of Contents for Echo SRM-230 - PARTS CATALOG SERIAL NUMBERS 05001001-05999999

  • Page 1 SRM Manual Dual Line Head 99944200230 Semi-Auto Dual Line Head 99944200900 U-Turn Head ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922203528_230/05 REVISED 05/19/09 2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...

  • Page 2: Table Of Contents

    Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. SRM-230 S/N: 05001001 - 05999999 Engine Cover, Exhaust Cover............................4 Fuel System..................................6 Starter -- Standard................................8 Fan Case, Clutch -- GRAY MODELS..........................10 Intake....................................12 Carburetor -- RB-K66 S/N: 05001001 - 05004893......................14 Carburetor -- RB-K66 S/N: 05004894 - 05030700......................16 Carburetor -- RB-K66B S/N: 05030701 - 05089969......................18 Carburetor -- RB-K70 S/N: 05089970 - 05118990......................20...
  • Page 3 This Page Intentionally Left Blank - 3 -...

  • Page 4: Engine Cover, Exhaust Cover

    Table of Contents Part Number Index SRM-230 Trimmer Engine Cover, Exhaust Cover 99922203528_230/05 - 4 - REVISED 05/19/09...
  • Page 5 Table of Contents Part Number Index SRM-230 Trimmer Engine Cover, Exhaust Cover ITEM PART NUMBER DESCRIPTION REMARKS A160000040 COVER, ENGINE - GRAY A160000060 COVER, ENGINE - ORANGE 9111005016 SCREW 5X16 A162000000 GUARD, TOP V353000020 COLLAR 5 A320000003 COVER, MUFFLER 90010605012 SCREW 5X12 99922203528_230/05 - 5 -...

  • Page 6: Fuel System

    Table of Contents Part Number Index SRM-230 Trimmer Fuel System 99922203528_230/05 - 6 - REVISED 05/19/09...
  • Page 7 Table of Contents Part Number Index SRM-230 Trimmer Fuel System ITEM PART NUMBER DESCRIPTION REMARKS 30511057733 STAND 90016205022 SCREW 5X22 90024405020 SCREW 5X20 A350000111 TANK, FUEL INCLUDES ITEM 5 13104528230 SPACER 90060300005 WASHER 5 90016205016 SCREW 5X16 A356000030 VENT ASY 13201326630 CLIP V471000110...

  • Page 8: Starter -- Standard

    Table of Contents Part Number Index SRM-230 Trimmer Starter -- Standard 99922203528_230/05 - 8 - REVISED 05/19/09...
  • Page 9 Table of Contents Part Number Index SRM-230 Trimmer Starter -- Standard ITEM PART NUMBER DESCRIPTION REMARKS A052000030 STARTER PAWL ASY INCLUDES ITEMS 2-4 90070000004 E-RING 4 17723440630 SPRING, RETURN 17721840630 PAWL, STARTER 90050200008 NUT 8 17720055931 STARTER ASY INCLUDES ITEMS 7-13 17723644330 SCREW 17721540630...

  • Page 10: Fan Case, Clutch -- Gray Models

    Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- GRAY MODELS 99922203528_230/05 - 10 - REVISED 05/19/09...
  • Page 11 Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- GRAY MODELS ITEM PART NUMBER DESCRIPTION REMARKS 90070200042 CIRCLIP 42 61092255931 FIXTURE, MAIN PIPE 90016205028 SCREW 5X28 90016205018 SCREW 5X18 17811106230 CLIP P021001410 FAN COVER ASY - GRAY INCLUDES ITEMS 7-12 90070100012 CIRCLIP 12...
  • Page 12 Table of Contents Part Number Index SRM-230 Trimmer Intake 99922203528_230/05 - 12 - REVISED 05/19/09...
  • Page 13 Table of Contents Part Number Index SRM-230 Trimmer Intake ITEM PART NUMBER DESCRIPTION REMARKS 21041752730 WING BOLT 13031306563 LID, AIR CLEANER - GRAY 13031305863 LID, AIR CLEANER - BLACK 13031054130 FILTER, AIR 12901152730 PLATE, PREVENT 90024205060 SCREW 5X60 P021000991 CASE, AIR CLEANER - GRAY P021004480 CASE, AIR CLEANER - BLACK ------------------...
  • Page 14 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66 S/N: 05001001 - 05004893 99922203528_230/05 - 14 - REVISED 05/19/09...
  • Page 15 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66 S/N: 05001001 - 05004893 ITEM PART NUMBER DESCRIPTION REMARKS A021000380 CARBURETOR -- RB-K66 P005000690 ROTOR COVER ASY P005000120 NUT, CABLE 12534413931 SCREW, ROTOR COVER ASY P005000700 SCREW, CABLE ADJUST P005000180 SWIVEL P005000190...
  • Page 16 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66 S/N: 05004894 - 05030700 99922203528_230/05 - 16 - REVISED 05/19/09...
  • Page 17 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66 S/N: 05004894 - 05030700 ITEM PART NUMBER DESCRIPTION REMARKS A021000380 CARBURETOR -- RB-K66 P005000690 ROTOR COVER ASY P005000120 NUT, CABLE 12534413931 SCREW, ROTOR COVER ASY P005000700 SCREW, CABLE ADJUST P005000180 SWIVEL P005000190...
  • Page 18 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66B S/N: 05030701 - 05089969 99922203528_230/05 - 18 - REVISED 05/19/09...
  • Page 19 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K66B S/N: 05030701 - 05089969 ITEM PART NUMBER DESCRIPTION REMARKS A021000382 CARBURETOR -- RB-K66B P005000690 ROTOR COVER ASY P005000120 NUT, CABLE 12534413931 SCREW, ROTOR COVER ASY P005000700 SCREW, CABLE ADJUST P005000180 SWIVEL P005000190...
  • Page 20 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70 S/N: 05089970 - 05118990 99922203528_230/05 - 20 - REVISED 05/19/09...
  • Page 21 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70 S/N: 05089970 - 05118990 ITEM PART NUMBER DESCRIPTION REMARKS A021000720 CARBURETOR -- RB-K70 P005001230 ROTOR COVER ASY P005000120 NUT, CABLE 12534413931 SCREW, ROTOR COVER ASY P005000700 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190...

  • Page 22: Carburetor -- Rb-K70A S/N: 05118991 - 05999999

    Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70A S/N: 05118991 - 05999999 99922203528_230/05 - 22 - REVISED 05/19/09...
  • Page 23 Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70A S/N: 05118991 - 05999999 ITEM PART NUMBER DESCRIPTION REMARKS A021000721 CARBURETOR -- RB-K70A P005001620 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001330 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190...

  • Page 24: Exhaust

    Table of Contents Part Number Index SRM-230 Trimmer Exhaust 99922203528_230/05 - 24 - REVISED 05/19/09...
  • Page 25 Table of Contents Part Number Index SRM-230 Trimmer Exhaust ITEM PART NUMBER DESCRIPTION REMARKS V104000061 SHIELD, EXHAUST 14580642030 MUFFLER 90010505055 SCREW 5X55 90060000005 WASHER 14586240630 SCREEN, MUFFLER 14586642031 GASKET, EXHAUST A313000350 GUIDE, EXHAUST 90024204010 SCREW 4X10 Footnotes 1: Also Included In GASKET KIT 99922203528_230/05 - 25 - REVISED 05/19/09...
  • Page 26 Table of Contents Part Number Index SRM-230 Trimmer Ignition 99922203528_230/05 - 26 - REVISED 05/19/09...
  • Page 27 Table of Contents Part Number Index SRM-230 Trimmer Ignition ITEM PART NUMBER DESCRIPTION REMARKS A411000110 COIL, IGNITION V475002200 TUBE, INSULATOR 90016205016 SCREW 5X16 15611240630 GROMMET 15901203433 CAP, SPARK PLUG 15901103432 TERMINAL, SPARK PLUG CAP 15901019830 SPARK PLUG -- BPM-8Y A425000000 CANADA MODELS SPARK PLUG -- BPMR-8Y 16201056430...

  • Page 28: Engine, Short Block -- Sb1061

    Table of Contents Part Number Index SRM-230 Trimmer Engine, Short Block -- SB1061 99922203528_230/05 - 28 - REVISED 05/19/09...
  • Page 29 Table of Contents Part Number Index SRM-230 Trimmer Engine, Short Block -- SB1061 ITEM PART NUMBER DESCRIPTION REMARKS SB1061 SHORT BLOCK INCLUDES ITEMS 2-18 90016205022 SCREW 5X22 A130000341 CYLINDER V100000060 GASKET, CYLINDER P021001102 PISTON KIT INCLUDES ITEMS 6-9 A101000000 RING, PISTON 10001311520 PIN, PISTON 10001504630...

  • Page 30: Plastic Shield

    Table of Contents Part Number Index SRM-230 Trimmer Plastic Shield 99922203528_230/05 - 30 - REVISED 05/19/09...
  • Page 31 Table of Contents Part Number Index SRM-230 Trimmer Plastic Shield ITEM PART NUMBER DESCRIPTION REMARKS P021001392 PLASTIC SHIELD KIT INCLUDES ITEMS 2-7 C550000031 SHIELD - PLASTIC 90023805020 SCREW 5X20 C552000110 FLANGE, SHIELD 69901644330 CUTTER, LINE 90023805016 SCREW 5X16 90050000005 NUT 5 99922203528_230/05 - 31 - REVISED 05/19/09...

  • Page 32: Gear Case

    Table of Contents Part Number Index SRM-230 Trimmer Gear Case 99922203528_230/05 - 32 - REVISED 05/19/09...
  • Page 33 Table of Contents Part Number Index SRM-230 Trimmer Gear Case ITEM PART NUMBER DESCRIPTION REMARKS 61040247732 GEAR CASE ASY INCLUDES ITEMS 2-20 61030044830 GEAR SET 90070600010 CIRCLIP 10 90070200022 CIRCLIP 22 90085806900 BEARING, BALL - 6900Z 90085506900 BEARING, BALL - 6900 61031347731 PLATE, ADAPTER (UPPER) 61041307130...

  • Page 34: Main Pipe Assembly, Flexible Driveshaft

    Table of Contents Part Number Index SRM-230 Trimmer Main Pipe Assembly, Flexible Driveshaft 99922203528_230/05 - 34 - REVISED 05/19/09...
  • Page 35 Table of Contents Part Number Index SRM-230 Trimmer Main Pipe Assembly, Flexible Driveshaft ITEM PART NUMBER DESCRIPTION REMARKS C050000460 MAIN PIPE ASY INCLUDES ITEMS 2-7 61024644730 STOPPER 61021744730 LINER, FLEXIBLE 89022809560 LABEL - CAUTION -- SPANISH 89016054130 LABEL - CAUTION 89031749030 LABEL, CAUTION - CANADA X505001930...

  • Page 36: Front Handle

    Table of Contents Part Number Index SRM-230 Trimmer Front Handle 99922203528_230/05 - 36 - REVISED 05/19/09...
  • Page 37 Table of Contents Part Number Index SRM-230 Trimmer Front Handle ITEM PART NUMBER DESCRIPTION REMARKS P021000021 FRONT HANDLE ASY INCLUDES ITEMS 2-9 90024205035 SCREW 5X35 35121666230 GRIP, HANDLE 35120566230 HANDLE, FRONT 35123266230 BRACKET, HANDLE - UPPER 90060000005 WASHER 5 90025305020 TAPPING SCREW 5X20 35122507130 BRACKET, HANDLE - LOWER...

  • Page 38: Control Handle, Throttle Cable, Ignition Switch

    Table of Contents Part Number Index SRM-230 Trimmer Control Handle, Throttle Cable, Ignition Switch 99922203528_230/05 - 38 - REVISED 05/19/09...
  • Page 39 Table of Contents Part Number Index SRM-230 Trimmer Control Handle, Throttle Cable, Ignition Switch ITEM PART NUMBER DESCRIPTION REMARKS 17800352130 CONTROL HANDLE KIT INCLUDES ITEMS 2-4 90024205035 SCREW 5X35 90024205025 SCREW 5X25 90050000005 NUT 5 30120029430 BAND ASY INCLUDES ITEM 6 90024205014 SCREW 5X14 17801052130...
  • Page 40 Table of Contents Part Number Index SRM-230 Trimmer Labels 99922203528_230/05 - 40 - REVISED 05/19/09...
  • Page 41 PART NUMBER DESCRIPTION REMARKS 89012152730 LABEL - CHOKE 89033252730 LABEL - CHOKE CANADA MODELS X502000310 LABEL - ECHO X532000671 LABEL - SPARK PLUG -- BPM-8Y X532000720 LABEL - SPARK PLUG -- BPMR-8Y CANADA MODELS X503003320 LABEL - MODEL -- SRM-230 X503003080...

  • Page 42: Gasket Kit -- P021003900

    Table of Contents Part Number Index SRM-230 Trimmer Gasket Kit -- P021003900 99922203528_230/05 - 42 - REVISED 05/19/09...
  • Page 43 Table of Contents Part Number Index SRM-230 Trimmer Gasket Kit -- P021003900 ITEM PART NUMBER DESCRIPTION REMARKS P021003900 GASKET KIT 99922203528_230/05 - 43 - REVISED 05/19/09...

  • Page 44: Repower Tune-Up Kit

    Table of Contents Part Number Index SRM-230 Trimmer RePower Tune-Up Kit 99922203528_230/05 - 44 - REVISED 05/19/09...
  • Page 45 Table of Contents Part Number Index SRM-230 Trimmer RePower Tune-Up Kit ITEM PART NUMBER DESCRIPTION REMARKS 90074 TUNE-UP KIT 99922203528_230/05 - 45 - REVISED 05/19/09...

  • Page 46: Tools

    Table of Contents Part Number Index SRM-230 Trimmer Tools 99922203528_230/05 - 46 - REVISED 05/19/09...
  • Page 47 Table of Contents Part Number Index SRM-230 Trimmer Tools ITEM PART NUMBER DESCRIPTION REMARKS 89541010630 SOCKET WRENCH/SCREWDRIVER 17X19mm X602000020 SOCKET WRENCH/SCREWDRIVER 17X19mm 89541039131 SOCKET WRENCH/SCREWDRIVER 10X19mm 89541006960 SOCKET WRENCH/SCREWDRIVER 13X19mm X602000031 SOCKET WRENCH 17X14.5mm 89751801131 LOCKING ROD 5X120mm 89511200330 OPEN END WRENCH 8X10mm 89512220960 OPEN END WRENCH...

  • Page 48: Part Number Index

    Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page Part Number Page ------------------ ..... 13, 15, 17, 19, 61031347731 ....
  • Page 49 LABEL - CAUTION -- SPANISH..35 DIAPHRAGM, METERING..15, 17, 19, 21, 23 LABEL - CHOKE..41 DIAPHRAGM, PUMP..15, 17, 19, 21, 23 SCREEN, MUFFLER..25 LABEL - ECHO..41 DIAPHRAGM/GASKET KIT..15, 17, 19, 21, 23 SCREW..9 LABEL - HANDLE LOCATION..35 DOWEL PIN - 4X7.8mm..11 SCREW 3X10..39...
  • Page 50 Table of Contents Part Number Index Part Description Index (continued) SCREW 5X16..5, 7, 27, 31 WING BOLT..13 SCREW 5X18..11 SCREW 5X20..7, 31 SCREW 5X22..7, 29 SCREW 5X25..13, 29, 39 SCREW 5X28..11, 39 SCREW 5X35..37, 39 SCREW 5X55..25 SCREW 5X60..13 SCREW, CABLE ADJUST..15, 17, 19, 21, 23 SCREW, DIAPHRAGM COVER..15, 17, 19, 21, SCREW, METERING LEVER PIN..15, 17, 19, 21, 23...
  • Page 51 NOTES 99922203528_230/05 - 51 - REVISED 05/19/09...
  • Page 52 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
