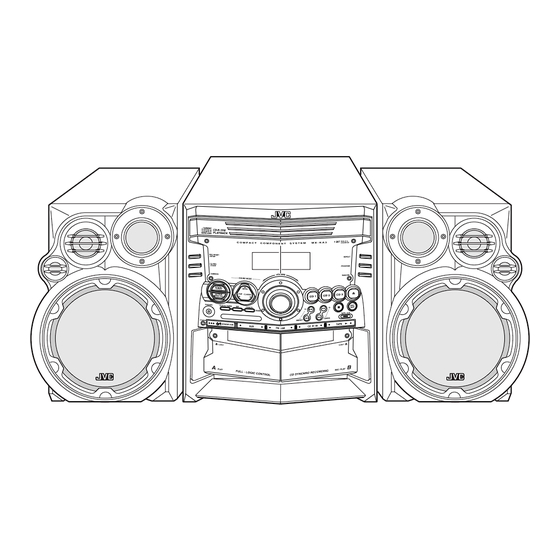

COMPACT COMPONENT SYSTEM
MX-KA3
Consists of CA-MXKA3 and SP-MXKA3
SP-MXKA3
CA-MXKA3
INSTRUCTIONS
SP-MXKA3
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT1013-007A
[UJ]

Advertisement

Table of Contents
loading

Related Manuals for JVC MX-KA3 - Mini Shelf System

Summary of Contents for JVC MX-KA3 - Mini Shelf System

  • Page 1 COMPACT COMPONENT SYSTEM MX-KA3 Consists of CA-MXKA3 and SP-MXKA3 SP-MXKA3 CA-MXKA3 SP-MXKA3 INSTRUCTIONS For Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bot- tom or side of the cabinet. Retain this information for future reference.

  • Page 2: Important For Laser Products

    Warnings, Cautions and Others CAUTION Caution –– switch! To reduce the risk of electrical shocks, fire, etc.: Disconnect the mains plug to shut the power off completely. The 1. Do not remove screws, covers or cabinet. switch in any position does not disconnect the mains line. The power 2.

  • Page 3: Introduction

    ❏ The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music. • With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio, Cassette Deck, or CD Player with a single touch.

  • Page 4: Table Of Contents

    Table of Contents Introduction........................1 Features..............................1 How This Manual Is Organized ......................1 IMPORTANT CAUTIONS........................1 Table of Contents ......................2 Getting Started.......................3 Accessories .............................. 3 Set the VOLTAGE SELECTOR Switch....................3 How To Put Batteries In the Remote Control ..................3 Using the Remote Control ........................

  • Page 5: Getting Started

    Getting Started Accessories Make sure that you have all of the following items, which are supplied with the System. AM Loop Antenna (1) Remote Control (1) Batteries (2) FM Wire Antenna (1) AC Plug Adaptor (1) If any of these items are missing, contact your dealer immediately. Set the VOLTAGE SELECTOR Switch To avoid damaging the System, set the voltage before plugging in the System.

  • Page 6: Using The Remote Control

    Getting Started Using the Remote Control The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m away. You need to point the Remote Control at the remote sensor on the System’s fron panel. Remote sensor CAUTION: •...

  • Page 7: Connecting The Am Antenna

    Getting Started Connecting the AM Antenna Rear Panel of the Unit Turn the loop until you have the best reception. Attach the AM loop to its base by snapping the AM loop antenna tabs on the loop into the (Supplied) slot in the base.

  • Page 8: Connecting External Equipment

    COMPU Play JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, a tape, turn on the radio, or listen to an external equipment with a single press of the play button for that function.

  • Page 9: Basic Operations

    Basic Operations % STANDBY/ON Numeric Display keys SOUND MODE VOLUME SOUND TURBO ACTIVE BASS EX. PHONES STANDBY indicator % STANDBY/ON SOUND MODE VOLUME +,– ACTIVE FADE MUTING BASS EX. SOUND TURBO Various information Sound Mode indicator SOUND TURBO indicator BASS indicator Level bar Status bar (Indicates various statuses.) * When the System is in use, the display shows other items as well.

  • Page 10: Fade-Out Muting (Fade Muting)

    Basic Operations On the Remote Control Fade-out Muting (FADE MUTING) Press the SOUND MODE button until Sound Mode you want ap- pears on the display. You can mute the output with one touch operation. The Sound Mode indicator that corresponds to the selected sound mode blinks.

  • Page 11: Using The Tuner

    Using the Tuner Numeric keys ¡ ¢ FM/AM FM MODE FM/AM Band display, Frequency display, Preset channel FM mode indicators * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section. One Touch Radio You can listen to FM and AM stations.

  • Page 12: Presetting Stations

    Using the Tuner Using the Unit Select a station using one of the following methods. Select a band by pressing the FM/AM button. • Manual Tuning (Using the Unit only) ¡ Press the button to tune in a Briefly press the 22 or ¡ button on the Unit to move station.

  • Page 13: Using The Cd Player

    Using the CD Player REPEAT Numeric PROGRAM keys RANDOM CD1-CD3 CD Open/ Close 0 ¢ DISC SKIP CD1-CD3 CANCEL CD 6 ¡ ¢ REPEAT CD 6 PROGRAM /RANDOM Track number, Playing time, Program number, etc. Disc indicators Play mode Repeat indicator indicator * When the System is in use, the display shows other items as well.

  • Page 14: To Load Cds

    Using the CD Player ❏ When you use an 8 cm CD, place it on the inner circle of the tray. Example of indication: ❏ You can load CDs while listening to the other source or while When CD door has ejected once and then CD-1 is pressed.

  • Page 15: Basics Of Using The Cd Player-Normal Play

    Using the CD Player • Removing/changing the CDs during playback Basics of Using the CD Player- While playing back a CD (e.g. CD1), you can remove or change the other CDs (e.g. CD2 and CD3) by pressing the CD Open/Close Normal Play 0 button.

  • Page 16: Programming The Playing Order Of The Tracks

    Using the CD Player Repeat steps 3 and 4 to program other tracks Programming the Playing Order on the same CD or the other CD. of the Tracks To play the program, Press the CD but- You can program the playing order of the tracks on all the CDs. ton.

  • Page 17: Random Play

    Using the CD Player Random Play Tray Lock Function The tracks of all the CDs will play in no special order when you In order to safely keep the CD in the CD Player, the tray can be use this mode. electronically locked.

  • Page 18: Using The Cassette Deck (Listening To A Tape)

    Using the Cassette Deck (Listening to a Tape) ¡ TAPE A/B ¢ TAPE 3 0 EJECT 0 EJECT TAPE 3 (Deck B) (Deck A) TAPE A/B 3: Tape indicator Deck indicators * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

  • Page 19: Using The Cassette Deck (Recording)

    Using the Cassette Deck (Recording) REC START/STOP PROGRAM CD REC START DUBBING TAPE A/B 0 EJECT (Deck B) 0 EJECT TAPE 3 TAPE A/B (Deck A) TAPE 3 3: Tape indicator Deck indicators REC indicator * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

  • Page 20: Standard Recording

    Using the Cassette Deck (Recording) Insert a blank or erasable tape into the Deck Standard Recording B and wind past the tape leader. Press the CD REC START button on the Unit. This is the basic method for recording any source. The System also “CD REC”...

  • Page 21: Using An External Equipment

    Using an External Equipment Listening to the External Equipment You can listen to the external equipment such as MD recorder, cas- sette deck, or other auxiliary. ❏ First, make sure that the external equipment is properly connect- ed to the System. (See page 6.) Set the volume level to the minimum posi- tion.

  • Page 22: Using The Timers

    Using the Timers SLEEP ¢ CLOCK/TIMER SLEEP indicator REC (Recording) Timer indicator Timer indicator DAILY Timer indicator * When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section. Using the Unit The timers lets you control recording and listening functions auto- matically.

  • Page 23: Setting The Daily Timer

    Using the Timers 2. Press the 4 or ¢ button to set the minute, then press the Setting the Daily Timer SET button. Once you have set the Daily Timer, the timer will be activated at the same time every day. The Timer indicator ( ) and “DAILY”...

  • Page 24: Setting The Rec (Recording) Timer

    Using the Timers Turning the Daily Timer On and Off Preparation for each music source: Perform the following operation according to the music source Once you have set the Daily Timer, it is stored in memory. So, the you have selected. Then, the System enters Volume Setting Daily Timer will be activated at the same time every day until it is mode.
  • Page 25 Using the Timers When the timer ON-time comes: Using the Unit • When the timer ON-time comes, the System automatically You can set the time in the same way as for setting the Daily Tim- turns on. The station you have set is played. The Timer indica- tor ( ) blinks during timer operation.

  • Page 26: Setting The Sleep Timer

    Using the Timers Setting the SLEEP Timer Timer Priority Use the Sleep Timer to turn the System off after a certain number Since each timer can be set independently, you may wonder what of minutes when it is playing. By setting the Sleep Timer, you can happens if the settings overlap.

  • Page 27: Care And Maintenance

    Care And Maintenance Handle your CDs and tapes carefully, and they will last a long Cassette Tapes time. • If the tape is loose in its cassette, take up Compact Discs the slack by inserting a pencil in one of the reels and rotating.

  • Page 28: Troubleshooting

    Troubleshooting • If you are having a problem with your System, check this list for a possible solution before calling for service. • If you cannot solve the problem from the hints given here, or the System has been physically damaged, call a qualified person, such as your dealer, for service.
  • Page 29 Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.) IMPORTANT for mains (AC) line BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.
