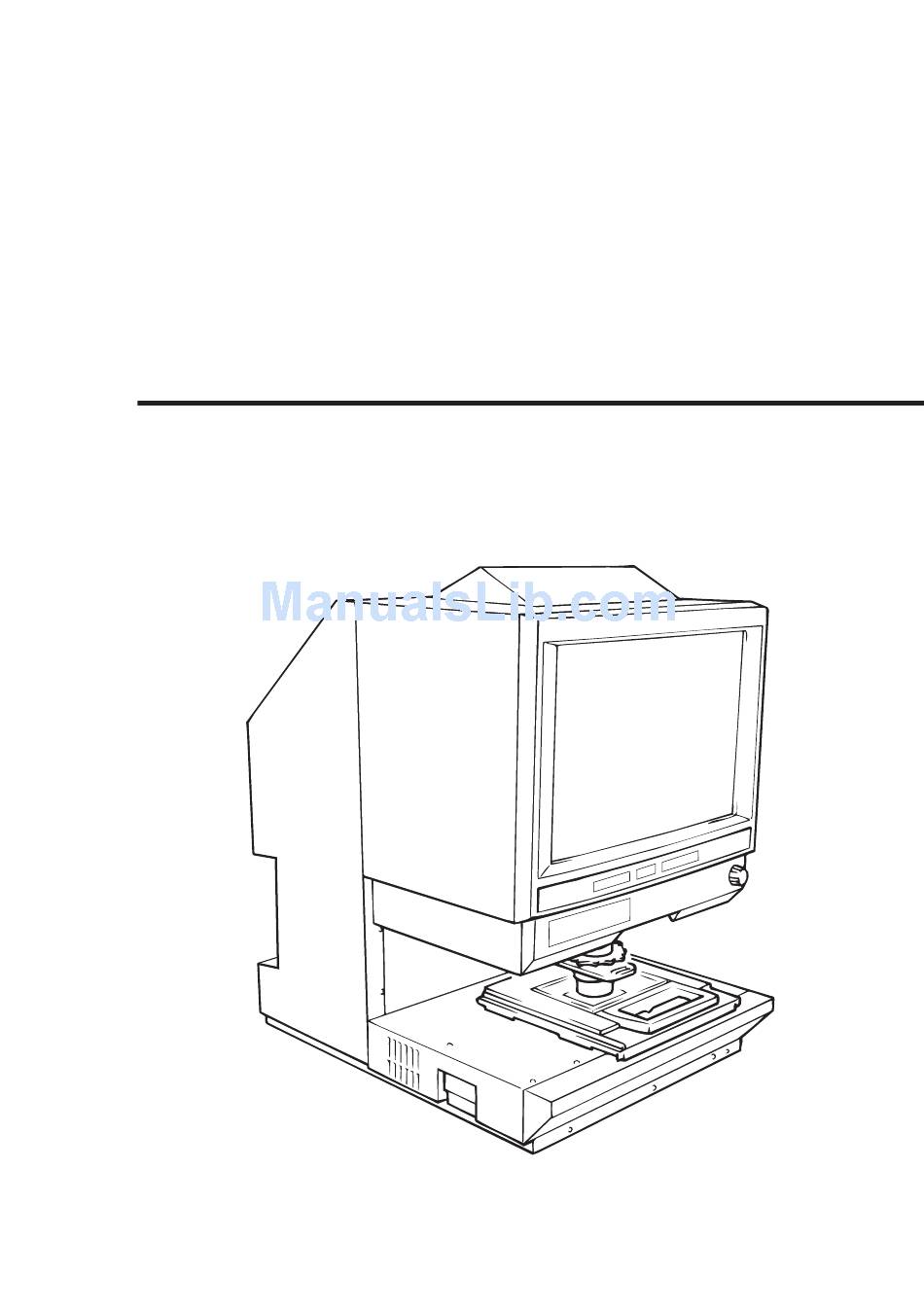

  • Page 1 MS7000 MKII User ’ s Guide...

  • Page 3: Safety Information

    SAFETY INFORMATION This section contains detailed instructions on the operation and maintenance of this machine. To achieve optimum utility of this device, all operators should carefully read and follow the instructions in this manual. Please keep this manual in a handy place near the machine.
  • Page 4 SAFETY INFORMATION • Do not modify this product, as a fire, electrical shock, or break- down could result. If the product employs a laser, the laser beam source could cause blindness. • Do not attempt to remove the covers and panels which have been fixed to the product.
  • Page 5 SAFETY INFORMATION Do not place a flower vase or other container that contains water, or metal clips or other small metallic objects on this product. Spilled water or metallic objects dropped inside the product could result in a fire, electrical shock, or breakdown. Should a piece of metal, water, or any other similar foreign matter get inside the product, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your...
  • Page 6 SAFETY INFORMATION • Do not use flammable sprays, liquids, or gases near this product, as a fire could result. • Do not leave a toner unit or drum unit in a place within easy reach of children. Licking or ingesting any of these things could injure your health.
  • Page 7 SAFETY INFORMATION • Always use this product in a well ventilated location. Operating the product in a poorly ventilated room for an extended period of time could injure your health. Ventilate the room at regular intervals. • Whenever moving this product, be sure to disconnect the power cord and other cables.
  • Page 8 SAFETY INFORMATION Do not touch or scratch the surface of the toner unit developing roller and the PC drum, as poor image quality could result. Use the supplies and consumables recommended by the dealer. Use of any supply or consumable not recommended could result in poor image quality and breakdown.
  • Page 9 Welcome Welcome This User’s Guide explains how to operate the unit and replenish its supplies. It also gives some troubleshooting tips as well as general precautions to be observed when operating the unit. To ensure the best performance and effective use of your unit, read this User’s Guide carefully until you familiarize yourself thoroughly with the unit's operation and features.

  • Page 10: Table Of Contents

    Contents Contents Notes to Operators and Key Operators The following safety rules should be observed ......1-1 FCC Part 15 - Radio Frequency Devices (For U.S.A. Users)..1-1 WARNING ..................1-1 Interference-Causing Equipment Standard (ICES-003 ISSUE 4) (For Canada Users) ................. 1-2 CE Marking (Declaration of Conformity) (For European Users) ..
  • Page 11 Contents Space Requirements................2-3 Operating Environment ..............2-5 Using the Printer ................2-5 Care of Printer Supplies ..............2-6 Scanner System Overview ................3-1 System Configuration ................3-2 PR Mode (connected to a printer) ............3-2 PC Mode (connected to a personal computer) ........3-2 Parts of the Scanner................3-3 Control Panel Keys and Indicators ...........3-5 Control Panel 1 (Basic) ..............3-5 Control Panel 1 (Shift Function) ............3-9...
  • Page 12 Contents Left....................3-31 Page-by-Page................3-31 3.16 Selecting the Image Density ............3-32 Using Auto Exposure ..............3-32 Using Manual Exposure..............3-32 3.17 Entering the Number of Prints to be Made ........3-34 1 to 9....................3-34 10 to 99..................3-34 Correcting a Number ..............
  • Page 13 Contents MSP 3500 Printer Parts of the Printer ................4-1 Paper Specifications ................4-3 Use only the following types of paper: ..........4-3 Set the Paper..................4-4 Loading Paper into the Paper Feeding Tray ........4-4 Loading Paper in the Paper Cassette ..........4-6 Replacing the Toner Cartridge ............4-10 Replacing the Exhaust Filter ............4-14 When the Paper Misfeed Indicator Lights Up ........4-15 If the Misfeed Indicator lights up along with a P0 code: ....4-15...
  • Page 14 Contents Carrier Glass (Option)..............7-2 Cleaning the System Printer (Option) ..........7-3 Cleaning the MSP 3500 Printer ............7-3 Cleaning the Printer Exterior............7-4 Cleaning the Printer Interior............. 7-4 Paper Pickup Rollers ............... 7-5 Cleaning the MSP 3000 Printer ............. 7-10 Miscellaneous Specifications ..................

  • Page 15: Notes To Operators And Key Operators

    Notes to Operators and Key Operators Notes to Operators and Key Operators The following safety rules should be observed 1. The unit should be kept free from moisture, dirt, dust and exposure to heat and direct sunlight at all times. 2.

  • Page 16: Interference-Causing Equipment Standard (Ices-003 Issue 4) (For Canada Users)

    Notes to Operators and Key Operators Interference-Causing Equipment Standard (ICES-003 ISSUE 4) (For Canada Users) This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CE Marking (Declaration of Conformity) (For European Users) This product complies with the following EU directives: 2006/95/EC and 2004/108/EC directives.

  • Page 17: Safety Information (Msp 3500 Printer)

    Notes to Operators and Key Operators Safety Information (MSP 3500 Printer) Laser Safety This printer is a page printer which operates by means of a laser. There is no possibility of danger from the laser, provided the printer is operated according to the instructions provided in this manual.

  • Page 18: For United States

    Notes to Operators and Key Operators For United States CDRH Regulations This printer is certified as a Class I laser product under the Regulation Per- formance Standard according to the Food, Drug, and Cosmetic Act of 1990. Compliance is mandatory for laser products marketed in the United States, and is reported to the Center for Devices and Radiological Health (CDRH) of the U.S.

  • Page 19: All Other Users

    Notes to Operators and Key Operators All other users WARNING § Use of controls, adjustments of performance or procedures other than those specified in this manual may result in hazardous radiation expo- sure. This is a semiconductor laser. The maximum power of the laser diode is 15mW, and the wavelength is 770-800 nm.

  • Page 20: For Norway

    Notes to Operators and Key Operators VARO § Avattaessa ja suojalukitus ohitettaessa olet alttiina nakymattomalle la- sersateilylle. Aja katso sateeseen. VARNING § Osynlig laserstråining när denna del är öppnad och spärren är urkop- plad. Betrakta ej stråien. For Norway ADVARSEL §...

  • Page 21: Warning Label

    Notes to Operators and Key Operators WARNING LABEL • Three laser caution labels are attached to the inside of the machine as shown below.

  • Page 22: Ozone Release (For All Users)

    Notes to Operators and Key Operators OZONE RELEASE (For all Users) During printer operation, a small quantity of ozone is released. This amount is not large enough to cause any adverse affects or harm. How- ever, be sure the room where the machine is being used has adequate ventilation, especially if you are printing a high volume of materials, or if the machine is being used continuously over a long period.

  • Page 23: Safety Information (Msp 3000 Printer)

    Notes to Operators and Key Operators Safety Information (MSP 3000 Printer) Laser Safety This printer is a page printer which operates by means of a laser. There is no possibility of danger from the laser, provided the printer is operated according to the instructions provided in this manual.

  • Page 24: All Other Users

    Notes to Operators and Key Operators All other users WARNING § Use of controls, adjustments of performance or procedures other than those specified in this manual may result in hazardous radiation expo- sure. This is a semiconductor laser. The maximum power of the laser diode is 8.8 ×...

  • Page 25: For Norway

    Notes to Operators and Key Operators VARO § Avattaessa ja suojalukitus ohitettaessa olet alttiina nakymattomalle la- sersateilylle. Aja katso sateeseen. VARNING § Osynlig laserstråining när denna del är öppnad och spärren är urkop- plad. Betrakta ej stråien. For Norway ADVARSEL §...

  • Page 26: Warning Label

    Notes to Operators and Key Operators WARNING LABEL 1-12...

  • Page 27: Ozone Release (For All Users)

    Notes to Operators and Key Operators OZONE RELEASE (For all Users) During printer operation, a small quantity of ozone is released. This amount is not large enough to cause any adverse affects or harm. How- ever, be sure the room where the machine is being used has adequate ventilation, especially if you are printing a high volume of materials, or if the machine is being used continuously over a long period.

  • Page 28: Precautions

    Precautions Precautions Installation Precautions Installation Site Placement of the unit in the environment described below will ensure optimal performance throughout the long life of service for which it was designed. 1. A well-ventilated place. 2. An area which is free from ammonia or other organic gases. 3.

  • Page 29: Power Source

    Precautions Power Source The power source voltage requirements are as follows: 1. Use a power source with minimal voltage fluctuation. Power Source: 50Hz-60Hz Voltage fluctuation: within ± 10% Frequently fluctuation: within ± 3% 2. Be careful not to exceed the capacity of the outlet, especially when sourcing other appliances from the same outlet.

  • Page 30: Space Requirements

    Precautions Space Requirements Scanner: There should be a clearance of the following dimensions between the wall and the rear of the unit as well as it's right and left sides to provide ample space for the ventilation ports to dissipate heat. MSP 3500 Printer: For ease of operation, maintenance and replenishment of supplies, the minimum clearance diagrammed below is required.
  • Page 31 Precautions MSP 3000 Printer: For ease of operation, maintenance and replenishment of supplies, the minimum clearance diagrammed below is required. Install the unit in an area that allows easy access. 150mm 150mm 150mm 5-7/8" 5-7/8" 5-7/8"...

  • Page 32: Operating Environment

    Precautions Operating Environment The environmental requirements for operating the system are as follows: Temperature: 10°C to 35°C with a fluctuation of 10°C per hour. Humidity: 15% to 85% with a fluctuation of 20% per hour. Using the Printer To ensure the optimum performance of the printer, follow the precautions listed below: 1.

  • Page 33: Care Of Printer Supplies

    Precautions Care of Printer Supplies Use the following precautions when handling the printer supplies (Toner Cartridge, paper, etc.). 1. Avoid storing the supplies in any of the following places: • A place subject to direct sunlight. The Toner Cartridge should not be exposed to fluorescent light, either.

  • Page 34: Scanner

    Scanner Scanner System Overview Scanner Projection Lenses Single-Focus Lens 7.5x Zoom Lenses 9-16x 13-27x 20-50x • Prism • Manual Frame Masking Unit • AF Lens Modification Kit • Auto Focus Unit • USB I/F Kit Film Carriers • Foot Switch Kit FC-5 RFC-15A Controllers...

  • Page 35: System Configuration

    Scanner System Configuration This Scanner is available in the following configurations. PR Mode (connected to a printer) The Scanner is connected to a dedicated printer (MSP 3500 or MSP 3000), allowing scanned images to be printed out directly. PC Mode (connected to a personal computer) The Scanner is connected to a personal computer and the scanned images can be uploaded to the computer.

  • Page 36: Parts Of The Scanner

    Scanner Parts of the Scanner 1. Screen: The image taken from the film is projected here for viewing. The frame on the Screen marks the data reading range. 2. Control Panel: Many operations are controlled from the keys and indicators provided here. 3.
  • Page 37 Scanner 9. Power Switch: Used to turn power to the unit ON and OFF. 10. Connectors: Provides connection points for the various options (Film Carrier and Controller). 11. Power Cord Socket: Plug the power cord furnished with the Scanner into this socket.

  • Page 38: Control Panel Keys And Indicators

    Scanner Control Panel Keys and Indicators Control Panel 1 (Basic) Paper Selection Exposure Film Type Print Mode Print Position Paper Selection 8 ×14 Auto Text 11×17 8 ×11 Nega Fine Lighter Auto Darker 8 ×11 Posi Photo Ohter Start Memory Input Key To store one of the following functions into the memory of the Scanner, first set one of the functions on Control Panels 1 and 2 and then press this button with the head of a pen or other device.
  • Page 39 Scanner Lamp Illuminance Key Use to manually adjust the Projection Lamp illuminance. When the Projection Lamp is OFF, it can be turned ON again by pressing any key. Film Type Key Rotates between Auto, Nega, and Posi each time the key is pressed. Auto: The scanner automatically determines between the film type options of negative or positive for print production.
  • Page 40 Scanner Paper Selection Key PC mode: Select the scanning size. When scanning the film image except standard size, the "Other" lamp is lit. PR mode: Selects the size of paper to be used for printing. When the printer's Paper Feeding Tray is loaded with 8-1/2" x 1" (A4) paper and the paper loaded into the Paper Cassette is 11"...
  • Page 41 Scanner Multi-Print Keys Use these keys to input the desired number of prints to be made. Pressing this key increases the number of prints to be made in increments of ten (10, 20, 30 ... 90, etc.) Pressing this key increases the number of prints to be made in increments of one (1, 2, 3 ...

  • Page 42: Control Panel 1 (Shift Function)

    Scanner Control Panel 1 (Shift Function) Exposure Print Mode Print Position Paper Selection Film Type 8 ×11 Auto Text 11×17 8 ×11 Nega Fine Lighter Auto Darker 8 ×11 Posi Photo Other Start Job Recall Resolusion User Mode Zoom- Zoom clr Zoom+ PC/PR Shift...

  • Page 43: Control Panel 2

    Scanner Control Panel 2 Centering Fit Masking Auto Auto Skew Masking Correction Focus Centering/Fit Key When this key is pressed, the setting rotates from OFF to the Centering and Fit functions. Auto Masking* is automatically enabled when the Centering function is selected. * Auto Masking is not enabled if Trimming is selected.
  • Page 44 Scanner Auto Masking Key This key is used to turn the Auto Masking function ON or OFF. The Auto Masking function will omit the frame (non-image area) of a printed film image. • The previous Centering/Fit setting is applied whenever ON is selected from the OFF state.

  • Page 45: When Malfunctions/Call-Tech.-Rep. Indicator Lights Up

    Scanner When Malfunctions/Call-Tech.-Rep. Indicator Lights up This indicates that a paper misfeed or malfunction has occurred in the system. Check the code shown on the Multi-Print Display and perform the misfeed clearing procedure or the Call-Tech.-Rep. procedure. Malfunctions Procedure Only MSP3500 displays the code. Display Code Description...
  • Page 46 Scanner Display Code Description The Scanner is connected to the PC and ready for scanning by pressing the Start Key. This display is blinking when the Scanner is in operation. The Scanner is not connected to the PC. Turn ON the PC or connect the Scanner to the PC with the interface cable.
  • Page 47 Scanner Misfeed Clearing Procedure Locate the misfeed using the code and perform the misfeed clearing procedure. Display Code Description The wrong size paper has been loaded in the Paper Feeding Tray. Load the set size paper in the set direction. This code also appears when two or more sheets of paper are taken up at the same time.
  • Page 48 Scanner Call-Tech.-Rep. Procedure A malfunction has occurred in the system. Only MSP3500 displays the code. Display Location Code Description Scanner Optical path switching failure A Scanning malfunction A Condenser Lens Motor malfunction A Fan Motor malfunction Imperfect auto focusing Printer A Fusing Unit malfunction A Laser malfunction A Polygon Motor malfunction...

  • Page 49: Image Processing Functions

    Scanner Image Processing Functions Screen Image → Print Image Description Auto Masking (1 Frame) The system masks the black bands that run along the edges of the image. Trimming (1 Frame) The system masks everything but the center of the image. Trimming (2 Frames) The system masks the frames *When 11"...
  • Page 50 Scanner Screen Image → Print Image Description Auto Skew Correction The unit automatically correct any skew of the image when printed. Page-by-Page Print The system takes two film images that appear side-by-side on the screen and prints them on separate 8-1/2" x 11" (A4) sheets of paper.

  • Page 51: Turning The Power On And Off

    Scanner Turning the Power On and Off Turning ON Press the Power Switch of the scanner to the ⏐ (ON) position. Press the Power Switch of the printer to the ⏐ (ON) position. The indicators on Control Panel 1 light up and the system starts the initialization operation.

  • Page 52: Turning Off

    Scanner Turning OFF Press the Power Switch of the scanner to the (OFF) position. Press the Power Switch of the printer to the (OFF) position. 3-19...

  • Page 53: Auto Power Save Mode

    Scanner Auto Power Save Mode The unit enters the Auto Power Save mode if it is left to stand idle for a predetermined period of time. When the unit enters the Auto Power Save mode, power to the Scanner projection lamp and the printer heater is automatically shut down to save power consumption.

  • Page 54: Printing Or Scanning Procedure

    Scanner Printing or Scanning Procedure Here is an outline of the printing or scanning procedure: 1. Load the film The procedure for loading film is determined by the type of Film Carrier (optional) that is being used. Review the Operator's Manual that came with your Film Carrier for more information. 2.

  • Page 55: Selecting A Projection Lens

    Scanner Selecting a Projection Lens Projection Lenses come in the following five types. Select the one that corresponds to the film being used. Projection Lens Types TYPE1: 7.5x, 7-7.5x TYPE 2: 9-16x TYPE 3: 13-27x TYPE 4: 20-50x S c a n n i n g S i z e F i l m 11"×17"...

  • Page 56: Replacing The Projection Lens

    Scanner 3.10 Replacing the Projection Lens Take hold of the Prism Holder Lever and push it up to raise the Prism Holder. Pull out the Projection Lens Unit towards the front of the Scanner. Slide the new Projection Lens Unit all the way into the Scanner along the Lens Holder Guide.

  • Page 57: Positioning The Film Image

    Scanner 3.11 Positioning the Film Image Marked on the Screen are the size frame markers that correspond to the scanning size. Through zooming and image rotation, and by operating the Film Carrier mounted on the system, position the image on the Screen so that the image fits in the scanning size.

  • Page 58: Zooming, Focusing, And Image Rotation

    Scanner 3.12 Zooming, Focusing, and Image Rotation Zooming Turn the Zooming Ring Dial (blue) to bring the image on the Screen into the print size frame. Focusing Center the image on the Screen and then press the AF (Auto Focus) Key to let the Scanner automatically bring the image into focus.
  • Page 59 Scanner * If the Auto Skew Correction Key is turned ON, the system will automatically correct any skew of the image when printed. 3-26...

  • Page 60: Selecting The Film Type

    Scanner 3.13 Selecting the Film Type Auto The system will Nega/Posi automatically determine the polarity of the film being used when Auto is selected with the Film Type key. The system cannot determine the polarity of certain types of film. Should this occur, the film type should be selected manually.

  • Page 61: Posi (Positive Film)

    Scanner Posi (positive film) If positive film is to be used, Posi press the Film Type Key to select Posi. 3-28...

  • Page 62: Selecting The Paper Size

    Scanner 3.14 Selecting the Paper Size Selecting the Paper Size Press the Paper Selection key to select the desired print size. Each time the key is pressed, the system selects a new paper size from the currently available sizes. If the Printer is not loaded with a desired size of paper, load paper into the printer.

  • Page 63: Using The Auto Film Format Selection Function

    Scanner The Auto Paper Selection function can be used only for a combination of 11" x 17" (A3) and 8-1/2" x 11" (A4) . The Page-by-Page function cannot be selected when the Auto Paper Selection capability is being used. When a 7.5x or 7-7.5x lens is being used, the Auto Paper Selection function cannot use 11"...

  • Page 64: Selecting The Print Position

    Scanner 3.15 Selecting the Print Position Center The system prints the image that appears in the center of the screen. Left The system makes a print of the image that appears on the left side of the screen. Page-by-Page The system prints the images that appear on both the left and right sides of the screen on separate sheets of...

  • Page 65: Selecting The Image Density

    Scanner 3.16 Selecting the Image Density Using Auto Exposure Press the Exposure Mode key to select the Auto Exposure mode. If the Auto Exposure setting is not satisfactory, press the appropriate Exposure Adjustment key, either Lighter or Darker, to set the desired image density.
  • Page 66 Scanner Press the appropriate Exposure Adjustment key, either Lighter or Darker, to set the desired image density. Press Lighter : to make the image lighter. Press Darker : to make the image darker. 3-33...

  • Page 67: Entering The Number Of Prints To Be Made

    Scanner 3.17 Entering the Number of Prints to be Made NOTE: This function is only available on the PR mode. 1 to 9 Enter the desired number of prints using the Multiprint Key "1". If the "1" key is pressed when "9" is shown on the Multi-Print Display, the number on the display is incremented by one: 10 →...

  • Page 68: Using Auto Masking

    Scanner 3.18 Using Auto Masking The Auto Masking function prevents the frame (non-image area) of a film image from appearing on the print. Selecting Auto Masking Press the Auto Masking key to turn ON this function. Operating Conditions for Auto Masking A.

  • Page 69: Manual Masking Panels (Option)

    Scanner 3.19 Manual Masking Panels (Option) Lengthwise Area Indication Panel Use to specify the print area in the vertical direction of the image on the Screen. The system makes a print of the image corresponding to the Area Keys lit up green. A total of 42 Area Keys are placed at 7-mm intervals. Lengthwise Area Clear Key Press to clear any print area previously defined in the vertical direction.

  • Page 70: Using Manual Masking

    Scanner 3.20 Using Manual Masking NOTE: Under the PC mode, the print (scan) area can be defined using the Manual Masking Panels. The Trimming and Masking functions cannot be used in the PC mode. The optional Manual Masking Kit allows you to specify an area for printing of the displayed image through two separate features, Trimming and Masking.

  • Page 71: Defining An Area

    Scanner Defining an Area Define the end points for both the vertical and horizontal areas of the image on the screen using the green lights on the area indication panels. The points defining the vertical and horizontal area can be selected in any order.

  • Page 72: Defining Page-By-Page Print Area

    Scanner Defining Page-by-Page Print Area Using the vertical and horizontal points on the Area Indication Panels, define the print areas of the image on the Screen. The horizontal indicator marked A does not light up and cannot be used for defining an area. Four different areas cannot be defined on a single page.

  • Page 73: Selecting Masking

    Scanner Selecting Masking Press the Masking key to select (Masking) when you want to mask a given area of the image. The basic operation for manual Masking is similar to Trimming. Please refer to the previous procedures on Trimming and defining areas for instructions on performing manual Masking.

  • Page 74: Using Centering And Fit

    Scanner 3.21 Using Centering and Fit Once the image on the Screen has been either "manually trimmed" or "auto masked", the Image Centering function moves the image to the center of the print. The Fit function however, fits the image on the Screen onto the entire surface of the print.

  • Page 75: Fit

    Scanner Press the Centering/Fit key Centering/Fit to turn ON Fit. Fit mode cannot be used when the Scanner is connected the PC. 3-42...

  • Page 76: Using The Cycle Print Mode

    Scanner 3.22 Using the Cycle Print Mode This function automatically scans the next image following a preset period of time. Images are manually loaded onto the Carrier Glass in between cycles. This is a system setting that must be entered by an authorized Technical Representative.

  • Page 77: Operating In The Cycle Print Mode

    Scanner Value Period (sec.) Operating in the Cycle Print Mode After entering the Cycle Print Mode, press the Start key to start. After the first scanning operation has finished, the system will automatically scan the next image following a preset period of time.

  • Page 78: Selecting The Connection Mode

    Scanner 3.23 Selecting the Connection Mode The Scanner connection can be selected between PR (connection to the Printer) and PC (connection to the Personal Computer). Hold down the Shift Key and the PC/PR Key together for over one second. PC mode: When the display is switched from Multi-Print to PC, the connection to the PC is valid.

  • Page 79: Selecting The Resolution

    Scanner 3.24 Selecting the Resolution The resolution for scanning (printing) can be selected. Press the Shift Key and the Resolution Key together. The present resolution is displayed. Press the Resolution Key while holding down the Shift Key to set the resolution.

  • Page 80: Registering The Job Program

    Scanner 3.25 Registering the Job Program The present setting state can be registered in up to 3 program registration locations (1J, 2J and 3J). Press the Memory Input Key Memory Input Key in the Setting mode. 1J starts blinking. To change the program registration location, press the 1 Key.

  • Page 81: Calling The Job Program

    Scanner 3.26 Calling the Job Program The registered Job program can be called. Press the Shift Key and the Job Recall Key together. Each time the Job Recall Key is pressed while the Shift Key is held down, the display is switched in order of 1J → 2J → 3J. When the desired setting is displayed, unhand the keys.

  • Page 82: Using The Electrical Zoom

    Scanner 3.27 Using the Electrical Zoom In addition to the zooming by the Lens, the Electrical Zoom function has been provided for magnifying the image when it is printed. NOTE: This function is only available on the RP mode. Zoom + When the Zoom+ key is pressed together with the Shift Key, the magnification is increased by an...

  • Page 83: Skip Of Magnification

    Scanner The Zoom magnification is displayed in the Multi-Print Display to 3 decimal places. The Zoom magnification level is displayed in the Exposure Display. Example:When the magnification is 0.50x, it is displayed as 50. When the magnification is 1.50x, it is displayed as 150. When the Zoom magnification is changed, the display is made in the Multi-Print Display as follows.

  • Page 84: Clearing The Zoom Magnification

    Scanner Clearing the Zoom magnification When the Zoom clr key is held down together with the Shift Key for over one second, the standard magnification (1.00x) is resumed. 3-51...

  • Page 85: Adjusting The Illumination Of The Screen

    Scanner 3.28 Adjusting the Illumination of the Screen The illumination of the screen can be adjusted. Press the Illumination Key to adjust the illumination of the screen. The screen is gradually darkened until it is turned OFF. When any key is pressed, the illumination returns to the maximum level.

  • Page 86: Replacing The Projection Lamp

    Scanner 3.29 Replacing the Projection Lamp Use the following procedure to replace the Projection Lamp whenever a reduction in brightness on the screen is detected or whenever the lamp burns out. Make sure that the replacement lamp is specified for use with this scanner.
  • Page 87 Scanner Remove the Projection Lamp, together with the Lamp Socket, from the Projection Lamp Unit. Unplug the Projection Lamp from the Lamp Socket. Insert a new Projection Mark Lamp so that the mark on its base is facing upwards. Make sure that the new Projection Lamp is inserted securely so that there is no gap between the Projection...
  • Page 88 Scanner Insert the Projection Lamp all the way into the Lamp Holder of the Projection Lamp Unit. Slide the Projection Lamp Unit securely back into place. 3-55...

  • Page 89: Msp 3500 Printer

    MSP 3500 Printer MSP 3500 Printer Parts of the Printer Top Cover Release Lever: Use to open the Top Cover. Output Tray Extension: When printing in paper B4 or larger, fold open. Power Indicator: Light indicates when the Printer is turned ON. Power Switch: Use to turn the Printer ON and OFF.
  • Page 90 MSP 3500 Printer Interface Connectors: Facilitates connections for the Scanner. The Printer has two connectors to facilitate connection with two separate Scanner units. Power Cord Socket: The power cord is plugged into this socket. 10 Top Cover: Open to replace the Toner Cartridge and to clear misfed sheets of paper.

  • Page 91: Paper Specifications

    MSP 3500 Printer Paper Specifications Use only the following types of paper: ● Type Plain and recycled paper (weight 16 to 24 lbs. / 60 to 90 g/m ● Size Standard sizes: 11" x 17", 8-1/2" x 11", 8-1/2" x 14", A3, A4. ●...

  • Page 92: Set The Paper

    MSP 3500 Printer Set the Paper Loading Paper into the Paper Feeding Tray Open the paper feeding tray. Fan a stack of paper. Align the edges of the paper, and then load it with its printing-side up. Often, an arrow on the paper package label indicates the printing- side of the media.
  • Page 93 MSP 3500 Printer While pressing the button on the right side of the media ➀ guide , slide the media ➁ guide to adjust it Attention Make sure the paper fit easily between the guides. Improperly adjusted guides may cause poor print quality, paper jams, or printer damage.

  • Page 94: Loading Paper In The Paper Cassette

    MSP 3500 Printer Loading Paper in the Paper Cassette Pull out the paper cassette until it stops. While pressing the release buttons (one on each side) ➀ , remove the paper ➁ cassette Remove the cassette cover.
  • Page 95 MSP 3500 Printer Lift up the gray lever on the right end of the paper ➀ retainer , and then slide the ➁ paper retainer to the right Lift up on the left end of the paper retainer to remove it. Insert the right end of the ➀...
  • Page 96 MSP 3500 Printer Slide the paper retainer to ➀ the left , and then press ➁ down on the gray lever secure the paper retainer. Attention Make sure the paper retainer is seated properly. Align the four edges of the paper, and then load the paper printing side Do not load paper on this side.
  • Page 97 MSP 3500 Printer Install the cassette cover. Install the paper cassette, inserting as far as possible into the printer. When printing on paper B4 or larger, fold open the output tray extension. Affix the paper size labels (supplied with the printer) to the paper cassette in order to indicate the size of loaded paper.

  • Page 98: Replacing The Toner Cartridge

    MSP 3500 Printer Replacing the Toner Cartridge Slide the top cover release ➀ lever to the right , and ➁ open the top cover Attention ➀ Never touch the copper or brass electrodes or electrical parts that are located inside the top cover and underneath the toner cartridge, as a printer malfunction can result.
  • Page 99 MSP 3500 Printer Remove the used toner cartridge. Remove the new toner cartridge from its protective box. Peel off the packing tape. Attention Hold the toner cartridge by ➀ its handle . Do not open ➁ the protective cover of the ➂...
  • Page 100 MSP 3500 Printer Slowly shake the toner cartridge, tilting it to the left and right 7 or 8 times to distribute the toner. The toner is nontoxic. If you get toner on your hands, wash them in cool water and mild neutral detergent.
  • Page 101 MSP 3500 Printer Close the top cover, pushing it down until it locks into place. Attention Do not transport the printer with the toner cartridge installed. If toner spills within the printer, decreased print quality may result or the printer may be damaged. 4-13...

  • Page 102: Replacing The Exhaust Filter

    MSP 3500 Printer Replacing the Exhaust Filter The exhaust filter on the back of the printer is replaced when you replace a toner cartridge. How do I replace the exhaust filter? Remove the used exhaust filter. Dispose of it according to your local regulations.

  • Page 103: When The Paper Misfeed Indicator Lights Up

    MSP 3500 Printer When the Paper Misfeed Indicator Lights Up If the Misfeed Indicator lights up along with a P0 code: The size or the direction of the paper loaded in the paper tray does not match that set for the tray. Load the paper of the set size in the set direction and then open and close the Upper Unit.

  • Page 104: Clearing A Misfeed From The Paper Feeding Tray

    MSP 3500 Printer Clearing a Misfeed from the Paper Feeding Tray Remove all paper from the paper feeding tray. Pull out the misfed paper. Correctly load the paper into the paper feeding tray. If necessary, open and close the top cover to cancel Misfeed Code.

  • Page 105: Clearing A Misfeed From The Paper Cassette

    MSP 3500 Printer Clearing a Misfeed from the Paper Cassette Pull out the cassette until it stops. While pressing in the release buttons (one on each side), remove the cassette. Pull out the misfeed paper. Make sure no paper remains under the roller in the casette.
  • Page 106 MSP 3500 Printer Install, the cassette, inserting it as far as possible into the printer. Check that the paper remaining in the cassette is loaded correctly before installing the cassette. Make sure no paper remains mjsfeed under the roller in the cassette.

  • Page 107: Clearing A Misfeed From Inside The Printer

    MSP 3500 Printer Clearing a Misfeed from inside the Printer Open the top cover. Attention ➀ Never touch the copper or brass electrodes or electrical parts that are located inside the top cover and underneath the toner cartridge, as a printer malfunction can result. ➁...
  • Page 108 MSP 3500 Printer Remove the toner cartridge and store it in a light-free protective bag. If the paper is stopped by the fuser, lift the green levers on each side, and then slowly pull out the paper from the roller. Attention Do not pull out the paper from above the roller;...
  • Page 109 MSP 3500 Printer Pull out the jammed paper. Close the paper feed roller Cover. Align, the, tabs on the toner cartridge (one on each side) with the notches in the printer, and then insertthe cartridge as far as possible. Attention Do not touch the rollers or gears within the printer;...

  • Page 110: Clearing A Misfeed From Output Bin

    MSP 3500 Printer Clearing a Misfeed from output bin Remove the paper from the output bin. If necesssary, gently pull out any paper thats is still jammed. 4-22...

  • Page 111: Msp 3000 Printer

    MSP 3000 Printer MSP 3000 Printer Parts of the Printer 1 Upper Unit Lock Release Lever: Use to open the Upper Unit. 2 Power Indicator: Light indicates when the Printer is turned ON. 3 Print Tray: Prints are output from the Printer, face down onto this tray which can hold up to 500 sheets of standard paper.
  • Page 112 MSP 3000 Printer Upper Unit: Open to replace the Imaging Cartridge and to clear misfed sheets of paper. 10 Image Transfer Roller: Transfers the image onto the sheet of paper. Be careful to avoid touching it with your bare hands. 11 Fusing Unit: Permanently fixes the image onto the sheet of paper.

  • Page 113: Paper Specifications

    MSP 3000 Printer Paper Specifications Use only the following types of paper: Type Plain and recycled paper (weight 16 to 24 lbs. / 60 to 90 g/m Size Standard sizes: 11" x 17", 8-1/2" x 11", 5-1/2" x 8-1/2", A3, A4, B4, B5. Capacity Paper Feeding Tray: 8-1/2"...

  • Page 114: Set The Paper

    MSP 3000 Printer Set the Paper Loading Paper into the Paper Feeding Tray Swing down the Paper Feeding Tray. Fan the paper stack thoroughly and align the edges. Load the paper stack face up in the tray and adjust the Paper Guides to secure the paper stack.

  • Page 115: Loading Paper In The Paper Cassette

    MSP 3000 Printer Loading Paper in the Paper Cassette Pull the cassette out of the Printer and open the Cover. Press down the Paper Lifting Plate until it locks. Fan the paper stack thoroughly, align the edges, and place the paper in the cassette.
  • Page 116 MSP 3000 Printer Close the Cover and insert the cassette into the Printer.

  • Page 117: Replacing The Toner Cartridge

    MSP 3000 Printer Replacing the Toner Cartridge Open the Upper Unit by pulling the Upper Unit Lock Release Lever forward. § Push the Print Tray in before opening the Upper Unit. Remove the old Imaging Cartridge from the printer.
  • Page 118 MSP 3000 Printer Take a new Imaging Cartridge out of the box. Holding it with both hands, shake it well in the directions indicated by the arrows. Remove the seal from the Imaging Cartridge by pulling it steadily straight out. Shake the Imaging Cartridge four or five more times as shown to evenly...
  • Page 119 MSP 3000 Printer Close the Upper Unit.

  • Page 120: When The Paper Misfeed Indicator Lights Up

    MSP 3000 Printer When the Paper Misfeed Indicator Lights Up If the Misfeed Indicator lights up along with a P0 code: The size or the direction of the paper loaded in the paper tray does not match that set for the tray. Load the paper of the set size in the set direction and then open and close the Upper Unit.
  • Page 121 MSP 3000 Printer Remove the sheet(s) of paper that caused the misfeed from the Paper Feeding Tray. Check that no misfed paper is left in the Printer and then reinstall the Imaging Cartridge. Close the Upper Unit. 5-11...

  • Page 122: Clearing A Misfeed From The Paper Cassette

    MSP 3000 Printer Clearing a Misfeed from the Paper Cassette Open the Upper Unit by pulling the Upper Unit Lock Release Lever forward. § Push the Print Tray in before opening the Upper Unit. Remove the Imaging Cartridge. § Be sure to cover the Imaging Cartridge with a heavy cloth to protect it from light when it is removed...

  • Page 123: Clearing A Misfeed From Inside The Printer

    MSP 3000 Printer Check that no misfed paper is left in the Printer and then reinstall the Imaging Cartridge. Close the Upper Unit. Clearing a Misfeed from inside the Printer Open the Upper Unit by pulling the Upper Unit Lock Release Lever forward.
  • Page 124 MSP 3000 Printer If the misfeed occurred before the sheet of paper entered the Fusing Unit, gently pull the misfed sheet up and out as shown. If the misfeed occurred after the sheet of paper entered the Fusing Unit, gently pull the misfed sheet toward you and out as shown.

  • Page 125: Troubleshooting

    Troubleshooting Troubleshooting Solving Irregular Printing Problems Use the following procedures to fix minor printing problems. If print quality does not improve after implementing the procedures below, contact your Technical Representative. Symptom Cause Action Light image Print density is not Change the print density properly set.
  • Page 126 Troubleshooting Symptom Cause Action Uneven image density Toner in the Imaging Remove the Imaging Cartridge is not even- Cartridge, shake it sev- ly distributed. eral times and replace. Blank print The Printer has mal- Contact your Technical functioned. Representative.

  • Page 127: Maintenance

    Maintenance Maintenance System Care The system should be cleaned on a daily basis for optimal operating conditions. Cleaning the Scanner Screen With a damp cloth, clean and remove any dust or debris from the surface of the Screen. CAUTION § NEVER use alcohol or any other solvent when cleaning to avoid causing damage to the Screen or erasing the frame size markers.

  • Page 128: Carrier Glass (Option)

    Maintenance Carrier Glass (Option) With a damp cloth, clean and remove any dust or debris from the surface of the Carrier Glass. § Before cleaning the Carrier Glass, be sure to remove the Projection Lens from the Scanner. To open the Carrier Glass, pull the handle of the Microfiche Holder.

  • Page 129: Cleaning The System Printer (Option)

    Maintenance Cleaning the System Printer (Option) Clean the Printer at regular intervals. Cleaning the MSP 3500 Printer When does the printer need cleaning? Clean this item thoroughly... After... Exterior Once a month or as needed, whichever comes first. Interior (paper feed rollers) Paper stops being fed from the paper tray(s).

  • Page 130: Cleaning The Printer Exterior

    Maintenance Cleaning the Printer Exterior ATTENTION § Never spray cleaning solution directly on the printer’s surface; the spray could penetrate through the air vents of the printer and damage the internal circuits. Cleaning the Printer Interior Make sure any parts removed during cleaning are replaced before you plug in the printer.

  • Page 131: Paper Pickup Rollers

    Maintenance Paper Pickup Rollers The printer’s pickup rollers contain a sensor to detect the density of media passing by. How do I clean the paper feeding tray pickup rollers? Turn off the printer. Open the top cover.
  • Page 132 Maintenance Attention ➀ Never touch the copper or brass electrodes or electrical parts that are located inside the top cover and underneath the toner cartridge, as a printer malfunction can result. ➁ Be careful not to touch around the image transfer roller (touching ➂...
  • Page 133 Maintenance Open the paper feed roller cover. Cover Wipe the two paper feed rollers with a soft, dry cloth. Paper feed rollers Close the paper feed roller cover. Align the tabs on the cartridge (one on each side) with the notches in the printer, and then insert the cartridge as far as possible into its compartment.
  • Page 134 Maintenance Close the top cover. Turn on the printer. How do I clean the paper cassette pickup rollers? When the sensor gets dirty or dusty, print quality is degraded. Pull the paper cassette out of the printer until it stops.
  • Page 135 Maintenance Remove the paper cassette. Wipe the pickup roller with a soft dry cloth. Reinsert the paper cassette into the printer.

  • Page 136: Cleaning The Msp 3000 Printer

    Maintenance Cleaning the MSP 3000 Printer CAUTION § Use a soft cloth and NEVER use abrasives or corrosive detergents. Before cleaning the Printer, turn OFF the power and unplug the cord from the power outlet. Clean the exterior panels with a soft, dry cloth. §...

  • Page 137: Miscellaneous

    Miscellaneous Miscellaneous This chapter details the system specifications and initial settings as well as provides some useful tips for caring for the unit. Specifications Specifications Type: Desk-Top Type Microfilm Scanner Type of Film: Microfiche, Jackets, Aperture Cards, 16mm & 35mm Roll Film, 16mm Film Cartridges.

  • Page 138: Pc Mode

    Miscellaneous PC Mode Specifications Resolution: 200, 300, 400, 600, 800 dpi Output Scale: Binary, Grayscale (Option) PC Interface: USB2.0 Hi-Speed Standard: USA and Canada area Option: except USA and Canada area SCSI-2 (Option) Scanning Speed: 5 sec./1 frame scanning (8-1/2" x 11" or A4 Vertical/400 dpi/AE) 4 sec./Multi-frame scanning (8-1/2"...

  • Page 139: Pr Mode : Msp 3000 Printer

    Miscellaneous PR Mode : MSP 3000 Printer Specifications Resolution: 400, 600 dpi Printing Method: Laser Electrostatic Developing System: Fine Micro-Toning (Fine-MT) System Print Size: 11" x 17" , 11" x 8-1/2" , 8-1/2" x 11" , 8-1/2" x 14" , A4 , A4 Warm-up Time: Less than 70 seconds...

  • Page 140: Initial Settings

    Miscellaneous Initial Settings This system offers three types of settings: the user settings that are made by the user on the control panel, the settings that are made by the user using with the User Mode, and the system settings that are made by the authorized dealer.

  • Page 141: User Mode

    Miscellaneous User Mode User mode allows the default values of various functions to be set or changed as necessary. Setting these default values according to the need of the user saves labor in making settings again each time the power is turned ON or Panel Reset is activated.

  • Page 142: Entering And Leaving The User Mode

    Miscellaneous Entering and Leaving the User Mode Hold down the Shift key and Paper Selection key at the same time for 0.5 sec. The Multi-Print Display displays a “U.” Paper Selection 11×17 8 ×11 8 ×11 Shift User Mode Press the Exposure Adjustment key (Darker or Lighter) to select the specific function.

  • Page 143: Settings In Each User Mode Function

    Miscellaneous Settings in Each User Mode Function U1: Special Print Mode This function is not available. U2: Engineering Enhancement Mode Slight image distortion occurring in the scan direction can be corrected with this function. Before Correction After Correction Select U2 in the User mode. Press the Exposure Mode key to display d*.
  • Page 144 Miscellaneous Code Setting Value Initial Setting 0.5mm 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm U3: Auto Power Save Time it takes the unit to be automatically set into the Power Save mode can be set. Select U3 in the User mode. Press the Exposure Mode key to display d*.
  • Page 145 Miscellaneous U4: Paper Feeding Tray Size The size and direction of the paper loaded in the Paper Feeding Tray can be set with this function. Select U4 in the User mode. Press the Exposure Mode key to display d*. Press the Exposure Adjustment key (Darker or Lighter) to select the desired setting value.
  • Page 146 Miscellaneous Press the Exposure Adjustment key (Darker or Lighter) to select the desired setting value. Press the Start key to validate the setting value. Code Setting Value Initial Setting Turns OFF Date Print and Character Overlay functions Date Print function (upper right) Date Print function (lower right) Date Print function (upper left) Date Print function (lower left)
  • Page 147 Miscellaneous U7: Imprint Mode Set Time-of-day can be corrected for the Date Print function when it becomes wrong. Select U7 in the User mode. When the Exposure Mode key is pressed, both the Exposure Display and Multi-Print Display light up steadily. In the initial condition, the year default setting is displayed.
  • Page 148 Miscellaneous U8: Total Scan Counter The number of scan sequences carried out by the Scanner can be displayed with this function. Select U8 in the User mode. Press the Start key. The number of scan sequences so far carried out by the Scanner is displayed.

  • Page 149: System Settings By The Dealer

    Miscellaneous System Settings by the dealer System Settings Description Selection Initial Setting Auto reset Setting changes made to the control Enabled (200V) panel that are not used within 60 sec- Disabled (120V) onds of being input are automatically cancelled and the system reverts back to the original settings.
  • Page 150 Miscellaneous System Settings Description Selection Initial Setting Contrast setting To view subtle images with standard Lighter ranges of density clearly: Light (-1 ~ -7) Normal To bring out the darker and lighter ranges of an image: Dark (+1 ~ +7) Darker The print function After a toner empty condition or toner...

  • Page 151: For Key Operator's Use

    Miscellaneous For Key Operator’s Use When you need to call for service, the Key Operator should be prepared to provide the following information to the authorized Dealer. 1. Your Company Name, Address, Telephone Number, Department Name, Floor Number, Machine Location, etc. 2.
  • Page 152 Miscellaneous 8-16...
  • Page 154 Copyright 2008.10 0816-7724-02 2008 KYOKKO SEIKO CO., LTD.

This manual is also suitable for:

Ms7000 mkii

Table of Contents
