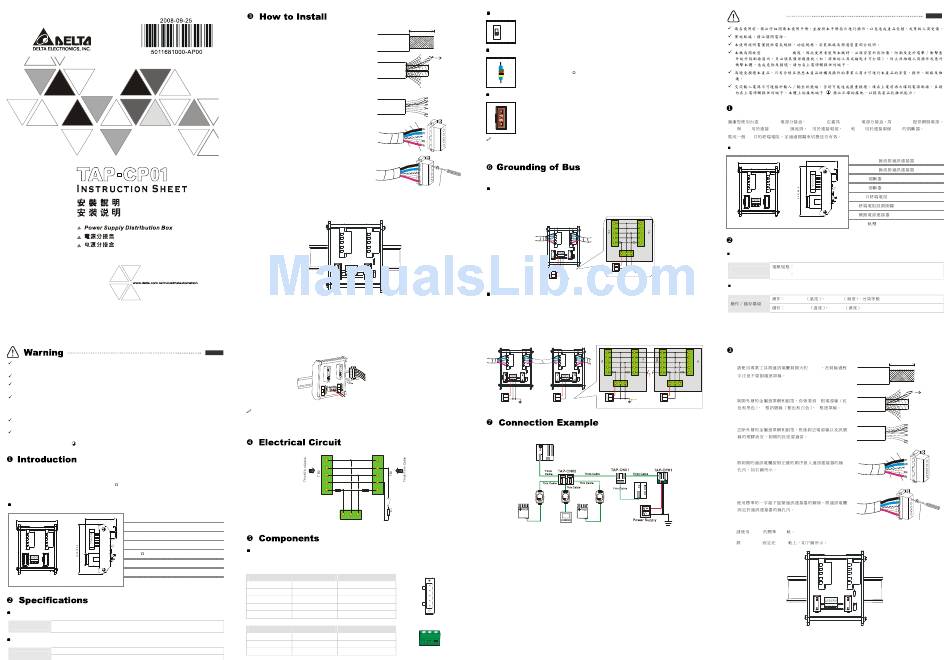

Please read this instruction sheet carefully before use and follow the sheet to operate TAP-CP01 in order to prevent
damages on the device or injuries to staff.
Switch off the power before wiring.
This instruction sheet only provides introductory information on electrical specifications, functions, wiring,
trouble-shooting and peripherals for TAP-CP01.
TAP-CP01 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust, humidity,
electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key
or specific tools are required to open the enclosure) in case danger and damage on the device may occur. DO NOT
touch any terminal when the power is switched on.
In order not to damage it, only qualified professional staff familiar with the structure and operation of TAP-CP01
can stall, operate, wire and repair it.
DO NOT connect input AC power supply to any of the I/O terminals; otherwise serious damage may occur. Check all
the wiring again before switching on the power and DO NOT touch any terminal when the power is switched on.
Make sure the ground terminal
is correctly grounded in order to prevent electromagnetic interference.
Thank you very much for choosing Delta TAP-CP01 Power Supply Distribution Box. TAP-CP01 supplies power
to DeviceNet. TB1 and TB2 connect to DeviceNet cable. J1 connects to the power supply. EF1 and EF2
connect to two 7.5A fuses. TAP-CP01 formulates a 121 termination resistance, which is switched by a setup
switch.
Product Profile & Outline
1 DeviceNet cable connector
53.9
71.2
[2.12]
[2.80]
2 DeviceNet cable connector
3 7.5A fuse
4 7.5A fuse
5 121 termination resistance
6 Termination resistance setup switch
7 Network power supply connector
Unit: mm [inch]
8 DIN rail
Electrical Specifications
Voltage: 11 ~ 25V DC
Power Input
Current: 7.5A max
Environment
o
o
Operation: 0
C ~ 55
C (temperature), 50 ~ 95% (humidity), pollution degree 2
Operation/storage
o
o
Storage: -25
C ~ 70
C (temperature), 5 ~ 95% (humidity)
Approx. 30mm
① Use efficient tool to peel the communication cable for
approx. 30mm. DO NOT damage the shielded cable
while peeling.
Shielded cable
② Peel off the metallic shielded net and foil, and you will
find 2 power cables (in red and black), 2 signal cables
(in blue and white) and 1 shielded cable.
③ Peel off the exterior metallic shielded net, foil and the
plastic cover of the power cable and signal cable in
proper length.
Black (V-)
Blue (CAN_L)
Shielded cable (CAN_SHLD)
④ Insert the peeled communication cables into the holes in
the connector in correct order.
Red (V+)
White (CAN_H)
⑤ Tighten the screws on the connector by a slotted
screwdriver and fix the communication cables in the
holes in the connector.
Screw by a slotted screwdriver.
⑥ Use standard 35mm DIN rail.
⑦ Install TAP-CP01 onto the DIN rail.
⑧ Insert the connector into TAP-CP01.
Insert the communication connector into
TAP-CP01 communication terminal.
Connect 24VDC power supply to
TAP-CP01 network power supply
connector.
Notes:
1. Use only wires specifically designed for DeviceNet wiring.
2. DO NOT place the signal cable and power cable in the same wiring circuit.
V-
V-
L
L
S
S
H
H
V +
V +
E F2
E F1
V +
V-
S
J1
DeviceNet Connector
To connect to the DeviceNet network, use the connector enclosed with TAP-CP01 or any connectors you can
buy in the store for wiring.
PIN
Signal
Description
V-
V-
0V DC
V+
H
L
CAN_L
Signal-
S
S
SHIELD
Shielded cable
L
V-
H
CAN_H
Signal+
V+
V+
24V DC
PIN
Signal
Description
V+
V+
24V DC
V-
V-
0V DC
V+
V- S
S
SHIELD
Shielded cable
Termination Resistance Setup Switch
The termination resistance switch is used for determining whether the resistance is valid.
ON
OFF
ON = Valid; OFF = Invalid
Termination Resistance
TAP-CP01 formulates a 121 termination resistance.
Fuse
TAP-CP01 formulates two 7.5A fuses, EF1 and EF2.
Notes:
When you are using the fuse and remove the fuse from the slot, the network power supply for the corresponding branch
will be cut off. For example, once EF1 is removed, the network power supply for the bus connected at TB1 will be cut off.
The entire network can contain only one earth point to avoid circulating current.
Single Power Supply
Connect V- and the shielded cable to the earth using 25mm copper net or 8AWG copper cable of length shorter
than 3m.
V-
V-
L
L
S
S
H
H
V+
V+
EF2
EF1
J1
V-
S
V+
V+
V-
V+
Power Supply
V-
Power Supply
Multi Power Supply
When many power supplies are connected in a network, connect V- to V- and disconnect V+ to V+. Only one
earth point is allowed in the network.
V-
V-
V-
V-
L
L
L
L
S
S
S
S
H
H
H
H
V+
V+
V+
V+
EF2
EF1
EF2
EF1
Disconnect V+
J1
J1
V+
V-
S
V+
V-
S
V+
V+
V+
V+
V-
V-
V-
V-
One earth
point only.
Power Supply
Power Supply
Power Supply
Power Supply
Establishing a network through TAP-CP01:
① To install TAP-CP01 at the starting point or end point of the network, you have to switch ON the termination
resistance. To install TAP-CP01 in the middle of the network, you have to switch OFF the termination
resistance.
② When using TAP-CP01 to establish a DeviceNet network, the thin cable cannot be longer than 6m.
