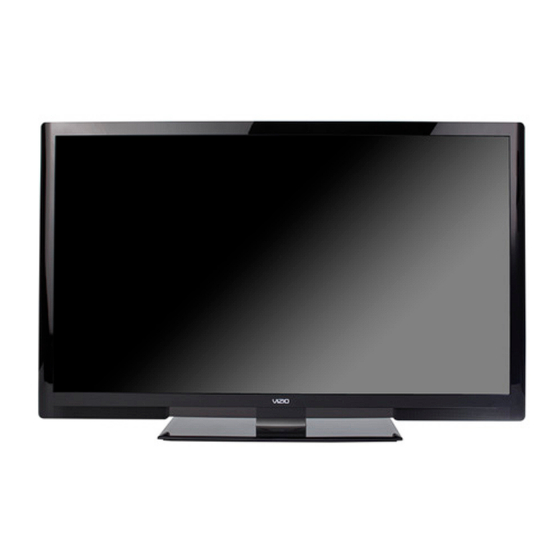

Vizio M3D421SR User Manual

Theater 3d lcd hdtv with vizio internet apps
Hide thumbs Also See for M3D421SR:
Table of Contents

Advertisement

Quick Links

THEATER 3D
LCD HDTV WiTH Vizio inTERnET Apps
™
™
M3d420SR / M3d421SR / M3d460SR / M3d550SR
user manual

Advertisement

Table of Contents
loading

Related Manuals for Vizio M3D421SR

Summary of Contents for Vizio M3D421SR

  • Page 1 THEATER 3D LCD HDTV WiTH Vizio inTERnET Apps ™ ™ M3d420SR / M3d421SR / M3d460SR / M3d550SR user manual...
  • Page 2 This product qualifies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default © 2011 Sensio Technologies Inc. RealD 3D Certified picture settings or enabling other features will increase All rights reserved.
  • Page 3 My Product Information And congratulations on your new VIZIO HDTV. To get the most out of your new VIZIO product, read these instructions before using your product and retain them for future reference. Be sure to inspect the package contents to ensure there are no missing or damaged parts.
  • Page 4 M3D420SR / M3D421SR / M3D460SR / M3D550SR Important Safety Instructions to rain or moisture, does not operate normally or has been dropped. • Unplug the power cord before cleaning your TV. Your DTV is designed and manufactured to operate within defined design • When moving your TV from an area of low temperature to an area of limits. Misuse may result in electric shock or fire. To prevent your TV from being high temperature, condensation may form in the housing. Wait before damaged, the following instructions should be observed for the installation, turning on your TV to avoid causing fire, electric shock, or component use, and maintenance of your TV.
  • Page 5 M3D420SR / M3D421SR / M3D460SR / M3D550SR • Do not overload power strips and extension cords. Overloading can cause the batteries to leak which can damage the remote control or result in fire or electric shock. injure the operator. Do not expose batteries to excessive heat such as sunshine, fire or the like. • The wall socket should be installed near your TV and easily accessible. • If any of the following occurs, contact the dealer: • Only power of the marked voltage can be used for your TV. Any other - The power cord fails or frays. voltage than the specified voltage may cause fire or electric shock. - Liquid sprays or any object drops into your TV. • Do not touch the power cord during lightning. To avoid electric shock, - Your TV is exposed to rain or other moisture. avoid handling the power cord during electrical storms. - Your TV is dropped or damaged in any way. - The performance of your TV changes substantially. • Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from damage due to • This apparatus shall not be exposed to dripping or splashing and power surges. no objects fill with liquids, such as vases, shall be placed on the apparatus. • Do not attempt to repair or service your TV yourself. Opening or removing the back cover may expose you to high voltages, electric • The mains plug or appliance coupler is used as the disconnect device, shock, and other hazards. If repair is required, contact your dealer and the disconnect device shall remain readily operable. refer all servicing to qualified service personnel. • CAUTION - These servicing instructions are for use by qualified service • WARNING: Keep your TV away from moisture. Do not expose your TV...
  • Page 6 M3D420SR / M3D421SR / M3D460SR / M3D550SR Television Antenna Connection Protection DTV Transition Advisory If an outside antenna/satellite dish or cable system is to be connected to the TV, The nationwide switch to digital television broadcasting was complete on June make sure that the antenna or cable system is electrically grounded to provide 12, 2009.
  • Page 7 M3D420SR / M3D421SR / M3D460SR / M3D550SR Important Safety Information for Viewing 3D Content You may experience discomfort while watching 3D content. You may feel symptoms of eye strain, vision fatigue, color or depth distortion, motion sickness, nausea, dizziness, disorientation, or other discomforts. If you experience any of these symptoms, stop watching and take a break for at least thirty minutes before resuming.

  • Page 8: Table Of Contents

    Table of Contents Installing the TV ............... 1 Setting the Auto Power Off Feature ............. 15 Adjusting the Picture Settings ..............16 Inspecting the Package Contents ............1 Adjusting the Picture Size and Position ..........17 Installing the TV ..................1 Adjusting the Color Temperature ............
  • Page 9 M3D420SR / M3D421SR / M3D460SR / M3D550SR Troubleshooting & Technical Support........42 Turning the VIZIO Logo On or Off ............30 Configuring Bluetooth Devices ............... 30 Specifications ................44 Using the Help Menu ................31 Displaying System Information ............31 Limited Warranty ..............

  • Page 10: Installing The Tv

    • If an earthquake occurs and the TV is not properly secured To install the TV stand: 1. Place the TV screen-down on a clean, flat surface. To prevent scratches or VIZIO 3D LED LCD HDTV with Stand Remote Control with damage to the screen, place the TV on Batteries a soft surface, such as carpet, rug, or blanket.

  • Page 11: Installing The Tv On A Wall

    M3D420SR / M3D421SR / M3D460SR / M3D550SR To install your TV on a wall: 4. Move the TV with attached stand into 1. Disconnect any cables connected to an upright position and place on a flat, your TV. level, and stable surface. 5. To ensure proper ventilation, leave at 2.

  • Page 12: Installing Your Tv For 3D Viewing

    Correct 3D Viewing Distance and Angle In the examples below, all of the viewers are experiencing the best possible 3D For the best viewing experience, VIZIO recommends that you install the TV with picture quality. the viewing distance and viewing angle in mind. When viewing 3D content, it is important that you view the TV straight-on, or some of the 3D effect may be lost.

  • Page 13: Controls And Connections

    Front Panel Remote Control Sensor: When using the remote, point it directly at this Volume Up sensor. VIZIO Light: When the TV is on, the light is white. When the TV Volume Down is off, the light is dimmed. Input Right Side Panel Power: Turn the TV on or off.

  • Page 14: Bluetooth Remote Control

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Bluetooth Remote Control Power/Standby: Turn the TV on or off. Info: Display the Info Window. Arrow: Navigate the on-screen menu and episode guide. OK: Select highlighted menu option. Menu: Display the on-screen menu.

  • Page 15: Remote Control (Slide Out)

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Remote Control (Slide Out) VIA Shortcut Buttons Move/Delete App from VIA Dock Change Screen Size (when VIA Sidebar is open) View Settings for Active App Exit App/Exit VIA Dock VIA Shortcut Buttons Arrow...

  • Page 16: Rear Panel

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Rear Panel Ethernet: Connect ethernet cable from home network. 3.5mm Audio Out Component/ AUDIO Composite: Connect component or composite video/audio device. Optical Audio Out DIGITAL RGB PC: Connect RGB cable from computer. AUDIO RF/Coaxial: Connect RF/Coaxial device.

  • Page 17: Connecting Your Devices

    Connecting Your Devices Connecting Your Devices Your HDTV can be easily connected to an external device: • DVD or Blu-Ray player Once you have determined the best available connection type on both your • Video game console device and the TV, ensure you have the corresponding cable. • Cable box To connect a device to the TV: • External antenna...
  • Page 18 M3D420SR / M3D421SR / M3D460SR / M3D550SR Select one of the connection types. Use the cable(s) shown to connect the TV to your device. Select One: BEST HDMI DIGITAL DIGITAL / COAXIAL ANALOG ANALOG BETTER COMPONENT ANALOG GOOD COMPOSITE ANALOG Device Connection Chart...

  • Page 19: Setting Up Your Network Connection

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Setting Up Your Network Connection Your TV is internet-ready, and can be connected to your home network in two ways: • Wired, using the RJ45 (ethernet) connector on the back panel • Wirelessly, using your home wireless network Once you have connected to your home network and the Internet, you can use VIA apps to deliver popular online content to your TV.

  • Page 20: Completing The First-Time Setup

    Completing the First-Time Setup The first time you turn on the TV, the Setup App will guide you through each of the 4. Select the name of your wireless steps necessary to get your TV ready for use. network from the list of available networks and press OK.

  • Page 21: Using The On-Screen Menu

    Using the On-Screen Menu Changing the 3D Mode Your TV features an easy-to-use on-screen menu. To open the on-screen menu, press the To correctly view 3D content, you must set the 3D mode to match the 3D format MENU button on the remote. You can also of the content.

  • Page 22: Setting The Screen Aspect Ratio

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Setting the Screen Aspect Ratio The TV can display images in five different modes: Wide, Zoom, Normal, Panoramic, Use the table below to determine the best aspect ratio for your content type. and Stretch. Each mode displays content according to the content’s original format.

  • Page 23: Setting Up Closed Captioning

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Changing the Screen Aspect Ratio Setting Up Closed Captioning The TV can display images in four different modes: Wide, Zoom, Normal, and Your TV can display closed captions for programs that include them. Closed Stretch. Each mode displays the picture differently. captions display a transcription of a program’s dialogue.

  • Page 24: Changing The Appearance Of Digital Closed Captions

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Changing the Appearance of Digital Closed Captions Activating the Sleep Timer Digital closed captions can be displayed according to your preference. When activated, the TV’s sleep timer will turn the TV off after a set period of time. To change the appearance of digital closed captions: To use the sleep timer: 1.

  • Page 25: Adjusting The Picture Settings

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adjusting the Picture Settings • Custom picture mode allows you to manually change each of the picture settings: Your TV display can be adjusted to suit your preferences and viewing conditions. Backlight - Adjusts the LED brightness to affect the overall brilliance of the picture. This option is not available unless Ambient To adjust the picture settings: Light Sensor is set to OFF.

  • Page 26: Adjusting The Picture Size And Position

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adjusting the Picture Size and Position Adjusting the Color Temperature When displaying an image from the HDMI or RGB input, the size and position of Adjusting the color temperature will change the “warmness” or “coolness” of the the display image can be adjusted. white areas of the picture.

  • Page 27: Adjusting The Advanced Picture Settings

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adjusting the Advanced Picture Settings • Ambient Light Sensor - The ambient light sensor detects the light levels in the room and automatically adjusts the backlight for the best To adjust the advanced picture settings: picture. Select On or Off. 1. From the Picture Settings menu, use 4. When you have finished adjusting the Advanced Picture Settings, press the the Arrow buttons on the remote to EXIT button on the remote.

  • Page 28: Adjusting The Audio Settings

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adjusting the Audio Settings • Reset Audio Mode - Restores the audio settings to the factory defaults. See Resetting the Audio Settings on page 20 . To adjust the audio settings: 4. When you have finished adjusting the audio settings, press the EXIT button on the remote. 1. Press the MENU button on the remote. The on-screen menu is displayed.

  • Page 29: Resetting The Audio Settings

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Resetting the Audio Settings Using the Network Connection Menu To reset the audio settings to the factory default settings: Your TV is internet-ready, featuring both an ethernet port and built-in high-speed 1. Press the MENU button on the remote. The on-screen menu is displayed.

  • Page 30: Changing The Advanced Network Settings

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Changing the Advanced Network Settings To connect to a wireless network whose network name (SSID) is not being broadcast: Advanced users can fine-tune the network settings using the Manual Setup feature. 1. Press the MENU button on the remote. The on-screen menu is displayed.

  • Page 31: Testing The Network Connection

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Testing the Network Connection Changing the TV Settings You can test the TV’s connection to your network and examine signal strength, Using the TV settings menu, you can: download speed, and other information via the Test Connection menu. • Change the input source To test the TV’s network connection: • Set up the TV tuner...

  • Page 32: Setting The Tuner Mode

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Setting the Tuner Mode Scanning for Channels If you are using a device that is connected to the RF input, such as an external Before the TV can detect and display channels and their associated information, antenna or cable TV connection, you must set the tuner mode.

  • Page 33: Adding New Channels

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adding New Channels To add a single new analog channel: Occasionally, you may need to add a new analog channel or add a new range of 1. From the Settings menu, highlight Add channels. You can do this by using the Partial Channel Search and Add Analog Analog Channel.

  • Page 34: Skipping Channels

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Skipping Channels Changing the Audio Language After a channel scan is completed, you may find that some channels are too weak Some digital free-to-air and cable channels broadcast programs in more than one to watch comfortably. There may also be some channels you do not want to view.

  • Page 35: Changing The Names Of The Inputs

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Changing the Names of the Inputs Using the Parental Controls To make it easier to recognize the different devices attached to the inputs on your The TV’s parental controls allow you to prevent the TV from displaying certain TV, you can rename the inputs. For example, if you have a DVD player connected channels or programs without a password.

  • Page 36: Locking And Unlocking Channels

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Locking and Unlocking Channels Blocking and Unblocking Content by Rating When a channel is locked, it will be inaccessible. Locking a channel is a good way A channel may sometimes broadcast programs that are meant for children, and to prevent children from viewing inappropriate material. at other times broadcast programs that are meant for mature audiences. You may...

  • Page 37: Changing The Parental Control Passcode

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Changing the Parental Control Passcode Changing the On-Screen Menu Language If you use the parental controls, you should change the passcode to prevent Your TV can display the on-screen menu in different languages. children from accessing inappropriate material. To change the on-screen menu language: 1. From the Parental Controls menu, 1.

  • Page 38: Setting The Time Zone

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Setting the Time Zone Adjusting the CEC Settings To ensure the correct time is displayed when you press the INFO button, set the The CEC function on your TV enables you to control HDMI-connected devices TV’s time zone: with the included remote without any additional programming.

  • Page 39: Turning The Vizio Logo On Or Off

    Configuring Bluetooth Devices Turning the VIZIO Logo On or Off The VIZIO logo on the front of your TV is set to light up when the TV is on. You can change this setting if you prefer the logo to be off. Bluetooth devices such as headphones are easily connected (paired) to your TV.

  • Page 40: Using The Help Menu

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Using the Help Menu Restoring the TV to Factory Default Settings All of the on-screen menu settings can be reset to the factory defaults. You can use the TV’s Help menu to: If you restore the TV to the factory default settings, all changes you • Display system information...

  • Page 41: Using Guided Setup

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Using Guided Setup Using the Info Window The TV’s Setup App can be used to easily set up the TV tuner or to connect the The Info Window can be displayed by pressing the INFO or GUIDE button on TV with your network.

  • Page 42: Using The Usb Media Player

    Using the USB Media Player Using the USB Media Player Playing USB Media To play USB media, you must first save your music or images onto a USB thumb The USB Media Player allows you to connect a USB thumb drive to your TV and drive.
  • Page 43 M3D420SR / M3D421SR / M3D460SR / M3D550SR Back Button Progress Bar Highlight this button and press Displays the duration of the currently- Now Playing Information OK if you would like to return playing song. The blue bar will lengthen Displays song title, album title, to the previous screen.
  • Page 44 M3D420SR / M3D421SR / M3D460SR / M3D550SR Back Button Back Button Highlight and press OK to Highlight this button and press return to left column. OK if you would like to return to the previous screen. Current Folder Displays the folder path.

  • Page 45: Using Vizio Internet Apps

    Using VIZIO Internet Apps Using the VIA Dock VIZIO Internet Apps (VIA) delivers popular online content to your TV. VIA features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand! The VIA Dock is where all of your VIA Apps are accessed.

  • Page 46: Adding A New App To The Via Dock

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Adding a New App to the VIA Dock Creating and Managing User Profiles Though your TV arrives pre-loaded with featured VIA Apps, new Apps are User profiles allow you to keep a customized set of Apps in the VIA Dock. For continually being added to the Widget Gallery.

  • Page 47: Creating A New User Profile

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Creating a New User Profile 16. If you would like to prevent the user of this new profile from installing new Apps, turn Limit Profile to On. (You need an Owner PIN. Enter it after To create a new user profile: turning Limit Profile to On.)

  • Page 48: Removing A User Profile

    M3D420SR / M3D421SR / M3D460SR / M3D550SR Removing a User Profile Restoring the VIA Dock to the Factory Default Settings To remove a user profile: The VIA Dock, and all of its installed Widgets can be restored to the factory default 1.

  • Page 49: How To View 3D

    We never notice, because we are able to combine these 1. Ensure you have the following equipment: pictures into one three-dimensional image. • VIZIO Theater 3D HDTV The VIZIO Theater 3D HDTV takes advantage of this phenomenon to create a • 3D Blu-ray player with a Blu-ray 3D disc (sold separately) ™...

  • Page 50: Getting The Best 3D Picture

    Getting the Best 3D Picture Correct 3D Viewing Distance and Angle For the best 3D viewing experience, VIZIO recommends that you install the TV In the examples below, all of the viewers are experiencing the best possible 3D with the viewing distance and viewing angle in mind. When viewing 3D content, picture quality.

  • Page 51: Troubleshooting & Technical Support

    If, after using this troubleshooting guide, you are still experiencing an issue with • Check the audio settings. See Adjusting the Audio Settings on page your TV, contact VIZIO’s Support Department. Quality customer support and 18. Ensure the speakers are set to On.
  • Page 52 M3D420SR / M3D421SR / M3D460SR / M3D550SR The picture is distorted. When I change input source, the display image changes size. • Nearby electrical devices may be interfering with the TV. Separate the • The TV remembers the viewing mode on each input source. If the TV from electrical appliances, cars, or flourescent lights.

  • Page 53: Specifications

    Specifications M3D420SR M3D460SR M3D550SR M3D421SR Screen Size: 42” Class 46” Class 55” Class Diagonal Viewable: 42.00” 46.00” 54.64” Dimensions w/ Stand: 39.88 x 26.52 x 9.56” 43.35 x 28.19 x 10.23” 51.18 x 32.61 x 11.22” w/o Stand: 39.88 x 24.99 x 1.23”...
  • Page 54 M3D420SR / M3D421SR / M3D460SR / M3D550SR M3D420SR M3D460SR M3D550SR M3D421SR OSD Languages: English, Spanish, French English, Spanish, French English, Spanish, French Audio Outputs: Optical, 3.5mm Stereo Optical, 3.5mm Stereo Optical, 3.5mm Stereo Number of Speakers: Watts/Channel: SRS StudioSound, SRS StudioSound,...

  • Page 55: Limited Warranty

    Covers units purchased as new in United States and Puerto Rico Only. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR VIZIO provides a warranty to the original purchaser of a new Product against defects DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED...

  • Page 56: Legal & Compliance

    Your VIA device may contain GPL executables and LGPL libraries that are subject to the PL2.0/LGPL2.1 License Agreements. VIZIO offers to provide source code 1. Reorient or relocate the receiving antenna.
  • Page 57 VIZIO Software to another INTERNET APPLICATIONS (“VIA”) TO ACCESS THIRD PARTY INTERNET party, provided that: (a) the transfer must include the VIZIO HD TV, including all its PRODUCT OFFERINGS AND SERVICES (“VIA SERVICES”) AND THE VIZIO component parts, original media, printed materials and this License Agreement;...
  • Page 58 VIZIO risk and that VIZIO shall have no liability to you for content that may be found to Software, the VIA Services, content viewed and attached peripherals, products be offensive, indecent, or objectionable.
  • Page 59 MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION. DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU. In no event shall VIZIO’s total liability to you for all damages (other than as may be required by 11. Disclaimer of Warranties. YOU EXPRESSLY ACKNOWLEDGE AND AGREE...
  • Page 60 Notes...
  • Page 61 M3D420SR / M3D421SR / M3D470SR / M3D550SR...
  • Page 62 M3D420SR / M3D421SR / M3D470SR / M3D550SR...
  • Page 64 © 2011. All rights reserved. the v, viZiO, viZiO internet Apps, theAter 3d, Full ArrAy truled, edge lit rAZOr led, 240hZ sps, 480hZ sps, entertAinment FreedOm And entertAinment FreedOm FOr All nAmes, lOgOs And phrAse Are registered Or unregistered trAdemArks OF viZiO, inc.
