Delta Electronics Delphi NC Series Specification Sheet
Delta electronics inc. converter specification sheet.

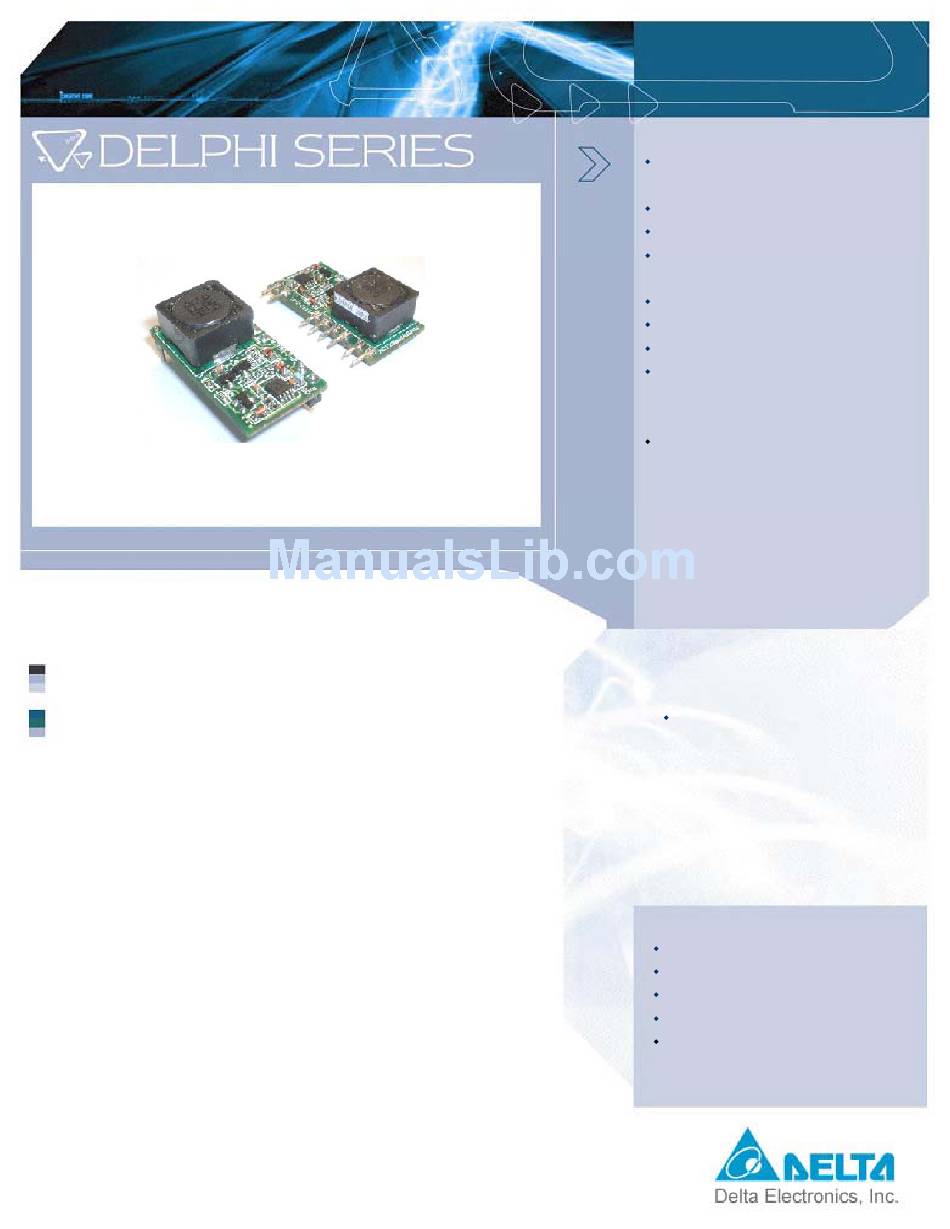

Delphi NC Series Non-Isolated Point of Load
DC/DC Power Modules: 12Vin, 0.9V-5.0Vout, 6A
The Delphi NC Series, 12V input, single output, non-isolated point of
load DC/DC converters are the latest offering from a world leader in
power systems technology and manufacturing -- Delta Electronics,
Inc. This product family provides up to 6A of power in a vertical or
horizontal mounted through-hole package. The NC12S0A0X06
presented in this datasheet will provide up to 6A of output current and
the output can be resistor- or voltage-trimmed from 0.9Vdc to 5.0Vdc.
It provides a very cost effective point of load solution. With creative
design technology and optimization of component placement, these
converters possess outstanding electrical and thermal performance,
as well as extremely high reliability under highly stressful operating
conditions.
DATABRIEF
DB_NC12S06A_02022007
FEATURES
High Efficiency:
91% @ 12Vin, 5V/6A out
Voltage and resistor-based trim
No minimum load required
Output voltage programmable from
0.9Vdc to 5.0Vdc via external resistors
Fixed frequency operation
Input UVLO, output OCP, SCP
Remote ON/OFF (Positive)
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS 18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada)
Recognized, and TUV (EN60950) Certified
OPTION
Vertical or horizontal versions
APPLICATIONS
DataCom
Distributed power architectures
Servers and workstations
LAN/WAN applications
Data processing applications
Summary of Contents
-
Page 1
Delphi NC Series Non-Isolated Point of Load DC/DC Power Modules: 12Vin, 0.9V-5.0Vout, 6A The Delphi NC Series, 12V input, single output, non-isolated point of load DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing -- Delta Electronics, Inc.
-
Page 2
SPECIFICATIONS GENERAL SPECIFICATIONS Input Voltage Switching Frequency Typical Operating Temperature Typical MTBF Size (Vertical Version) (1.20”×0.61”×0.46”) Size (Horizontal Version) (1.20”×0.61”×0.48”) PART NUMBERING SYSTEM Product Number of Input Voltage Series outputs 12- 10.2~13.8V S- Single Non-isolated output Converter MODEL LIST Model Name Packaging NC12S0A0V06PNFA Vertical...
