Delta Leland 978-DST Specification Sheet

978-DST 978-SD-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
3 5/8"
(92 mm)
2"
(51 mm)
2 1/8 "
2 13/16"
(53 mm)
(71 mm)
10 3/8"
(263 mm)
1 1/6 " Dia.
(27 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-K-978-DST Rev. A
2 3/8 "
(60 mm)
7 3/16"
7 1/8"
(182 mm)
(181 mm)
(64 mm)
Max. Deck
Thickness
2 1/8"
(53 mm)
36 3/4"
(933 mm)
37 3/4"
(959 mm)
4"
(102 mm)
Min.
9 3/16"
(233 mm)
14 1/4"
(362 mm)
5 13/16"
(147 mm)
2 1/2"
1 3/8"
(35 mm)
Hole
Size
16 1/2"
(419 mm)

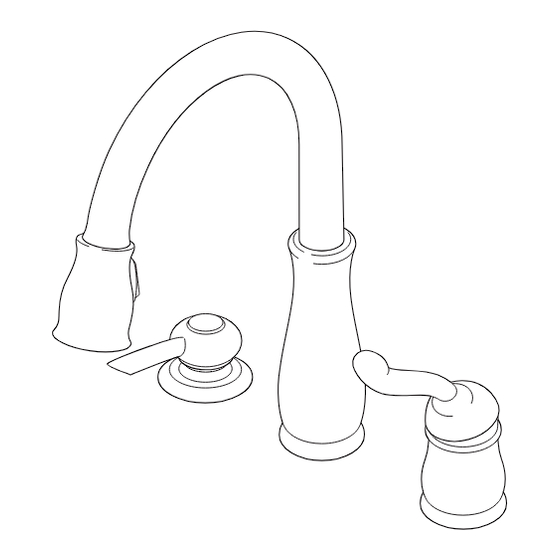

KITCHEN FAUCETS
®
■ Leland Collection
■ Single Handle Widespread
■ 2 or 3 Hole Sink Applications
■ Optional Soap Dispenser
■ DIAMOND™ Seal Technology
■ Integrated Supply Tubes
■ 2-Function Pull-Down
■ MagnaTite™ Docking System
STANDARD SPECIFICATIONS:
•
Single handle, 2-function pull-down kitchen faucets
for exposed mounting on two and three hole sinks.
•
14 1/4" (362 mm) high, 9 3/16" (233 mm) long,
spout swings 360˚.
•
Control shall return to neutral position when
faucet is turned off.
•
Red/blue graphics on handle button to indicate
hot/cold temperature.
•
Integral double check valves in sprayer assembly.
•
Disposable hose lead to aid installation.
•
Recommended hole size 1 3/8" (35mm) on 4"
(102mm) centers.
•
3/8" O.D. straight, staggered pex supply tubes -
36 3/4" (934 mm) and 37 3/4" (959 mm) long.
•
Touch-Clean 2 function (stream spray) sprayhead.
®
•
Magnetic docking system secures sprayer to spout.
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A1 12.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
U P
®
C
®
Pressure (kPa)
0 69 138 207 276 345 414
6
5
4
3
2
1
0
0 10 20 30 40 50 60
Pressure (PSI)
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana
483 552 621
22.7
18.9
15.1
11.4
7.6
3.8
0
70 80 90
