Page 2: Table Of Contents
Adjusting the Lens ��14 Completion ��15 Accessing the Network Camera 16 Using Web Browsers ��16 Using RTSP Players ��18 Using 3GPP-compatible Mobile Devices ��19 Using VIVOTEK Recording Software ��20 Main Page 21 Client Settings 25 Configuration 27 System ��28 Security ��30 HTTPS ��31...
Page 3: Read Before Use

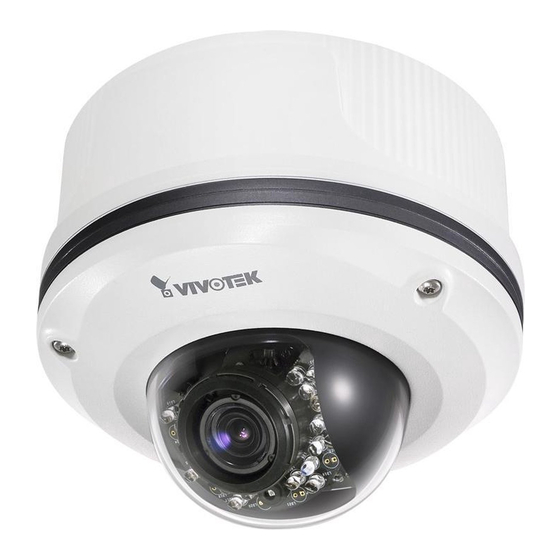

Featuring a 2-megapixel sensor, the FD8361 is able to provide extremely wide coverage with the finest details� Additionally, the camera is incorporated with high performance H�264 compression technology, and has adopted a number of innovative bandwidth-efficient technologies built into the camera, including cropping, ePTZ, and activity adaptive streaming�...
Page 4: Physical Description
VIVOTEK Physical Description Inner View IR LEDs (18 units, Vari-focal Lens distance 20m) (f= 3~9 mm) Light Sensor SD/SDHC Card Slot Rotation Adjustment Screw Tilt Adjustment Screw Pan Adjustment Screw NTSC/PAL Video Output Switch Status LED Reccessed Reset Button Focus Controller...
Page 5 Record the MAC address under the camera base before Network Camera RoHS installing the camera� Model No: FD8361 MAC:0002D1083236 CLASS A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 6: Hardware Reset
VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method� PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4 Ground Hardware Reset SD/SDHC Card Slot Status LED Reccessed Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation�...
Page 7: Installation 7
VIVOTEK Installation Hardware Installation First, use a screwdriver to loose the three screws and detach the dome cover from the camera base� Then, follow the steps below to install the camera to either a ceiling or a wall� Ceiling mount (with the bottom base) 1�...
Page 8 VIVOTEK Wall mount (with the bottom base) 1� Attach the supplied alignment sticker to the wall� 2� Using the 10 circles on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall� Then hammer the four supplied plastic anchors into the holes�...
Page 9 5� Using the three holes on the side of the camera base, insert the three supplied screws into the corresponding holes and secure them with a screwdriver� Drill hole Ceiling Hole Template Sticker NOTE ► The ground wire is directly connected and fixed on the FD8361 housing as shown below. User's Manual - 9...
Page 10: Network Deployment
VIVOTEK Network Deployment Setting up the Network Camera over the Internet This section explains how to configure the Network Camera to an Internet connection� 1� If you have external devices such as sensors and alarms, make the connection from the general I/O terminal block.
Page 11: Internet Connection With Static Ip
VIVOTEK IP address : 192.168.0.3 WAN (Wide Area Network ) WAN (Wide Area Network ) Subnet mask : 255.255.255.0 Router IP address : from ISP Router IP address : from ISP P Internet Default router : 192.168.0.1 LAN (Local Area Network) LAN (Local Area Network) Router IP address : 192.168.0.1...
Page 12 VIVOTEK Set up the Network Camera through Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable�...
Page 13: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4� After searching, the main installer window will pop up� Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer�...
Page 14: Ready To Use
VIVOTEK Ready to Use 1� Access the Network Camera on the LAN� 2� Retrieve live video through a web browser or recording software� Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by doing the...
Page 15: Completion
VIVOTEK To adjust the zoom factor and focus range 1� Loosen the zoom controller to adjust the zoom factor� Upon completion, tighten the zoom controller� 2� Loosen the focus controller to adjust the focus range� Upon completion, tighten the focus controller�...
Page 16: Accessing The Network Camera 16
3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
Page 17 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 30�...
Page 18: Using Rtsp Players
VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player 1� Launch the RTSP player� mpegable Player mpegable Player 2�...
Page 19: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 10�...
Page 20: Using Vivotek Recording Software
VIVOTEK Using VIVOTEK Recording Software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or...
Page 21: Main Page 21
VIVOTEK Main Page This chapter explains the layout of the main page� It is composed of the following sections: VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� VIVOTEK INC. Logo Host Name Camera Control Area...
Page 22 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page� For more information, please refer to Client Settings on page 25� Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera�...
Page 23 VIVOTEK Pause: Pause the transmission of the streaming media� The button becomes the Resume button after clicking the Pause button� Stop: Stop the transmission of the streaming media� Click the Resume button to continue transmission� Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer�...
Page 24 VIVOTEK Snapshot: Click this button to capture and save still images� The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format. Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation� The navigation screen indicates the part of the image being magnified.
Page 25: Client Settings 25
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 26: Mp4 Saving Options
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 27: Configuration 27
Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort� To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...
Page 28: System
VIVOTEK Advanced Mode Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
Page 29 VIVOTEK System Time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...
Page 30: Security
VIVOTEK Security This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.
Page 31: Https
VIVOTEK HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level� Enable HTTPS Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS"...
Page 32 VIVOTEK 4. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to view detailed information about the certificate. 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address bar and press Enter on your keyboard�...
Page 33 VIVOTEK Create self-signed certificate manually 1� Select this option� 2� Click Create to open the Create Certificate page, then click Save to generate the certificate. 3. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.
Page 34 VIVOTEK 3� If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups� 4. The pop-up window shows an example of a certificate request. 34 - User's Manual...
Page 35 VIVOTEK 5� Look for a trusted certificate authority that issues digital certificates� Enroll the Network Camera� Wait for the certificate authority to issue a SSL certificate; click Browse... to search for the issued certificate, then click Upload in the second column.
Page 36: Snmp
VIVOTEK SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 37: Network
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera� 1� You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 14 for details�...
Page 38 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses� Secondary DNS: Secondary domain name server that backups the Primary DNS� Primary WINS server: The primary WINS server that maintains the database of computer name and IP address�...
Page 39 VIVOTEK NOTE ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 40 VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 41 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6�5, Mozilla Firefox 3�0 or above�...
Page 42 VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3� The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4�...
Page 43 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request� ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS� Please follow the steps below to enable 802�1x settings: 1�...
Page 44 VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE ► The authentication process for 802�1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)�...
Page 45 VIVOTEK QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc�...
Page 46 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs�...
Page 47 VIVOTEK HTTP Advanced Mode To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 30 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest�...
Page 48 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 ~ 5> For example, when the Access name for stream 2 is set to video2�mjpg: 1� Launch Mozilla Firefox or Netscape� 2� Type the above URL command in the address bar� Press Enter�...
Page 49 To stop talking, click again� The FTP server allows the user to save recorded video clips� You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535�...
Page 50: Rtsp Streaming
VIVOTEK RTSP Streaming To utilize RTSP streaming authentication, make sure that you have set a password for the Network Camera first; please refer to Security on page 30 for details� Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest�...
Page 51 VIVOTEK RTSP port /RTP port for video, audio/ RTCP port for video, audio ■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554� ■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558�...
Page 52: Ddns
DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting� Provider: Select a DDNS provider from the provider drop-down list� VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet�...
Page 53 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 54: Access List
VIVOTEK Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)�...
Page 55 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player)�...
Page 56 VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List. For example: IP address 192�168�2�x will be blocked� Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Page 57: Audio And Video
Network Camera� This function can work seamlessly with VIVOTEK’s recording software� When an event occurs, the recording software can request time shift cache stream from the camera, which allows the user to get an earlier video data�...
Page 58 VIVOTEK Overlay title and time stamp on video: Select this option to place the video title and time on the video streams� Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be stamped on the video streams�...
Page 59 VIVOTEK 2009/11/30 13:44:17 White balance: Adjust the value for the best color temperature� ■ Auto The Network Camera automatically adjusts the color temperature of the light in response to different light sources� The white balance setting defaults to Auto and works well in most situations�...
Page 60 VIVOTEK Advanced Mode Privacy Mask Click Privacy Mask to open the settings page� On this page, you can block out sensitive zones to address privacy concerns� 2009/12/05 13:44:17 2009/12/05 13:44:17 ■ To set the privacy mask windows, follow the steps below: 1�...
Page 61 VIVOTEK Advanced Mode Sensor Settings Click Sensor Settings to open the Sensor Settings page� On this page, you can set the maximum exposure time, exposure level, and AGC (Auto Gain Control) settings� You can configure two sets of sensor settings: one for normal situations, the other for special situations, such as day/night/schedule mode.
Page 62 VIVOTEK If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Sensor Settings Profile Settings page as shown below. Please follow the steps beolw to setup a profile: 1� Check Enable this profile�...
Page 63 VIVOTEK Advanced Mode Viewing Window Click Viewing Window to open the Viewing Window Settings page� This Network Camera supports multiple streams with frame size ranging from 176 x 144 to 1600 x 1200� The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window)�...
Page 64 VIVOTEK Click Viewing Window to open the viewing region settings page� On this page, you can set the Region of Interest and the Output Frame Size for stream 1 ~ 3� Please follow the steps below to set up those settings for a stream: 1�...
Page 65 VIVOTEK Advanced Mode Cropping Setting Click Cropping Setting to open the Cropping Settings page� Please follow the steps below to set up cropping mode for mutiple streams: 1� Click Cropping Setting to open the window as shown below� 2� Select a Captured area from the drop-down list. The floating frame, the same as the one in the Global View window on the home page, will resize accordingly�...
Page 66 VIVOTEK Advanced Mode Video Quality Settings Click the stream item to display the detailed information� The maximum frame size will follow your settings in above sections� fixed This Network Camera offers real-time H.264, MPEG-4 and MJEPG compression standards (Triple Codec) for real-time viewing�...
Page 67 VIVOTEK ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
Page 68 VIVOTEK Day/Night Settings Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to B/W during night mode. IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let IR light into the sensor during low light conditions�...
Page 69: Audio Settings
VIVOTEK Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page�...
Page 70: Motion Detection
VIVOTEK Motion Detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2009/12/05 13:44:17 Motion Detection Setting 1: For normal situations Motion Detection Setting 2: Follow the steps below to enable motion detection:...
Page 71 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below�...
Page 72 VIVOTEK NOTE ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage� In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects�...
Page 73: Camera Tampering Detection
VIVOTEK Camera Tampering Detection This section explains how to set up camera temper detection� With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint� Please follow the steps below to set up the camera tamper detection function: 1�...
Page 74: Camera Control
VIVOTEK Camera Control This section explains how to control the Network Camera’s e-Pan/Tilt/Zoom operation. It allows users to quickly move the focus to a target area for close-up viewing without moving the camera physically� 2009/12/05 13:44:17 Select Stream: Select one of the stream 1~3 to set up the e-PTZ control� Please note that each stream can be set up with its own e-preset positions and e-patrol settings�...
Page 75 VIVOTEK E-Preset Positions A total of 20 preset positions can be configured. You can select preset positions for the camera to patrol. Please follow the steps below to preset a position: 1� Adjust the shooting area to the desired position using the buttons on the right side of the window�...
Page 76 VIVOTEK E-Patrol Settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Click a preset location on the list and click Select� 2� The selected preset location will be displayed on the Source list�...
Page 77 VIVOTEK Home page 2009/12/05 13:44:17 x1.0 ■ The e-Preset Positions will also be displayed on the home page� Select one from the drop-down list, and the Network Camera will move to the selected e-preset position� ■ If you have set up different e-preset positions for stream 1~3, you can select one of the video streams to display its separate e-preset positions�...
Page 78: Homepage Layout
Theme Options (the third column on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage� Logo Here you can change the logo at the top of your homepage�...
Page 79 VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
Page 80 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3� The palette window will pop up as shown below�...
Page 81: Application
Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will pop up. If you need more information, please ask for VIVOTEK technical support. Click to upload a file...
Page 82 VIVOTEK Event Settings In the Event Settings column, click Add to open the Event Settings page. On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event. A total of 3 event settings can be configured.
Page 83 VIVOTEK An event is an action initiated by a user-defined trigger source; it is the causal arrangement of the following three elements: Trigger, Event Schedule, and Action. Trigger This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera’s built-in motion detection mechanism or external digital input...
Page 84 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 73 for detailed information.
Page 85 VIVOTEK To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated.
Page 86 VIVOTEK When completed, click Save to enable the settings and click Close to exit Event Settings page. The new event settings / server settings / media settings will appear in the event drop-down list on the Application page. Here is an example of the Application page with an event setting: When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail.
Page 87: Server Settings
VIVOTEK Server Settings Click Add Server on Event Settings page to open the Server Setting page. On this page, you can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.
Page 88 VIVOTEK FTP: Select to send the media files to an FTP server when a trigger is activated. ■ Server address: Enter the domain name or IP address of the FTP server. ■ Server port By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.
Page 89 VIVOTEK HTTP: Select to send the media files to an HTTP server when a trigger is activated. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name if necessary. ■ Password: Enter the password if necessary.
Page 90: Media Settings
VIVOTEK Media Settings Click Add Media on the Event Settings page to open the Media Settings page. On this page, you can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured.
Page 91 VIVOTEK Video clip: Select to send video clips when a trigger is activated. ■ Source: The source of video clip, which will be identical to the time shift caching stream. For more information about time shift caching stream, please refer to page 57.
Page 92 VIVOTEK You can continue to select a server and media type for the event. Please go back to page 66 for detailed information. ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use.
Page 93 VIVOTEK The following is an example of a file destination with video clips: The format is: YYYYMMDD 20091120 Click to open the directory 20091121 20091122 Click to delete all recorded data Click to delete selected items Click 20091120 to open the directory:...
Page 94: Recording
VIVOTEK Recording Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE ► Before setting up this page, please set up the Network Storage on the Server Settings page first.
Page 95 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. Recording Settings Click Add to open the recording setting page. In this page, you can define the recording source, recording schedule, and recording capacity.
Page 96 VIVOTEK Source: Select the recording source (stream 1 ~ 4). Trigger: Select a trigger source. ■ Schedule: The server will start to record files on the local storage or network storage (NAS). ■ Network fail: Since network fail, the server will start to record files on the local storage (SD card).
Page 97: Local Storage
VIVOTEK Local Storage Advanced Mode This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, search for recorded files to playback, download, etc. no SD card SD Card Management SD card status: This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.
Page 98 VIVOTEK SD card control ■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one. ■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file.
Page 99 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Enter a key word to filter the Numbers of entries displayed on one page...
Page 100 VIVOTEK Download: Click on a search result to highlight the selected item in purple as shown above. Then click the Download button and a file download window will pop up for you to save the file. JPEGs to AVI: This functions only applies to “JPEG“ format files such as snapshots. You can select several snapshots from the list, then click this button.
Page 101: System Log
VIVOTEK System Log Advanced Mode This section explains how to configure the Network Camera to send the system log to the remote server as backup. Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup.
Page 102: View Parameters
VIVOTEK View Parameters Advanced Mode The View Parameters page lists the entire system’s parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page. 102 - User's Manual...
Page 103: Maintenance
VIVOTEK Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc. Reboot This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.
Page 104 VIVOTEK Export / Upload Files Advanced Mode This feature allows you to Export / Upload daylight saving time rules, custom language files, and setting backup files. Export daylight saving time configuration file: Click to set the start and end time of DST.
Page 105 Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
Page 106 VIVOTEK The following message is displayed when the upgrade has succeeded. Reboot system now!! This connection will close. The following message is displayed when you have selected an incorrect firmware file. Starting firmware upgrade... Do not power down the server during the upgrade.
Page 107: Url Commands For The Network Camera
VIVOTEK Appendix URL Commands for the Network Camera Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set...
Page 108: General Cgi Url Syntax And Parameters
VIVOTEK General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
Page 109: Set Server Parameter Values
VIVOTEK http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned. client When querying parameter values, the current parameter values are returned.
Page 110 (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n...
Page 111: Available Parameters On The Server
VIVOTEK Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server Valid values: VALID VALUES DESCRIPTION string[<n>] Text strings shorter than ‘n’ characters. The characters “,’, <,>,& are invalid.
Page 112 VIVOTEK text SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE). coordinate x, y coordinate (eg. 0,0) window size window width and height (eg. 800x600) NOTE: The camera should not be restarted when parameters are changed.
Page 113 VIVOTEK Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
Page 114 VIVOTEK 360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul, Yakutsk 380: GMT 09:30 Adelaide, Darwin 400: GMT 10:00 Brisbane, Canberra, Melbourne, Sydney, Guam, Vladivostok 440: GMT 11:00 Magadan, Solomon Is., New Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is.
Page 115 VIVOTEK This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results. restoreexceptlang Restore the system parameters to default <positive integer> values except the custom language file the user has uploaded.
Page 116 VIVOTEK 1 => Active, triggered do_i<0~(ndo-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered onlinenum_rtsp integer Current number of RTSP connections. onlinenum_httppush integer Current number of HTTP push server connections. eth_i0 <string> 1/99 Get network information from emac_link. Group: di_i<0~(ndi-1)>...
Page 117 VIVOTEK (get/set) type lan, Network connection type. pppoe preprocess 0~15 Stop related process before setting port value. resetip <boolean> 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot. 0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
Page 118 VIVOTEK cos_vlanid 1~4095 VLAN ID cos_video Video channel for CoS cos_audio Audio channel for CoS cos_eventalarm Event/alarm channel for CoS cos_management Management channel for CoS cos_eventtunnel Event/Control channel for CoS dscp_enable <boolean> Enable/disable DSCP dscp_video 0~63 Video channel for DSCP...
Page 119 VIVOTEK video.stream.count>1) s2_accessname string[32] Http server push access name for stream 3 (capability.protocol.spush_mjpeg =1 and video.stream.count>2) s3_accessname string[32] Http server push access name for stream 4 (capability.protocol.spush_mjpeg =1 and video.stream.count>3) s4_accessname string[32] Http server push access name for stream 5 (capability.protocol.spush_mjpeg =1 and...
Page 120 VIVOTEK (capability.protocol.rtsp=1 and video.stream.count>4) s0_audiotrack <integer> The current audio track for stream1. -1 => audio mute s1_audiotrack <integer> The current audio track for stream2. -1 => audio mute s2_audiotrack <integer> The current audio track for stream2. -1 => audio mute s3_audiotrack <integer>...
Page 121 VIVOTEK NAME VALUE SECURITY DESCRIPTION (get/set) user string[128] PPPoE account user name. pass password[64] PPPoE account password. Group: ipfilter NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable access list filtering. admin_enable <boolean> Enable administrator IP address. admin_ip String[44] Administrator IP address.
Page 122 VIVOTEK unsigned integer) exposurelevel Exposure level (product dependent) autoiris <boolean> Enable auto Iris. (product dependent) irismode fixed, Iris mode indoor, outdoor enablewdr <boolean> Enable/disable WDR (product dependent) enableblc <boolean> Enable backlight compensation. (product dependent) Set auto gain control to normal level or MAX level.
Page 123 VIVOTEK enablepreview <boolean> Preview sensor settings crop_preview <boolean> Preview crop settings crop_position <coordinate> Crop left-top corner coordinate. (x,y) crop_size <window size> Crop width and height. (WxH) (width must be 16x and height must be 8x) Group: videoin_profile_i<0~(m-1)> NAME VALUE SECURITY...
Page 124 VIVOTEK 320x240, 640x480 1.3M CMOS => 176x144, 320x240, 640x480, 800x600, 1280x1024 2M CMOS => 176x144, 320x240, 640x480, 800x600, 1280x960, 1600x1200 CCD => QCIF, 176x120, CIF, 352x240, 4CIF, 704x480 PAL => QCIF, 176x144, CIF, 352x288, 4CIF, 704x576 VS => QCIF, 176x120,...
Page 125 VIVOTEK 352x288, 4CIF, 704x480, 704x576 (product dependent) s<0~(m-1)>_enableeptz <boolean> Indicate whether to support eptz s<0~(m-1)>_mpeg4_intr 250, 500, Intra frame period in milliseconds. aperiod 1000, 2000, 3000, 4000 s<0~(m-1)>_mpeg4_rate cbr, vbr cbr, constant bitrate controlmode vbr, fix quality s<0~(m-1)>_mpeg4_qua 1~5,99 Quality of video when choosing vbr in “ratecontrolmode”.
Page 126 VIVOTEK s<0~(m-1)>_h264_maxfr 1~25, Set maximum frame rate in fps (for MPEG-4). 26~30 (only for NTSC or 60Hz CMOS) s<0~(m-1)>_h264_profil Indicate H264 profiles 0: baseline 1: main profile 2: high profile s<0~(m-1)>_mjpeg_qua 1 ~ 5,99 Quality of JPEG video. 0 is the customized manual input setting.
Page 127 VIVOTEK night, schedule daymodebegintime 00:00~23:59 Day mode begin time daymodeendtime 00:00~23:59 Day mod end time disableirled <boolean> Enable/disable IR led bwmode <boolean> Switch to B/W in night mode if enabled sensitivity low, Sensitivity of light sensor normal, high Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0)
Page 128 VIVOTEK NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings. saturation -5 ~ 5 Adjust saturation of image according to mode settings. contrast -5 ~ 5 Adjust contrast of image according to mode settings.
Page 129 VIVOTEK (Haydn only) IBPE_nrmode 1 ~ 3 Preview of adjusting noise reduction mode. 1 => DeGaussian 2 => DeImpulse 3 => DeGaussian + DeImpulse (Haydn only) IBPE_nrstrength 1 ~ 63 Preview of adjusting noise reduction strength. 1 is minimum and 63 is maximum. (Haydn...
Page 130 VIVOTEK night, schedule profile_i<0~(m-1)>_begintim hh:mm Begin time of schedule mode. profile_i<0~(m-1)>_endtime hh:mm End time of schedule mode. profile_i<0~(m-1)>_win_i<0 <boolean> Enable motion window. ~2>_enable profile_i<0~(m-1)>_win_i<0 string[14] Name of motion window. ~2>_name profile_i<0~(m-1)>_win_i<0 0 ~ 320 Left coordinate of window position. ~2>_left profile_i<0~(m-1)>_win_i<0...
Page 131 VIVOTEK DynInterfree, DynInterfree =>dyn-interfree.it PeanutHull, PeanutHull => PeanutHull CustomSafe100 CustomSafe100 => Custom server using safe100 method <provider>_hostname string[128] Your dynamic hostname. <provider>_usernam string[64] Your user or email to login to the DDNS service eemail provider <provider>_password string[64] Your password or key to login to the DDNS service provider.
Page 132 VIVOTEK 5: LOG_NOTICE 6: LOG_INFO 7: LOG_DEBUG Group: camctrl NAME VALUE SECURITY DESCRIPTION (get/set) enablehttptunnel <boolean> Enable HTTP tunnel for camera control. Group: camctrl_c<0~(n-1)> for n channel product (capability.ptzenabled) NAME VALUE SECURITY DESCRIPTION (get/set) panspeed -5 ~ 5 Pan speed...
Page 133 VIVOTEK secnamero string[31] Read only security name authpwrw string[8~128] Read/write authentication password authpwro string[8~128] Read only authentication password authtyperw MD5,SHA Read/write authentication type authtypero MD5,SHA Read only authentication type encryptpwrw string[8~128] Read/write password encryptpwro string[8~128] Read only password encrypttyperw Read/write encryption type...
Page 134 VIVOTEK naudioin Number of audio inputs. <positive integer> naudioout Number of audio outputs. <positive integer> nvideoin <positive integer> Number of video inputs. nmediastream <positive integer> Number of media stream per channels. nvideosetting <positive integer> Number of video settings per channel.
Page 135 VIVOTEK joystick <boolean> Indicate whether to support joystick control. storage_dbenabled <boolean> Media files are indexed in database. ptzenabledclient <boolean> Indicate whether to support ptz client protocol_https < boolean > Indicate whether to support HTTP over SSL. protocol_rtsp < boolean >...
Page 136 VIVOTEK audio_aec <boolean> Indicate whether to support acoustic echo cancellation. audio_extmic <boolean> Indicate whether to support external microphone input. audio_linein <boolean> Indicate whether to support external line input. audio_lineout <boolean> Indicate whether to support line output. audio_headphoneou <boolean> Indicate whether to support headphone output.
Page 137 VIVOTEK wireless_encrypt_w <boolean> Indicate whether to support wireless WPA. wireless_encrypt_w <boolean> Indicate whether to support wireless WPA2. derivative_brand <boolean> Indicate whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX.
Page 138 VIVOTEK trigger boot, Indicate the trigger condition: “boot” = System boot motion, “di”= Digital input seq, “motion” = Video motion detection visignal, “seq” = Periodic condition recnotify, “visignal” = Video input signal loss. tampering, “pir” = PIR detection. “recnotify” = Recording notification.
Page 139 VIVOTEK lowlightcondition 0, 1 0 => Do action at all times 1 => Do action in low-light conditions action_do_i<0~(ndo-1) 0, 1 Enable or disable trigger digital output. >_enable action_do_i<0~(ndo-1) 1~999 Duration of the digital output trigger in seconds. >_duration action_cf_enable 0.
Page 140 VIVOTEK ftp_passive 0, 1 Enable or disable passive mode. 0 = disable passive mode 1 = enable passive mode email_address string[128] Email server address. email_sslmode 0, 1 Enable support SSL. email_port 0~65535 Port to connect to the server. email_username string[64] Username to log in to the server.
Page 141 VIVOTEK videoclip_prefix string[16] Indicate the prefix of the filename. videoclip_preevent 0 ~ 9 Indicates the time for pre-event recording in seconds. videoclip_maxduration 1 ~ 10 Maximum duration of one video clip in seconds. videoclip_maxsize 50 ~ 1500 Maximum size of one video clip file in Kbytes.
Page 142 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
Page 143 VIVOTEK 1 = Active countryname string[2] Country name in the certificate information. stateorprovincename string[128] State or province name in the certificate information. localityname string[128] The locality name in the certificate information. organizationname string[64] Organization name in the certificate information. unit...
Page 144: Drive The Digital Output
VIVOTEK zoomspeed -5 ~ 5 Zoom speed (It should be set by eCamCtrl.cgi rather than by setparam.cgi.) autospeed 1 ~ 5 Auto pan/patrol speed (It should be set by eCamCtrl.cgi rather than by setparam.cgi.) Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product. and m is the number of streams which support ePTZ.
Page 145: Query Status Of The Digital Input
VIVOTEK Example: Drive the digital output 1 to triggered state and redirect to an empty page. http://myserver/cgi-bin/dido/setdo.cgi?do1=1 Query Status of the Digital Input Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned.
Page 146: Query Status Of The Digital Output
VIVOTEK Query Status of the Digital Output Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n [do1=<state>]\r\n...
Page 147: Account Management
VIVOTEK http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFAULT DESCRIPTION channel 0~(n-1) The channel number of the video source. resolution <available resolution> 0 The resolution of the image.
Page 148: System Logs
VIVOTEK edit Modify the account password and privilege. When using this method, the “username” field is necessary, and other fields are optional. If not specified, it will keep the original settings. username <name> The name of the user to add, delete, or edit.
Page 149 VIVOTEK http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated. ePTZ Camera Control Note: This request requires camctrl privileges.
Page 150 VIVOTEK 0 ~ 6 Set the speed of zooming, “0” means stop. <integer> The direction of movement, used for joystick control. <integer> 0 ~ 7 Set the speed of movement, “0” means stop. speedpan -5 ~ 5 Set the pan speed.
Page 151: System Information
VIVOTEK PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. addpos <Text string less than 40 characters> Add one preset location to the preset list. delpos <Text string less than 40 characters> Delete preset location from the preset list.
Page 152 VIVOTEK IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index =<value>][&return=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return =<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list.
Page 153 VIVOTEK Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP. You can get the SDP by HTTP GET.
Page 154 VIVOTEK read. no: Do not clear the receive data buffer. wait 1 ~ 65535 Wait time in milliseconds before read data. read 1 ~ 128 The data length in bytes to read. The read data will be in the return page.
Page 155 VIVOTEK mediaType <text> Optional. Indicate the file media type. Please embrace your input value with single quotes. Ex. mediaType=’videoclip’ Support trigger types are product dependent. destPath <text> Optional. Indicate the file location in camera. Please embrace your input value with single quotes.
Page 156 VIVOTEK http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType=’motion’+OR+’di’+OR+’seq’&trigge rTime=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’ Command: delete PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 Ex. Delete records whose key numbers are 1, 4, and 8. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8 Command: update PARAMETER VALUE DESCRIPTION label <integer primary key>...
Page 157: Technical Specifications
．Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X All specifications are subject to change without notice. Copyright 2009 VIVOTEK INC. All rights reserved. User's Manual - 157 VIVOTEK INC. VIVOTEK USA, INC.
Page 158: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
Page 159: Electromagnetic Compatibility (Emc)
います。この場合には使用者が適切な対策を講ずるよう要求されるこたがあります。 Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.

Vivotek FD8361 User Manual

Quick Links

Related Manuals for Vivotek FD8361

Summary of Contents for Vivotek FD8361

Table of Contents
