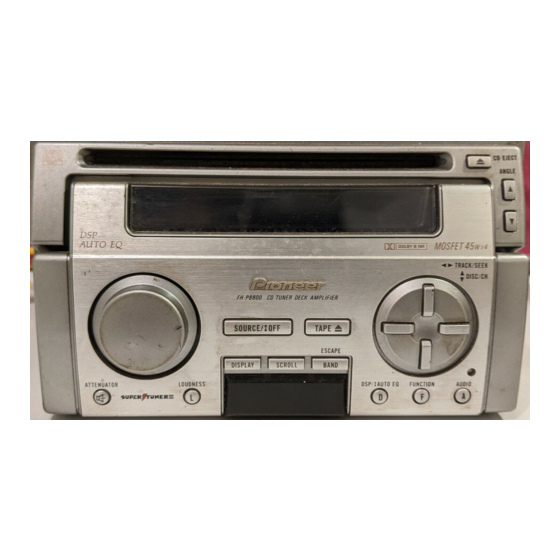

Pioneer FH-P8800 Installation Manual

FH-P8800
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit
est conforme à CEMA.
Printed in Japan
Imprimé au Japon
<CRD3128-A> UC <99I00F0R01>
Connecting the Units
Note:
• When an external power amp is being used with
• This unit is for vehicles with a 12-volt battery and
this system, be sure not to connect the blue/white
negative grounding. Before installing it in a recre-
lead to the amp's power terminal. Likewise, do
ational vehicle, truck or bus, check the battery
voltage. not connect the blue/white lead to the power ter-
• To avoid shorts in the electrical system, be sure to minal of the auto-antenna. Such connection could
disconnect the ≠ battery cable before beginning
cause excessive current drain and malfunction.
installation. • To avoid short-circuiting, cover the disconnected
• Refer to the owner's manual for details on lead with insulating tape. Especially, insulate the
connecting the power amp and other units, then unused speaker leads without fail. There is a pos-
sibility of short-circuiting if the leads are not insu-
make connections correctly.
lated.
• Secure the wiring with cable clamps or adhesive
• To prevent incorrect connection, the input side of
tape. To protect the wiring, wrap adhesive tape
the IP-BUS connector is blue, and the output side
around them where they lie against metal parts.
• Route and secure all wiring so it cannot touch any is black. Connect the connectors of the same
moving parts, such as the gear shift, handbrake colors correctly.
and seat rails. Do not route wiring in places that • If this unit is installed in a vehicle that does not
get hot, such as near the heater outlet. If the insu- have an ACC (accessory) position on the ignition
lation of the wiring melts or gets torn, there is a switch, the red lead of the unit should be connect-
danger of the wiring short-circuiting to the vehicle ed to a terminal coupled with ignition switch
body. ON/OFF operations. If this is not done, the vehi-
cle battery may be drained when you are away
• Don't pass the yellow lead through a hole into the
from the vehicle for several hours. (Fig. 1)
engine compartment to connect to the battery.
This will damage the lead insulation and cause a
very dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the unit
and tapping into the lead. The current capacity of
the lead will be exceeded, causing overheating.
• When replacing fuse, be sure to use only fuse of
ACC position No ACC position
the rating prescribed on the fuse holder.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded or
the left and right ≠ speaker leads are common.
• The black lead is ground. Please ground this lead
• Cords for this product and those for other prod-
separately from the ground of high-current prod-
ucts may be different colors even if they have the
ucts such as power amps.
same function. When connecting this product to
If you ground the products together and the
another product, refer to the supplied Installation
ground becomes detached, there is a risk of dam-
manuals of both products and connect cords that
age to the products or fire.
have the same function.
• If the RCA pin jack on the unit will not be used,
do not remove the caps attached to the end of the
connector.
• Speakers connected to this unit must be high-
power types with minimum rating of 45 W and
impedance of 4 to 8 ohms. Connecting speakers
with output and/or impedance values other than
those noted here may result in the speakers catch-
ing fire, emitting smoke, or becoming damaged.
Connection Diagram
This Product
IP-BUS input (Blue)
Antenna jack
Multi-CD player
(sold separately)
IP-BUS cable
Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
Blue
When the source is selected the tuner, a control signal
is output.
To Auto-antenna relay control terminal.
If the car features a glass antenna, connect to the
antenna booster power supply terminal.
(Max. 300 mA 12 V DC.)
Fig. 1
Yellow
Fuse holder
To terminal always supplied
with power regardless of
ignition switch position.
Red
Fuse resistor
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange
Fuse resistor
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Perform these connections when using a
different amp (sold separately).
Front output
Rear output
Connecting cords
with RCA pin plugs
(sold separately)
Subwoofer output
Blue/white
When the source is switched ON, a control signal is output.
To system control terminal of the power amp.
(Max. 300 mA 12 V DC.)
System remote control
+
Front speaker
≠
White Gray
+
Front speaker
≠
White/black Gray/black
Left
Green Violet
+
Rear speaker
≠
Green/black Violet/black
+
Rear speaker
≠
+
Subwoofer
≠
<ENGLISH>
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
+
Front speaker
≠
+
Front speaker
≠
Right
+
Rear speaker
≠
+
Rear speaker
≠
+
Subwoofer
≠
Fig. 2
