Page 1: Micro Component System

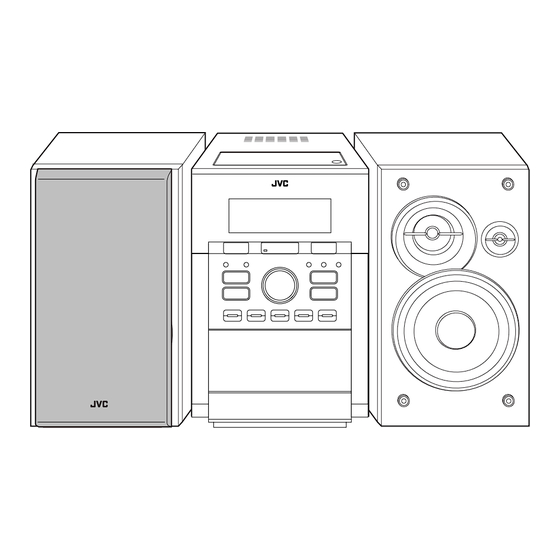

MICRO COMPONENT SYSTEM UX-G70 —Consists of CA-UXG70 and SP-UXG70 SUPER VIDEO INSTRUCTIONS GVT0181-012A... -
Page 2: Important For Laser Products
Warnings, Cautions and Others CAUTION— (Standby/on) button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (Standby/on) button in any position does not disconnect the mains line. •... -
Page 3: Table Of Contents
AC power cord and consult your dealer before Learning More about This System........35 operating any further. Troubleshooting ..............38 Operating JVC’s TVs Using the Remote Control..... 40 DO NOT disassemble the System since there Specifications ..............41 are no user serviceable parts inside. -
Page 4: Playable Disc Types
When playing a multi-channel encoded DVDs, the System Playable Disc Types properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers. • To enjoy the powerful sound of these multi-channel encoded DVDs, connect a proper decoder or an amplifier with a proper built-in decoder to the DVD OPTICAL DIGITAL OUT terminal on the rear. -
Page 5: Connections
Connections Supplied accessories Do not connect the AC power cord until all other connections have been made. Check to be sure that you have all the following items. • FM antenna (x1) • AM loop antenna (x1) • Connect VIDEO OUT directly to the video input of your •... - Page 6 Powered subwoofer For better AM/FM reception AM loop antenna (supplied) From the powered SUB - Keep it connected. WOOFER subwoofer (not supplied) The subwoofer connected can reproduce the bass sounds Vinyl-covered wire recorded in front left and right channels, but cannot (not supplied) reproduce the LFE signals in DVD multi-channel discs.
-
Page 7: Preparing The Remote Control
⁄ Digital audio component When connecting a portable audio device (LINE) Portable audio device (Digital Audio Player, etc.) Protective cap At the front panel To the audio output Stereo mini plug • Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu (not supplied) correctly according to the connected digital audio equipment (see page 34). -
Page 8: Display Indicators
Display Indicators The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display. 5 6 7 TA NEWS INFO A.STBY MONO DISC ALL A–B... -
Page 9: Daily Operations-Playback
Daily Operations —Playback In this manual, operations using the remote control are Remote control mainly explained; however, you can use the buttons Disc tray and controls on the main unit if they have the same (or selecting similar) name and marks. buttons Number Turn on the power. -
Page 10: Listening To The Radio
To select the band (FM or AM) Listening to the Radio INFO Remote control: Main unit: Main Unit ONLY To set the AM tuner interval spacing Before operating the tuner, it is required to select the appropriate AM space interval used for your area. •... -
Page 11: Playing Back A Tape
Select a preset number for the station you store. Playing Back a Tape Examples: DISC 1 DISC 2 DISC 3 To insert a tape To select preset number 5, press You can playback type I tapes. DISC 4 DISC 5 A.STANDBY To select preset number 10, press Push... - Page 12 Playing Back a Disc On-screen guide icons INFO • During DVD Video playback, the following icons may Before operating a disc, be familiar how a disc is recorded. appear on the TV: • DVD Video/DVD-VR comprises of “Titles” which includes “Chapters,” DVD Audio/MP3/WMA/MPEG-1/ At the beginning of a scene containing MPEG-2/ASF/DivX comprises of “Groups”...
- Page 13 Remote To select a chapter/track To playback using the disc menu ONLY 7 For DVD Video/DVD Audio: • For VCD/SVCD, cancel PBC (see the right column). While playing a disc... Show the disc menu. • First time you press 4, you GROUP/TITLE SKIP TOP MENU/PG MENU/PL...
-
Page 14: Playing Back A Portable Audio Device
Playing Back a Portable Audio Device Playing Back from the PC INFO INFO By using QP Link (Quick Portable Link), you can easily start This System is equipped with a USB AUDIO terminal on the playing back a portable audio device connected to the LINE front panel. -
Page 15: Adjusting The Volume
Daily Operations —Sound & Other Adjustments Remote ONLY Remote control To drop the volume in a moment To restore the volume, press again, or FADE A.STANDBY MUTING adjust the volume level. SLEEP DIMMER SCAN MODE LINE OUT LEVEL DISPLAY Adjusting the Sound INFO , , , ENTER/SET... -
Page 16: Presetting Automatic Dvd Video Sound Increase Level
Remote Creating 3-dimentional Sound Field Adjusting the Audio Input Level ONLY Remote —3D Phonic If the sound from the component connected to the LINE IN ONLY jack is too loud or is too quiet when changing from another • This does not function for MPEG-1/MPEG-2/ASF/DivX source to LINE, you can change the audio input level discs. -
Page 17: Changing The Display Brightness
Remote Changing the Display Brightness Changing the Picture Tone ONLY You can dim the display window. • While showing a playback picture on the TV, you can select a preset picture tone, or adjust it and store your own TV/VIDEO DIMMER OFF DIMMER ON DIMMER... -
Page 18: Setting The Clock
Adjust the parameter. Remote Turning Off the Power Automatically ONLY TV CH ENTER/SET Auto Standby TV CH A.STANDBY Repeat steps 2 to 3 to adjust other parameters. Canceled To erase the screen, press VFP again while holding SHIFT, (while holding...) or wait for more than 5 seconds. -
Page 19: Unique Dvd/Vcd Operations
Unique DVD/VCD Operations Selecting the Audio Track Remote INFO ONLY Remote control For DVD Video/DivX: While playing back a chapter containing audio languages, you can select the language to listen to. For DVD Audio: While playing back a track containing Number audio channels, you can select the audio channel to listen to. -
Page 20: Selecting The Subtitle Language
Selecting the Subtitle Language Remote Selecting the View Angle Remote ONLY ONLY For DVD Video/DivX: While playing back a chapter For DVD Video only: While playing back a chapter containing subtitles in different languages, you can select the containing multi-view angles, you can view the same scene subtitle language to display on the TV. -
Page 21: Making Dialogues Clear-Clear Voice
Slow-motion playback Enter the key number. • This does not function for MPEG-1/MPEG-2/ASF/DivX DISC 1 DISC 2 DISC 3 discs. ENTER/SET A.STANDBY DISC 4 DISC 5 While playing... SCAN MODE SLEEP Still picture playback starts. ANGLE Select slow motion speed. Follow the interactive instructions shown on the screen. -
Page 22: Advanced Disc Operations
Advanced Disc Operations Programming the Playing Order— Remote control Program Play Remote INFO ONLY You can arrange the playing order of the chapters or tracks (up to 99) before you start playback. • Program play cannot be used for DVD-VR/JPEG/ Number MPEG-1/MPEG-2/ASF/DivX. -
Page 23: Playing At Random-Random Play
Start playback. Remote Playing at Random—Random Play ONLY Playback starts in the order you You can play all chapters or tracks at random. DVD/CD have programmed. • Random Play cannot be used for DVD-VR/JPEG/ MPEG-1/MPEG-2/ASF/DivX and some DVDs. Before starting playback, activate Random Play. To skip a step: To pause: To stop:... -
Page 24: Playing Repeatedly
A-B Repeat Playing Repeatedly Remote INFO ONLY You can repeat playback of a desired portion by specifying • You can also select the repeat mode using the on-screen bar the beginning (point A) and the ending (point B). (see pages 24 and 25). •... -
Page 25: On-Screen Disc Operations
Remote On-screen Disc Operations INFO ONLY On-screen Bar Information You can check the disc information and use some functions 1 Disc type through the on-screen bar. 2 Playback information On-screen bars Indication Meanings Dolby D, LPCM Audio format DVD Video 3/2.1ch, 2/0.0 ch Channel number Current disc... -
Page 26: Repeat Play
To operate using the On-screen Bar For detailed operations of the following functions, see Ex.: Selecting a subtitle (French) for DVD Video also “To operate using the On-screen Bar” on the left. While a disc is selected as the source... To change the time information Display the entire on-screen bar. -
Page 27: Time Search
To cancel A-B Repeat, repeat steps 1 to 3, and select “OFF” Select the repeat mode you want. in step 4. Repeats a desired portion (see below). TITLE Repeats the current title. Time Search GROUP Repeats the current group. You can move to a particular point by specifying the elapsed DISC Repeats the current disc. - Page 28 Control screen for DVD-R/-RW in DVD-VR format Enter the desired chapter/track number. The control screen is superimposed on the TV screen when Examples: DISC 1 DISC 2 DISC 3 you call up Program List (PG) or playlist (PL). To select chapter/track 5, press 5.
-
Page 29: Operations On The Control Screen
To move the highlight bar between group list and track Operations on the Control Screen list Remote INFO ONLY Moves the bar to the track You can search for and play the desired items through the list. control screen for MP3/WMA/JPEG/MPEG-1/MPEG-2/ ASF/DivX discs. - Page 30 To zoom in the JPEG files To select a group (for MP3/WMA/JPEG/MPEG-1/ • You cannot zoom in the still picture during slide-show. MPEG-2/ASF/DivX): • For other discs, see page 19. While playing back a still picture... GROUP/TITLE SKIP • During slide-show, press 8 to display the still picture, then...
-
Page 31: Advanced Tape Operations
Advanced Tape Operations IMPORTANT Remote control It may be unlawful to record or playback copyrighted material without the consent of the copyright owner. Recording on a Tape INFO You can use type I tapes for recording. • To play a tape, see page 9. Insert a recordable cassette. -
Page 32: Synchronized Disc Recording
To record only your favorite track Synchronized Disc Recording INFO You can specify tracks to be recorded on the tape while You can start and stop both disc play and tape recording at listening to a disc (except for DVD Video/DVD-VR). the same time. -
Page 33: Timer Operations
Timer Operations Select one of the timer setting modes you want to set— REC TIMER (Recording Timer) ON time, DAILY 1 Remote control ON time, DAILY 2 ON time or DAILY 3 ON time. QP LINK CLOCK/TIMER AUDIO Daily Timer 1 Daily Timer 2 Recording Timer ON (Time) - Page 34 5 Select the volume level. To turn on or off the Timer • You can adjust the volume level Since Daily Timer is activated at the same time everyday, (“0” to “40” and “VOL – –”). you may need to cancel it on some particular days. If you select “VOL –...
-
Page 35: Setup Menu Operations
Setup Menu Operations INFO Initial settings Remote ONLY Remote Control The Setup Menu cannot be activated during playback. Press SET UP. LANGUAGE MENU LANGUAGE ENGLISH AUDIO LANGUAGE ENGLISH SUBTITLE ENGLISH ON SCREEN LANGUAGE ENGLISH ENTER/SET SET UP Press )to select the menu. Press ) to select the item. -
Page 36: Audio Menu
AUDIO menu Item Contents DIGITAL AUDIO OUTPUT Set this item correctly when using the DVD OPTICAL DIGITAL OUT terminal on the rear. PCM ONLY: When connecting to audio equipment which can decode only linear PCM signals. DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an amplifier with a built- in Dolby Digital decoder. -
Page 37: Additional Information
Additional Information • You can exchange discs while playing or selecting another Learning More about This System disc. • Some DVD Audio discs prohibit downmix. When you Connections (see pages 3 to 5) playback such a disc, “LR ONLY” appears on the display •... - Page 38 – This System can playback JPEG files with the extension In such cases, adjust the volume level of the component louder so that the System can detect the sound signal code <.jpg> or <.jpeg> (regardless of the letter case— properly. upper/lower).
- Page 39 Unique DVD/VCD Operations Timer Operations (see pages 17 to 19) (see pages 31 and 32) Selecting the Audio Track: Setting the Timer: • On some DVD Video discs, you cannot change audio • If you do not specify the preset station or track number languages while playing back.
-
Page 40: Troubleshooting
“NO AUDIO” appears. Troubleshooting ] This System cannot playback illegally produced DVD Audio discs. General: “LR ONLY” appears. Adjustments or settings are suddenly canceled before ] Some DVD Audio discs prohibit downmixed output. you finish. When you playback such a disc, this System plays back ] There is a time limit. -
Page 41: Language Code List
Language Code List Persian KM Cambodian OM (Afan) Oromo Swedish Afar Finnish Kannada Oriya Swahili Abkhazian Fiji Korean (KOR) Panjabi Tamil Afrikaans Faroese Kashmiri Polish Telugu AM Ameharic Frisian Kurdish Pashto, Pushto Tajik Arabic Irish Kirghiz Portuguese Thai Assamese Scots Gaelic Latin Quechua Tigrinya... -
Page 42: Operating Jvc's Tvs Using The Remote Control
* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD OPTICAL DIGITAL OUT terminal. Operating JVC’s TVs Using the Remote Control You can use the remote control to operate JVC’s TVs. Remote control Turn on/off TV. -
Page 43: Specifications
General Specifications Power requirement: AC 240 V , 50 Hz Amplifier section—CA-UXG70 Power consumption: 95 W (at operation) Output Power: 160 W (80 W+80 W) at 6 Ω (10% THD) 18 W (at standby) Audio Input LINE IN: 3.9 W (at standby display OFF mode) 500 mV/49 kΩ... -
Page 44: Parts Index
QP LINK REPEAT 22, 28 REPEAT A-B RETURN SCAN MODE This remote control can also operate JVC’s TVs SET UP (see page 40). SHIFT 10, 11, 12, 14, 15, 16, 18, 19, 22, 28, 40 SLEEP SLOW 9 9 9 9 , ( ( ( (... - Page 45 © 2006 Victor Company of Japan, Limited 0506WMKMDCJEM...
- Page 46 MICRO COMPONENT SYSTEM UX-G70 —Consists of CA-UXG70 and SP-UXG70 SUPER VIDEO INSTRUCTIONS GVT0181-015A [UJ]...
- Page 47 Warnings, Cautions and Others CAUTION— (Standby/on) button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (Standby/on) button in any position does not disconnect the mains line. •...
- Page 48 Learning More about This System........33 Others Troubleshooting ..............36 Operating JVC’s TVs Using the Remote Control..... 38 • Should any metallic object or liquid fall into the System, Specifications ..............39 unplug the AC power cord and consult your dealer before operating any further.
- Page 49 Playable Disc Types IMPORTANT: Before playing a disc, make sure of the following... • Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays. • For disc playback, you can change the initial setting to your preference.
-
Page 50: Connections
Connections Supplied accessories Do not connect the AC power cord until all other connections have been made. Check to be sure that you have all the following items. • FM antenna (x1) • AM loop antenna (x1) • Connect VIDEO OUT directly to the video input of your •... - Page 51 Powered subwoofer • Disconnect the supplied FM antenna, and connect to an Ω outdoor FM antenna using a 75 wire with coaxial type From the powered connector (IEC or DIN45325). SUB - WOOFER subwoofer (not supplied) TV/monitor The subwoofer connected can reproduce the bass sounds Connect only component cord at one time.
- Page 52 Speakers • By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit when • When connecting the speaker cords, match the polarity of connecting it to the LINE IN jack. See page 11 for details. the speaker terminals: red color to (+) and black color to (–).
-
Page 53: Display Indicators
Display Indicators The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display. 5 6 7 TA NEWS INFO A.STBY MONO DISC ALL A–B... -
Page 54: Daily Operations-Playback
Daily Operations —Playback In this manual, operations using the remote control are Remote control mainly explained; however, you can use the buttons Disc tray and controls on the main unit if they have the same (or selecting similar) name and marks. buttons Number Turn on the power. - Page 55 To select the band (FM or AM) Listening to the Radio INFO Remote control: Main unit: Main Unit ONLY To set the AM tuner interval spacing Before operating the tuner, it is required to select the appropriate AM space interval used for your area. •...
- Page 56 Remote Remote To preset the stations ONLY To tune in to a preset station ONLY You can preset 30 FM and 15 AM stations. Select the band (FM or AM). Tune in to a station you want to preset. • You can also store the monaural reception mode for FM TUNER FM preset stations if selected.
- Page 57 Playing Back a Disc On-screen guide icons INFO • During DVD Video playback, the following icons may Before operating a disc, be familiar how a disc is recorded. appear on the TV: • DVD Video/DVD-VR comprises of “Titles” which includes “Chapters,” DVD Audio/MP3/WMA/JPEG At the beginning of a scene containing comprises of “Groups”...
- Page 58 Remote 7 For SVCD/VCD with PBC: To locate a particular portion ONLY While playing a disc with PBC, “PBC” appears on the While playing a disc... display. – SLOW When disc menu appears on the TV, select an item on the menu.
- Page 59 • While listening to another source... Playing Back from the PC INFO Changes the source to LINE automatically. (If you change from LINE to another source, QP link will be canceled.) This System is equipped with a USB AUDIO terminal on the •...
-
Page 60: Adjusting The Volume
Daily Operations —Sound & Other Adjustments Remote ONLY Remote control To drop the volume in a moment To restore the volume, press again, or FADE A.STANDBY MUTING adjust the volume level. SLEEP DIMMER SCAN MODE LINE OUT LEVEL DISPLAY Adjusting the Sound INFO , , , ENTER/SET... -
Page 61: Presetting Automatic Dvd Video Sound Increase Level
Remote Creating 3-dimentional Sound Field Adjusting the Audio Input Level ONLY Remote —3D Phonic If the sound from the component connected to the ONLY LINE IN jack is too loud or is too quiet when changing from While playing a disc... another source to LINE, you can change the audio input level through the LINE IN jack (without changing the volume level). -
Page 62: Changing The Display Brightness
Remote Changing the Display Brightness Changing the Picture Tone ONLY You can dim the display window. • While showing a playback picture on the TV, you can select a preset picture tone, or adjust it and store your own TV/VIDEO DIMMER OFF DIMMER ON DIMMER... -
Page 63: Setting The Clock
Adjust the parameter. Remote Turning Off the Power Automatically ONLY TV CH ENTER/SET Auto Standby TV CH A.STANDBY Repeat steps 2 to 3 to adjust other parameters. Canceled To remove the screen, press VFP again while holding (while holding...) SHIFT, or wait for more than 5 seconds. When Auto Standby is in use, the A.STBY indicator lights on the display. -
Page 64: Unique Dvd/Vcd Operations
Unique DVD/VCD Operations Selecting the Audio Track Remote INFO ONLY Remote control For DVD Video: While playing back a chapter containing audio languages, you can select the language to listen to. For DVD Audio: While playing back a track containing audio channels, you can select the audio channel to listen to. -
Page 65: Selecting The Subtitle Language
Selecting the Subtitle Language Remote Selecting the View Angle Remote ONLY ONLY For DVD Video: While playing back a chapter containing For DVD Video only: While playing back a chapter subtitles in different languages, you can select the subtitle containing multi-view angles, you can view the same scene language to display on the TV. -
Page 66: Making Dialogues Clear-Clear Voice
Slow-motion playback Enter the key number. DISC 1 DISC 2 DISC 3 While playing... ENTER/SET Still picture playback starts. A.STANDBY DISC 4 DISC 5 SCAN MODE SLEEP ANGLE Select slow motion speed. Forward slow motion starts. – SLOW Follow the interactive instructions shown on the 1/32 1/16 screen. -
Page 67: Advanced Disc Operations
Advanced Disc Operations Programming the Playing Order— Remote control Program Play Remote INFO ONLY You can arrange the playing order of the chapters or tracks (up to 99) before you start playback. • Program play cannot be used for DVD-VR/JPEG. Number •... -
Page 68: Playing At Random-Random Play
Start playback. Remote Playing at Random—Random Play ONLY Playback starts in the order you You can play all chapters or tracks at random. DVD/CD have programmed. • Random Play cannot be used for DVD-VR/JPEG and some DVDs. Before starting playback, activate Random Play. To skip a step: To pause: To stop:... -
Page 69: Playing Repeatedly
A-B Repeat Playing Repeatedly Remote INFO ONLY You can repeat playback of a desired portion by specifying • You can also select the repeat mode using the on-screen bar the beginning (point A) and the ending (point B). (see pages 24 and 25). •... -
Page 70: On-Screen Disc Operations
Remote On-screen Disc Operations INFO ONLY On-screen Bar Information You can check the disc information and use some functions 1 Disc type through the on-screen bar. 2 Playback information On-screen bars Indication Meanings Dolby D, LPCM Audio format DVD Video 3/2.1ch, 2/0.0 ch Channel number Current disc... - Page 71 To operate using the On-screen Bar For detailed operations of the following functions, see Ex.: Selecting a subtitle (French) for DVD Video also “To operate using the On-screen Bar” on the left. While a disc is selected as the source... To change the time information Display the entire on-screen bar.
- Page 72 To cancel A-B Repeat, repeat steps 1 to 3, and select “OFF” Select the repeat mode you want. in step 4. Repeats a desired portion (see below). TITLE Repeats the current title. Time Search GROUP Repeats the current group. You can move to a particular point by specifying the elapsed DISC Repeats the current disc.
- Page 73 Control screen for DVD-R/-RW in DVD-VR format Enter the desired chapter/track number. The control screen is superimposed on the TV screen when Examples: DISC 1 DISC 2 DISC 3 you call up Program List (PG) or playlist (PL). To select chapter/track 5, press 5.
-
Page 74: Operations On The Control Screen
To move the highlight bar between group list and track Operations on the Control Screen list Remote INFO ONLY Moves the bar to the track You can search for and play the desired items through the list. control screen for MP3/WMA/JPEG discs. Moves the bar to the group Control screen for MP3/WMA/JPEG discs list. - Page 75 To zoom in the JPEG files To select a group (for MP3/WMA/JPEG): • You cannot zoom in the still picture during slide-show. • For other discs, see page 19. GROUP/TITLE SKIP While playing back a still picture... • During slide-show, press 8 to display the still picture, then...
-
Page 76: Timer Operations
Timer Operations Setting the Timer Remote INFO ONLY Remote control Using Daily Timer, you can wake up with your favorite music. You can store three Daily Timer settings; however, you can activate only one of the timers at the same time. •... - Page 77 1 Set the hour then the minute for on-time. To turn on or off the Timer 2 Set the hour then the minute for off-time. Since Daily Timer is activated at the same time everyday, 3 Select the playback source—“TUNER-FM,” you may need to cancel it on some particular days.
-
Page 78: Setup Menu Operations
Setup Menu Operations INFO Initial settings Remote ONLY Remote Control The Setup Menu cannot be activated during playback. Press SET UP. LANGUAGE MENU LANGUAGE ENGLISH AUDIO LANGUAGE ENGLISH SUBTITLE ENGLISH ON SCREEN LANGUAGE ENGLISH ENTER/SET SET UP Press ) to select the menu. Press ) to select the item. - Page 79 AUDIO menu Item Contents DIGITAL AUDIO OUTPUT Set this item correctly when using the DVD OPTICAL DIGITAL OUT terminal on the rear. PCM ONLY: When connecting to audio equipment which can decode only linear PCM signals. DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an amplifier with a built- in Dolby Digital decoder.
-
Page 80: Additional Information
Additional Information • You can exchange discs while playing or selecting another Learning More about This System disc. • Some DVD Audio discs prohibit downmix. When you Connections (see pages 3 to 5) playback such a disc, “LR ONLY” appears on the display •... - Page 81 – This System can playback JPEG files with the extension • The drivers installed can be recognized only when the USB code <.jpg> or <.jpeg> (regardless of the letter case— cable is connected between the System and your PC. upper/lower). •...
- Page 82 Timer Operations (see pages 29 and 30) Maintenance Setting the Timer: To get the best performance of the System, keep your discs • If you do not specify the preset station or track number and mechanism clean. correctly while setting a timer, the currently selected station or the first track will be played when the timer is Handling discs activated.
-
Page 83: Troubleshooting
MP3, WMA or JPEG files are not played back. Troubleshooting ] The disc may include both type of tracks (MP3/WMA files and JPEG files). In this case, you can only playback General: the files selected by the “FILE TYPE” setting (see Adjustments or settings are suddenly canceled before page 31). - Page 84 Language Code List Javanese Samoan Afar Georgian Shona Abkhazian Kazakh Somali Afrikaans Greenlandic Albanian Ameharic Cambodian Serbian Arabic Kannada Siswati Assamese Korean (KOR) Sesotho Aymara Kashmiri Sundanese Azerbaijani Kurdish Swedish Bashkir Kirghiz Swahili Byelorussian Latin Tamil Bulgarian Lingala Telugu Bihari Laothian Tajik Bislama...
-
Page 85: Operating Jvc's Tvs Using The Remote Control
* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD OPTICAL DIGITAL OUT terminal. Operating JVC’s TVs Using the Remote Control You can use the remote control to operate JVC’s TVs. Remote control Turn on/off TV. -
Page 86: Specifications
General Specifications Power requirement: Amplifier section—CA-UXG70 AC 110 V/AC 127 V/AC 220 V/ AC 230 V-240 V (adjustable with the voltage selector), 50 Hz/60 Hz Output Power: 120 W per channel, min. RMS, driven into 6 Ω at 1kHz with no more than 10% total Power consumption: 90 W (at operation) 14 W (at standby) -
Page 87: Parts Index
ON SCREEN PAGE QP LINK REPEAT 22, 28 REPEAT A-B RETURN This remote control can also operate JVC’s TVs SCAN MODE (see page 38). SET UP SHIFT 10, 11, 14, 15, 16, 18, 19, 22, 28, 29, 38 SLEEP SLOW 9 9 9 9 , ( ( ( (... - Page 88 Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.) 110V VOLTAGE SELECTOR 220V 127V 230V-240V CAUTION for mains (AC) line BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector...
- Page 89 MICRO COMPONENT SYSTEM UX-G70 —Consists of CA-UXG70 and SP-UXG70 SUPER VIDEO INSTRUCTIONS GVT0181-008A [US,UN,UG,UX]...
- Page 90 Warnings, Cautions and Others CAUTION— (Standby/on) button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (Standby/on) button in any position does not disconnect the mains line. •...
- Page 91 Learning More about This System........38 Troubleshooting ..............41 • If you are not going to operate the System for an extended Operating JVC’s TVs Using the Remote Control..... 43 period of time, unplug the AC power cord from the wall Specifications ..............44 outlet.
- Page 92 When playing a multi-channel encoded DVDs, the System Playable Disc Types properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers. • To enjoy the powerful sound of these multi-channel encoded DVDs, connect a proper decoder or an amplifier with a proper built-in decoder to the DVD OPTICAL DIGITAL OUT terminal on the rear.
-
Page 93: Connections
Connections Supplied accessories Do not connect the AC power cord until all other connections have been made. Check to be sure that you have all the following items. • FM antenna (x1) • AM loop antenna (x1) • Connect VIDEO OUT directly to the video input of your •... - Page 94 Powered subwoofer • Disconnect the supplied FM antenna, and connect to an Ω outdoor FM antenna using a 75 wire with coaxial type From the powered SUB - connector (IEC or DIN45325). WOOFER subwoofer (not supplied) TV/monitor The subwoofer connected can reproduce the bass sounds Connect only component cord at one time.
- Page 95 Speakers • By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit when • When connecting the speaker cords, match the polarity of connecting it to the LINE IN jack. See page 12 for details. the speaker terminals: red color to (+) and black color to (–).
-
Page 96: Display Indicators
Display Indicators The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display. 5 6 7 TA NEWS INFO A.STBY MONO DISC ALL A–B... -
Page 97: Daily Operations-Playback
Daily Operations —Playback In this manual, operations using the remote control are Remote control mainly explained; however, you can use the buttons Disc tray and controls on the main unit if they have the same (or selecting similar) name and marks. buttons Number Turn on the power. - Page 98 To select the band (FM or AM) Listening to the Radio INFO Remote control: Main unit: Main Unit ONLY To set the AM tuner interval spacing Before operating the tuner, it is required to select the appropriate AM space interval used for your area. •...
- Page 99 Select a preset number for the station you store. Playing Back a Tape Examples: DISC 1 DISC 2 DISC 3 To insert a tape To select preset number 5, press You can playback type I tapes. DISC 4 DISC 5 A.STANDBY To select preset number 10, press Push...
- Page 100 Playing Back a Disc On-screen guide icons INFO • During DVD Video playback, the following icons may Before operating a disc, be familiar how a disc is recorded. appear on the TV: • DVD Video/DVD-VR comprises of “Titles” which includes “Chapters,” DVD Audio/MP3/WMA/MPEG-1/ At the beginning of a scene containing MPEG-2/ASF/DivX comprises of “Groups”...
- Page 101 Remote To select a chapter/track To playback using the disc menu ONLY 7 For DVD Video/DVD Audio: • For VCD/SVCD, cancel PBC (see the right column). While playing a disc... Show the disc menu. • First time you press 4, you GROUP/TITLE SKIP TOP MENU/PG MENU/PL...
- Page 102 Playing Back a Portable Audio Device Playing Back from the PC INFO INFO By using QP Link (Quick Portable Link), you can easily start This System is equipped with a USB AUDIO terminal on the playing back a portable audio device connected to the LINE front panel.
-
Page 103: Adjusting The Volume
Daily Operations —Sound & Other Adjustments Remote ONLY Remote control To drop the volume in a moment To restore the volume, press again, or FADE A.STANDBY MUTING adjust the volume level. SLEEP DIMMER SCAN MODE LINE OUT LEVEL DISPLAY Adjusting the Sound INFO , , , ENTER/SET... -
Page 104: Presetting Automatic Dvd Video Sound Increase Level
Remote Creating 3-dimentional Sound Field Adjusting the Audio Input Level ONLY Remote —3D Phonic If the sound from the component connected to the LINE IN ONLY jack is too loud or is too quiet when changing from another • This does not function for MPEG-1/MPEG-2/ASF/DivX source to LINE, you can change the audio input level discs. -
Page 105: Changing The Display Brightness
Remote Changing the Display Brightness Changing the Picture Tone ONLY You can dim the display window. • While showing a playback picture on the TV, you can select a preset picture tone, or adjust it and store your own TV/VIDEO DIMMER OFF DIMMER ON DIMMER... -
Page 106: Setting The Clock
Adjust the parameter. Remote Turning Off the Power Automatically ONLY TV CH ENTER/SET Auto Standby TV CH A.STANDBY Repeat steps 2 to 3 to adjust other parameters. Canceled To erase the screen, press VFP again while holding SHIFT, (while holding...) or wait for more than 5 seconds. -
Page 107: Unique Dvd/Vcd Operations
Unique DVD/VCD Operations Selecting the Audio Track Remote INFO ONLY Remote control For DVD Video/DivX: While playing back a chapter containing audio languages, you can select the language to listen to. For DVD Audio: While playing back a track containing Number audio channels, you can select the audio channel to listen to. -
Page 108: Selecting The Subtitle Language
Selecting the Subtitle Language Remote Selecting the View Angle Remote ONLY ONLY For DVD Video/DivX: While playing back a chapter For DVD Video only: While playing back a chapter containing subtitles in different languages, you can select the containing multi-view angles, you can view the same scene subtitle language to display on the TV. -
Page 109: Making Dialogues Clear-Clear Voice
Slow-motion playback Enter the key number. • This does not function for MPEG-1/MPEG-2/ASF/DivX DISC 1 DISC 2 DISC 3 discs. ENTER/SET A.STANDBY DISC 4 DISC 5 While playing... SCAN MODE SLEEP Still picture playback starts. ANGLE Select slow motion speed. Follow the interactive instructions shown on the screen. -
Page 110: Advanced Disc Operations
Advanced Disc Operations Programming the Playing Order— Remote control Program Play Remote INFO ONLY You can arrange the playing order of the chapters or tracks (up to 99) before you start playback. • Program play cannot be used for DVD-VR/JPEG/ Number MPEG-1/MPEG-2/ASF/DivX. -
Page 111: Playing At Random-Random Play
Start playback. Remote Playing at Random—Random Play ONLY Playback starts in the order you You can play all chapters or tracks at random. DVD/CD have programmed. • Random Play cannot be used for DVD-VR/JPEG/ MPEG-1/MPEG-2/ASF/DivX and some DVDs. Before starting playback, activate Random Play. To skip a step: To pause: To stop:... -
Page 112: Playing Repeatedly
A-B Repeat Playing Repeatedly Remote INFO ONLY You can repeat playback of a desired portion by specifying • You can also select the repeat mode using the on-screen bar the beginning (point A) and the ending (point B). (see pages 24 and 25). •... -
Page 113: On-Screen Disc Operations
Remote On-screen Disc Operations INFO ONLY On-screen Bar Information You can check the disc information and use some functions 1 Disc type through the on-screen bar. 2 Playback information On-screen bars Indication Meanings Dolby D, LPCM Audio format DVD Video 3/2.1ch, 2/0.0 ch Channel number Current disc... - Page 114 To operate using the On-screen Bar For detailed operations of the following functions, see Ex.: Selecting a subtitle (French) for DVD Video also “To operate using the On-screen Bar” on the left. While a disc is selected as the source... To change the time information Display the entire on-screen bar.
- Page 115 To cancel A-B Repeat, repeat steps 1 to 3, and select “OFF” Select the repeat mode you want. in step 4. Repeats a desired portion (see below). TITLE Repeats the current title. Time Search GROUP Repeats the current group. You can move to a particular point by specifying the elapsed DISC Repeats the current disc.
- Page 116 Control screen for DVD-R/-RW in DVD-VR format Enter the desired chapter/track number. The control screen is superimposed on the TV screen when Examples: DISC 1 DISC 2 DISC 3 you call up Program List (PG) or playlist (PL). To select chapter/track 5, press 5.
-
Page 117: Operations On The Control Screen
To move the highlight bar between group list and track Operations on the Control Screen list Remote INFO ONLY Moves the bar to the track You can search for and play the desired items through the list. control screen for MP3/WMA/JPEG/MPEG-1/MPEG-2/ ASF/DivX discs. - Page 118 To zoom in the JPEG files To select a group (for MP3/WMA/JPEG/MPEG-1/ • You cannot zoom in the still picture during slide-show. MPEG-2/ASF/DivX): • For other discs, see page 19. While playing back a still picture... GROUP/TITLE SKIP • During slide-show, press 8 to display the still picture, then...
-
Page 119: Advanced Tape Operations
Advanced Tape Operations IMPORTANT Remote control It may be unlawful to record or playback copyrighted material without the consent of the copyright owner. Recording on a Tape INFO You can use type I tapes for recording. • To play a tape, see page 9. Insert a recordable cassette. -
Page 120: Synchronized Disc Recording
To record only your favorite track Synchronized Disc Recording INFO You can specify tracks to be recorded on the tape while You can start and stop both disc play and tape recording at listening to a disc (except for DVD Video/DVD-VR). the same time. -
Page 121: Enjoying Karaoke
Enjoying Karaoke IMPORTANT Remote control Always set MIC VOLUME to MIN when connecting or disconnecting the microphone. DO NOT keep the microphone connected while they are not in use. Singing Along (Karaoke) INFO KEY KEY To sing along using the Karaoke discs You can enjoy Karaoke using the Karaoke disc (except ECHO Karaoke CD). -
Page 122: Microphone Mixing
To adjust the Key (disc playback only) Activate Vocal Masking. Activate Key Control. ON SCREEN KEYCON V.MASKING KARAOKE ON SCREEN KEYCON V.MASKING (Canceled) KARAOKE (while holding...) (Canceled) Sing into the microphone. (while holding...) Adjust the MIC VOLUME and VOLUME. Adjust the Key VOLUME VOLUME To raise the... -
Page 123: Reserving Karaoke Songs-Karaoke Program Play
Start playback. Reserving Karaoke Songs Remote ONLY DVD/CD —Karaoke Program Play Playback starts in the order You can determine the playback order of the titles or tracks you have programmed. on the disc player. You can program up to 12 steps. To check the programmed contents Change the source to “DVD/CD.”... -
Page 124: Timer Operations
Timer Operations Select one of the timer setting modes you want to set— REC TIMER (Recording Timer) ON time, DAILY 1 Remote control ON time, DAILY 2 ON time or DAILY 3 ON time. QP LINK CLOCK/TIMER AUDIO Daily Timer 1 Daily Timer 2 Recording Timer ON (Time) - Page 125 To turn on or off the Timer For “DISC”: Select the disc tray number, the title/ group number, then the chapter/track number. Since Daily Timer is activated at the same time everyday, 5 Select the volume level. you may need to cancel it on some particular days. •...
-
Page 126: Setup Menu Operations
Setup Menu Operations INFO Initial settings Remote ONLY Remote Control The Setup Menu cannot be activated during playback. Press SET UP. LANGUAGE MENU LANGUAGE ENGLISH AUDIO LANGUAGE ENGLISH SUBTITLE ENGLISH ON SCREEN LANGUAGE ENGLISH ENTER/SET SET UP Press ) to select the menu. Press ) to select the item. - Page 127 AUDIO menu Item Contents DIGITAL AUDIO OUTPUT Set this item correctly when using the DVD OPTICAL DIGITAL OUT terminal on the rear. PCM ONLY: When connecting to audio equipment which can decode only linear PCM signals. DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an amplifier with a built- in Dolby Digital decoder.
-
Page 128: Additional Information
Additional Information • You can exchange discs while playing or selecting another Learning More about This System disc. • Some DVD Audio discs prohibit downmix. When you Connections (see pages 3 to 5) playback such a disc, “LR ONLY” appears on the display •... - Page 129 – This System can playback JPEG files with the extension In such cases, adjust the volume level of the component louder so that the System can detect the sound signal code <.jpg> or <.jpeg> (regardless of the letter case— properly. upper/lower).
- Page 130 Unique DVD/VCD Operations Even if the source is “DVD/CD,” Karaoke mode setting (see pages 17 to 19) cannot be used while “NO DISC” appears on the display. Selecting the Audio Track: • Karaoke mode setting is automatically canceled when the •...
-
Page 131: Troubleshooting
“NO AUDIO” appears. Troubleshooting ] This System cannot playback illegally produced DVD Audio discs. General: “LR ONLY” appears. Adjustments or settings are suddenly canceled before ] Some DVD Audio discs prohibit downmixed output. you finish. When you playback such a disc, this System plays back ] There is a time limit. - Page 132 Language Code List Persian KM Cambodian OM (Afan) Oromo Swedish Afar Finnish Kannada Oriya Swahili Abkhazian Fiji Korean (KOR) Panjabi Tamil Afrikaans Faroese Kashmiri Polish Telugu AM Ameharic Frisian Kurdish Pashto, Pushto Tajik Arabic Irish Kirghiz Portuguese Thai Assamese Scots Gaelic Latin Quechua Tigrinya...
-
Page 133: Operating Jvc's Tvs Using The Remote Control
* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD OPTICAL DIGITAL OUT terminal. Operating JVC’s TVs Using the Remote Control You can use the remote control to operate JVC’s TVs. Remote control Turn on/off TV. -
Page 134: Specifications
General Specifications Power requirement: AC 110 V/AC 127 V/AC 220 V/ AC 230 V-240 V Amplifier section—CA-UXG70 (adjustable with the voltage selector), 50 Hz/60 Hz Output Power: 160 W (80 W+80 W) at 6 Ω (10% THD) Power consumption: 95 W (at operation) Audio Input LINE IN: 18 W (at standby) -
Page 135: Parts Index
REPEAT A-B RESERVE RETURN SCAN MODE SET UP This remote control can also operate JVC’s TVs SHIFT 10, 11, 12, 14, 15, 16, 18, 19, 22, 28, 32, 33, 43 SLEEP (see page 43). SLOW 9 9 9 9 , ( ( ( (... - Page 136 Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.) 110V VOLTAGE SELECTOR 220V 127V 230V-240V CAUTION for mains (AC) line BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector...
